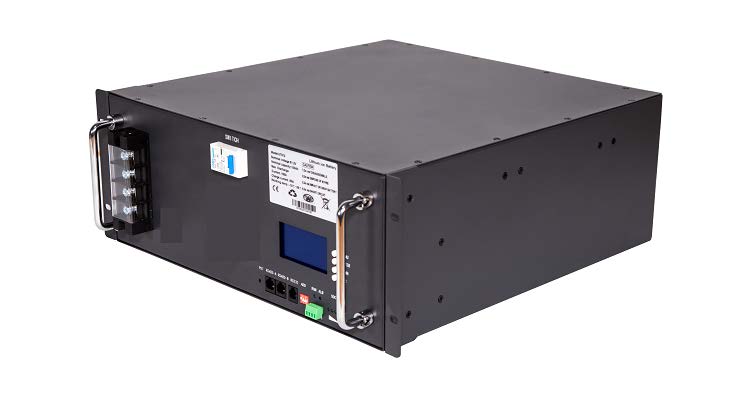

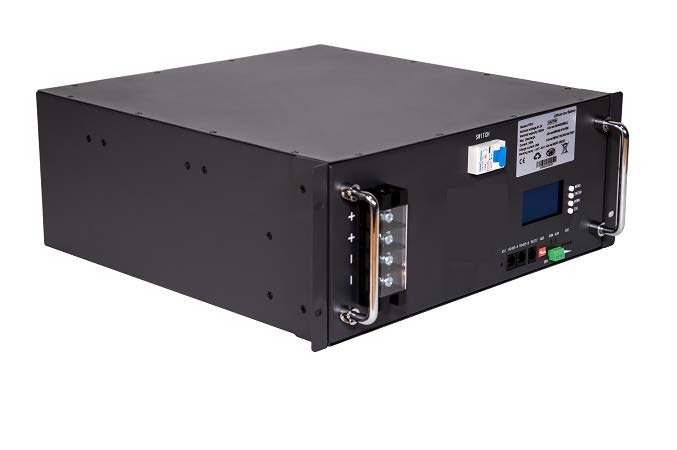

NUE-POWER Rack 48V 100Ah

NUE-POWER Rack 48V 100Ah

$3,156.00
$3,156.00
An affordable professional-grade lithium iron phosphate (LiFePO4) battery in a standard rackmount case for medium sized indoor rack-based solutions 5120Wh of stored energy in a standard rackmount case. Bluetooth communication...
View full details

An affordable professional-grade lithium iron phosphate (LiFePO4) battery in a standard rackmount case for medium sized indoor rack-based solutions

5120Wh of stored energy in a standard rackmount case. Bluetooth communication directly from the Battery Management System (BMS) provides accurate state of charge information and remote control capabilities.

Safer and quieter to operate. No noise and fumes (compared to a portable generator backup)

Eliminate the logistics associated with fuel supply chain

Swap out (or add) units in seconds

Can be used indoors or outdoors

Custom cabling available

We only use LiFePO4 cells from premium cell manufacturers to ensure the safest solutions for our customers. LiFePO4 is recognized by the solar industry as a safer solution than NMC (Nickel-Manganese-Cobalt) batteries used in electric vehicles. LiFePO4 also does not include cobalt.

NUE-POWER Rack 48V

NUE-Power Version 48V 100Ah Rackmount
Battery Type Lithium Iron Phosphate (LifFePO4)
Storage Capacity 5.12 kWh
Estimated Cycle Life based on an 80% Depth of Discharge(subject to other variables including temperature and load) 6,000
DC Nominal Voltage 51.2V
Operating Voltage Range43.2-58.4V
Max Continuous Charge Current20A (100A)
Nominal and Minimum Capacity100Ah
Max Continuous Discharge Current100A
Peak Discharge Current110 A (5 S)
Maximum in Parallel15
Discharge Temperature Range-4-140°F (-20-60°C)
Charging Temperature Range32-131°F (0-55°C)
Weight99lb (45kg)
Dimensions17.91”x17.4”x6.1” (45.5x44.2x15.5 cm)
Warranty and Certifications2-YEAR LIMITED MANUFACTURER’S WARRANTY UN 38.3, UL 1973 (Cell), and CE (Cell), FCC, ROHS, IEC62619 Certified

Applications
