SunTarp™

SunTarp™

Regular price $850.00
Regular price Sale price $850.00
Model
The ultimate lightweight, rugged portable solar array.
View full details

NUE’s U.S.-designed and assembled SunTarp™ lightweight solar arrays provide the ultimate balance of power production, ruggedness and portability.

Traditional framed glass solar panels are no match for the mono-crystalline MILSPEC solar panels in the SunTarp™. Users no longer have to be concerned about their critical source of energy being damaged from dropping or being hit by flying objects (e.g. rocks, shrapnel). Multiple solar panels in a single folding array allows users to configure the SunTarp™ in a variety of ways to allow charging of one - or several - devices simultaneously.

When portability, ruggedness and power output are paramount, the SunTarp™ is the choice of professionals around the world.

40% lighter than a traditional glass solar panel of similar efficiency.

Withstands vibrations and impacts that would break a traditional solar panel, even when stepped on.

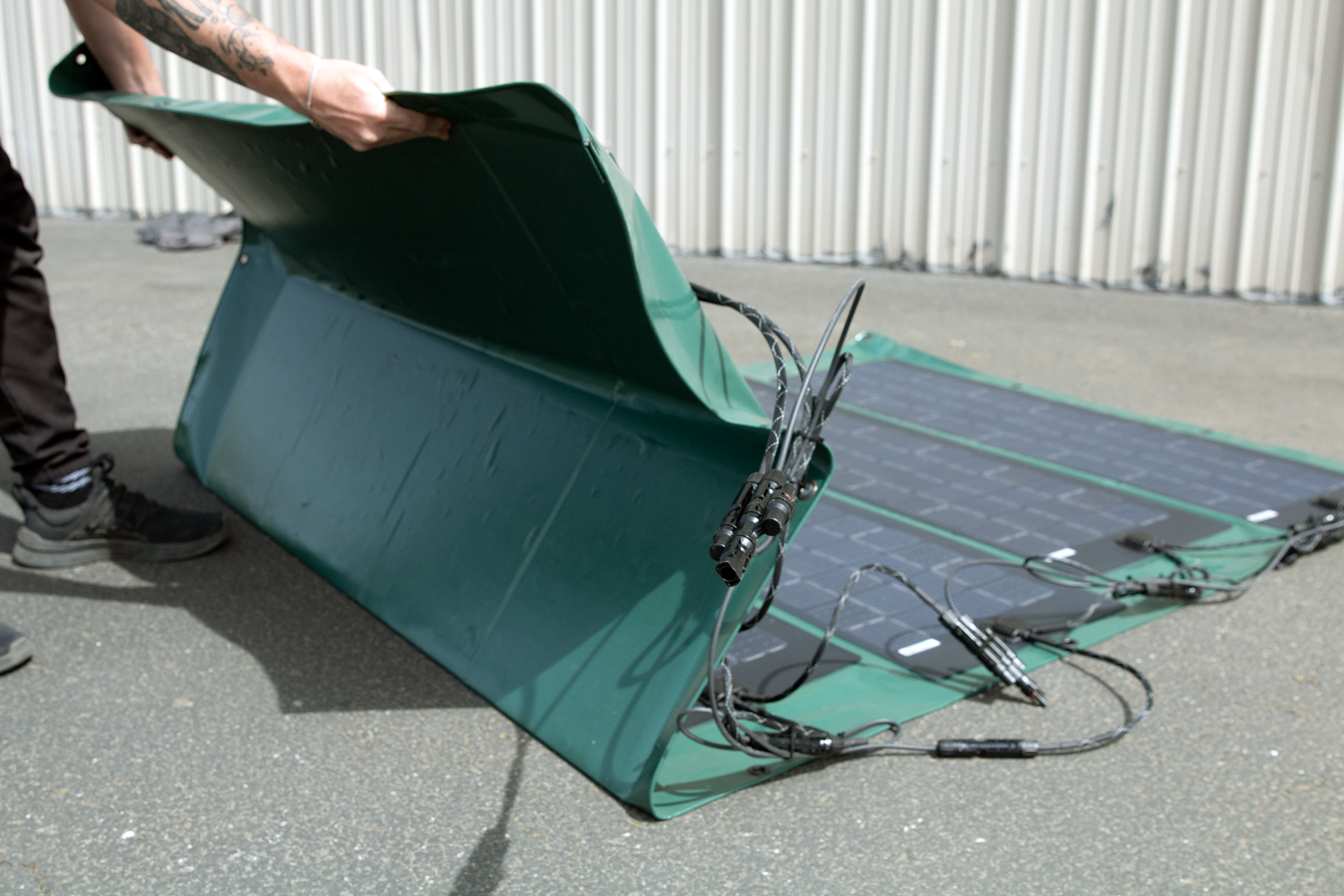

Solar panels are adhered to durable vinyl tarp material allowing the array to be folded for compact carrying, yet deployable in seconds

Up to 2.5 times power density vs. thin film flexible panels.

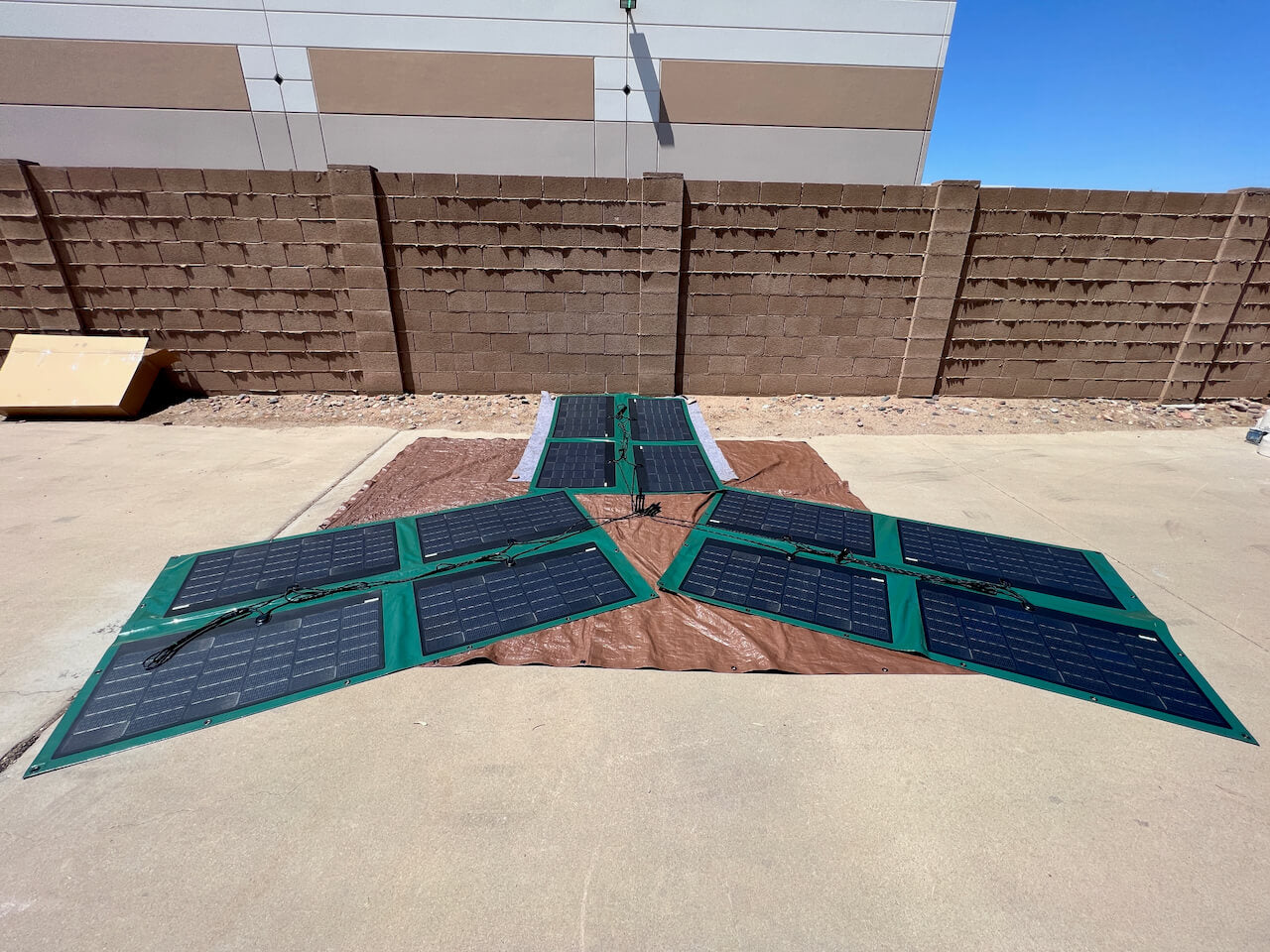

Array can be wired both in series and parallel as needed.

Trifold Product Data Sheet

Trifold Quick Start Guide

QuadFold Product Data Sheet

QuadFold Quick Start Guide

HexFold Product Data Sheet

HexFold Quick Start Guide

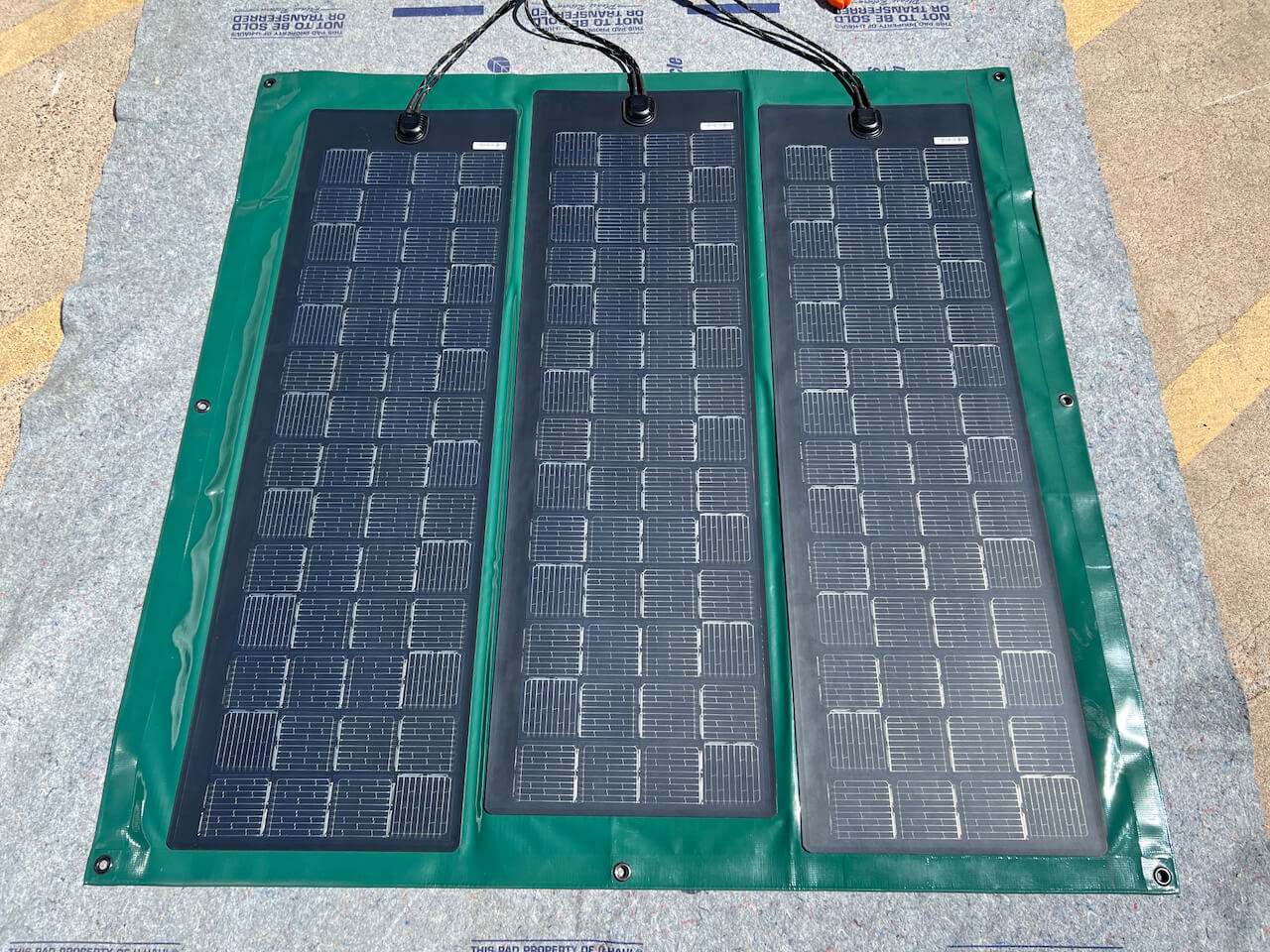

SunTarp Version TriFold
Total System Watts (3 Modules) 210W (70W per Module)
Active Area Efficiency 19.4%
Open Circuit Max per Module 37.5 Voc
Weight 15lb (6.8kg)
Dimensions (Open) 56″x54″x1″ (142x137x3 cm)
Dimensions (Closed) 56″x18″x3″ (142x46x8 cm)
Warranty 1-YEAR LIMITED MANUFACTURER’S WARRANTY
Testing Passed UL 1703, IEC 61215/61730
SunTarp Version QuadFold
Total System Watts (4 Modules) 320W (80W per Module)
Active Area Efficiency 19.4%
PMAX per Module 19.32V
Open Circuit Max per Module 23.08 Voc
Weight 24lb (11kg)
Dimensions (Open) 56″x90″x1″ (142x229x3 cm)
Dimensions (Closed) 28″x45″x3″ (21x114x8 cm)
Warranty 1-YEAR LIMITED MANUFACTURER’S WARRANTY
Testing Passed UL 1703, IEC 61215/61730

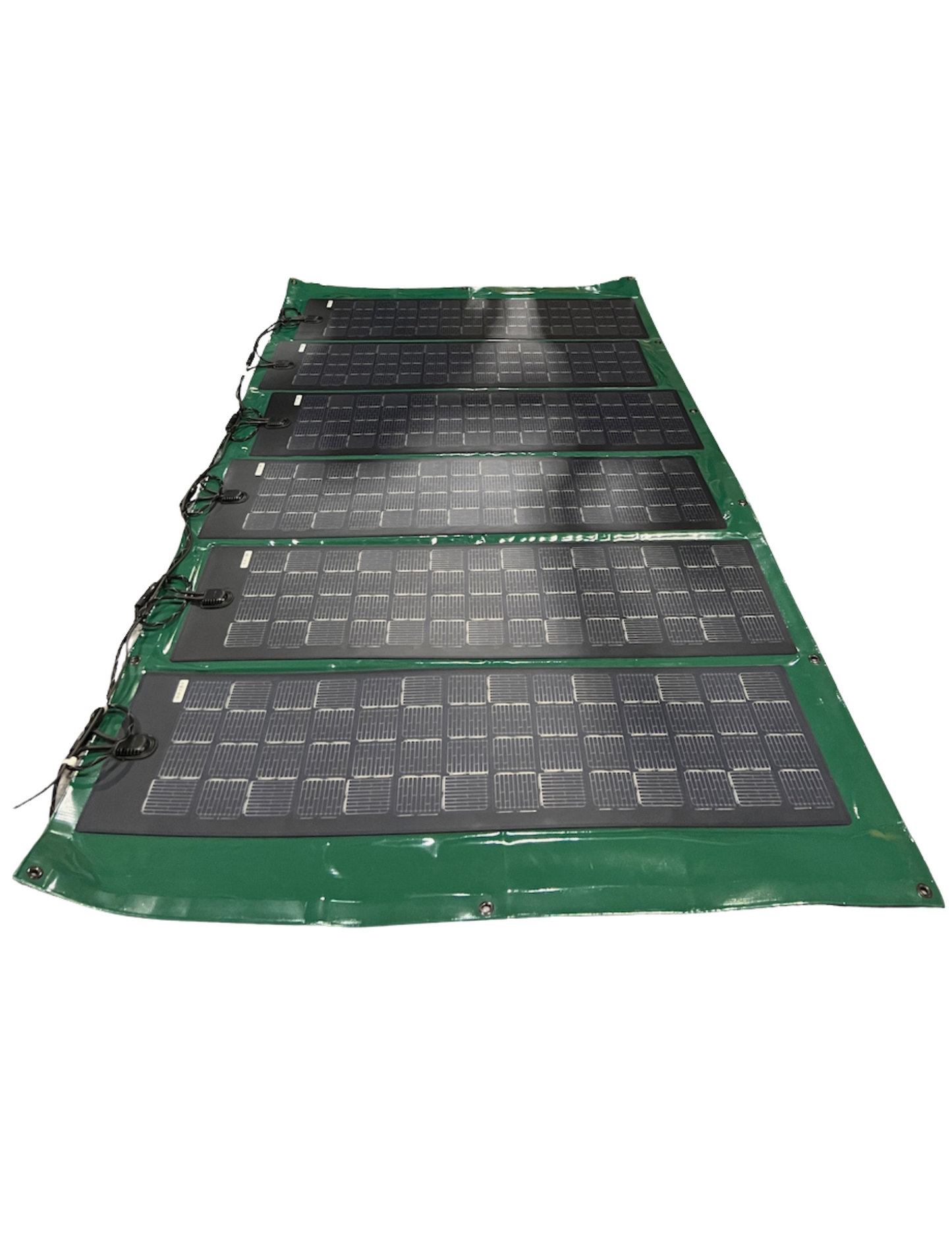

SunTarp Version HexFold
Total System Watts (6 Modules) 420W (70W per Module)
Active Area Efficiency 19.4%
Open Circuit Max per Module 37.5 Voc
Weight 30lb (13.6kg)
Dimensions (Open) 56″x100″x1″ (142x254x3 cm)
Dimensions (Closed) 56″x17″x6″ (142x43x15 cm)
Warranty 1-YEAR LIMITED MANUFACTURER’S WARRANTY
Testing Passed UL 1703, IEC 61215/61730

  • PV Extension cable (30ft or 100ft)

Applications
