Side view of a black portable power case with cooling vents, a PV input port, and a sturdy hinge design.

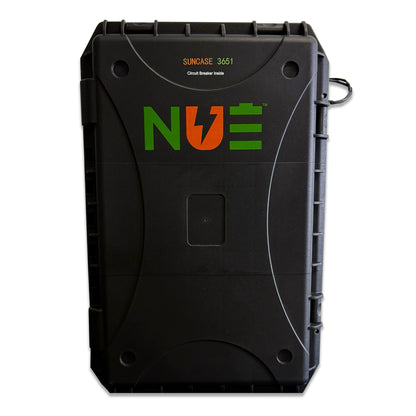

Front view of a black NUE portable power case with a bold green and orange logo and a durable, rugged design.

SunCase™ 3651

$4,900.00
Quantity
Suncase 3651:
  • 15 In stock
Ask a question to a portable power expert!

Heavy-duty 3600W / 5120Wh high-capacity power station engineered to support any 120V or 230V appliance. This rugged, high-output unit features an integrated inverter/charger with a massive 1700W / 170V DC solar input capacity and 1650W standard AC fast-charging.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Side view of a black portable power case with cooling vents, a PV input port, and a sturdy hinge design.
Front view of a black NUE portable power case with a bold green and orange logo and a durable, rugged design.

Product Benefits

Rugged

Handles harsh operating and transportation environments.

5kWh and 3.6kW

Inverter make this product optimal for large professional-grade loads.

Can Output Both

48V DC and 120V AC power from the same unit.

Bluetooth App

Comes with a convenient easy-to-use Bluetooth App.

High Cycle life

Of 6,000 cycles at 80% DoD (subject to variability).

Other DC Outputs

(12V & 5V USB)

Product Download Links

Warranty Document

Product Data Sheet

Military Data Sheet

User Manual
SunCase Version 3651
Pure Sine Wave Inverter3600W
Battery Type Lithium Iron Phosphate (LifFePO4)
Storage Capacity 5.12 kWh
Estimated Cycle Life based on an 80% Depth of Discharge
(subject to other variables including temperature and load) 		6,000
Output OptionsModels have either 2 110V 60Hz 20A Outlets or 2 220V 50Hz Universal Outlets,
US Models have 1 30A 110V Twist-lock outlet, All models have 2 48V 75A, 1 12V 10A,
and 2 5V USB and USB C Outlets
Solar Charge Controller70-150V 1700W Max
AC Charging 1650W Internal Built-In. External fast-charger optional. Max 100A charge rate
Circuit Breaker Protection Built-in 80A, CHNT, Model#: NXB-125-1P
Recommended Operating Voltage Range48-54.4V DC
Operating Temperature Range32-131°F (0-55°C)
Weight123 lb (53 kg), (boxed gross: 135lb [61kg])
Enclosure Dimensions (HxWxD)(HxWxD) 28”x18”x11” (72x46x28 cm), Box Dimensions 39”x 24”x17” (100x59x43cm)
Warranty and Certifications24 MONTHS LIMITED MANUFACTURERʼS WARRANTY, UN38.3 (cells) CE (cells),
RoHS compliant (Cells), UL 1642 (Cell), UL 1973 (Cell), CSA C22.2 No. 5
(Circuit Breaker)

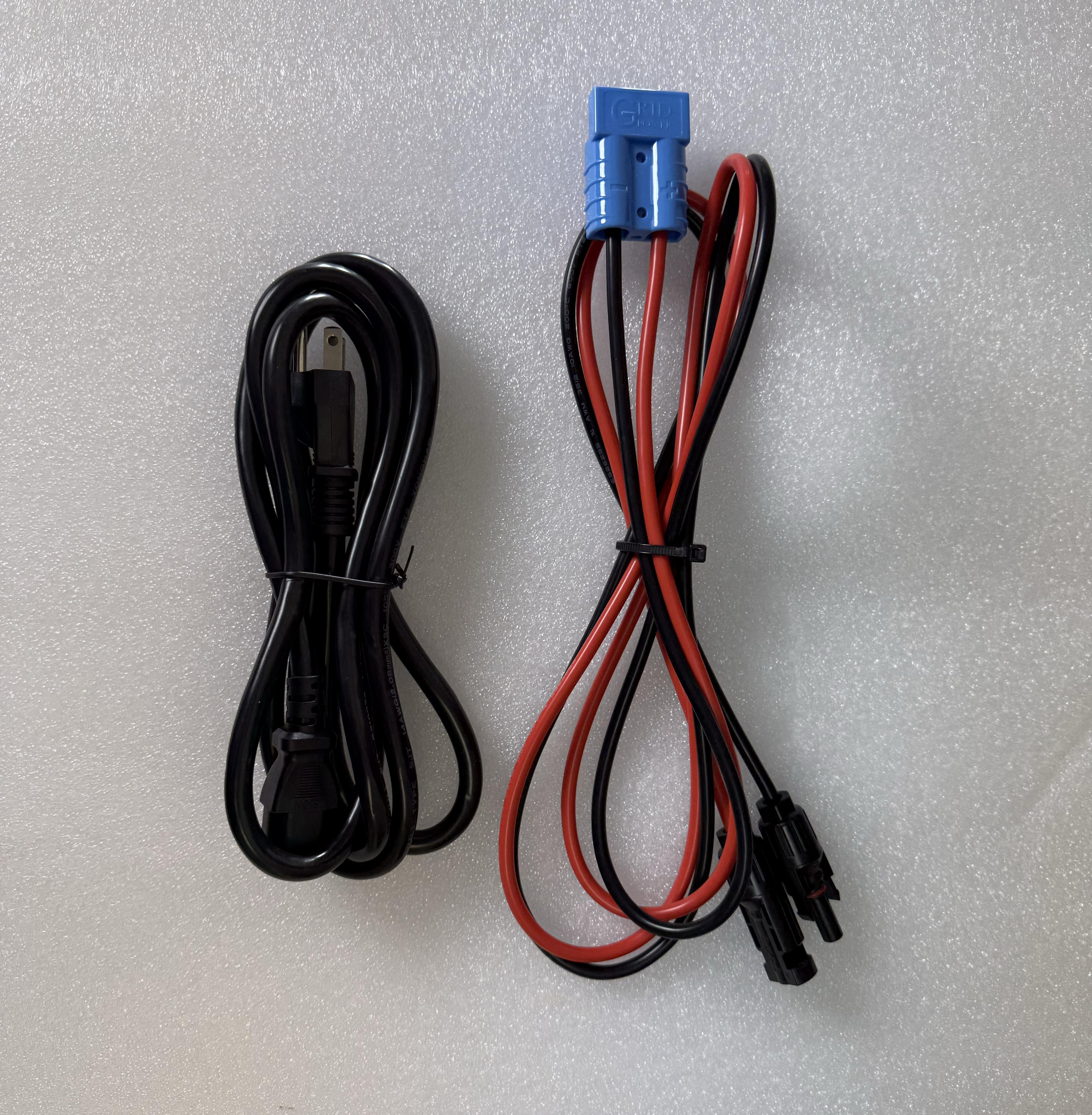

Accessories
