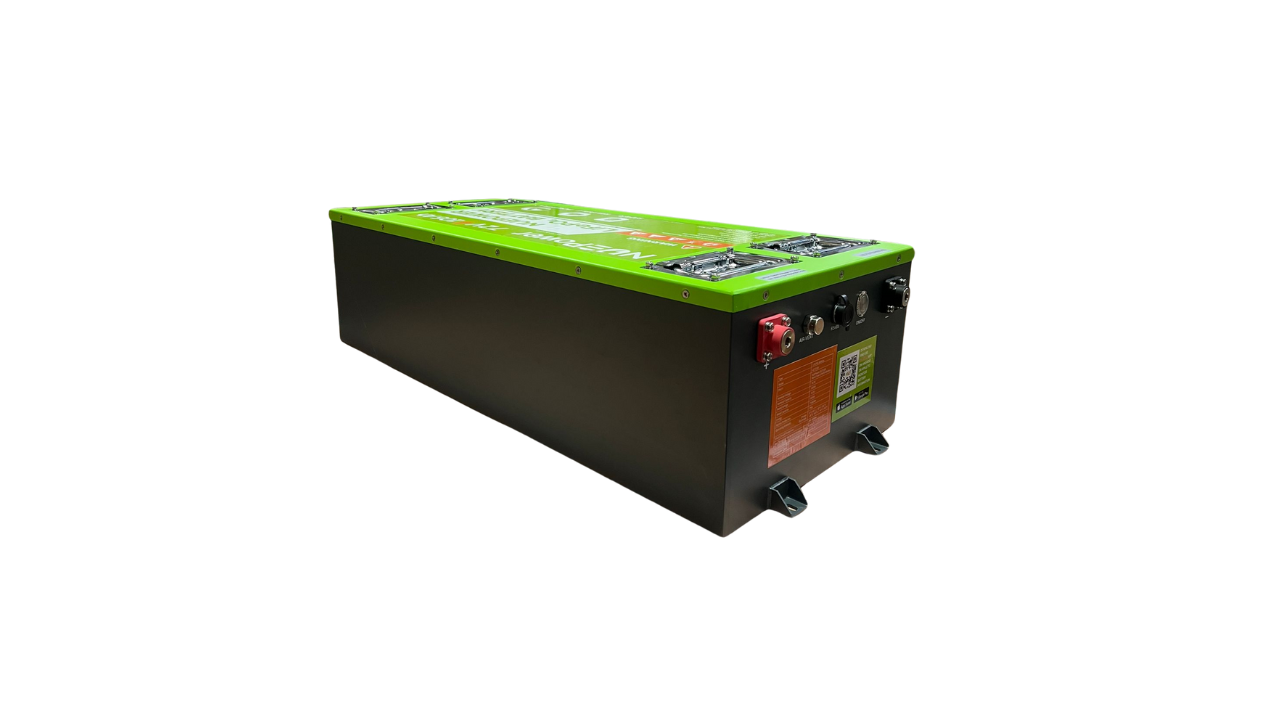

Rectangular black and green battery with terminal connections, QR code, and specifications panel, designed for high-capacity use.

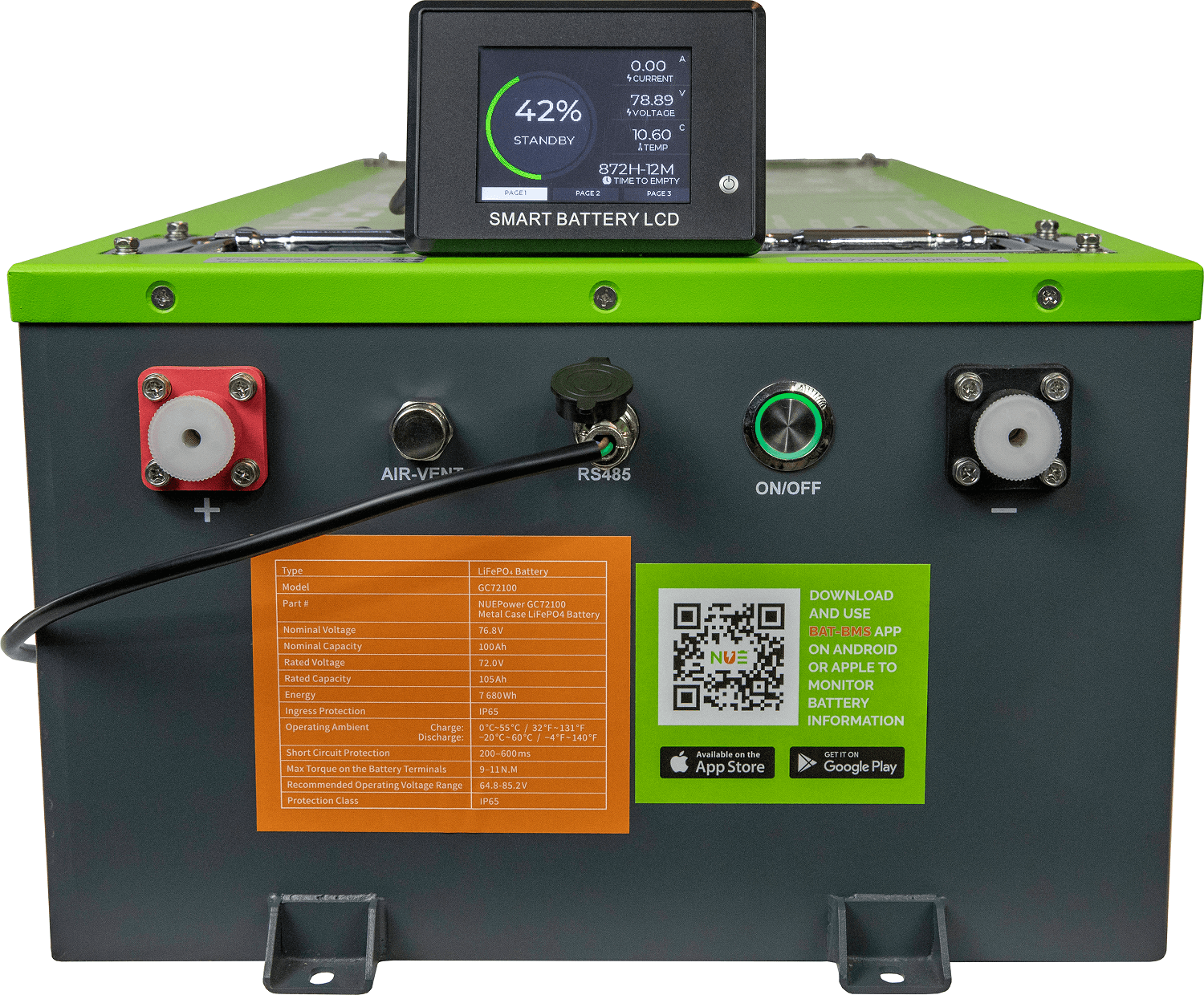

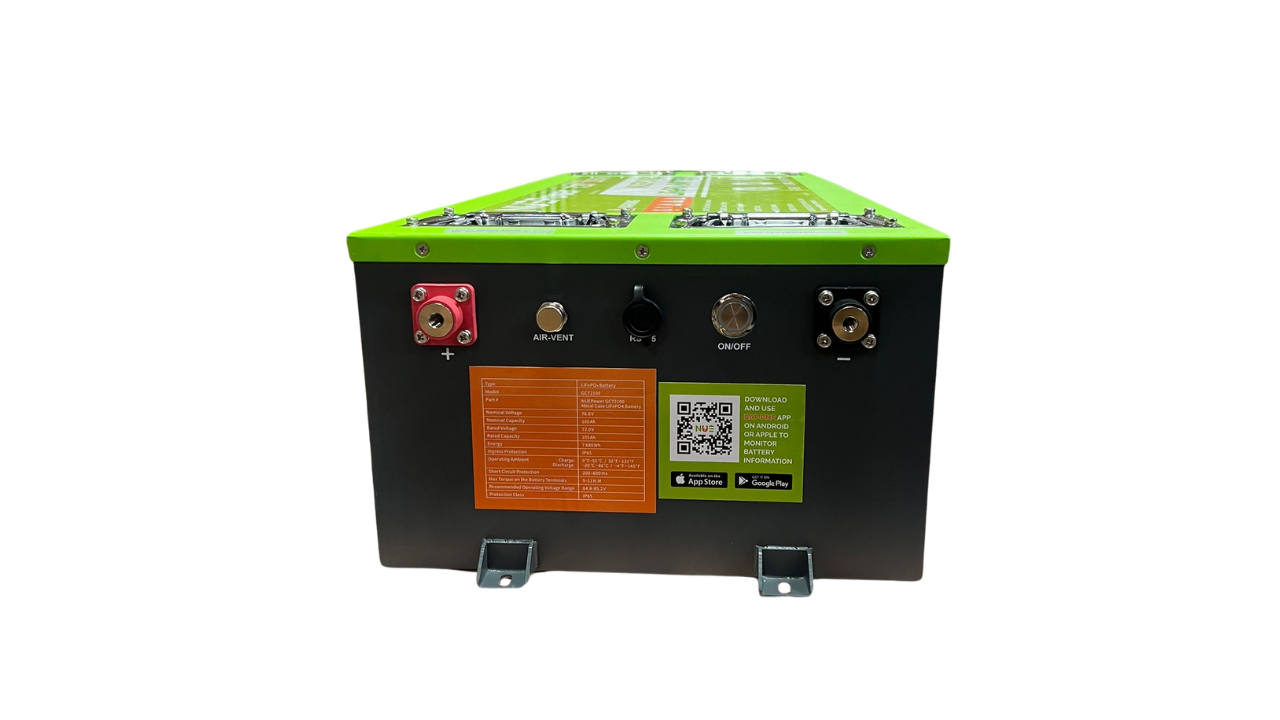

Rear view of a green and black battery with terminal connections, air vent, on/off switch, QR code, and specifications panel.

NUEPower™ 72V 105Ah Metal Case Battery and Charger Kit

$2,100.00
Quantity

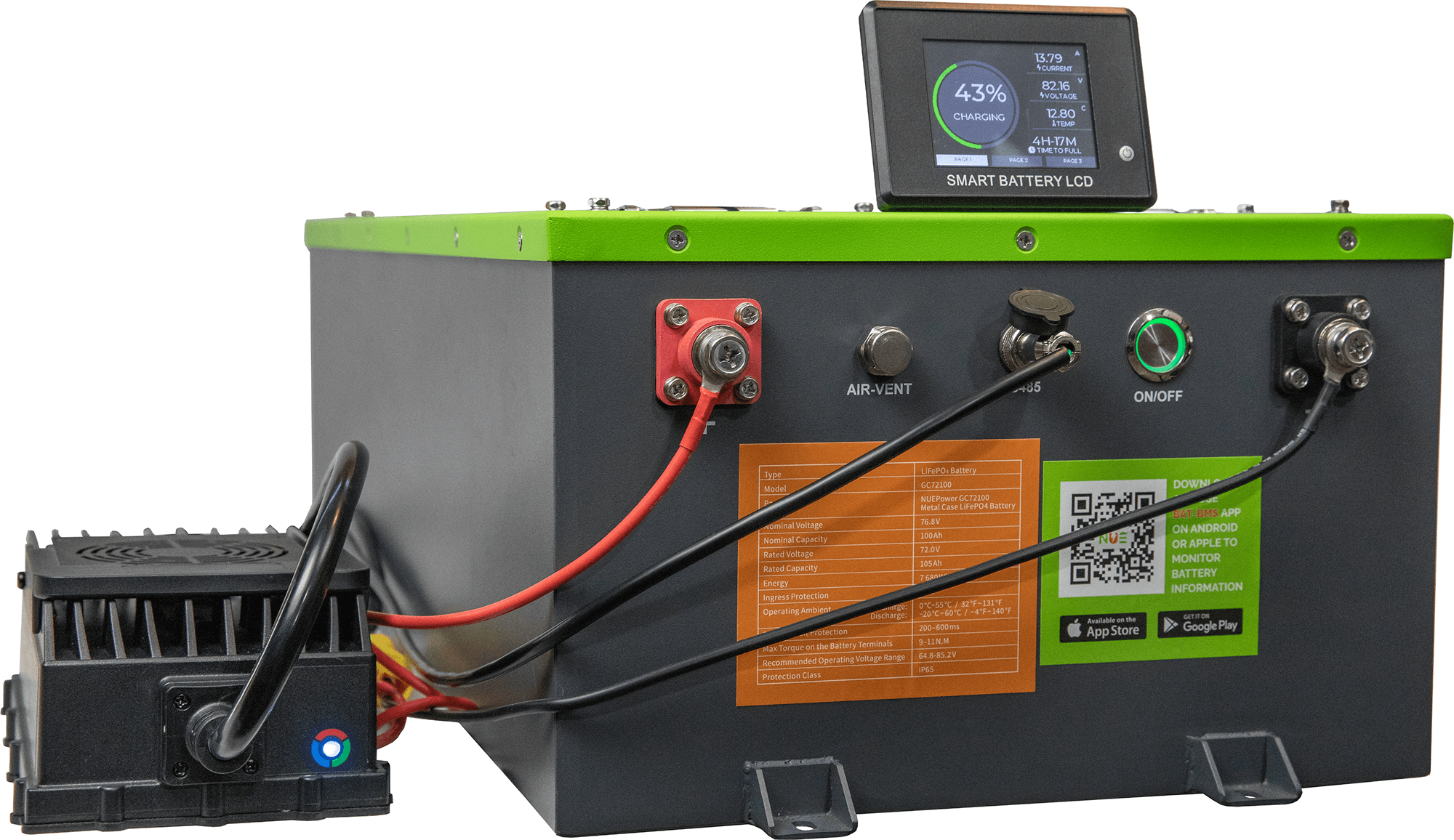

NUEPower™ 72V 105AH Metal Case Battery and Charger Kit:
Ask a question to a portable power experts!

Experience top-tier energy solutions with the NUEPower™ 72V 105Ah LiFePO4 Battery & Smart Charger Kit. This IP65-rated metal case battery delivers 3840Wh of power, engineered to endure tough conditions, shocks, and vibrations.

Paired with a fast and intelligent smart charger, this kit guarantees safe, efficient, and optimized charging, preventing overcharging and extending battery life.

With Bluetooth monitoring, GPS tracking, and an advanced Battery Management System (BMS), you can track performance in real-time. The integrated LCD screen provides instant status updates for effortless monitoring.

Perfect for EVs, solar storage, marine, and off-grid power, this kit ensures maximum efficiency and reliability in every use!

Please email sales@newuseenergy.com or call us for installation services.

If you are working on a project with a programmable charging source, reach out for quote for metal case battery as well.
Why having a matched charging source is so important - here is a kit for your convenience

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Rectangular 72V 105Ah NUEPower LiFePO4 battery with green top, warning icons, QR code, and terminal connections.
Rectangular black and green battery with a labeled top, secure handles, and sturdy feet for stability.
Rectangular black and green battery with terminal connections, QR code, and specifications panel, designed for high-capacity use.
Rear view of a green and black battery with terminal connections, air vent, on/off switch, QR code, and specifications panel.

Product Benefits

IP65 Case Protects From Water And Dust
External State of Charge (SOC) Display
Short Form Factor For Easy Installation
Easy To Use Bluetooth App
Extra Internal Protection From Shock
Form Factor

Works for all models of golf carts, including older Lead-Acid Models.

Product Download Links

Warranty Document

User Manual

LifePO4 Voltage Calculator

MSDS Report

72V 105AH Metal Case Data Sheet

NUEPower Chargers Data Sheet
NUE-Power Version 72V 105Ah Metal Case Battery
Battery Type Lithium Iron Phosphate (LifFePO4)
Storage Capacity 7680 Wh
Estimated Cycle Life based on an 80% Depth of Discharge
(subject to other variables including temperature and load)		 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity
DC Nominal Voltage 76.8V
Operating Voltage Range 64.8-85.2V
Max Continuous Charge Current 105A
Nominal and Minimum Capacity 105Ah
Max Continuous Discharge Current 105A
Peak Discharge Current 600A (3-5 s)
Maximum in Parallel 16
Discharge Temperature Range -4 to 140 °F (-20 to 60 °C)
Charging Temperature Range 32 to 131 °F (0 to 55 °C)
Optional Internal Heating Element Heating ON @ 32°F (0°C), Heating OFF @ 41°F (5°C) Optional Internal Heating Element Consumes 85W
Weight 143.3 lbs (65 kg)
Dimensions 28”x12.2”x8” (71x31x20 cm) v
Warranty and Certifications 5-YEAR LIMITED MANUFACTURER’S WARRANTY UN 38.3, Conforms to UL 1973 (Cell), and CE (Cell) Certified.

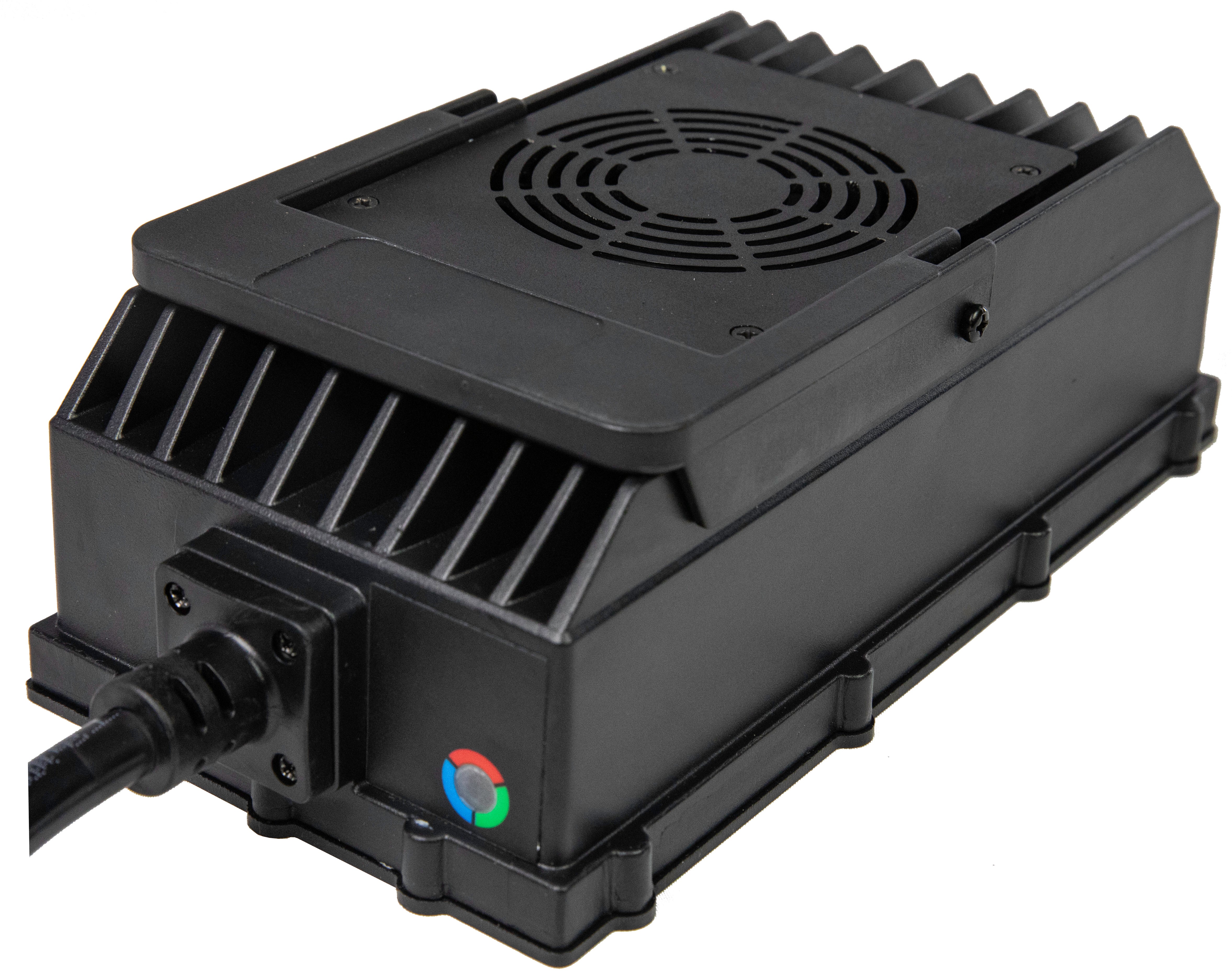

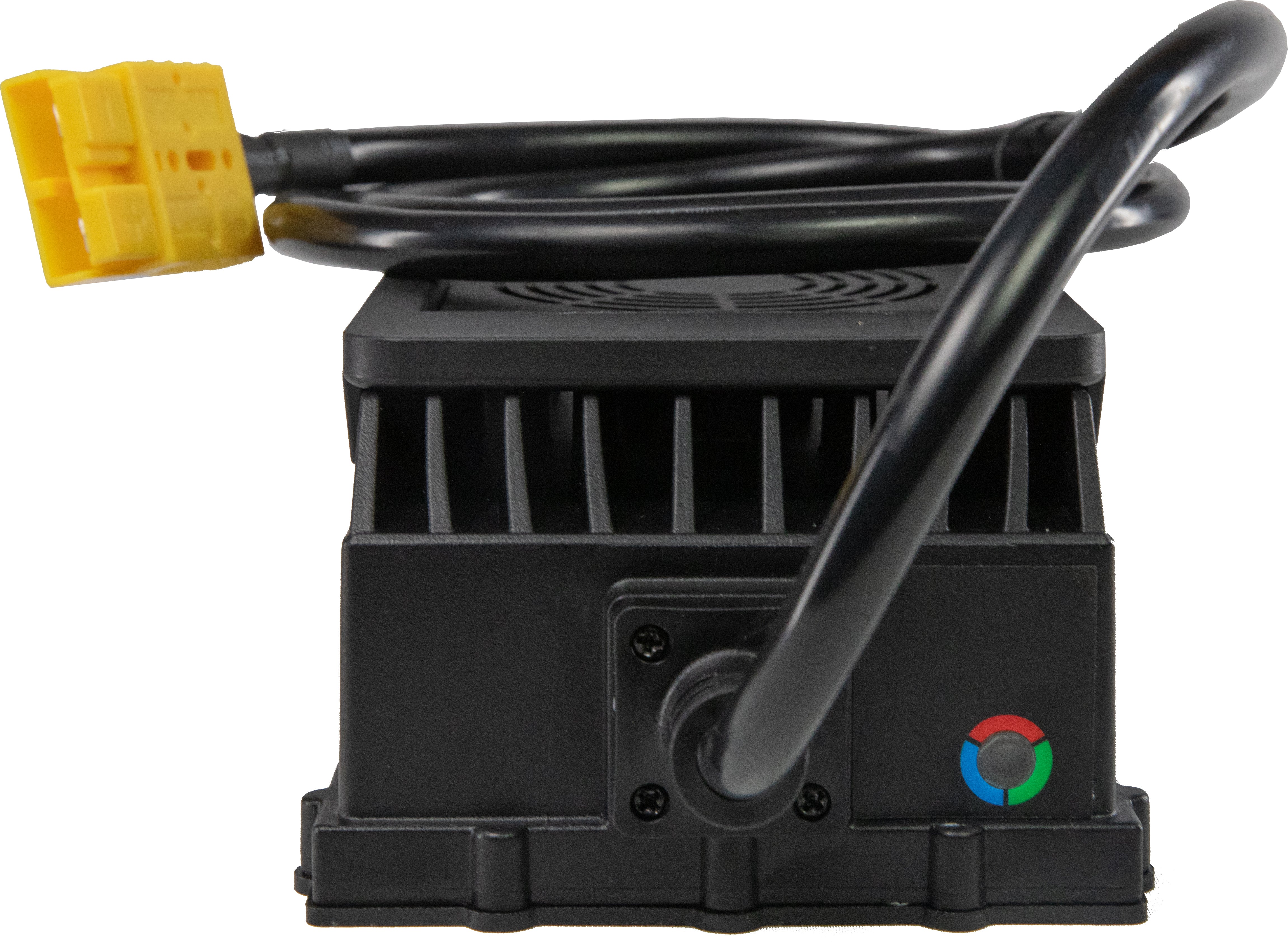

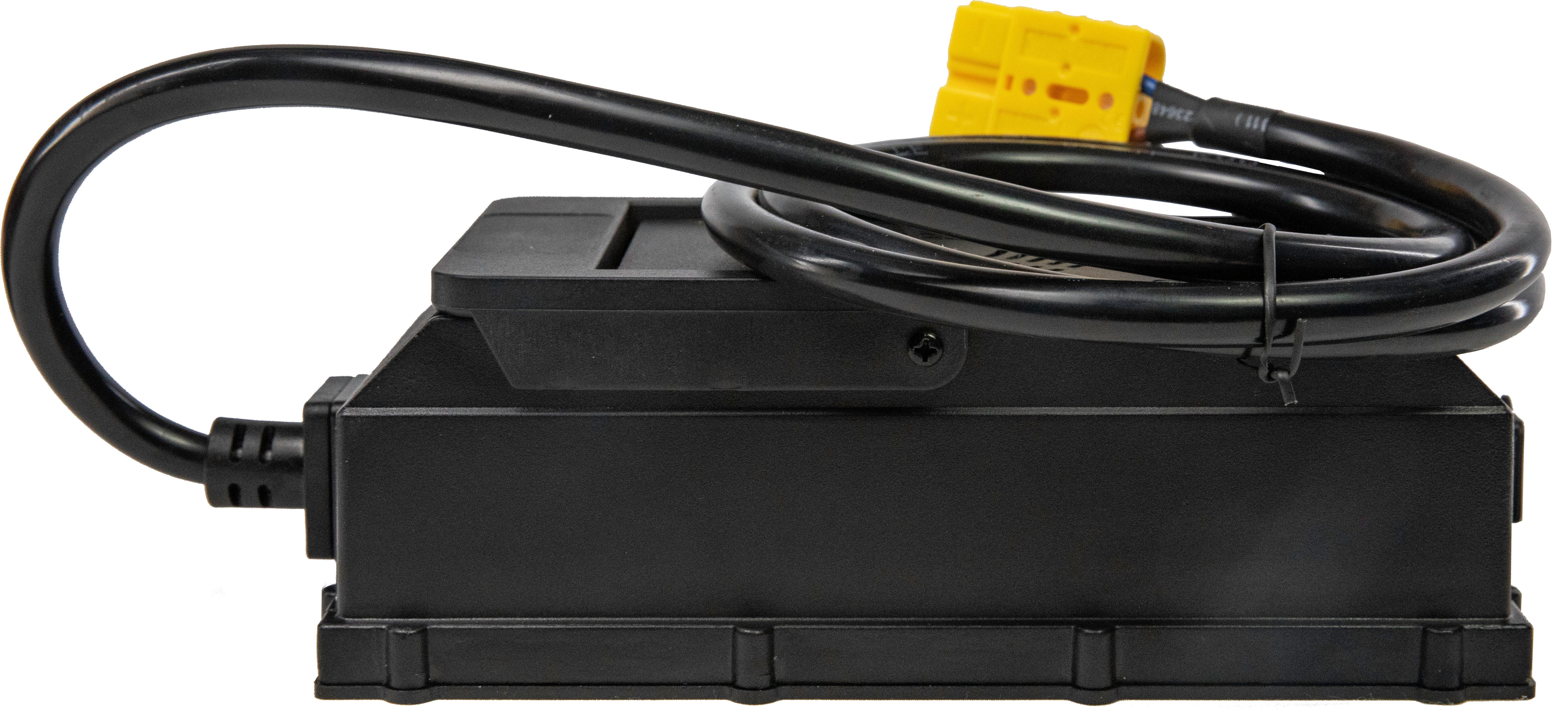

NUE Chargers Specifications
Rated Input Voltage 100-240Vac
Operating Temperature -10 ~ +45°C
Storage Temperature -40 ~ +70°C
Relative Humidity 5%-95%
Altitude Equal to or less than 2000m
Connector SB120 to SB120 Ring Terminal Pig Tail
LED Charging Indicator Waiting Mode (Green Flash), Charging Mode (Blue),
Fully Charged (Green), Charging Error Mode (Red Flash)
Safety Certification FCC Class A
Protections Reverse Polarity Protection, Output Short Circuit Protection,
Output Overvoltage Protection, Output Overcurrent Protection
Warranty Maximum Two Year Warranty
