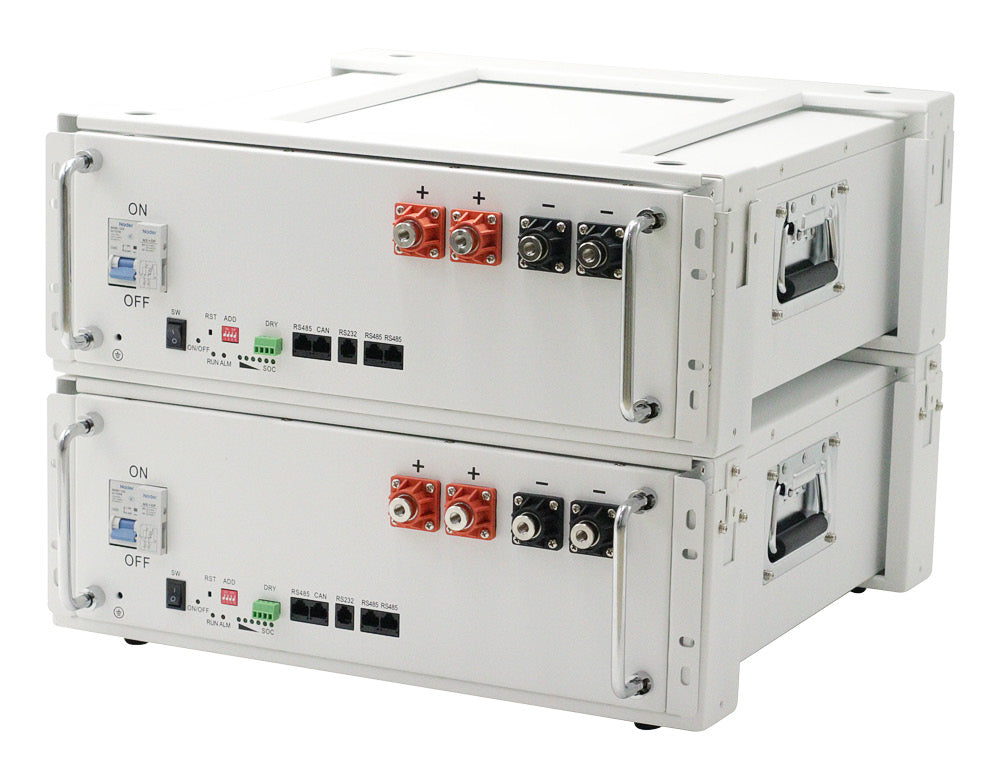

NUEPower™ 48V 100Ah UL 1973 Rack
NUEPower™ 48V 100Ah UL 1973 Rack
Regular price
$1,620.00
Regular price
Sale price
$1,620.00
Unit price
per
Contact Us for Wholesale Pricing
Couldn't load pickup availability
An affordable professional-grade lithium iron phosphate (LiFePO4) battery in a standard rackmount case for medium sized indoor rack-based solutions 5120Wh of stored energy in a standard rackmount case. Bluetooth communication...
Contact us about our golf cart solarization kit.
An affordable professional-grade lithium iron phosphate (LiFePO4) battery in a standard rackmount case for medium sized indoor rack-based solutions
5120Wh of stored energy in a standard rackmount case. Bluetooth communication directly from the Battery Management System (BMS) provides accurate state of charge information and remote control capabilities. Certified to UL 1642 (Cell), UL 1973 (Cell), and UL 1973 (Battery).
Warranty Document
Product Data Sheet
User Manual
UN38.3 Test Report
MSDS Report
| NUE-Power Version | 48V 100Ah Rackmount |
|---|---|
| Battery Type | Lithium Iron Phosphate (LifFePO4) |
| Storage Capacity | 5120 Wh |
| Estimated Cycle Life based on an 80% Depth of Discharge (subject to other variables including temperature and load) | 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity |
| DC Nominal Voltage | 51.2V |
| Recommended Voltage Range | 43.2-58.4V |
| Max Continuous Charge Current | 20A (100A) |
| Nominal and Minimum Capacity | 100Ah |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 110 A (5 S) |
| Maximum in Parallel | 15 |
| Discharge Temperature Range | -4-140°F (-20-60°C) |
| Charging Temperature Range | -4-131°F (-20-55°C) |
| Weight | 99lb (45kg) |
| Dimensions | 17.91”x17.4”x6.1” (45.5x44.2x15.5 cm) |
| Warranty and Certifications | 7-YEAR LIMITED MANUFACTURER’S WARRANTY UN 38.3, UL 1632 (Cell), UL 1973 (Cell), Certified to UL 1973 (Battery) and CE (Cell), FCC, ROHS, IEC62619 Certified |
Applications
