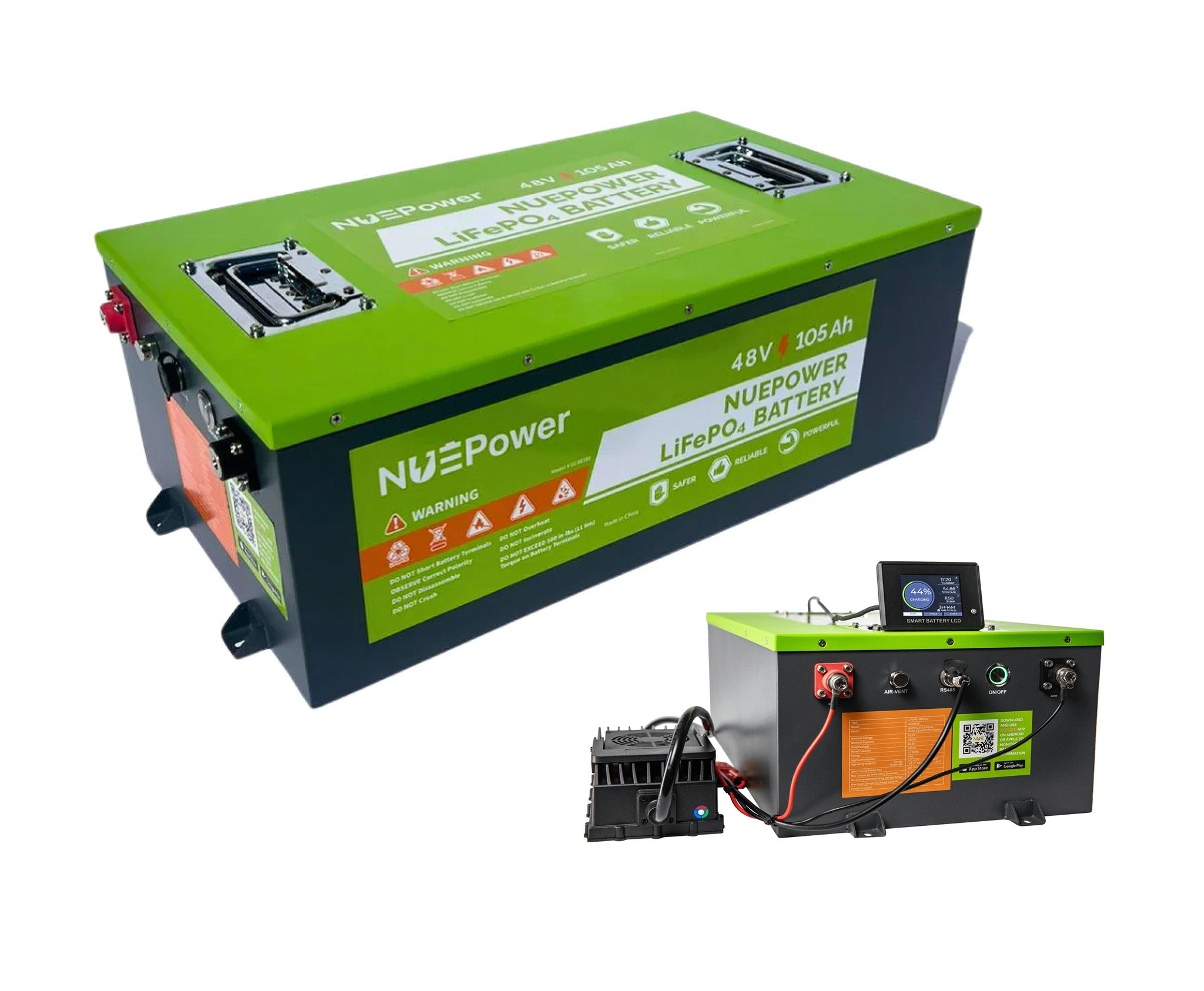

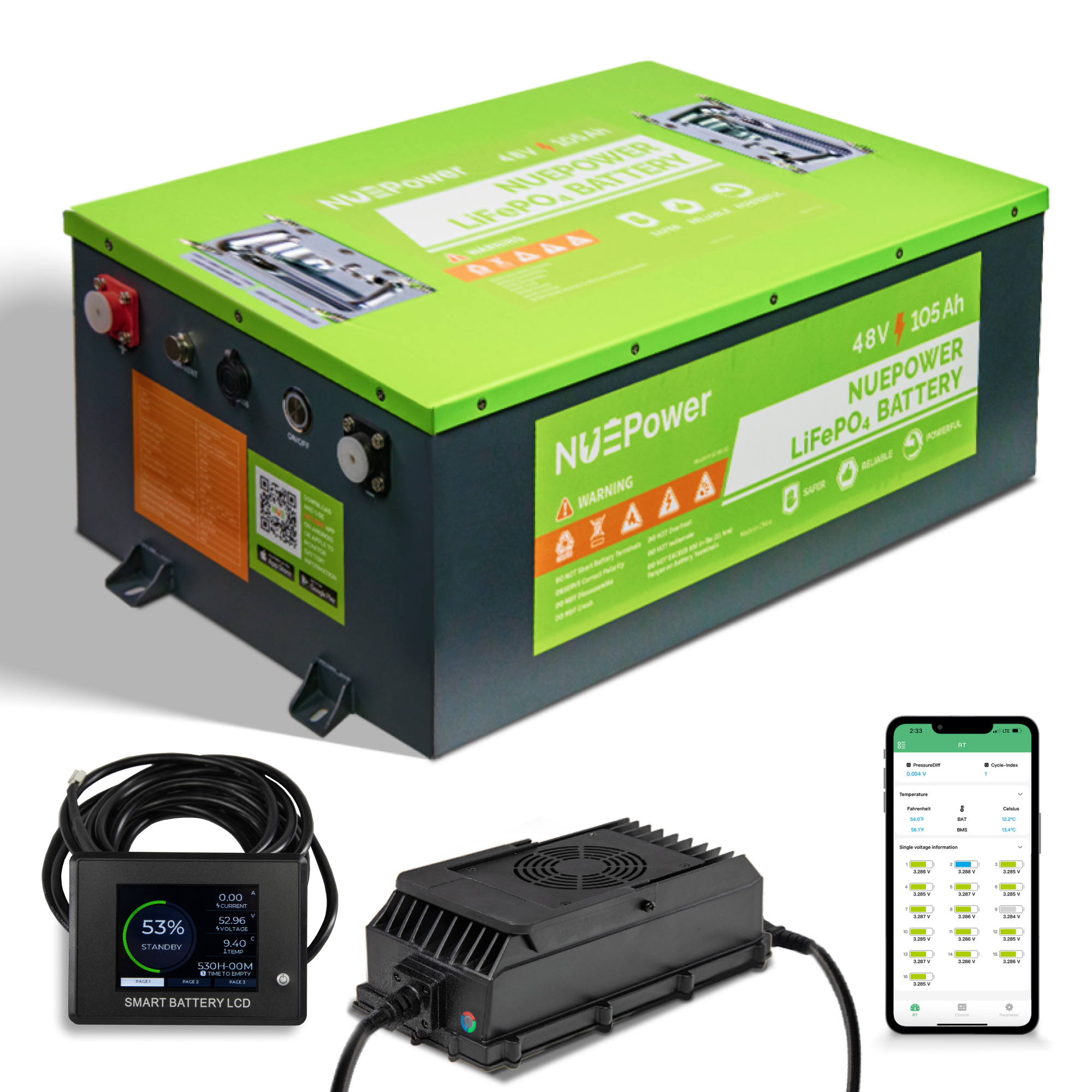

NUEPower™ 48V 105Ah Battery & Charger Package

$2,000.00
Quantity

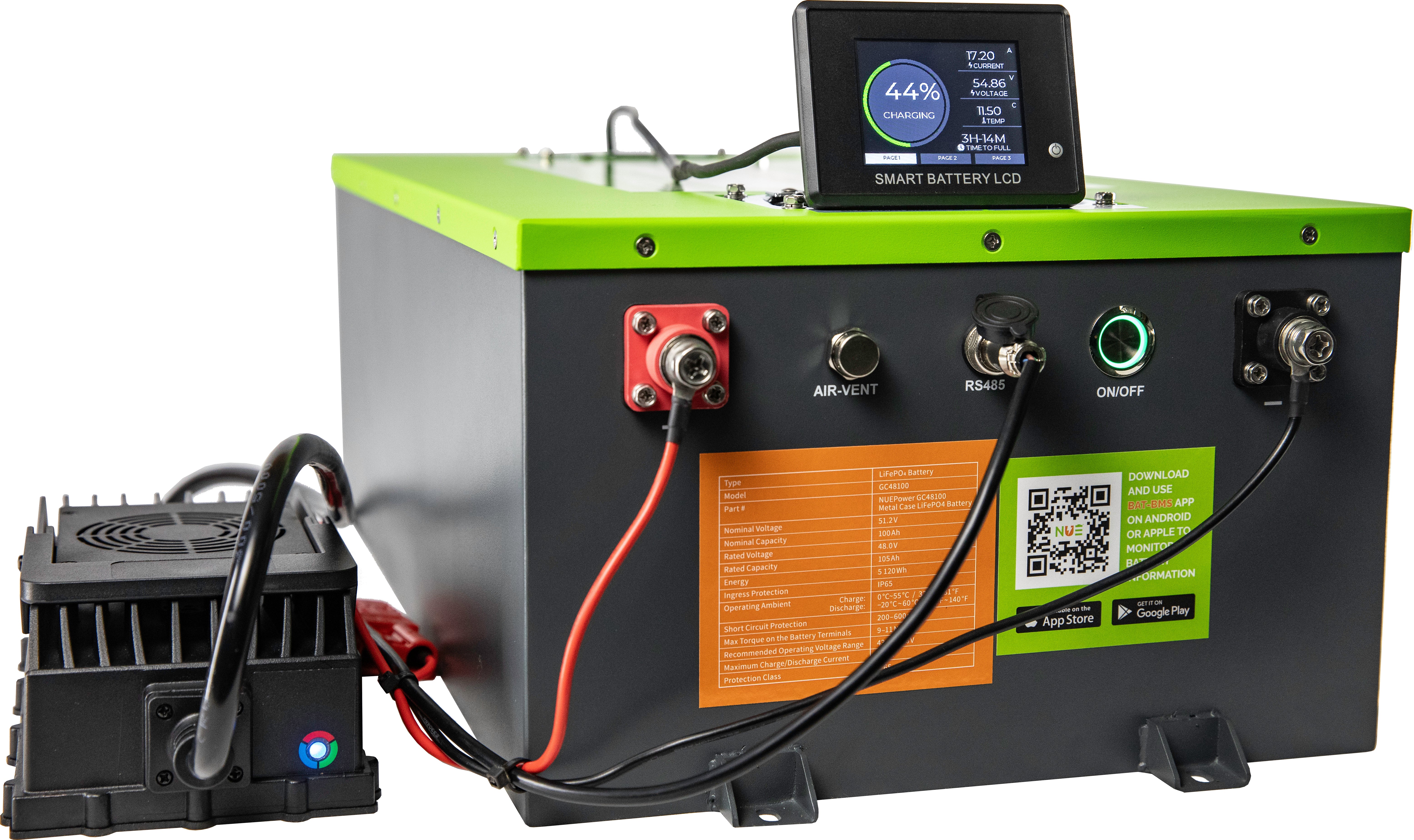

NUEPower™ 48V 105Ah Battery & Charger Package:
Ask a question to a portable power expert!

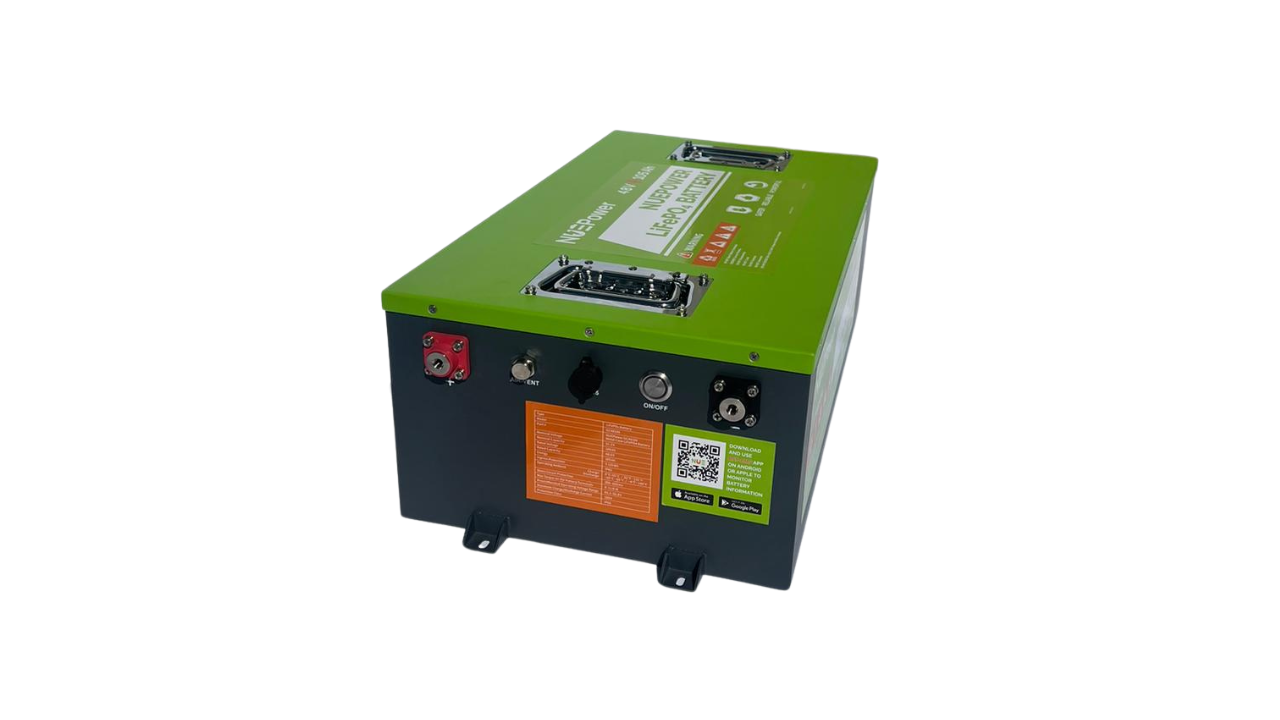

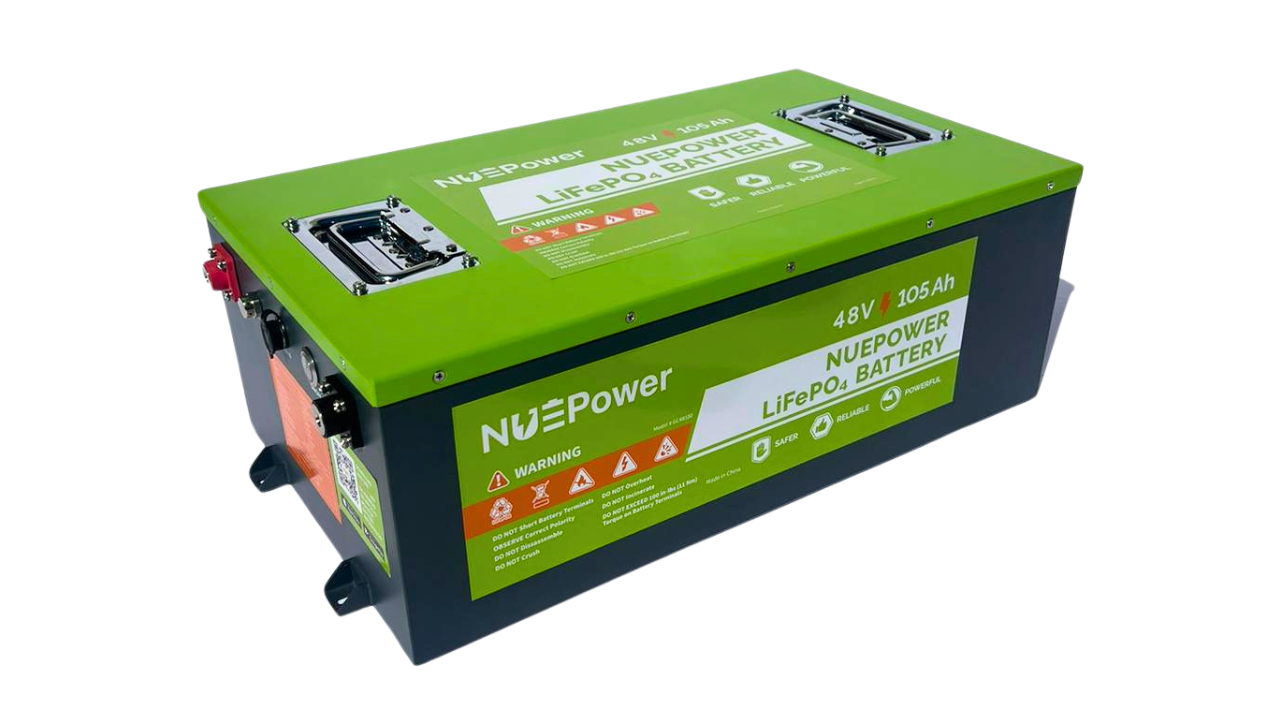

Get trusted and long-lasting power with the NUEPower™ 48V 105Ah LiFePO4 Battery & Smart Charger Package. This IP65-rated metal case battery delivers 5120Wh of energy, built to withstand shocks, vibrations, and extreme conditions.

Paired with a fast and efficient smart charger, this package ensures safe, optimized, and hassle-free charging, preventing overcharging while extending battery life.

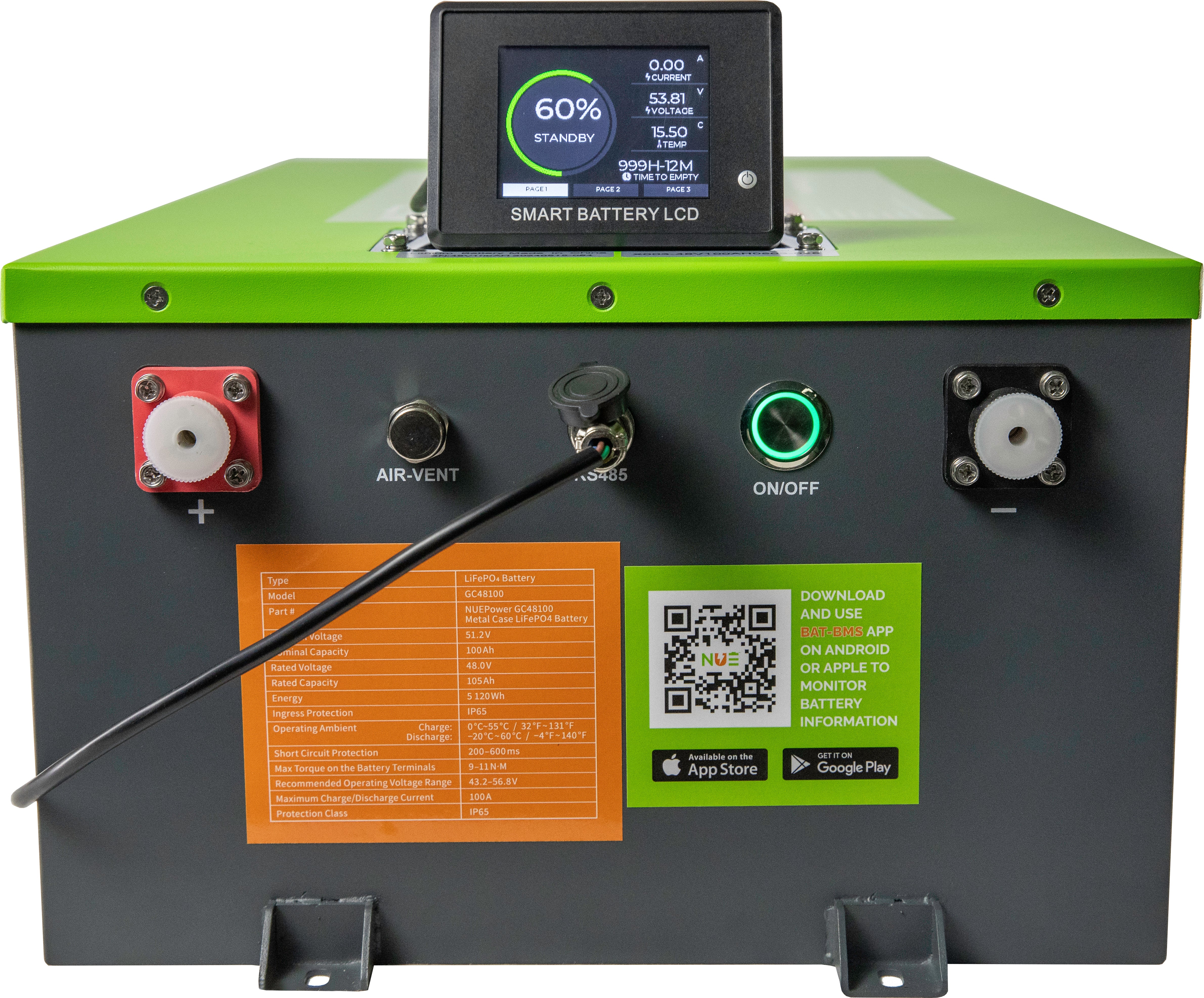

Stay in control with Bluetooth monitoring, GPS tracking, and an advanced Battery Management System (BMS). Plus, the included LCD screen provides real-time charge status and system insights for better monitoring and management.

Perfect for EVs, solar storage, marine, and off-grid power, this kit keeps you powered up whenever and wherever you need it!

Why Choose NUEPower vs. other Lithium Brands?

  • Offer superior longevity and exceptional value for your money.
  • Designed to withstand rough usage, our batteries incorporate built-in cell bracing, making them ideal for golf carts and utility vehicles.
  • Bluetooth monitoring and an easy-to-read LCD screen.
  • Shorter in size with no lip on the lid for an easy installation
  • Compatible with every major brand and even suitable for John Deere Gators.
  • Chargers are IP 65 rated, so go ahead and wash your carts without worry!
  • We stand behind our products with reliable American-based customer service and proven performance.

Why choose NUEPower vs. Lead-Acid?

  • Enhanced performance on hills and under heavy loads.
  • Offers an extended runtime of 35-120 miles, varying by model.
  • Simplifies installation and maintenance—no need for complex wiring of multiple batteries, saving you money!
  • Boasts a durable lifespan of 5-10 years, reducing the frequency of battery replacements.

Need installation assistance or additional mounting? Please contact one of our fine distributors or email sales@newuseenergy.com or call us to be connected to a NUE partner that provides services.

If you are working on a project with a programmable charging source, reach out for quote for a metal case battery on it's own.

Make this the last replacement battery you'll have to purchase.

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Product Benefits

IP65 Case Protects From Water And Dust

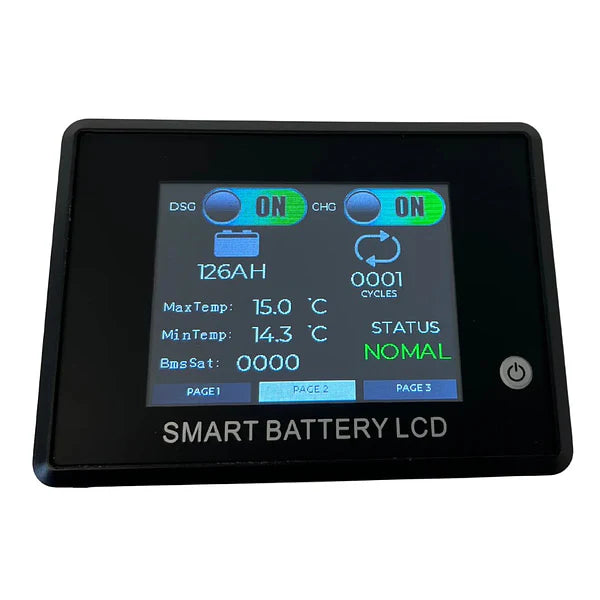

External State of Charge (SOC) Display
Short Form Factor For Easy Installation
Easy To Use Bluetooth App
Extra Internal Protection From Shock
Form Factor

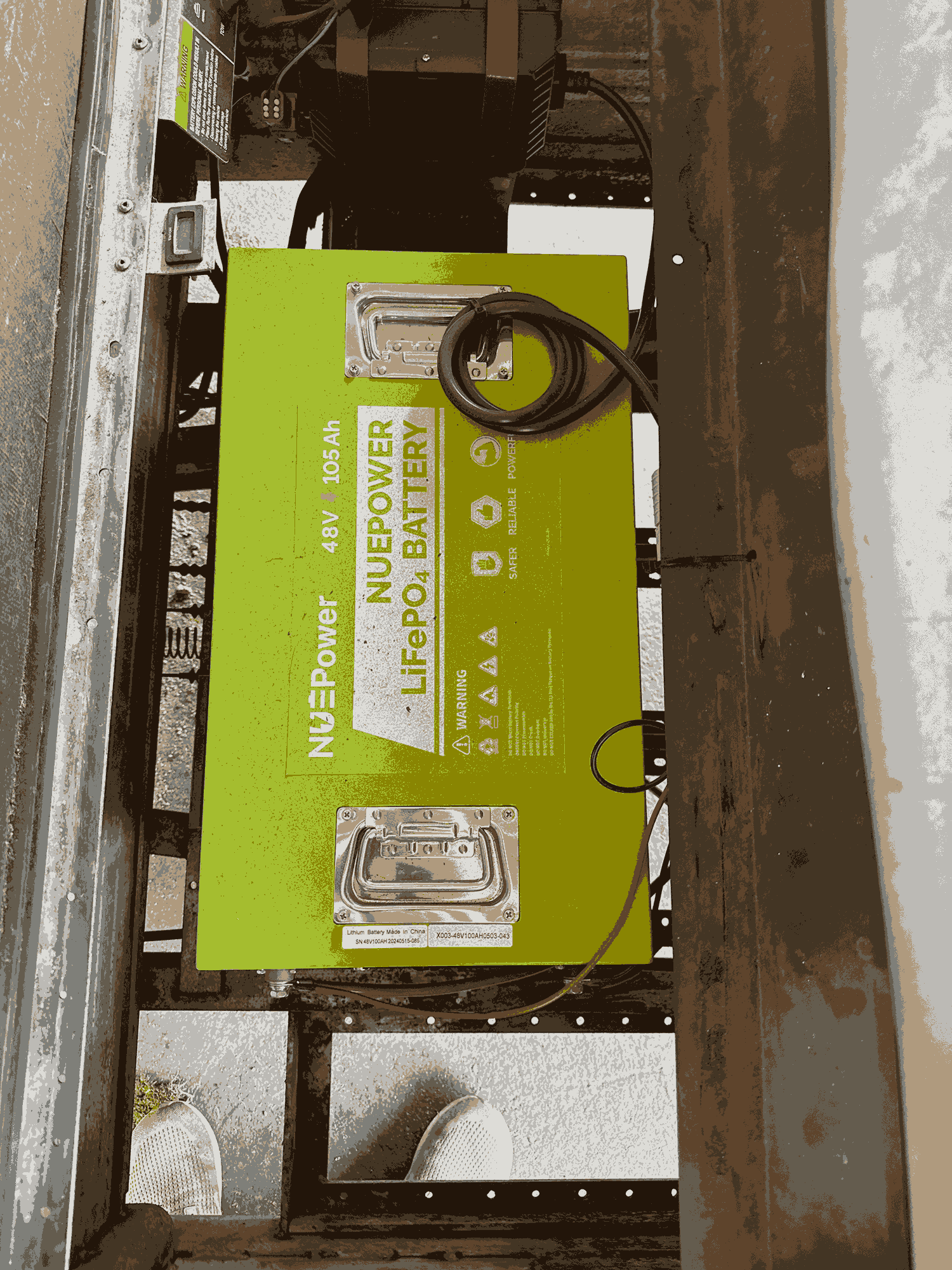

Works for all models of golf carts, including older Lead-Acid Models.

Product Download Links

Warranty Document

User Manual

LifePO4 Voltage Calculator

MSDS Report

48V 105Ah Metal Case Data sheet

NUEPower Chargers Data Sheet

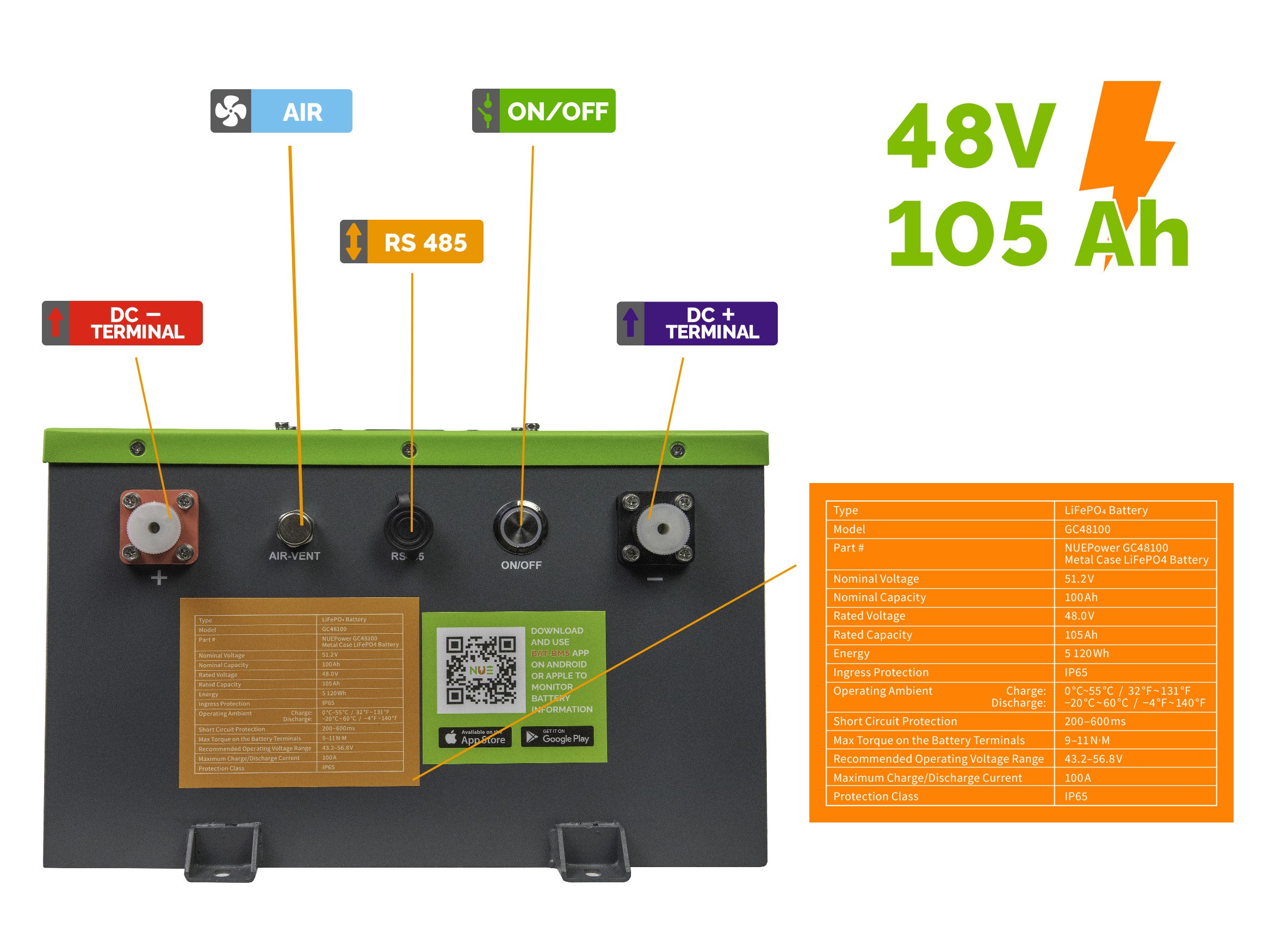

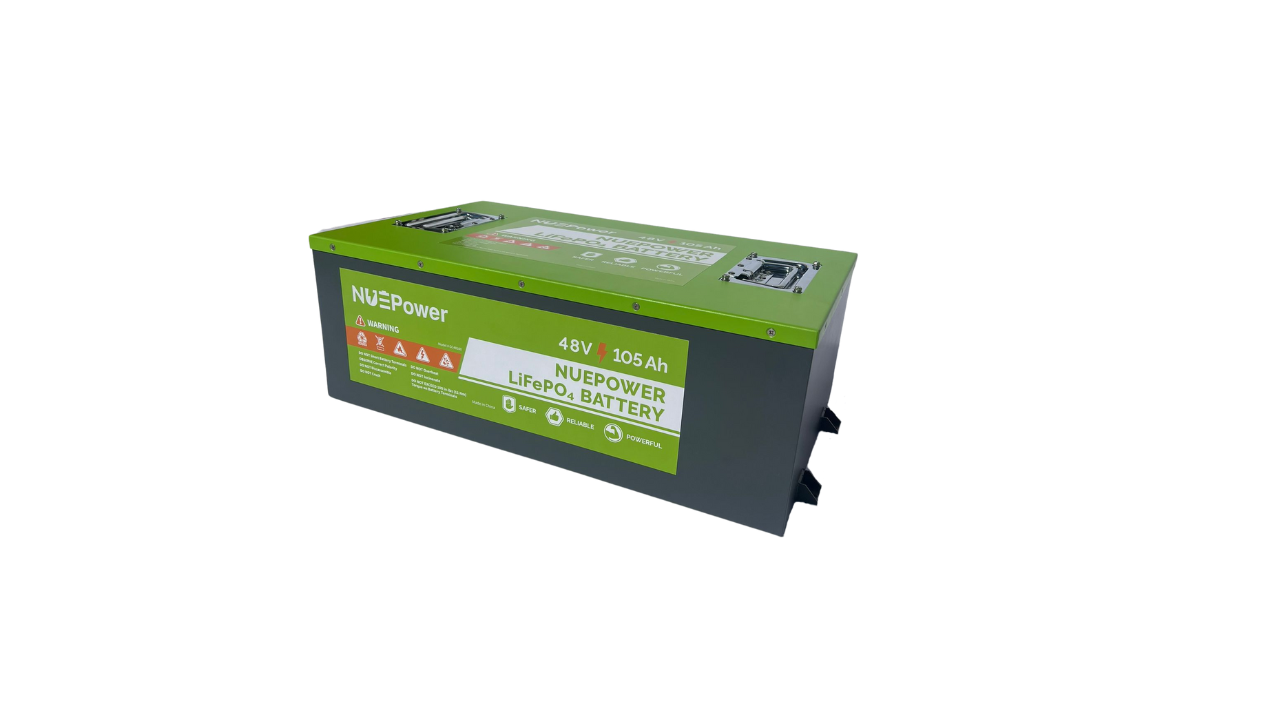

NUEPower Version 48V 105Ah Metal Case Battery
Battery Type Lithium Iron Phosphate (LiFePO4)
Storage Capacity 5120 Wh
Estimated Cycle Life based on an 80% Depth of Discharge 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity
DC Nominal Voltage 51.2V
Operating Voltage Range 43.2 - 58.4V
Nominal Capacity 100Ah
Max Continuous Charge Current 100A
Max Continuous Discharge Current 100A
Rated Voltage 48V
Rated Capacity 105Ah
Peak Discharge Current 600A (3-5 s)
Maximum in Parallel 16
Discharge Temperature Range -4 to 140 °F (-20 to 60 °C)
Charging Temperature Range 32 to 131 °F (0 to 55 °C)
Optional Internal Heating Element Heating ON @ 32°F (0°C), Heating OFF @ 41°F (5°C)
Optional Internal Heating Element Consumes 85W
Weight 99.2 lbs (45 kg)
Dimensions 21.7" x 12.2" x 8" (55 x 31 x 20 cm)
Warranty and Certifications 5-YEAR LIMITED MANUFACTURER'S WARRANTY
UN 38.3, Conforms to UL 1642 (Cell), and CE (Cell) Certified

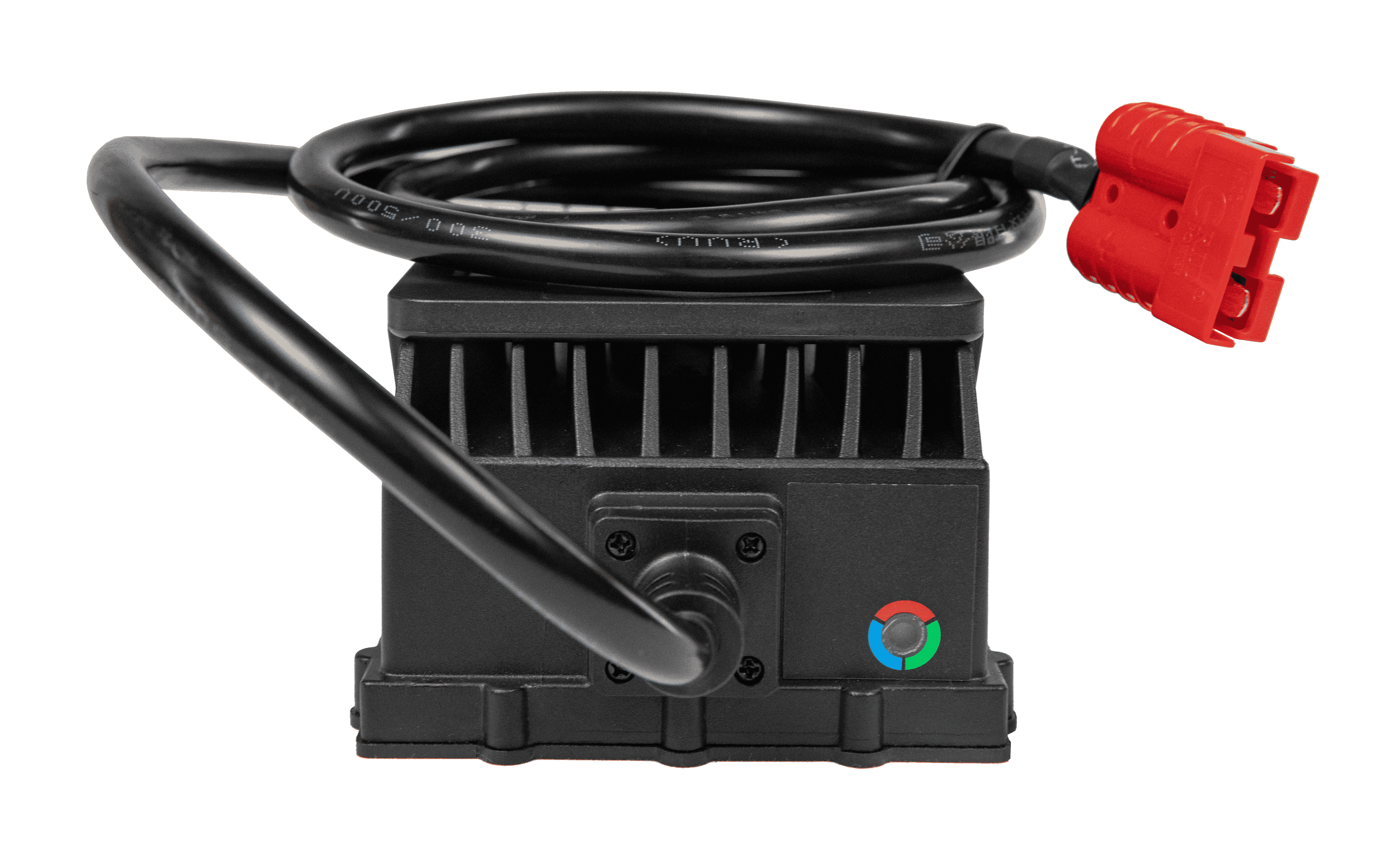

NUE Chargers Specifications
Rated Input Voltage 100-240Vac
Operating Temperature -10 ~ +45°C
Storage Temperature -40 ~ +70°C
Relative Humidity 5%-95%
Altitude Equal to or less than 2000m
Connector SB120 to SB120 Ring Terminal Pig Tail
LED Charging Indicator Waiting Mode (Green Flash), Charging Mode (Blue),
Fully Charged (Green), Charging Error Mode (Red Flash)
Safety Certification FCC Class A
Protections Reverse Polarity Protection, Output Short Circuit Protection,
Output Overvoltage Protection, Output Overcurrent Protection
Warranty Maximum Two Year Warranty
