NUEPower™ 48V 105Ah Battery & Charger Kit
NUEPower™ 48V 105Ah Battery & Charger Kit
Contact Us for Wholesale Pricing
Couldn't load pickup availability

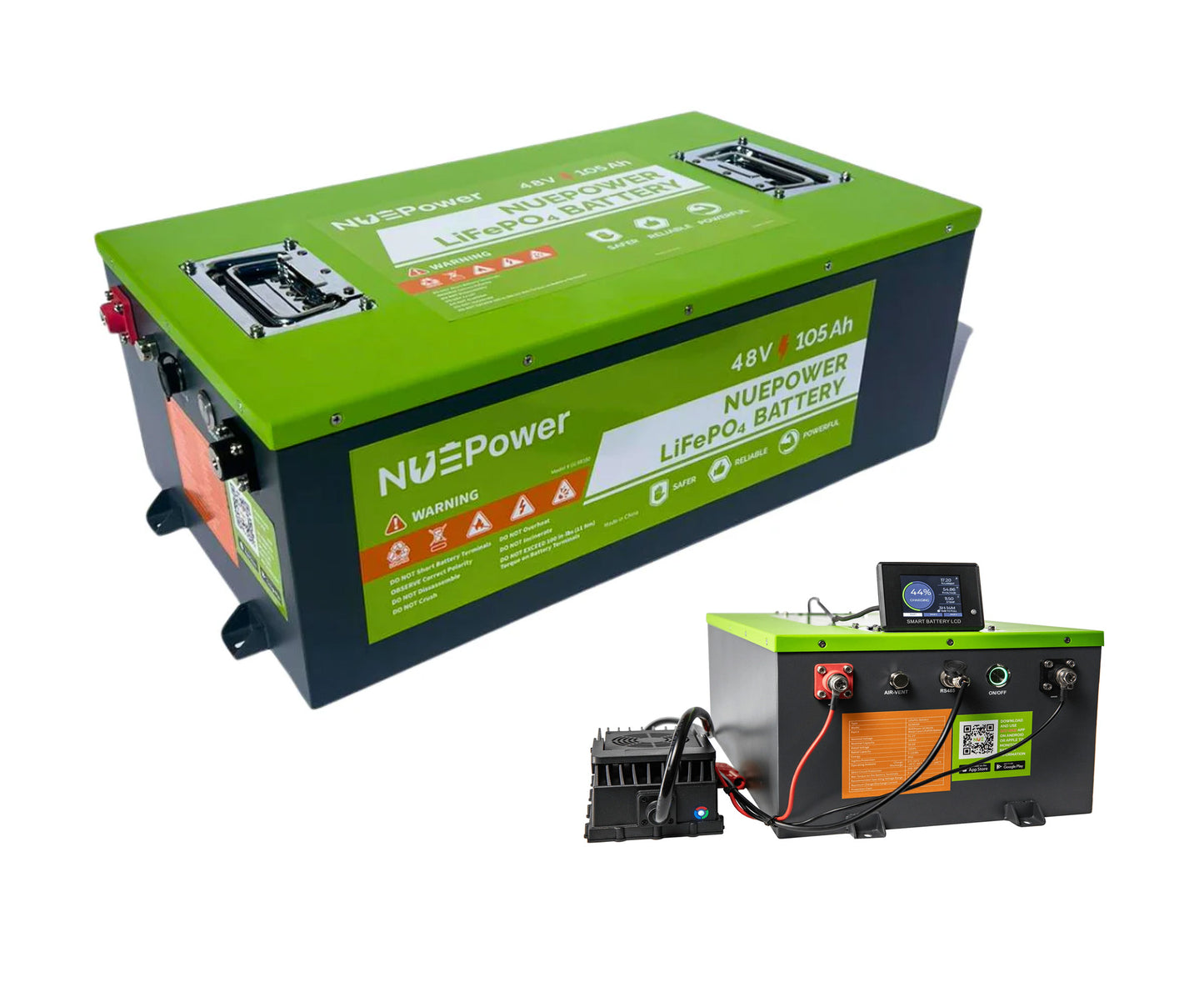

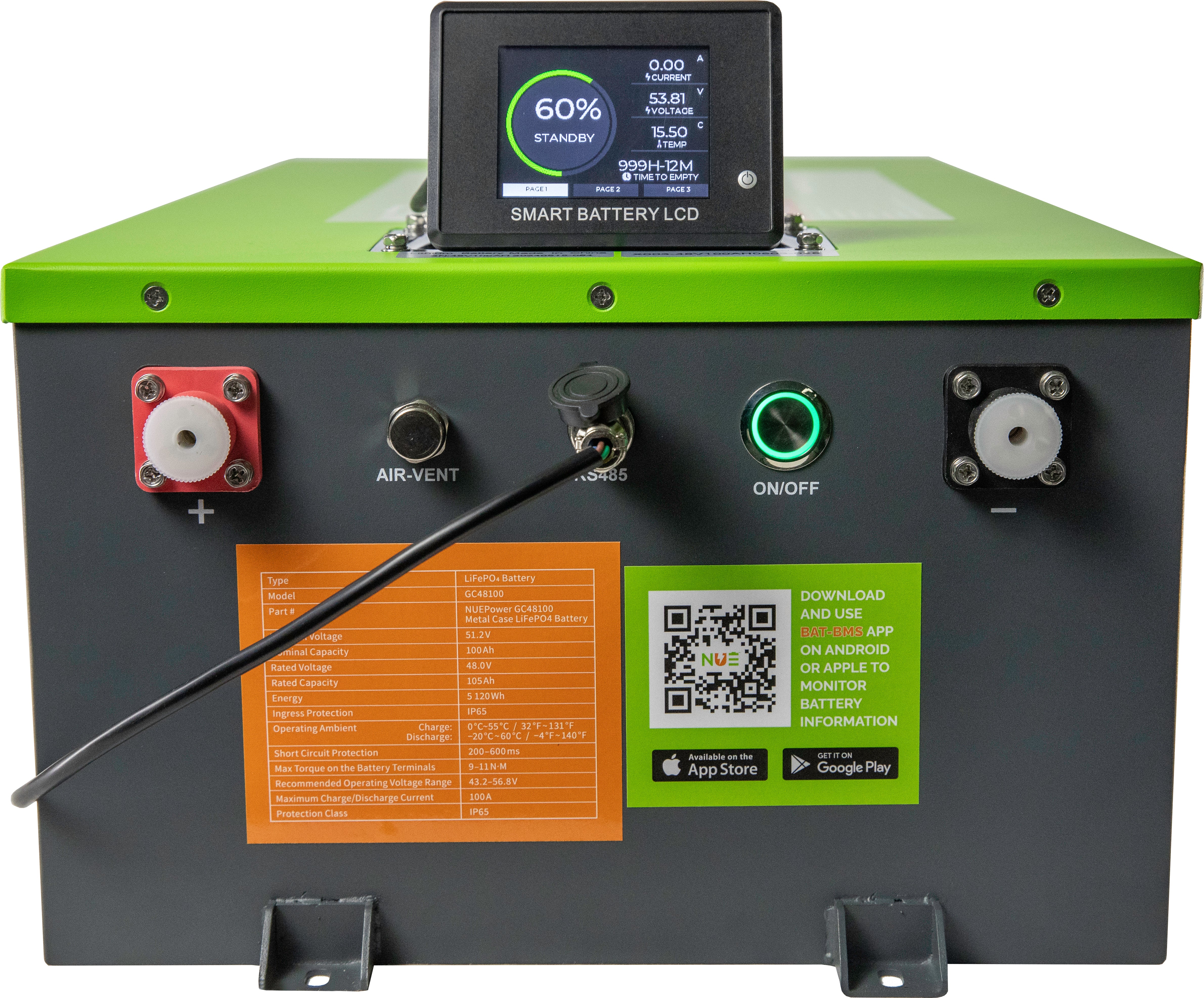

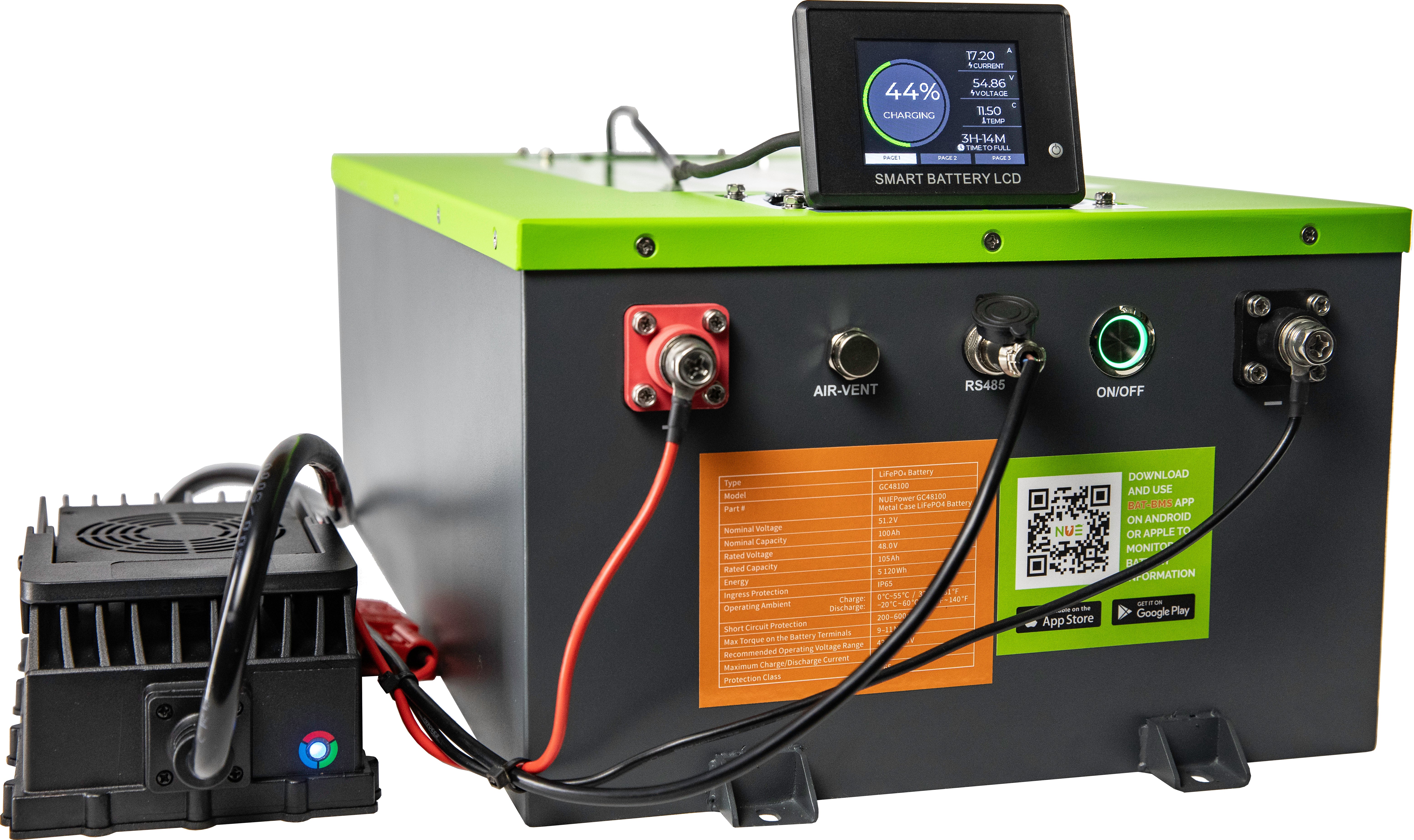

Get trusted and long-lasting power with the NUEPower™ 48V 105Ah LiFePO4 Battery & Smart Charger Kit. This IP65-rated metal case battery delivers 5120Wh of energy, built to withstand shocks, vibrations, and extreme conditions.

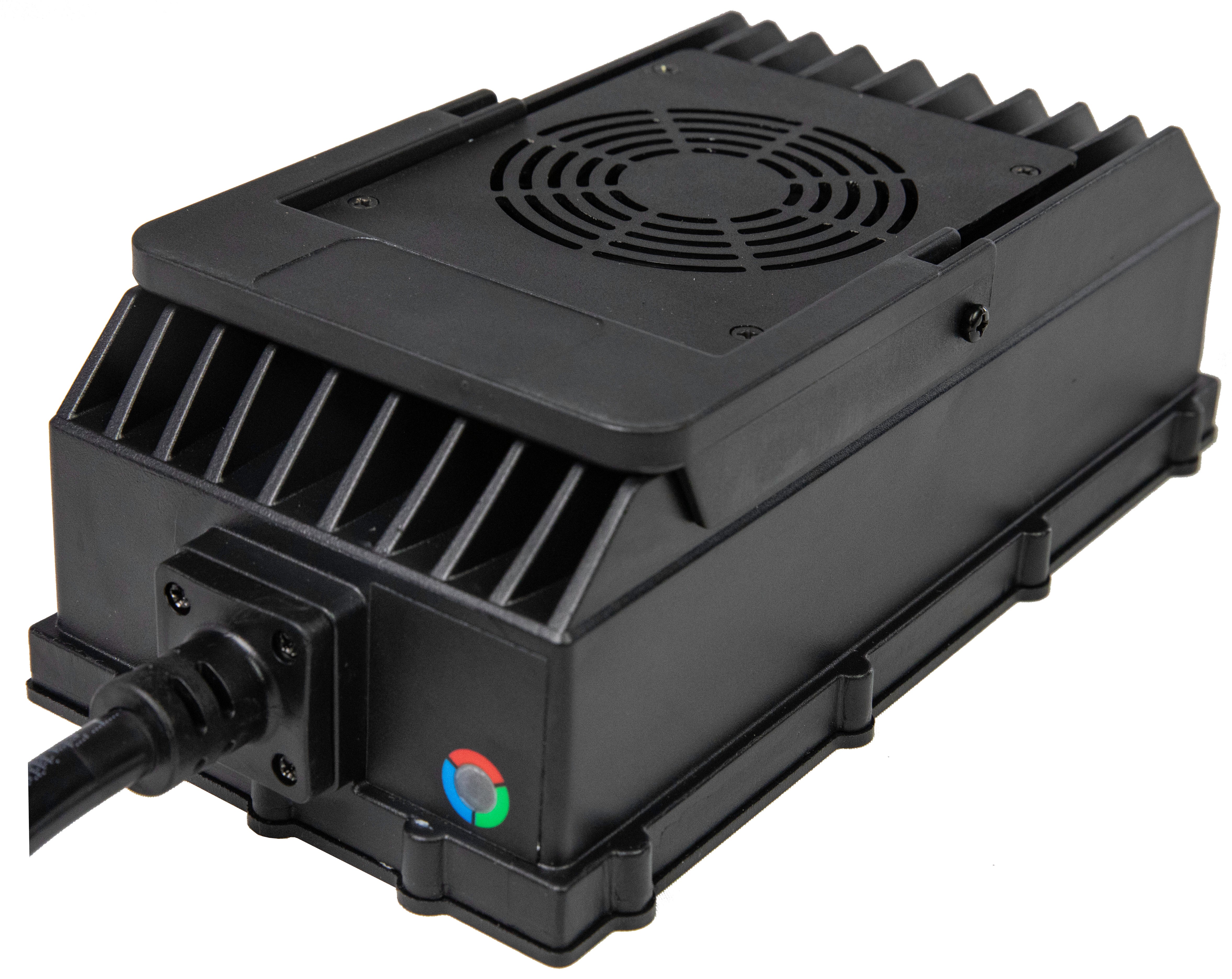

Paired with a fast and efficient smart charger, this kit ensures safe, optimized, and hassle-free charging, preventing overcharging while extending battery life.

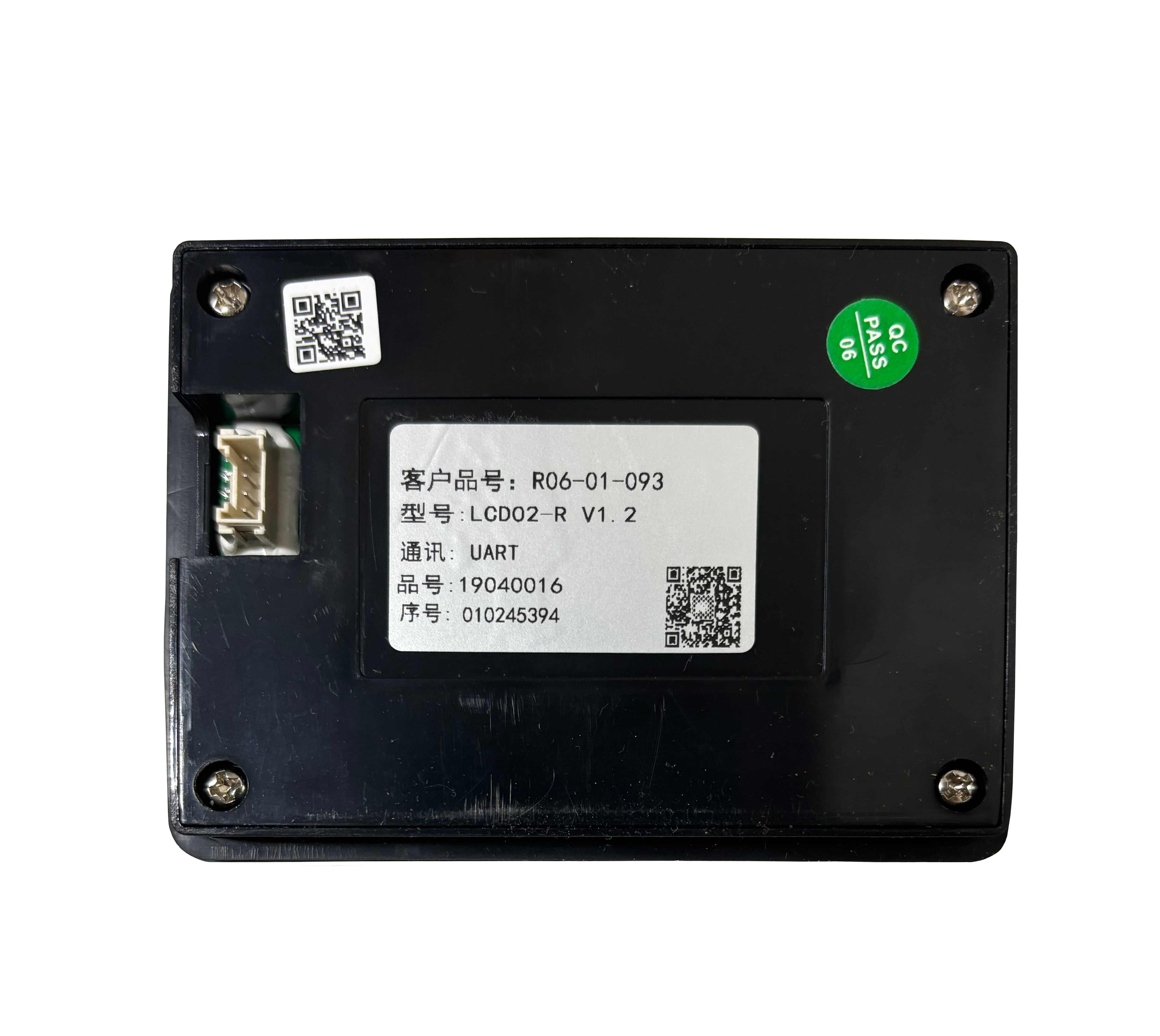

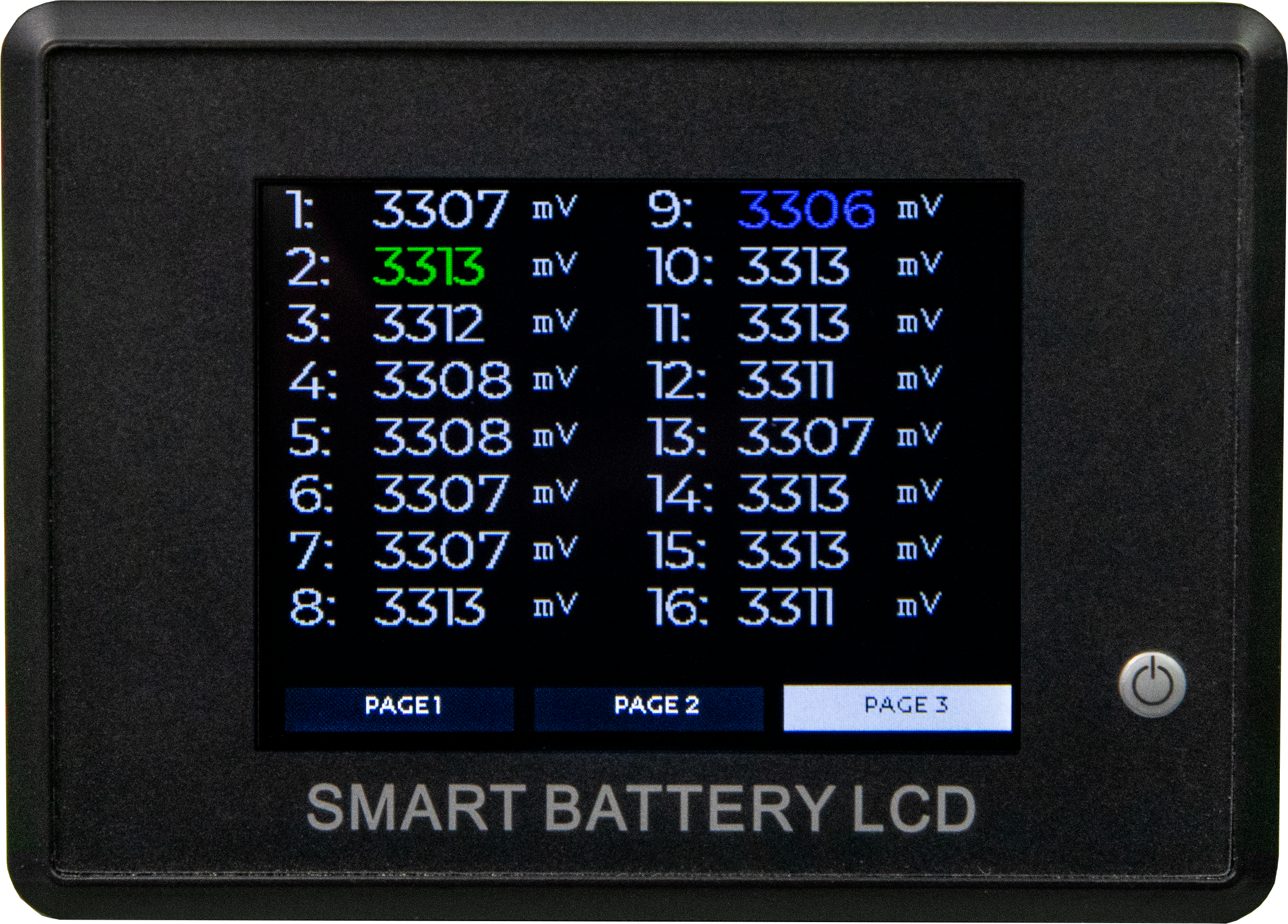

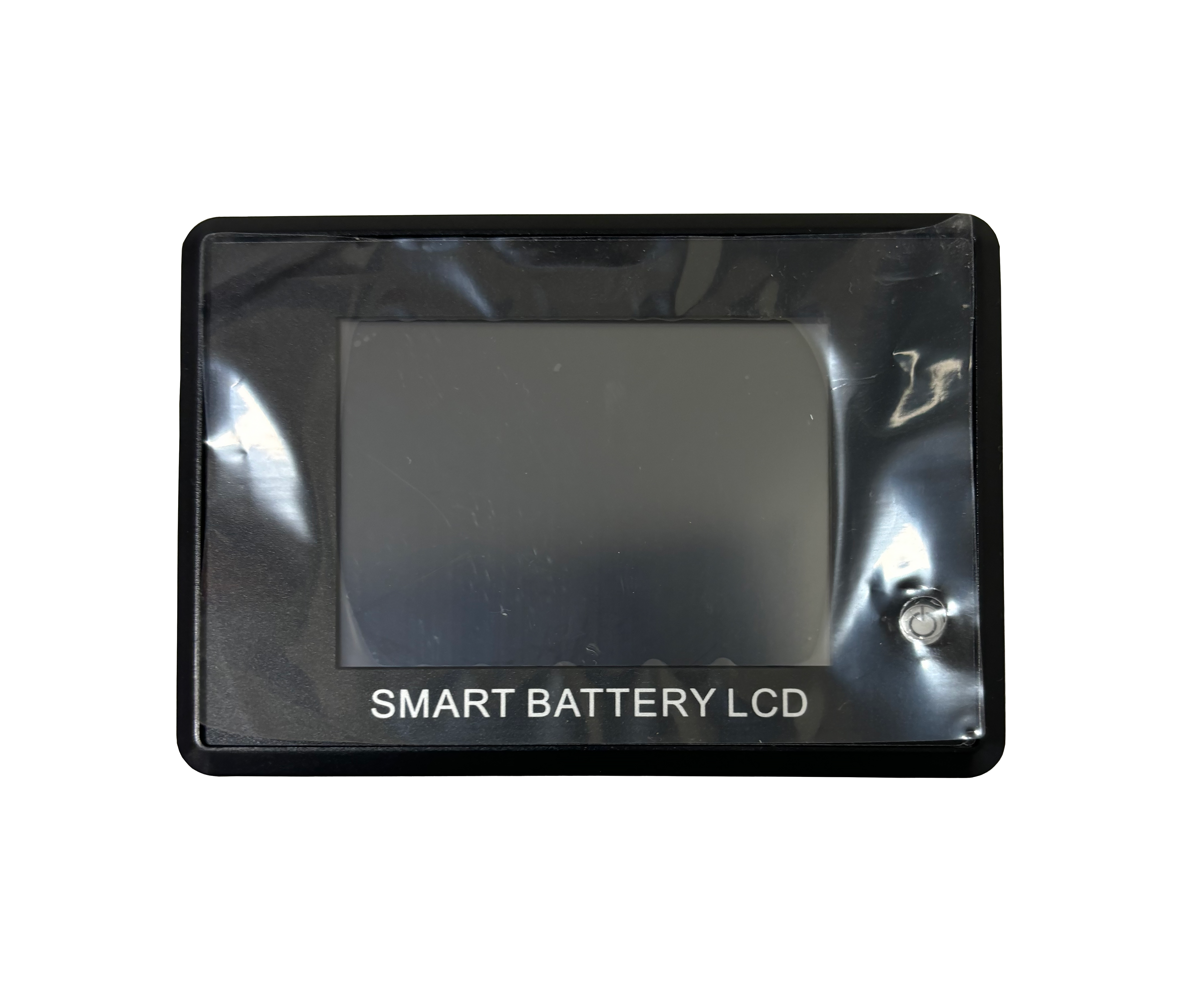

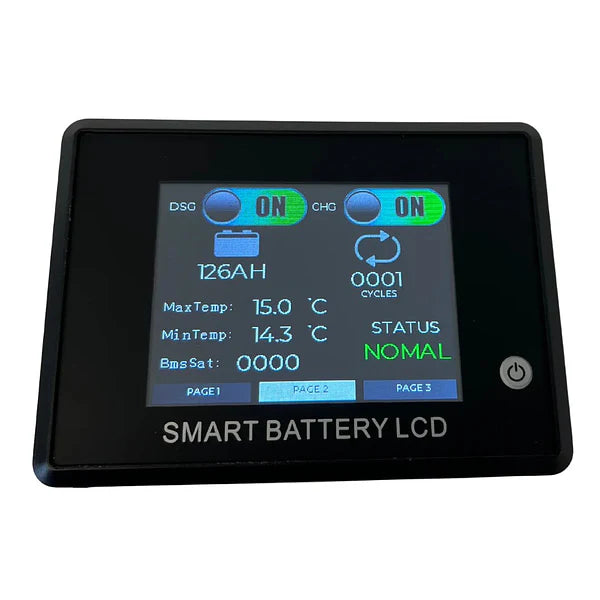

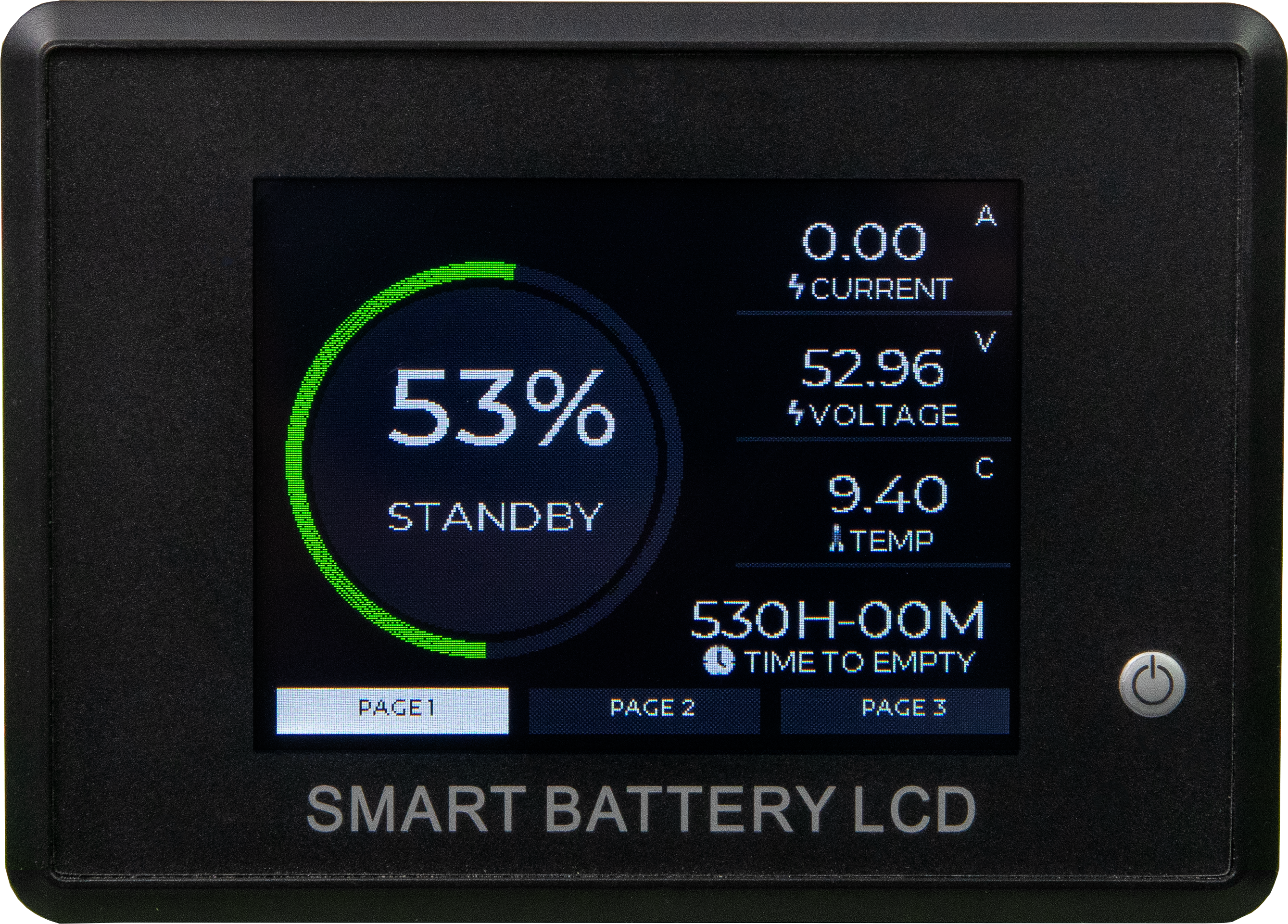

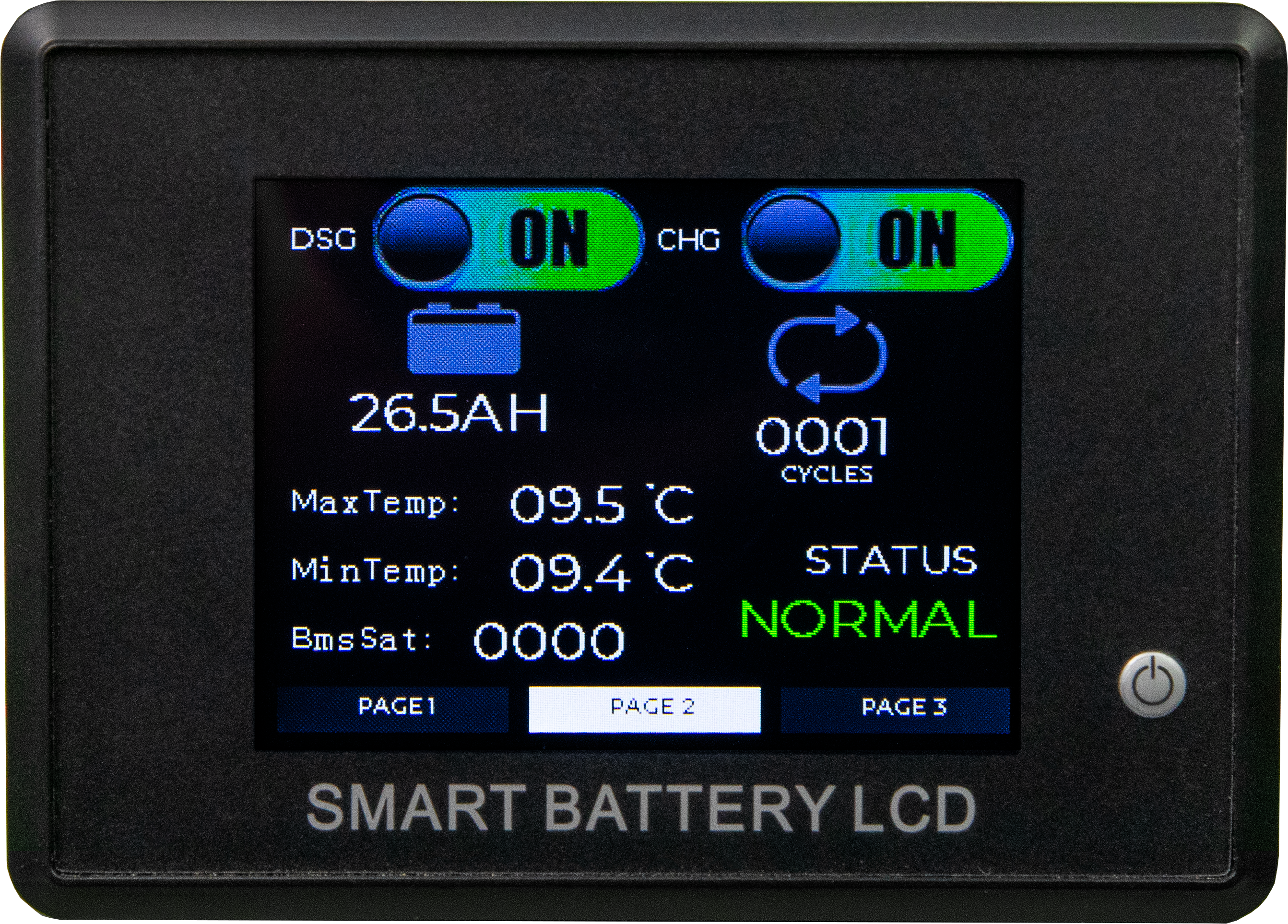

Stay in control with Bluetooth monitoring, GPS tracking, and an advanced Battery Management System (BMS). Plus, the included LCD screen provides real-time charge status and system insights for better monitoring and management.
Perfect for EVs, solar storage, marine, and off-grid power, this kit keeps you powered up whenever and wherever you need it!
Why Choose NUEPower vs. other Lithium Brands?
- Offer superior longevity and exceptional value for your money.

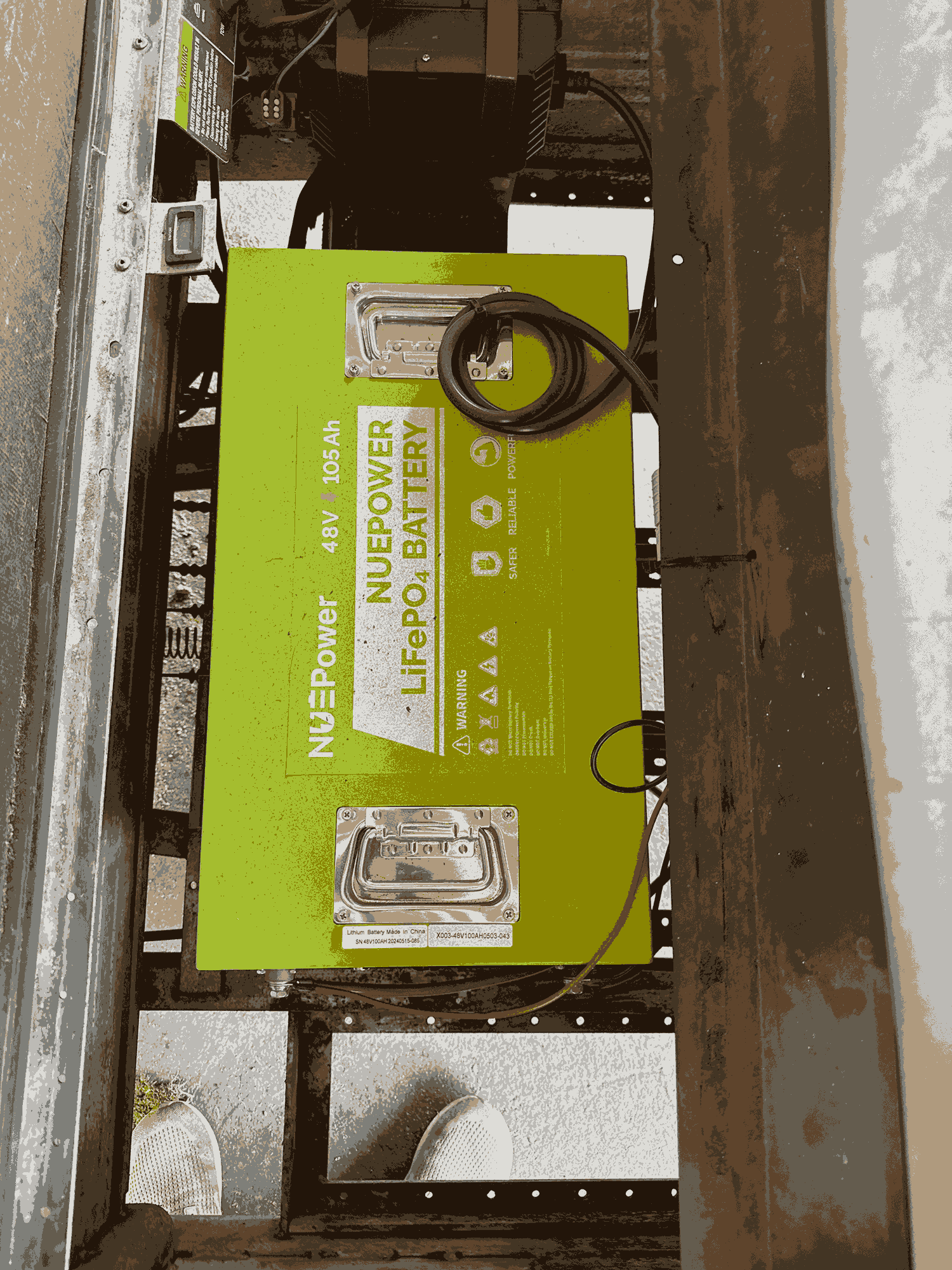

- Designed to withstand rough usage, our batteries incorporate built-in cell bracing, making them ideal for golf carts and utility vehicles.
- Bluetooth monitoring and an easy-to-read LCD screen.
- Shorter in size with no lip on the lid for an easy installation
- Compatible with every major brand and even suitable for John Deere Gators.
- Chargers are IP 65 rated, so go ahead and wash your carts without worry!
- We stand behind our products with reliable American-based customer service and proven performance.
Why choose NUEPower vs. Lead-Acid?
- Enhanced performance on hills and under heavy loads.
- Offers an extended runtime of 35-120 miles, varying by model.
- Simplifies installation and maintenance—no need for complex wiring of multiple batteries, saving you money!
- Boasts a durable lifespan of 5-10 years, reducing the frequency of battery replacements.
Please email sales@newuseenergy.com or call us for installation services.
If you are working on a project with a programmable charging source, reach out for quote for metal case battery as well.
Why having a matched charging source is so important - here is a kit for your convenience.
Make this the last replacement battery you'll have to purchase.

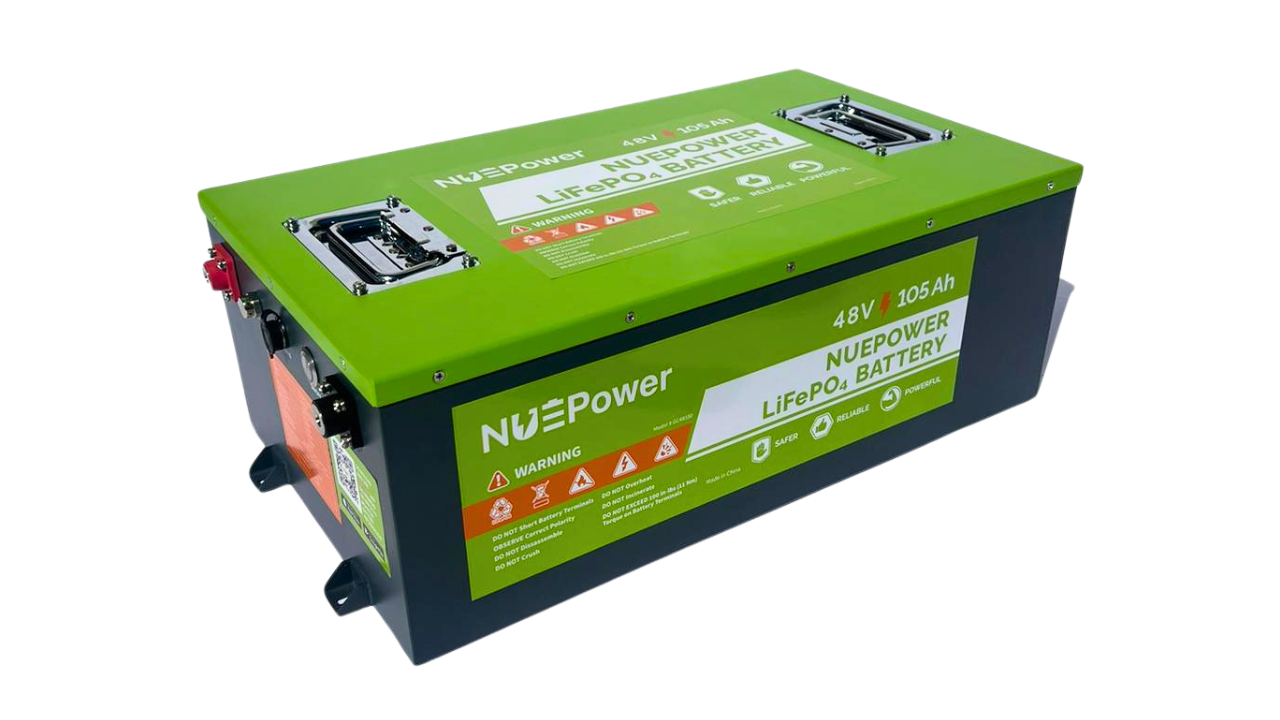

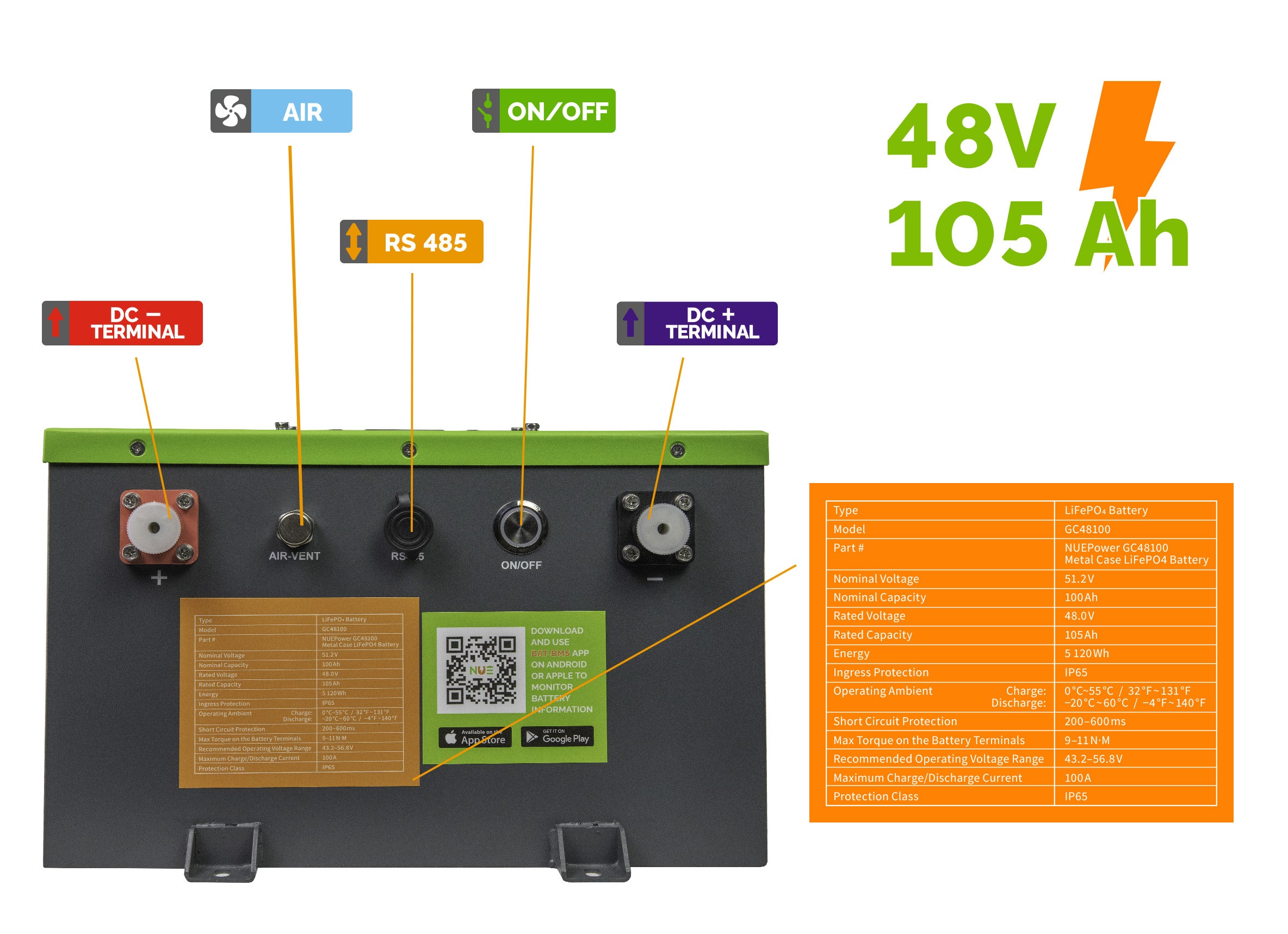

| NUEPower Version | 48V 105Ah Metal Case Battery |
|---|---|
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Storage Capacity | 5120 Wh |
| Estimated Cycle Life based on an 80% Depth of Discharge | 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity |
| DC Nominal Voltage | 51.2V |
| Operating Voltage Range | 43.2 - 58.4V |
| Nominal Capacity | 100Ah |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge Current | 100A |
| Rated Voltage | 48V |
| Rated Capacity | 105Ah |
| Peak Discharge Current | 600A (3-5 s) |
| Maximum in Parallel | 16 |
| Discharge Temperature Range | -4 to 140 °F (-20 to 60 °C) |
| Charging Temperature Range | 32 to 131 °F (0 to 55 °C) |
| Optional Internal Heating Element | Heating ON @ 32°F (0°C), Heating OFF @ 41°F (5°C) Optional Internal Heating Element Consumes 85W |
| Weight | 99.2 lbs (45 kg) |
| Dimensions | 21.7" x 12.2" x 8" (55 x 31 x 20 cm) |
| Warranty and Certifications | 5-YEAR LIMITED MANUFACTURER'S WARRANTY UN 38.3, Conforms to UL 1642 (Cell), and CE (Cell) Certified |

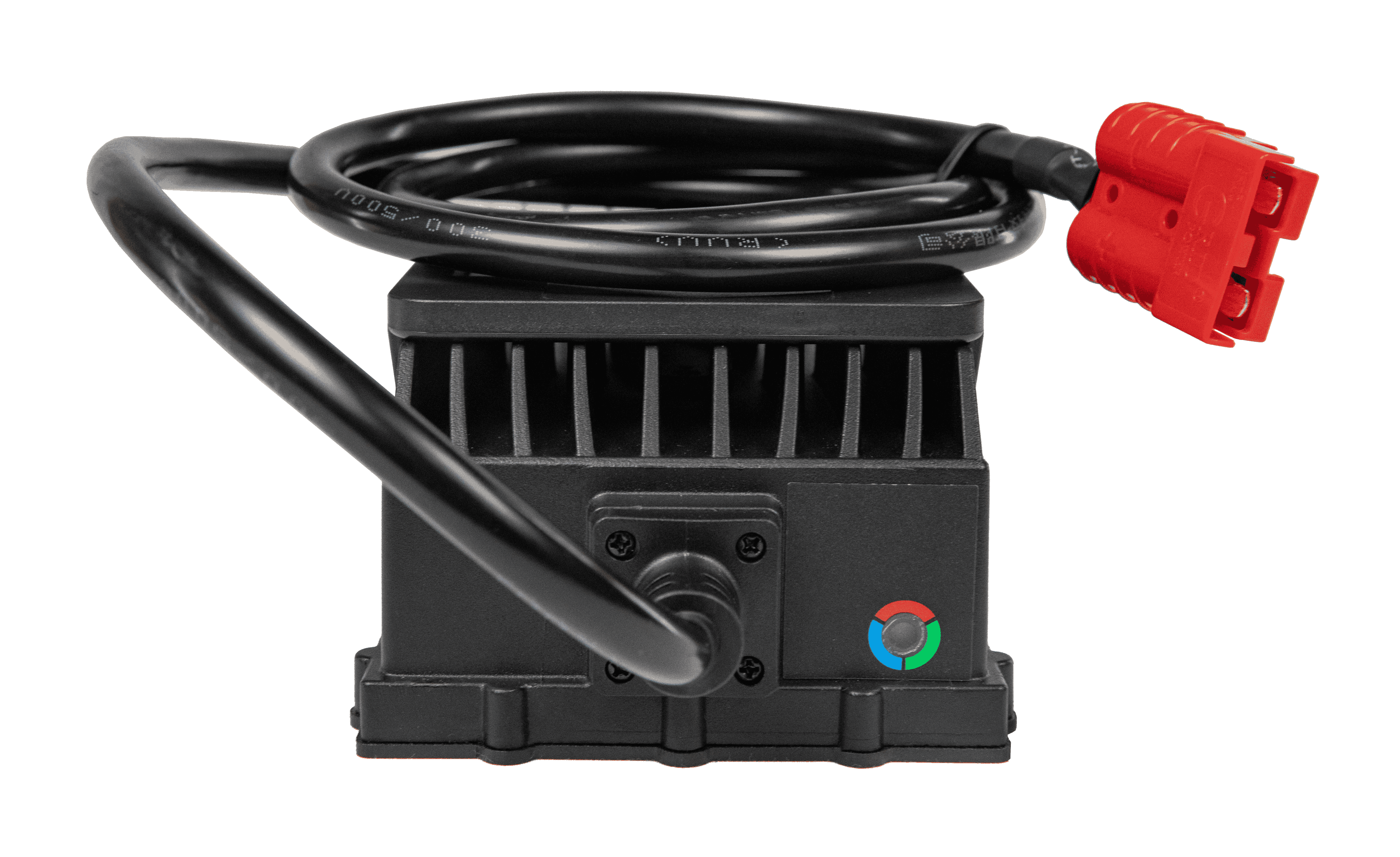

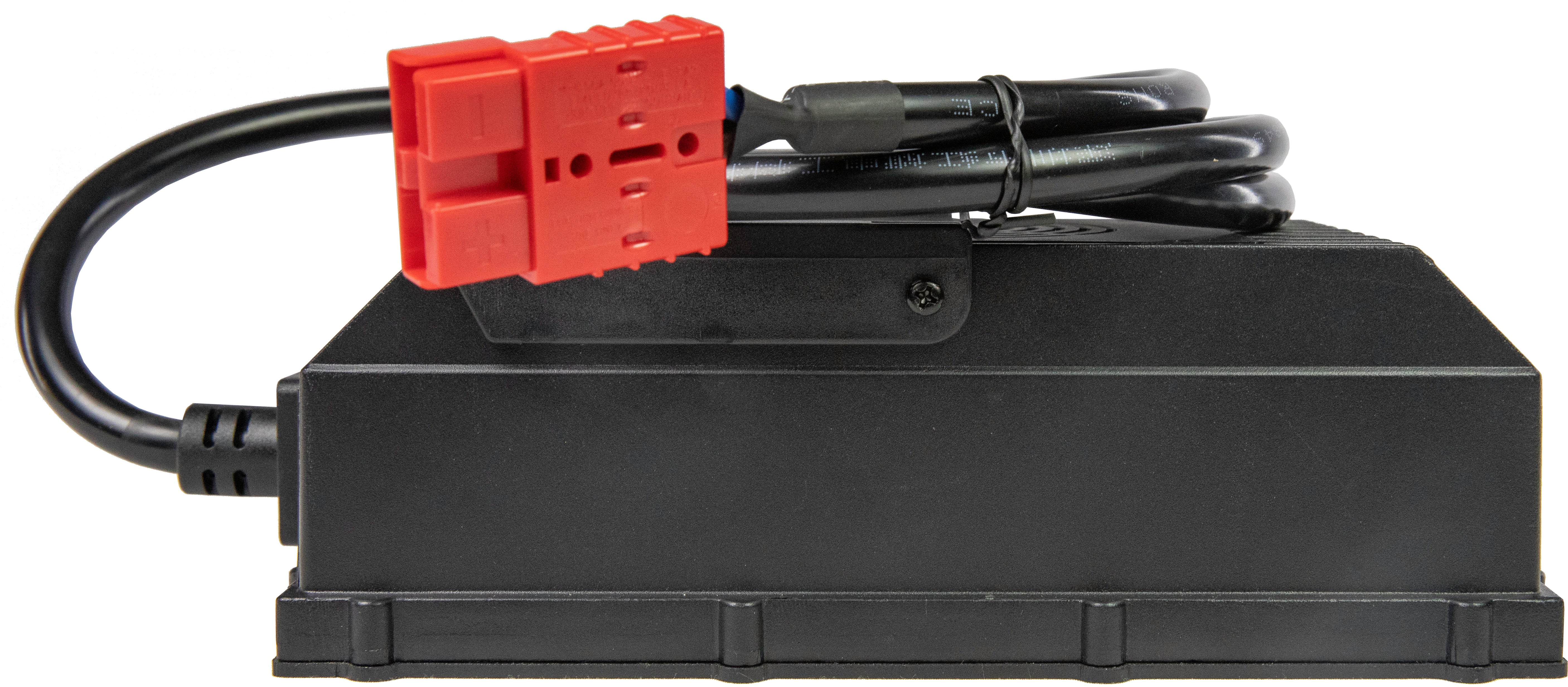

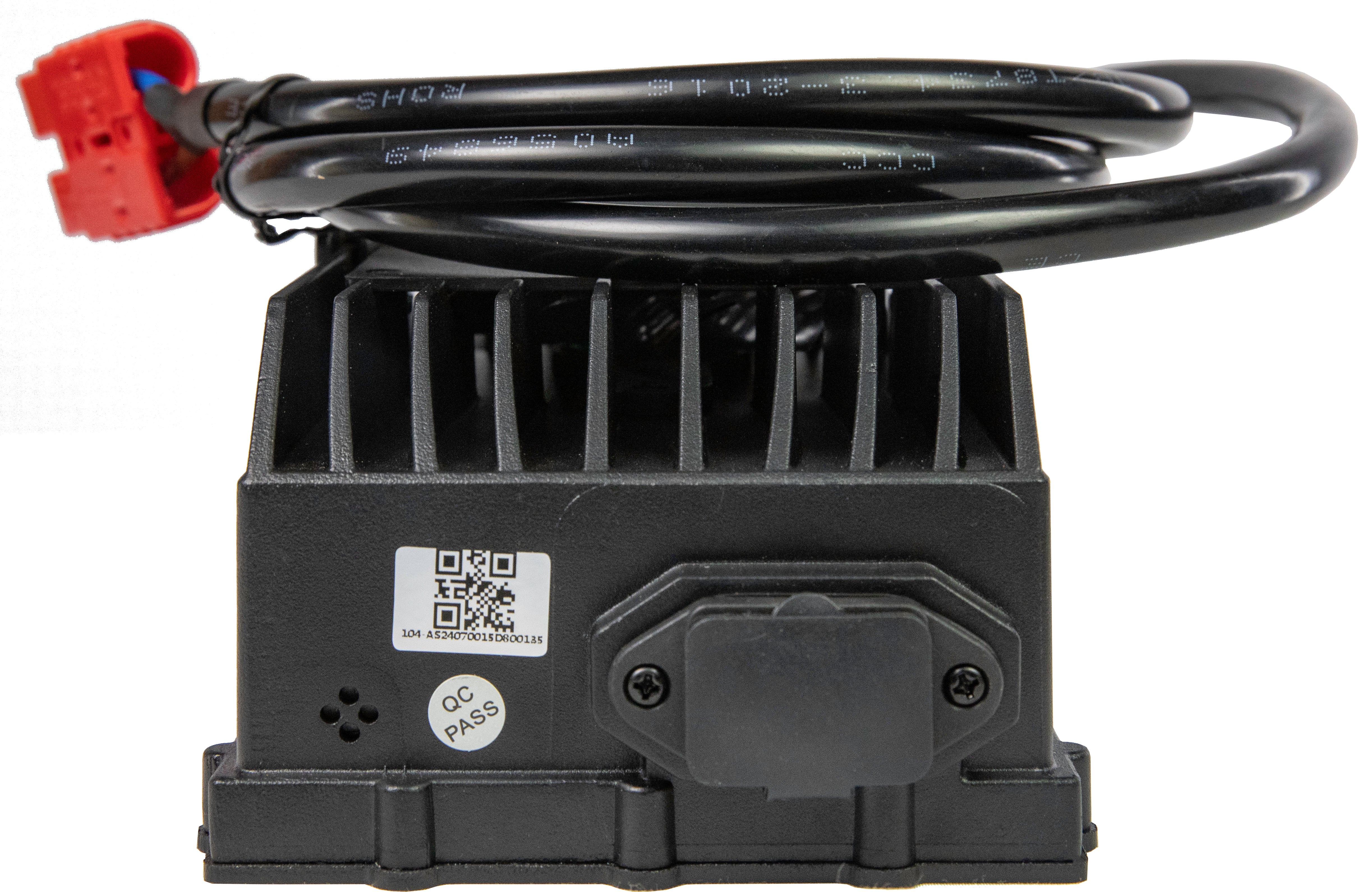

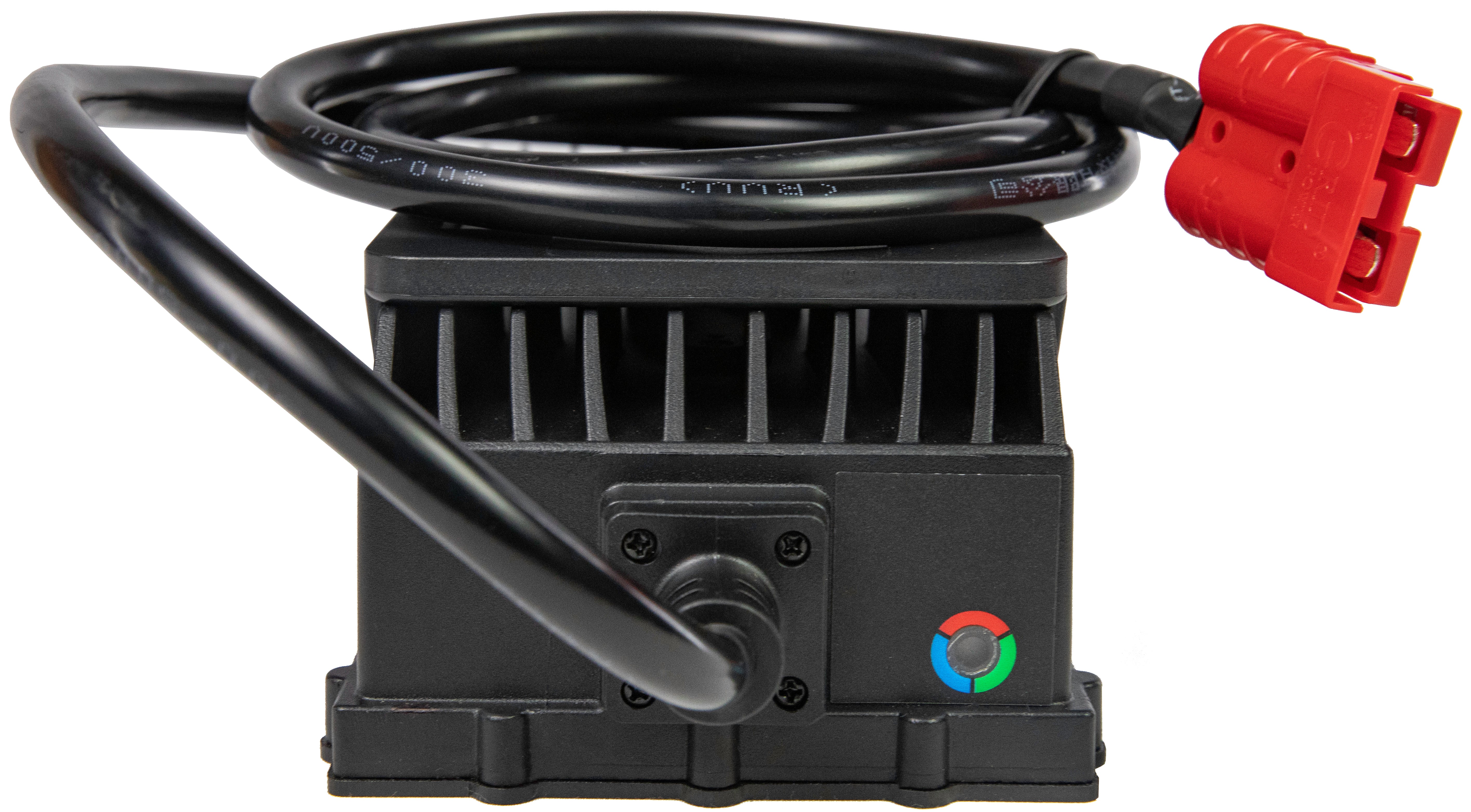

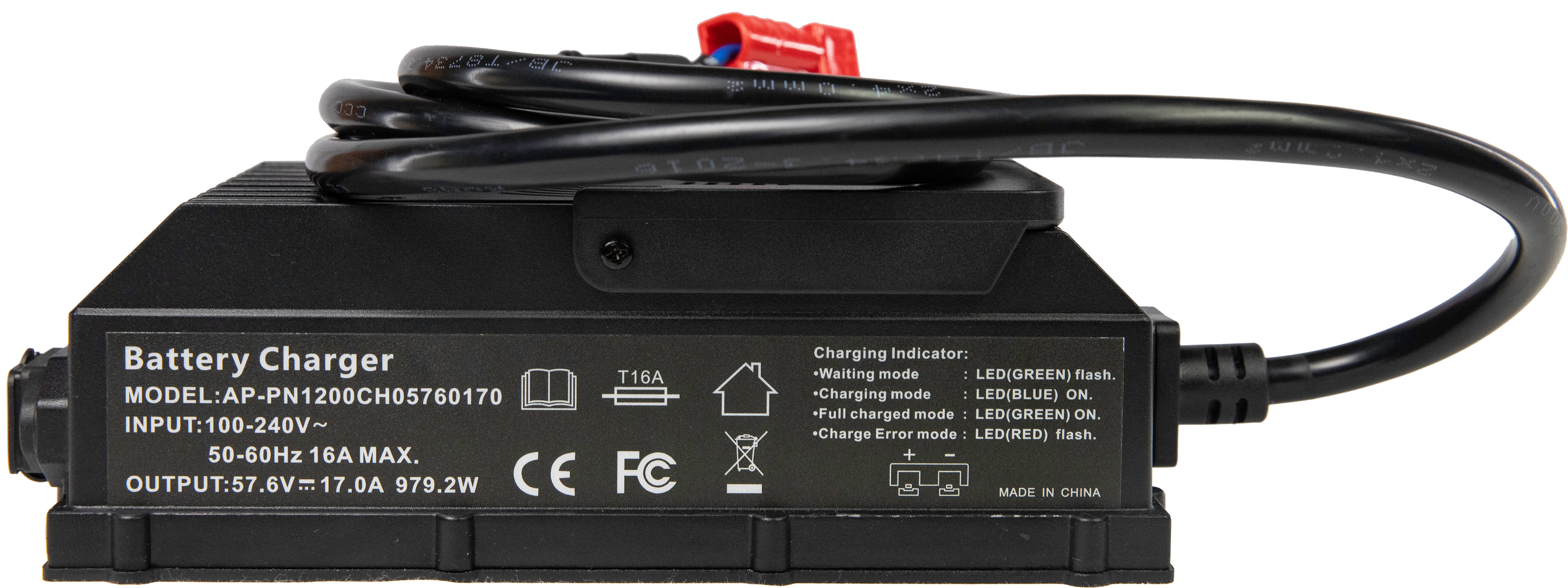

| NUE Chargers Specifications | |
|---|---|
| Rated Input Voltage | 100-240Vac |
| Operating Temperature | -10 ~ +45°C |
| Storage Temperature | -40 ~ +70°C |
| Relative Humidity | 5%-95% |
| Altitude | Equal to or less than 2000m |

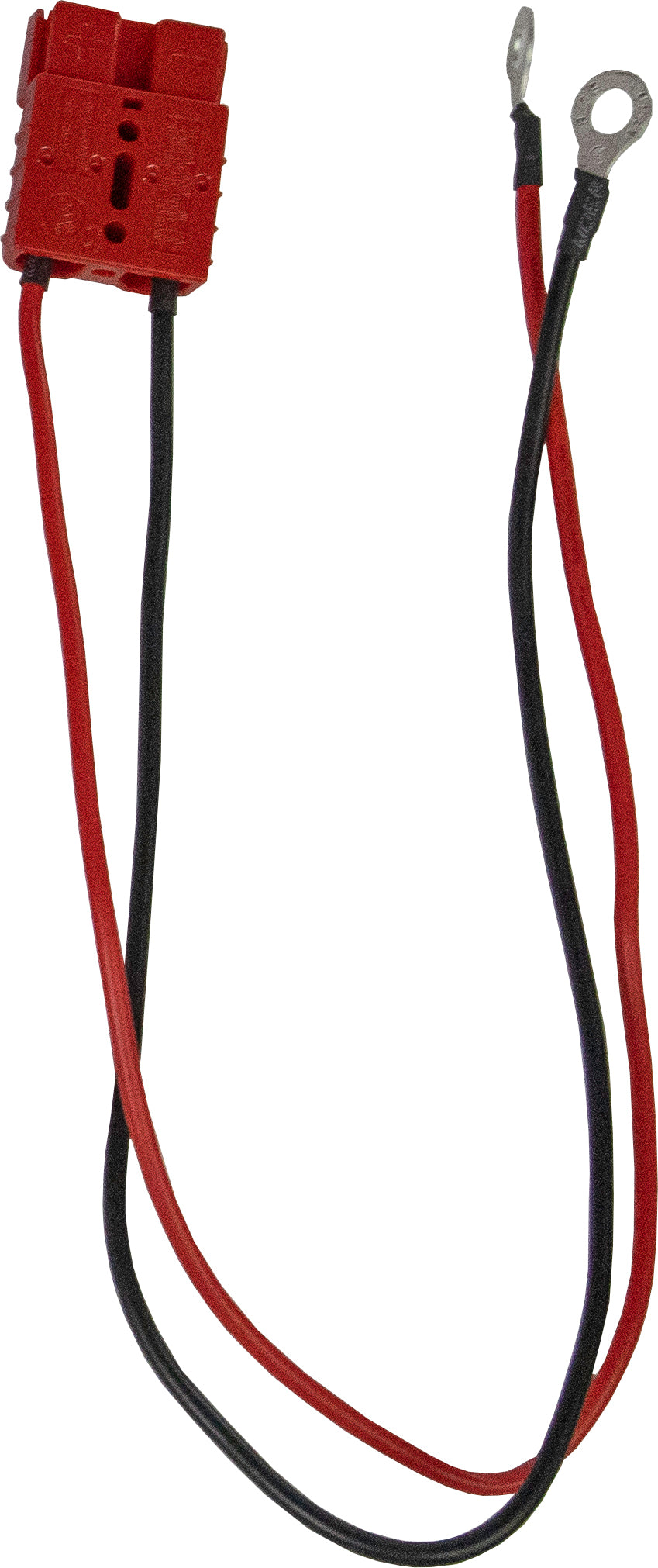

| Connector | SB120 to SB120 Ring Terminal Pig Tail |
| LED Charging Indicator |
Waiting Mode (Green Flash), Charging Mode (Blue), Fully Charged (Green), Charging Error Mode (Red Flash) |
| Safety Certification | FCC Class A |
| Protections |
Reverse Polarity Protection, Output Short Circuit Protection, Output Overvoltage Protection, Output Overcurrent Protection |
| Warranty | Maximum Two Year Warranty |
Applications
