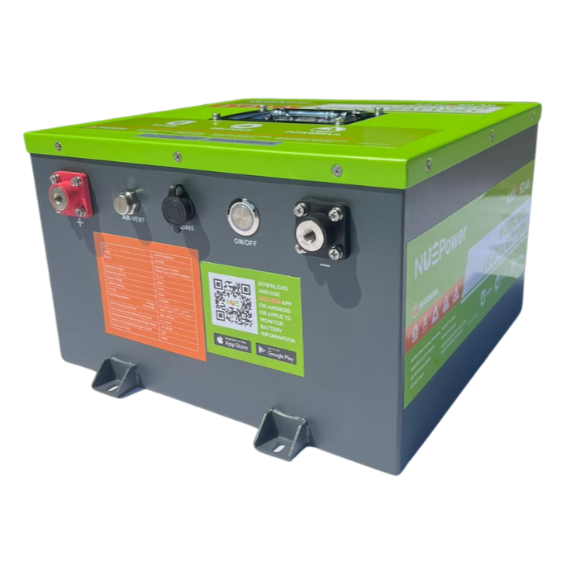

  • Close-up of a NUEPower 36V battery showing terminals, on/off switch, and label.
  • Close-up of a NUEPower battery with green top and grey body

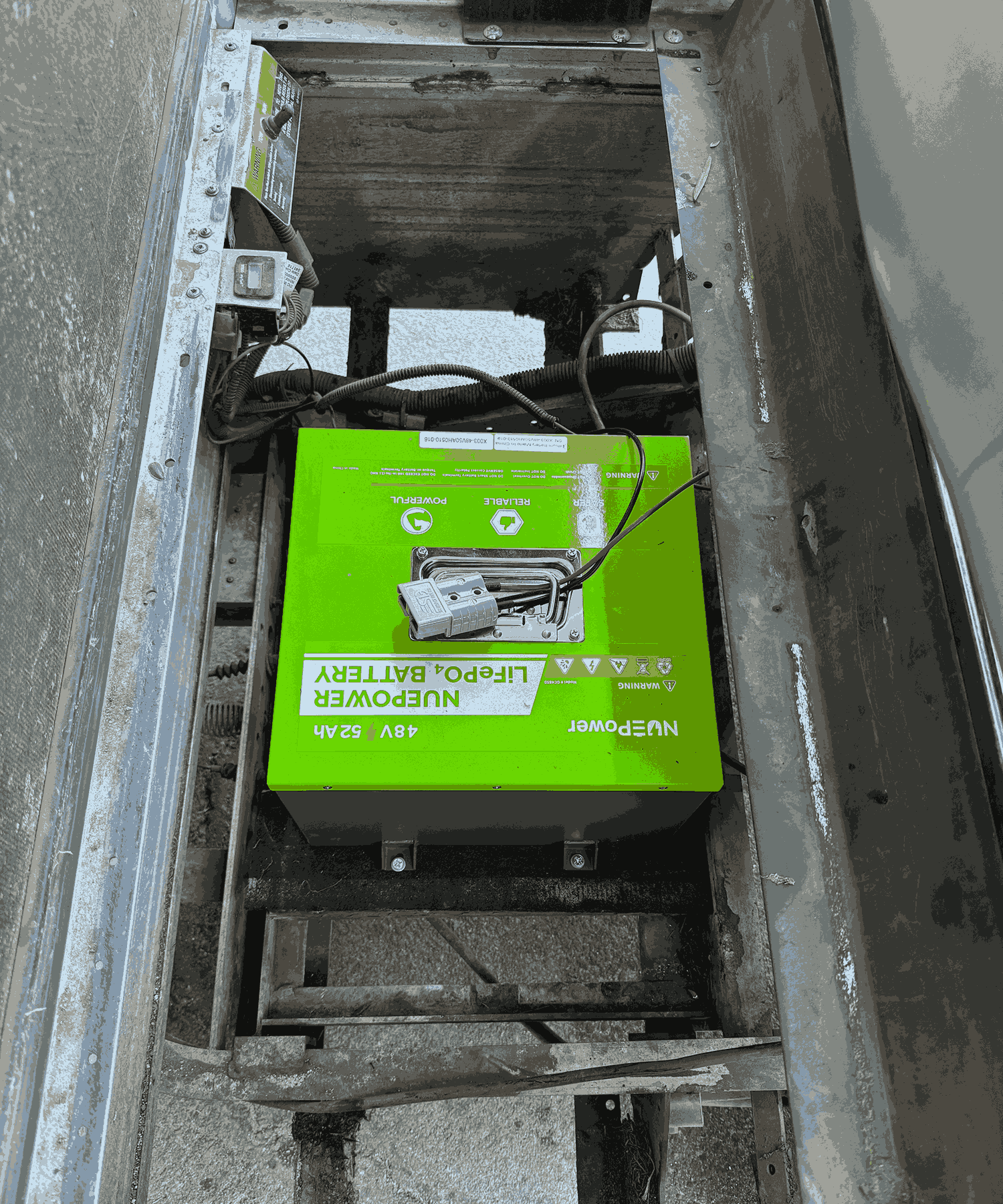

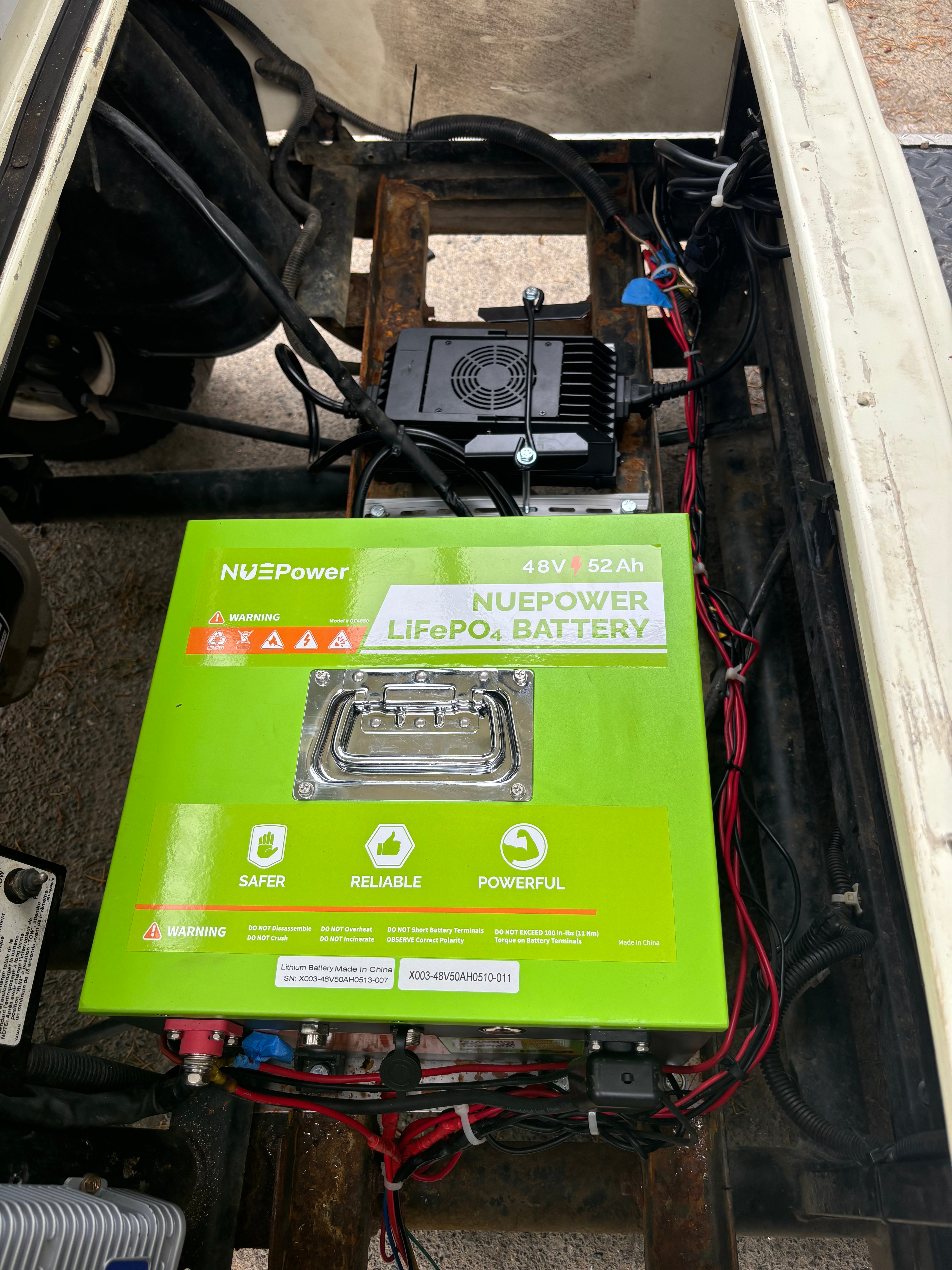

  • NUEPower 48V 52Ah battery installed in a compartment with visible wiring.
  • Close-up of a NUEPower 48V 52Ah battery showing terminals and warning labels.

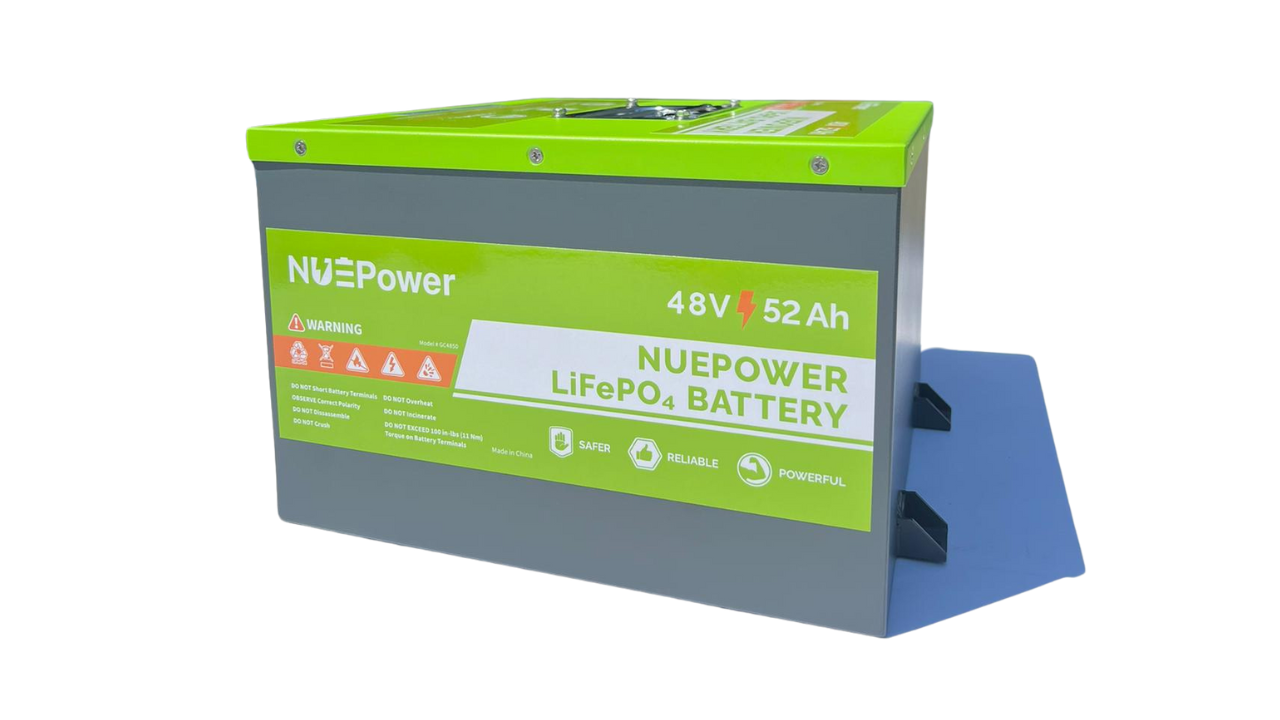

  • Side view of a NUEPower 48V 52Ah battery with warning labels and specifications.
1 7

NUEPower™ 48V 52AH Metal Case Battery and Charger Kit

NUEPower™ 48V 52AH Metal Case Battery and Charger Kit

$1,500.00
$1,500.00

Contact Us for Wholesale Pricing

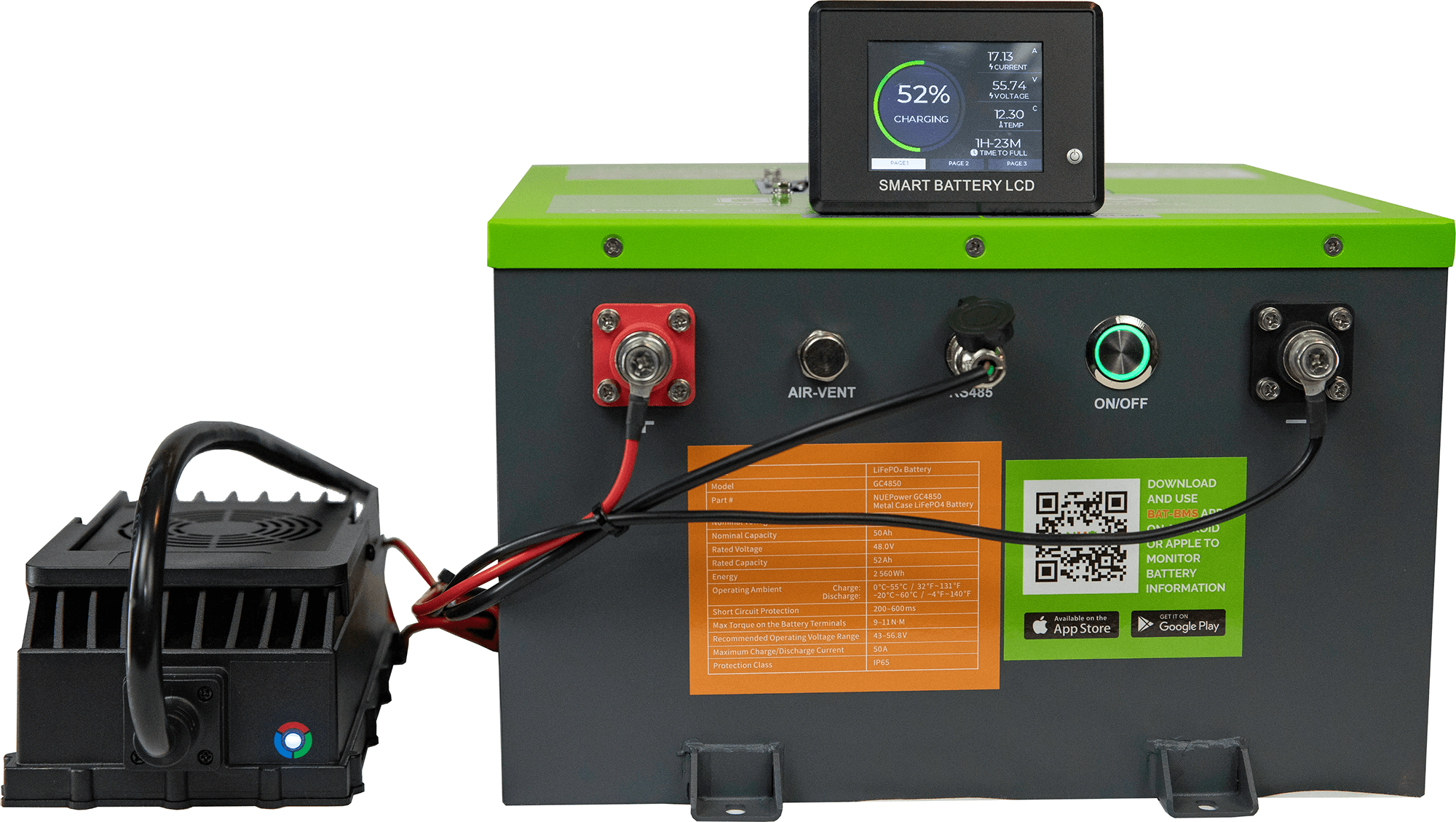

NUEPower™ 48V 52AH Metal Case Battery and Charger Kit
The NUEPower™ 48V 52Ah LiFePO4 Battery & Smart Charger Kit is designed for performance, reliability, and convenience. This IP65-rated metal case battery delivers 2510Wh of power, engineered to handle rough...
View full details

The NUEPower™ 48V 52Ah LiFePO4 Battery & Smart Charger Kit is designed for performance, reliability, and convenience. This IP65-rated metal case battery delivers 2510Wh of power, engineered to handle rough conditions, vibrations, and heavy use.

Paired with a high-speed smart charger, it ensures safe, efficient, and optimized charging, preventing overcharging and enhancing battery life.

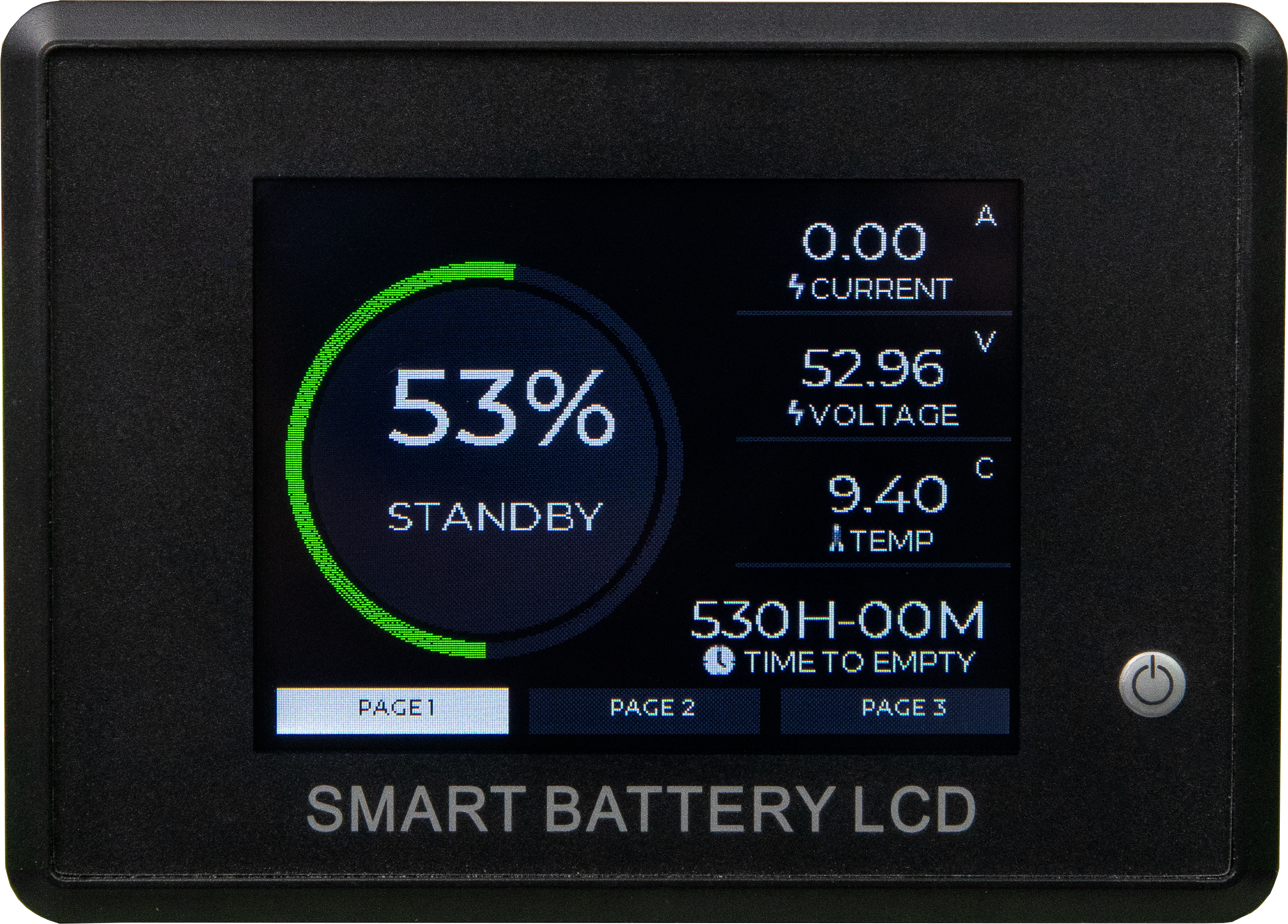

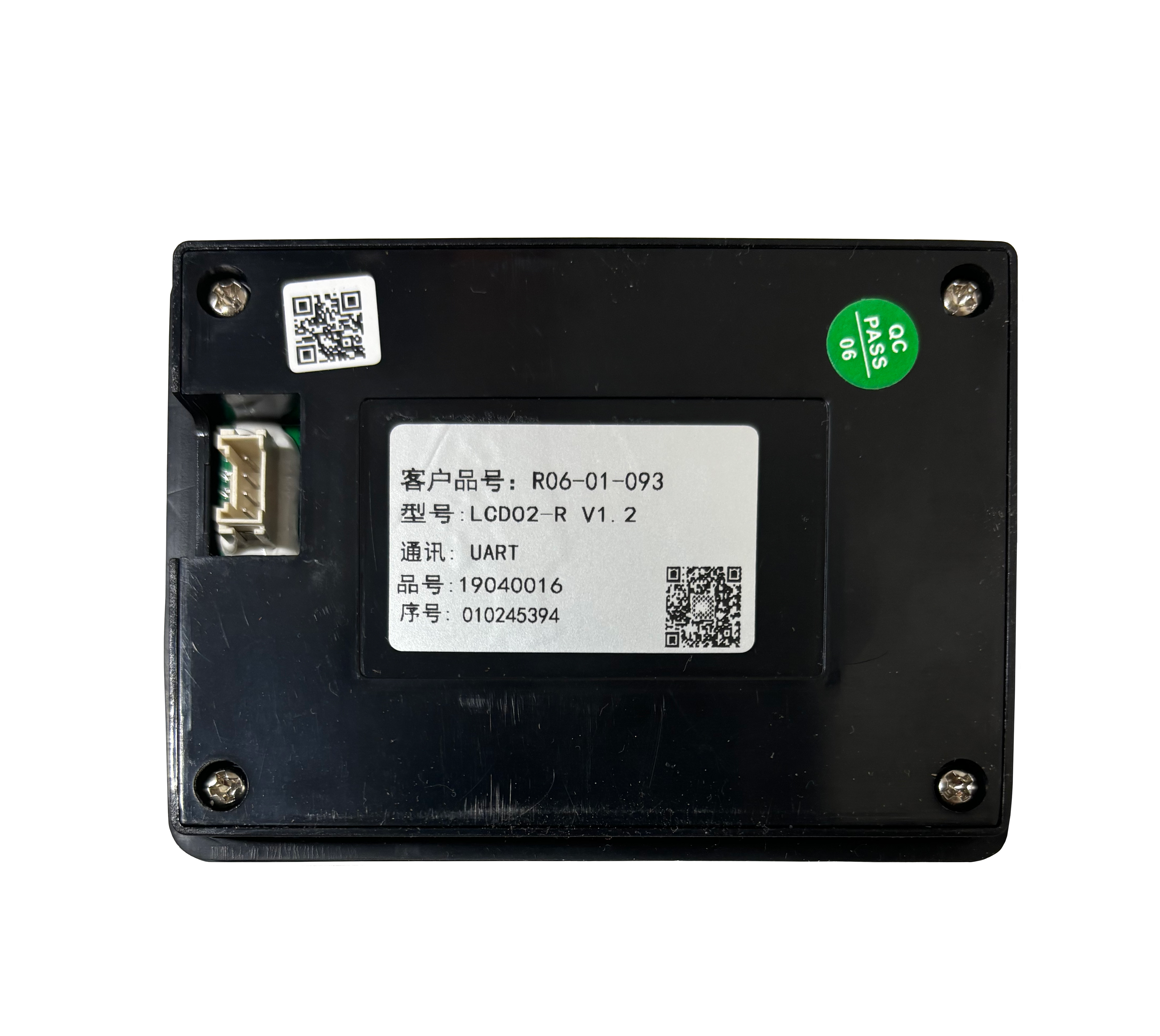

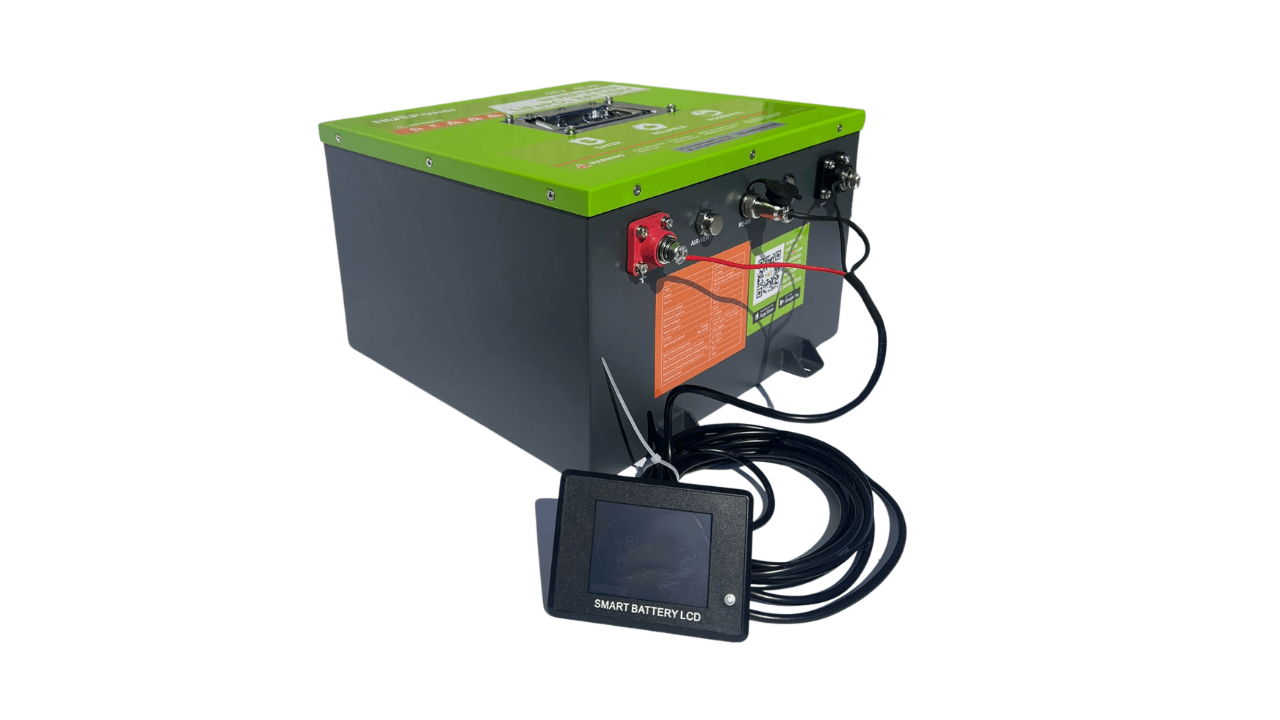

With Bluetooth monitoring, GPS tracking, and an advanced Battery Management System (BMS), you get real-time data and remote control capabilities. The built-in LCD screen offers easy access to charge levels and performance updates.

Ideal for EVs, solar storage, marine, and off-grid setups, this kit provides consistent and reliable power whenever needed!

Please email sales@newuseenergy.com or call us for installation services.

If you are working on a project with a programmable charging source, reach out for quote for metal case battery as well.
Why having a matched charging source is so important - here is a kit for your convenience

IP65 case protects from water and dust

Built-in carry handles allow for easy installation and battery replacement

Easy to use Bluetooth App

Short form factor for easy installation

Est. travel time on standard golf cart is 35 miles without a recharge

Form factor works for all models of golf carts, including older Lead-Acid Models

Designed to be screwed in place

Extra internal protection from shock

Warranty Document User Manual LifePO4 Voltage Calculator MSDS Report 48V 52Ah Metal Case Data sheet NUEPower Chargers Data Sheet
NUEPower Version 48V 52Ah Metal Case Battery
Battery Type Lithium Iron Phosphate (LifFePO4)
Storage Capacity 2560Wh
Estimated Cycle Life based on an 80% Depth of Discharge (subject to other variables including temperature and load) 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity
DC Nominal Voltage 51.2V
Operating Voltage Range 43.2-58.4V
Nominal Capacity 50Ah
Max Continuous Charge Current 50A
Max Continuous Discharge Current 50A
Rated Voltage 48V
Rated Capacity 52Ah
Peak Discharge Current 250 A (3-5 s)
Maximum in Parallel 16
Discharge Temperature Range -4 to 140 °F (-20 to 60 °C)
Charging Temperature Range 32 to 131 °F (0 to 55 °C)
Optional Internal Heating Element Heating ON @ 32°F (0°C), Heating OFF @ 41°F (5°C)Optional Internal Heating Element Consumes 85W
Weight 52.9 lbs (24 kg)
Dimensions 12”x13”x8” (30x32x20 cm)
Warranty and Certifications 5-YEAR LIMITED MANUFACTURERʼS WARRANTYUN 38.3, Conforms to UL 1973 (Cell), and CE (Cell) Certified

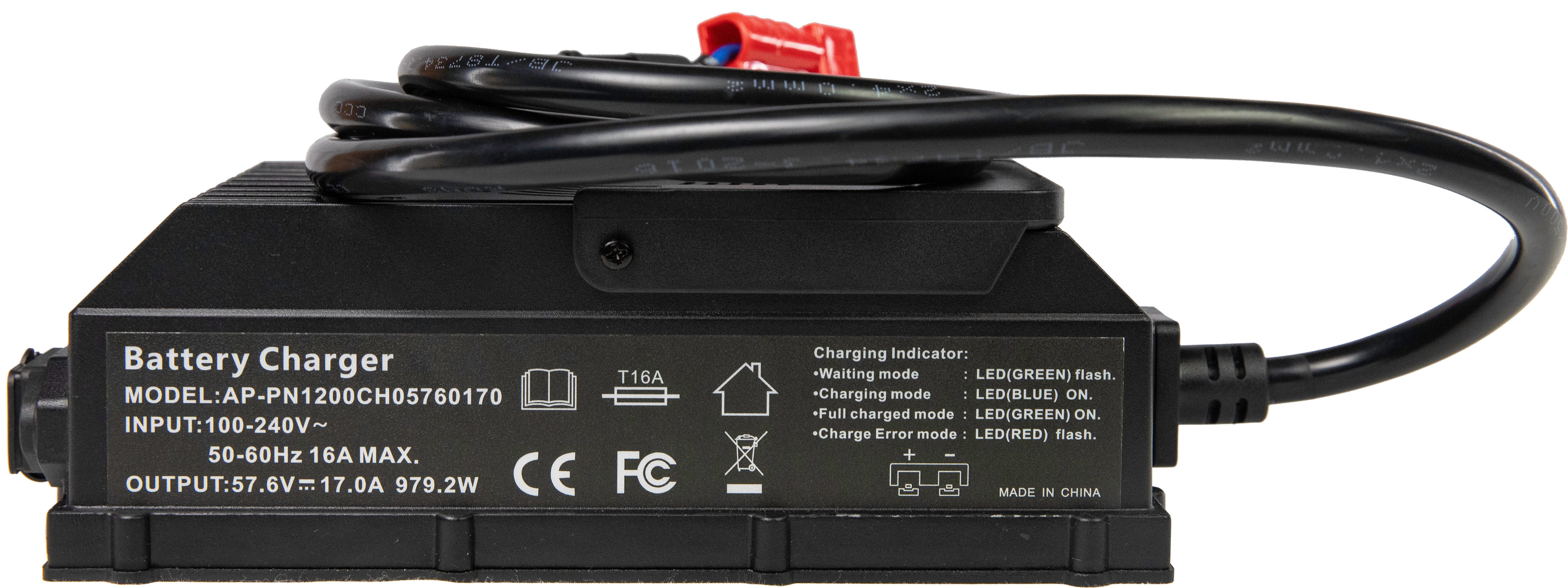

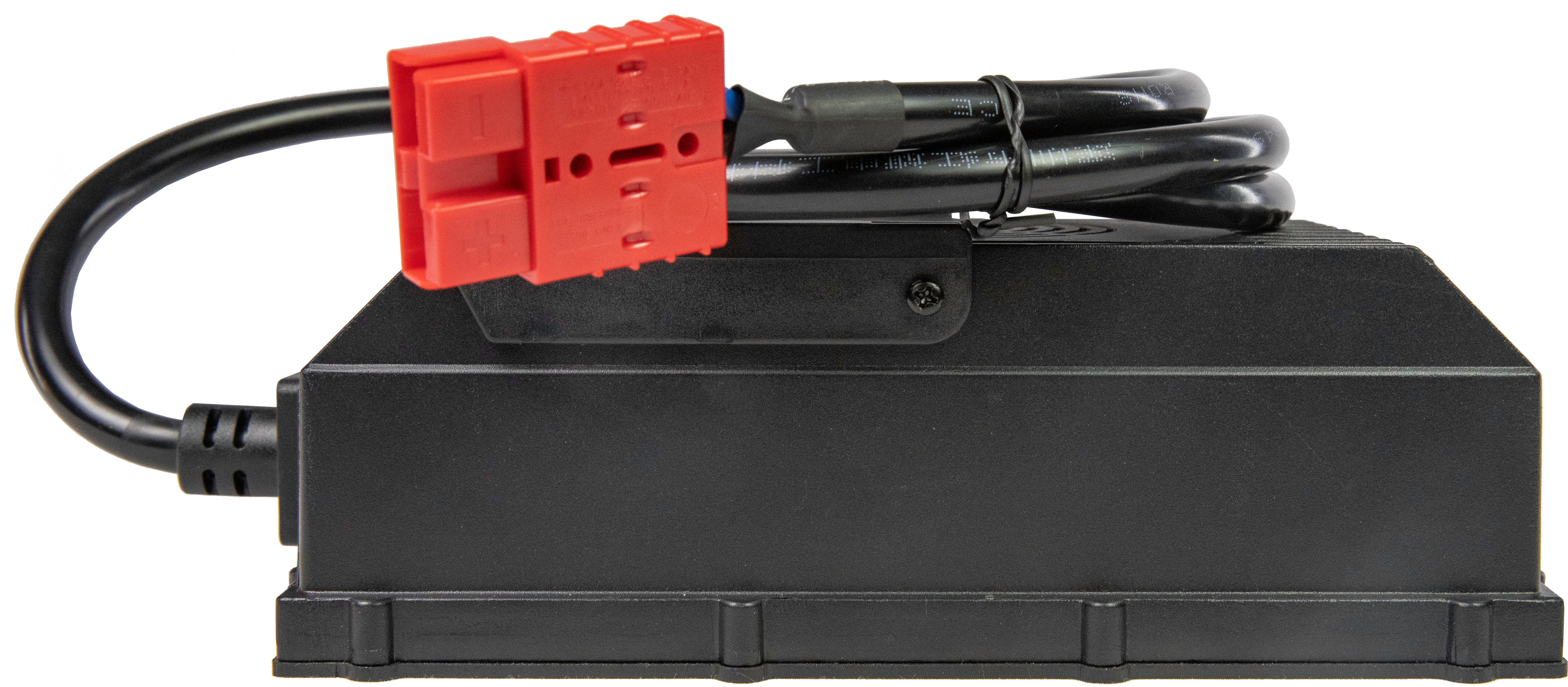

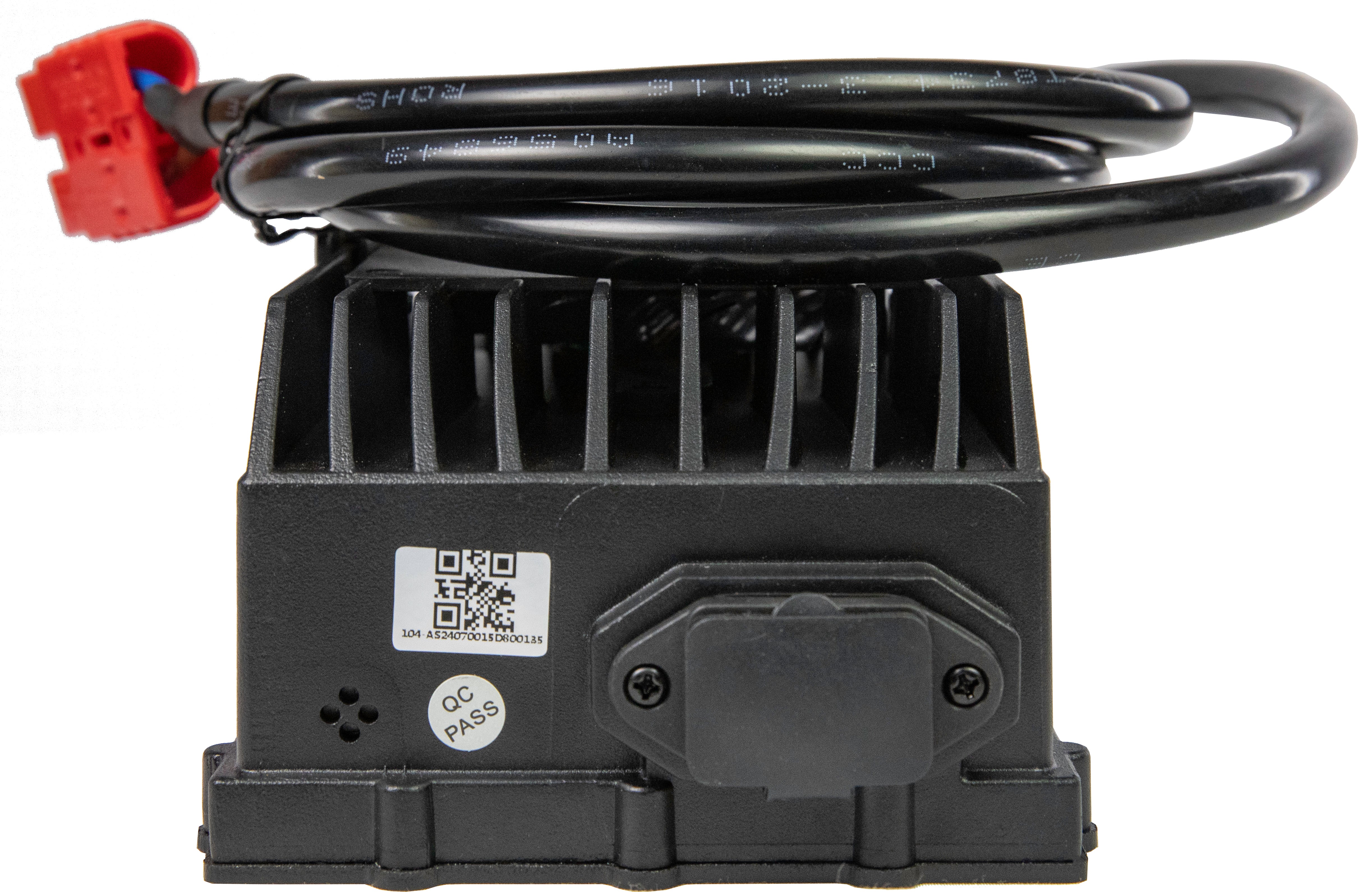

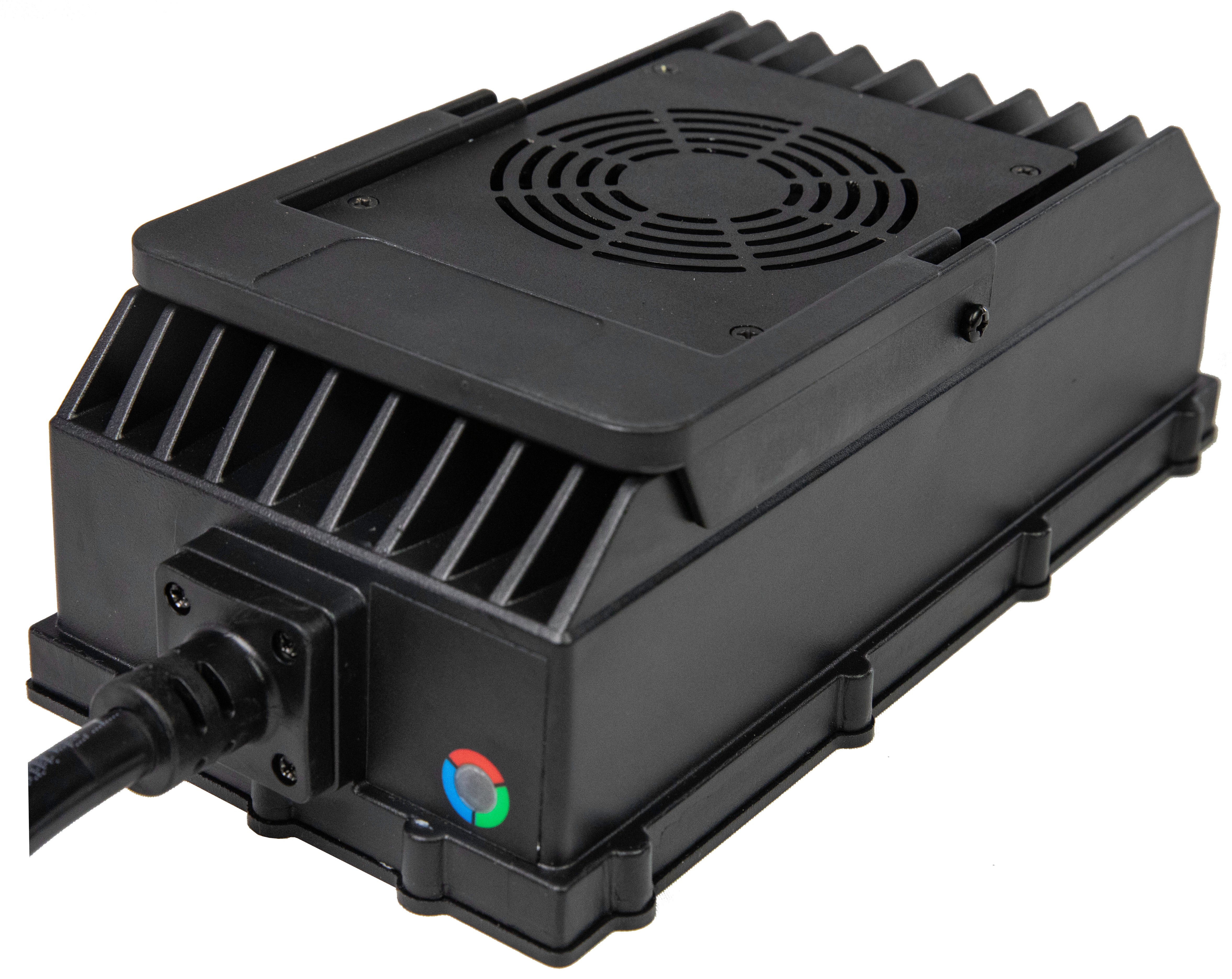

NUE Chargers Specifications
Rated Input Voltage 100-240Vac
Operating Temperature -10 ~ +45°C
Storage Temperature -40 ~ +70°C
Relative Humidity 5%-95%
Altitude Equal to or less than 2000m

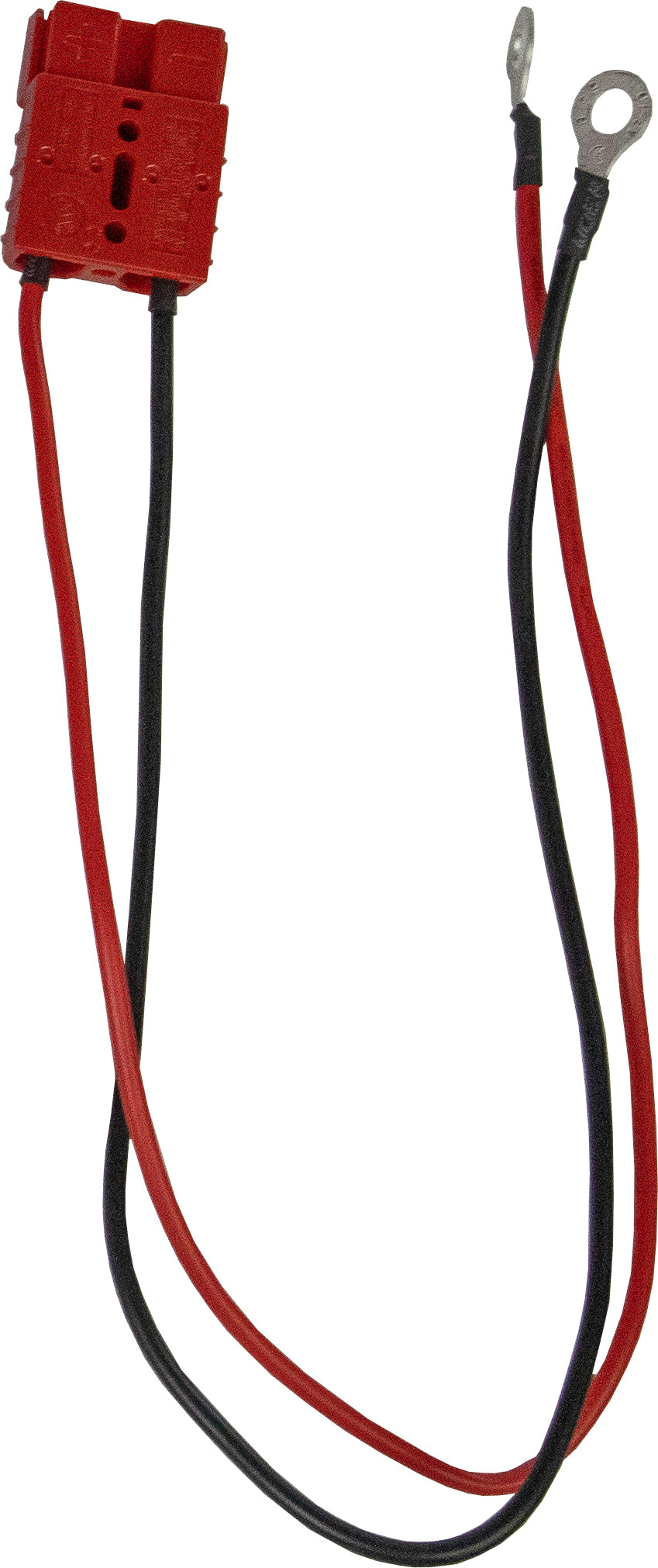

Connector SB120 to SB120 Ring Terminal Pig Tail
LED Charging Indicator Waiting Mode (Green Flash), Charging Mode (Blue),
Fully Charged (Green), Charging Error Mode (Red Flash)
Safety Certification FCC Class A
Protections Reverse Polarity Protection, Output Short Circuit Protection,
Output Overvoltage Protection, Output Overcurrent Protection
Warranty Maximum Two Year Warranty
