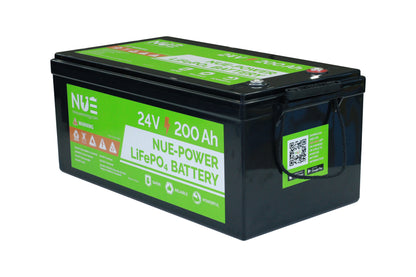

A professional-grade lithium iron phosphate (LiFePO4) battery in rugged, waterproof ABS plastic case.
5120Wh of stored energy in a durable and easy to transport case. Bluetooth communication directly from the Battery Management System (BMS) provides accurate state of charge information and remote control capabilities.
Please email sales@newuseenergy.com or call us for installation services.
NUE-Power Version | 24V 200Ah |
---|---|
Battery Type | Lithium Iron Phosphate (LifFePO4) |
Storage Capacity | 5120 Wh |
Estimated Cycle Life based on an 80% Depth of Discharge (subject to other variables including temperature and load) | 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity |
DC Nominal Voltage | 25.6V |
Recommended Voltage Range | 24-29V |
Max Continuous Charge Current | 150A |
Nominal and Minimum Capacity | 200Ah |
Max Continuous Discharge Current | 150A |
Peak Discharge Current | 160A 3-7S |
Maximum in Parallel | 20 |
Discharge Temperature Range | -4-140°F (-20-60°C) |
Charging Temperature Range | -4-131°F (-20-55°C) |
Optional Internal Heating Element | Heating ON @ 32°F (0°C), Heating OFF @ 41°F (5°C). Optional Internal Heating Element Consumes 85W |
Weight | 85 lb (39kg), (boxed gross: 91lb [41kg]) |
Dimensions | 21”x11”x9” (52x27x22 cm) |
Warranty and Certifications | 7-YEAR LIMITED MANUFACTURER’S WARRANTY UN 38.3, UL (Cell), and CE (Cell)Certified. |
