NUE 24V Battery Generator
NUE 24V Battery Generator
Couldn't load pickup availability

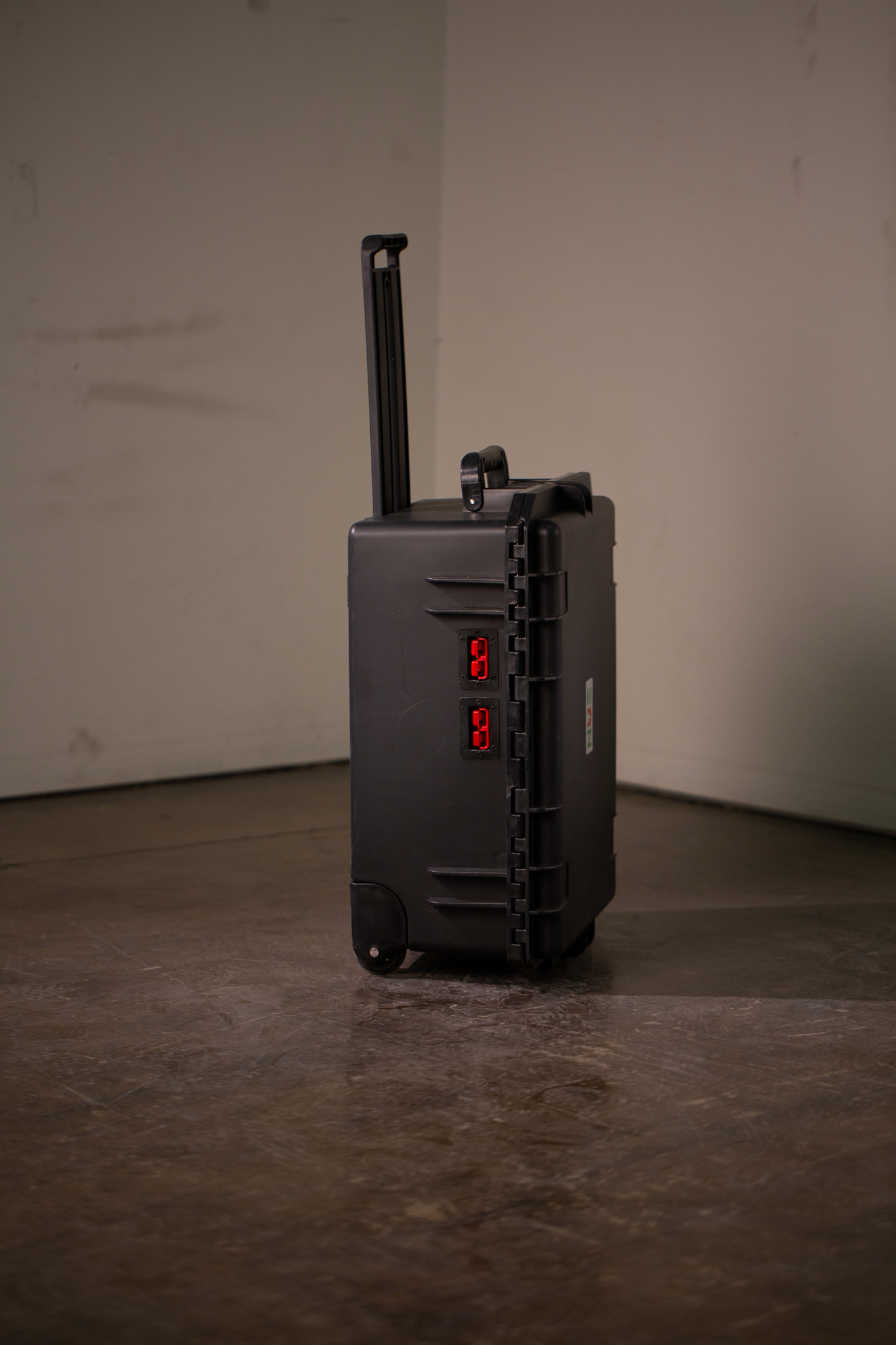

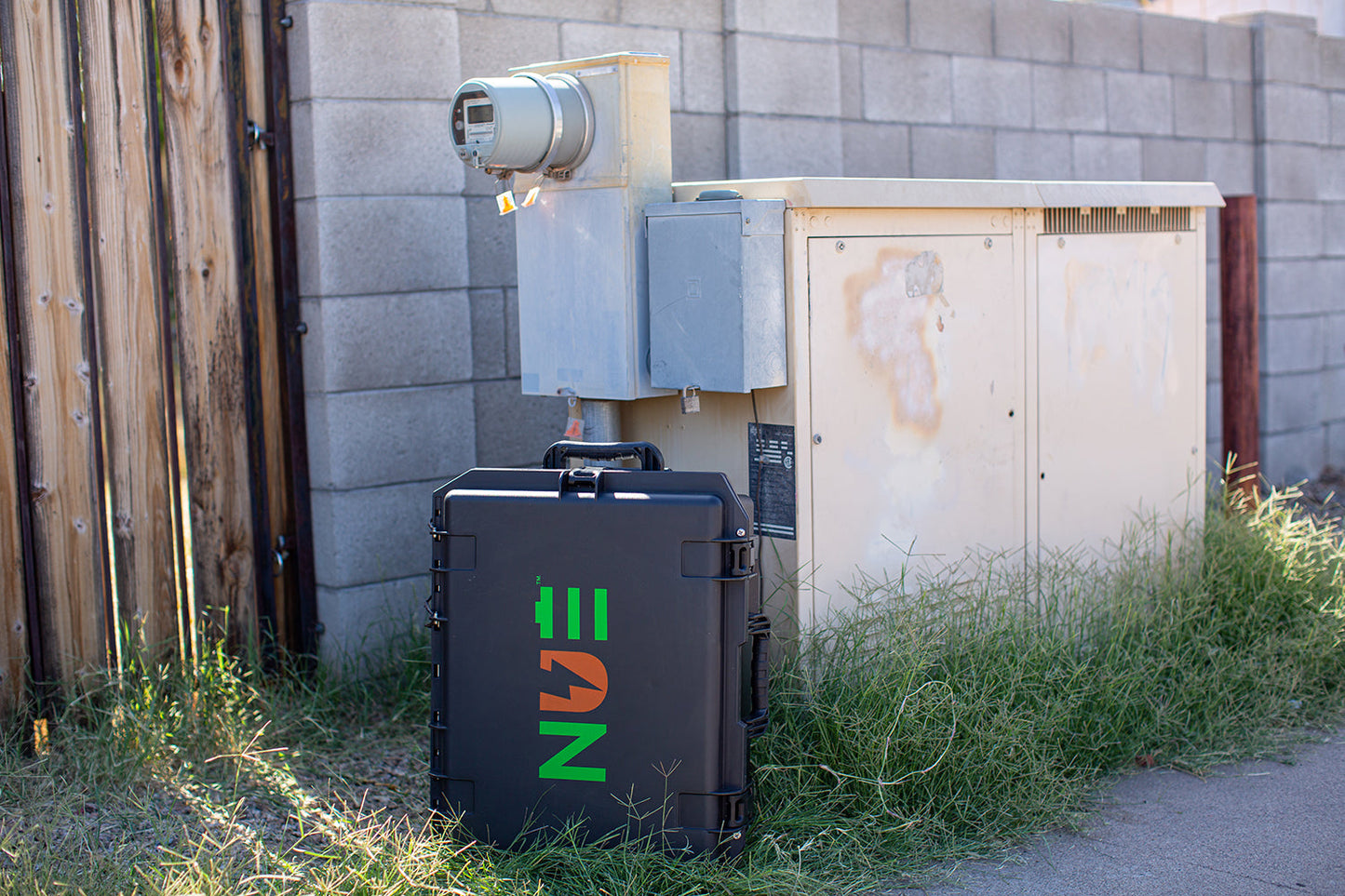

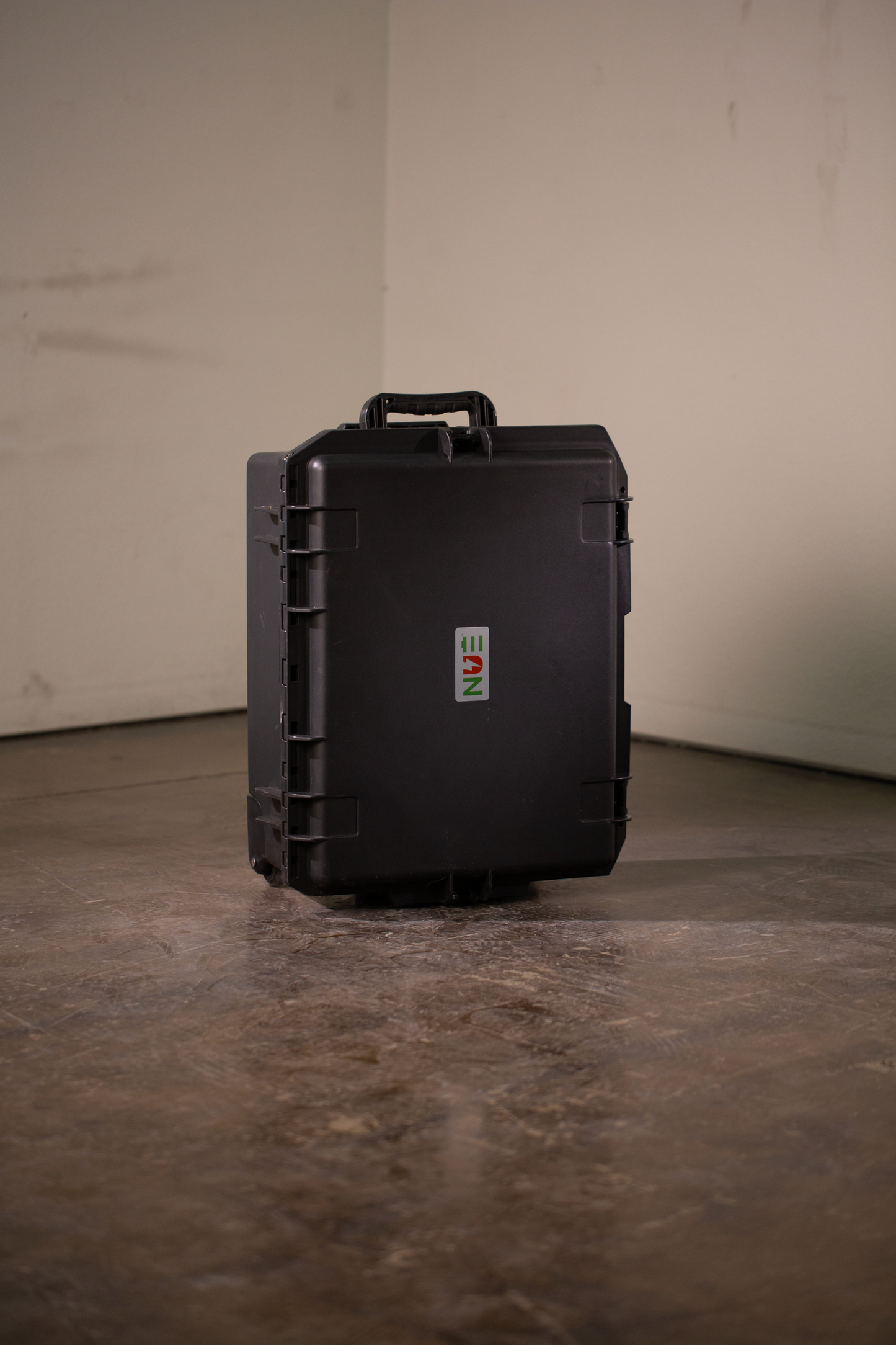

The NUE BBG (broadband battery generator) is a clean, silent way to add additional runtime to 24v broadband power supplies from any manufacturer. Each BBG features a 100Ah 24V nominal battery in a weather resistant pelican-type case. LiFePO4 chemistry provides the maximum amount of usable power in the event of a long outage (up to 80% more than equivalent sized lead acid).
Each BBG has 2 Anderson SB175 connectors, allowing users to daisy chain up to four BBGs in parallel. BBGs come standard with an easy-to-use Bluetooth app (BAT-BMS) for no-touch monitoring using iOS or Android smartphones.
ideal for powering direct through DC Film/TV Location lights without inverter power drain and reduced cost.
Four of these can be connected in parallel for 20kWh of battery storage. With a standard SunCase 2025, that can total a 22kWh mobile solar+battery power system.
| Backup Battery Version | 24V 200Ah |
|---|---|
| Battery Type | Lithium Iron Phosphate (LifFePO4) |
| Storage Capacity | 5.12 kWh |
| Estimated Cycle Life based on an 80% Depth of Discharge(subject to other variables including temperature and load) | 6,000 |
| DC Nominal Voltage | 25.6 V |
| Operating Voltage Range | 24-29V DC |
| Max Continuous Charge Current | 150A |
| Nominal and Minimum Capacity | 200Ah |
| Max Continuous Discharge Current | 150A |
| Peak Discharge Current | 160±5A 3-7S |
| Maximum in Parallel | 4 |
| Discharge Temperature Range | -4-140°F (-20-60°C) |
| Charging Temperature Range | 32-131°F (0-55°C) |
| Weight | 99lb (45kg) |
| Dimensions | 23”x18”x11” (57x44x26cm) |
| Warranty and Certifications | 5-YEAR LIMITED MANUFACTURER’S WARRANTY UN 38.3, UL(Cell), and CE (Cell)Certified. |
Applications
