NUE 36V Battery Generator
NUE 36V Battery Generator
Couldn't load pickup availability
May Qualify for eligible investment tax credit (ITC). ITC is a tax credit that reduces the federal income tax liability for a percentage of the cost of a solar system that is installed during the tax year.
Many electronic devices such as controls, LED lights and communications equipment operate on a native DC voltage (e.g. 12V, 24V or 48V DC). These devices usually come with an external power supply (like the one you use with your laptop) that converts 120V or 240V AC electricity into DC to power the device.
By powering a device directly from a NUE battery generator (BBG), you eliminate the need to convert the power from AC into DC (through the external power supply) and can operate more efficiently (10% to 15%) in the process and increase reliability and runtime.

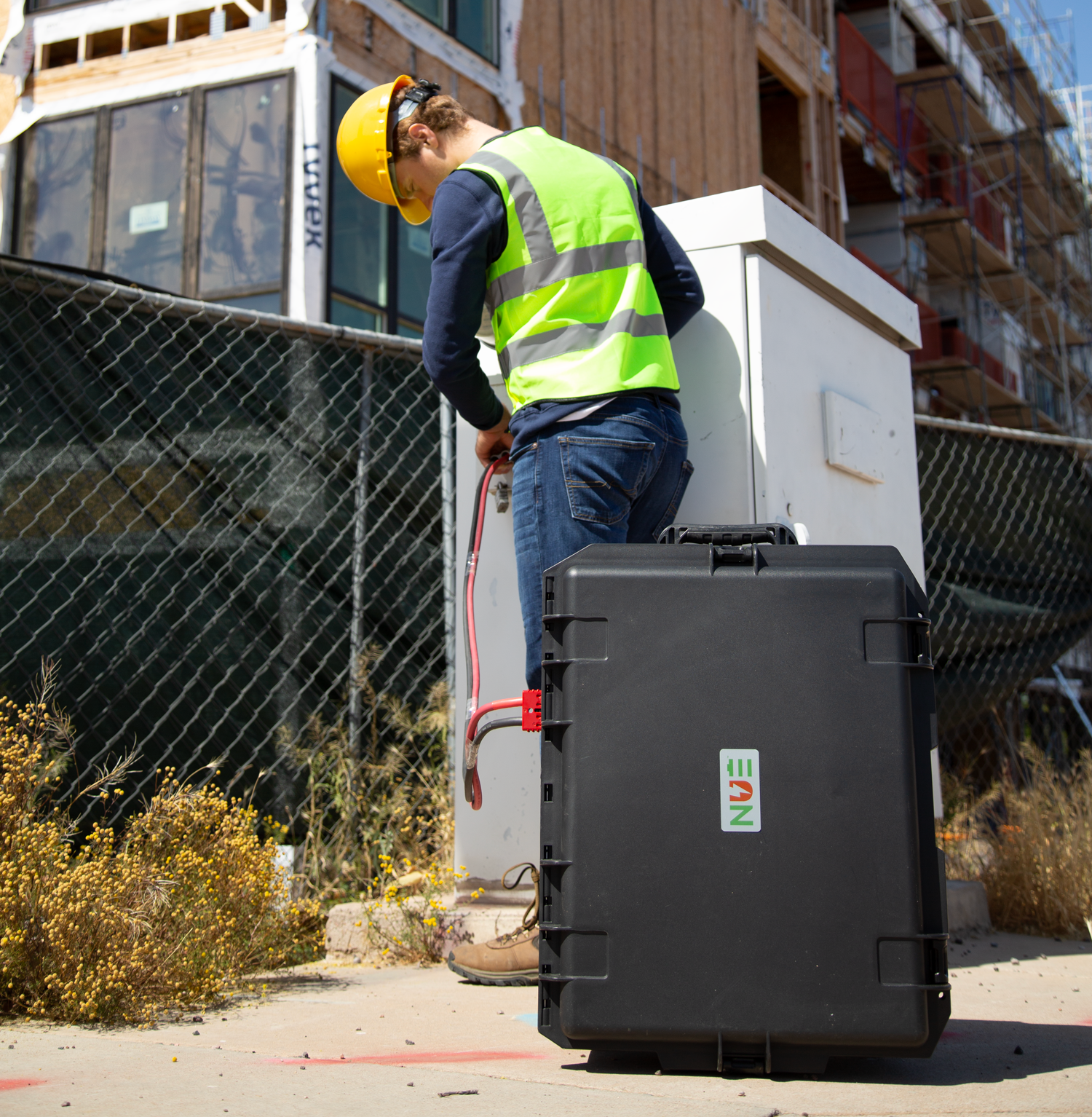

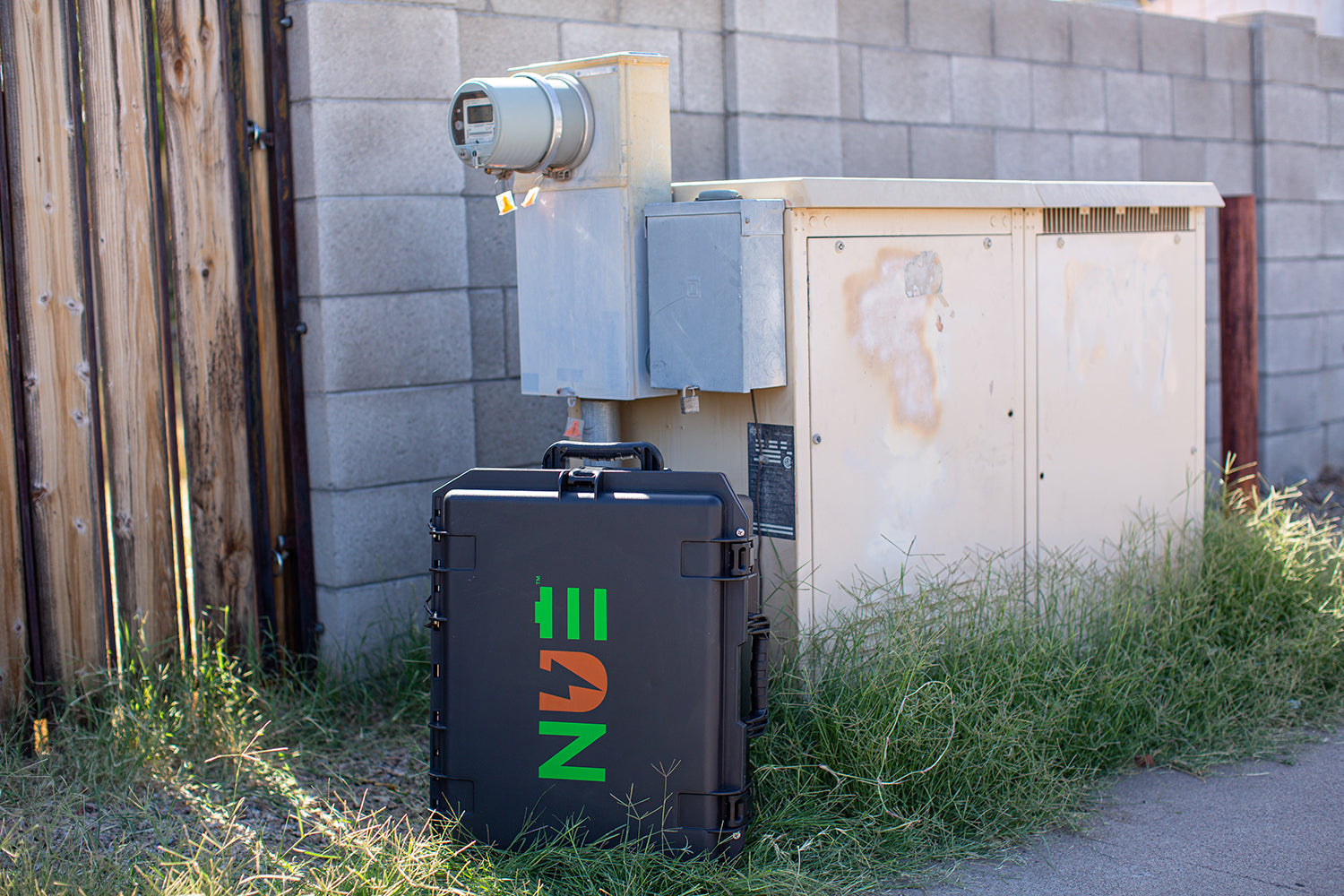

The NUE BBG (broadband battery generator) is a clean, silent way to add additional runtime to 36v broadband power supplies from any manufacturer. Each BBG features a 100Ah 36V nominal battery in a weather resistant pelican-type case. LiFePO4 chemistry provides the maximum amount of usable power in the event of a long outage (up to 80% more than equivalent sized lead acid).

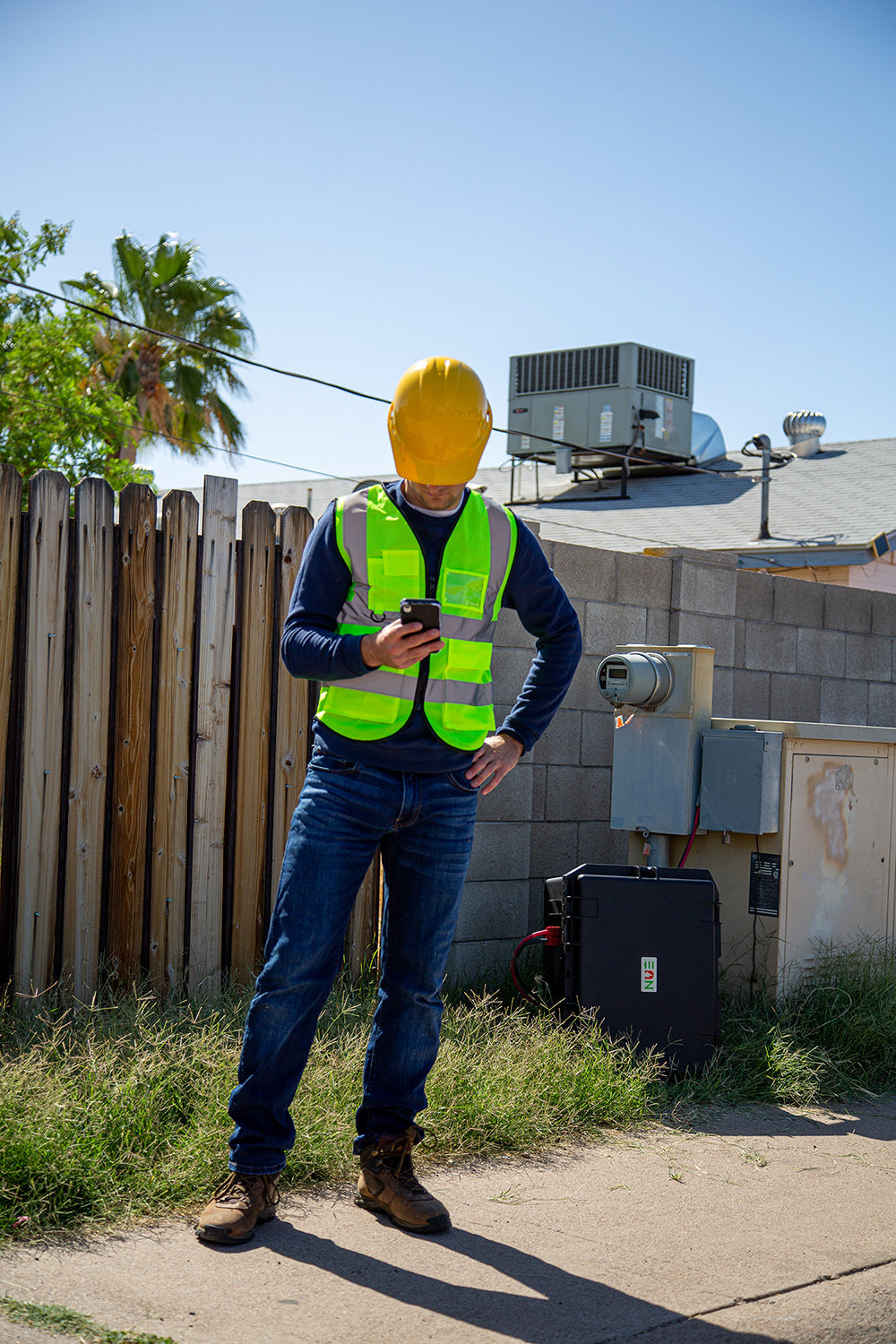

Each BBG has 2 Anderson SB175 connectors, allowing users to daisy chain up to four BBGs in parallel. BBGs come standard with an easy-to-use Bluetooth app (BAT-BMS) for no-touch monitoring using iOS or Android smartphones.
| Backup Battery Version | 36V 100Ah |
|---|---|
| Battery Type | Lithium Iron Phosphate (LifFePO4) |
| Storage Capacity | 5.12 kWh |
| Estimated Cycle Life based on an 80% Depth of Discharge(subject to other variables including temperature and load) | 6,000 |
| DC Nominal Voltage | 38.4V |
| Operating Voltage Range | 36-41V DC |
| Max Continuous Charge Current | 150A |
| Nominal and Minimum Capacity | 200Ah |
| Max Continuous Discharge Current | 150A |
| Peak Discharge Current | 350A(500mS) |
| Maximum in Parallel | 4 |
| Discharge Temperature Range | -4-140°F (-20-60°C) |
| Charging Temperature Range | 32-131°F (0-55°C) |
| Weight | 99lb (45kg) |
| Dimensions | 23”x18”x11” (57x44x26cm) |
| Warranty and Certifications | 5-YEAR LIMITED MANUFACTURER’S WARRANTY UN 38.3, UL1642(Cell), UL1973(Cell), UL1973(Battery), and CE (Cell)Certified. |
