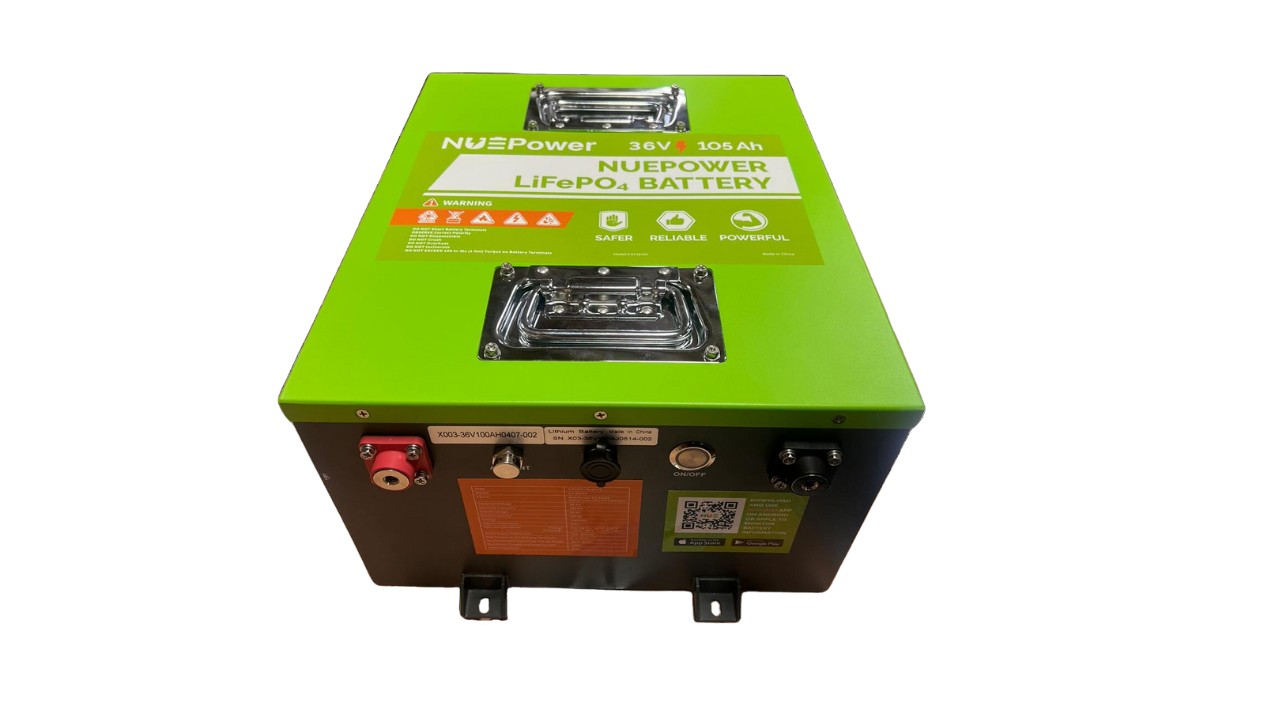

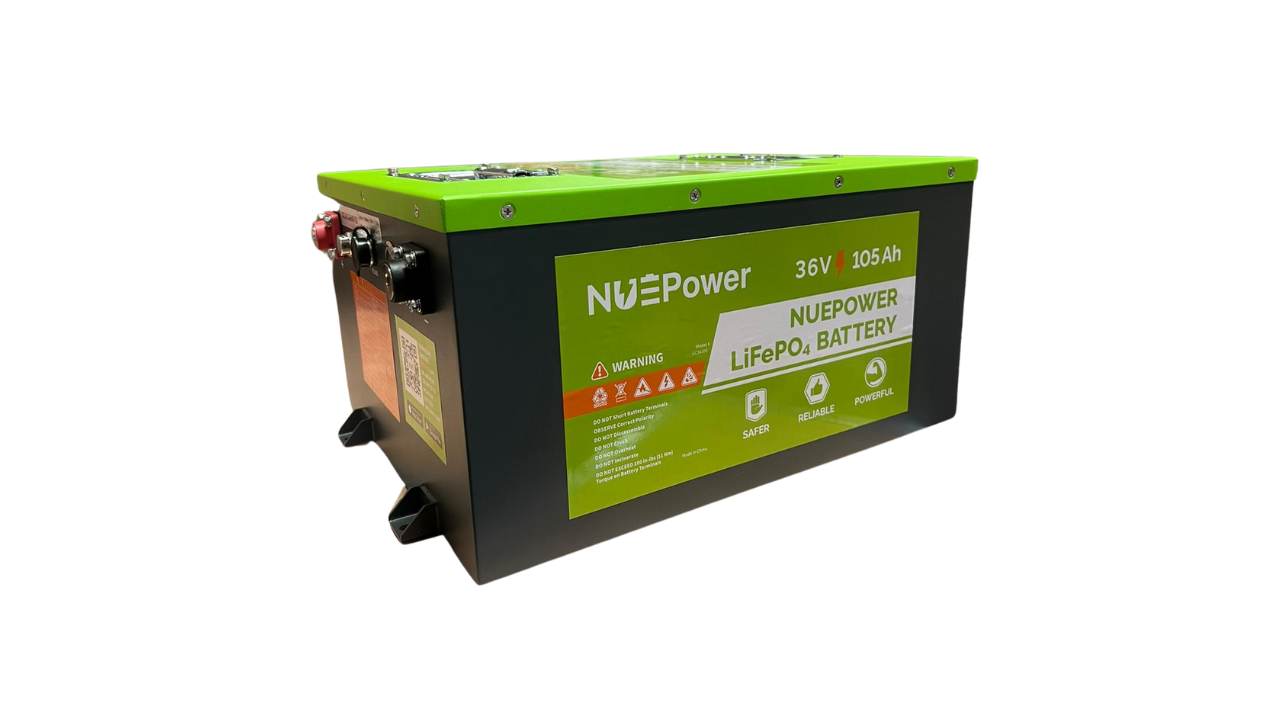

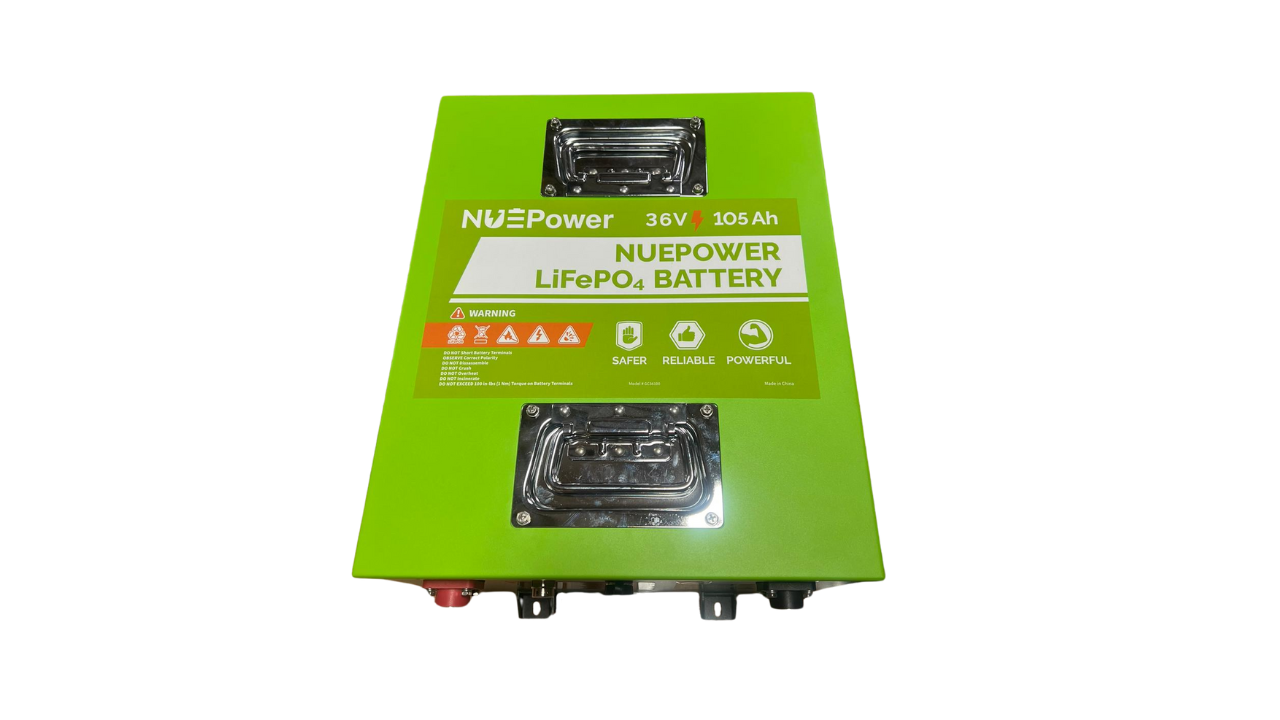

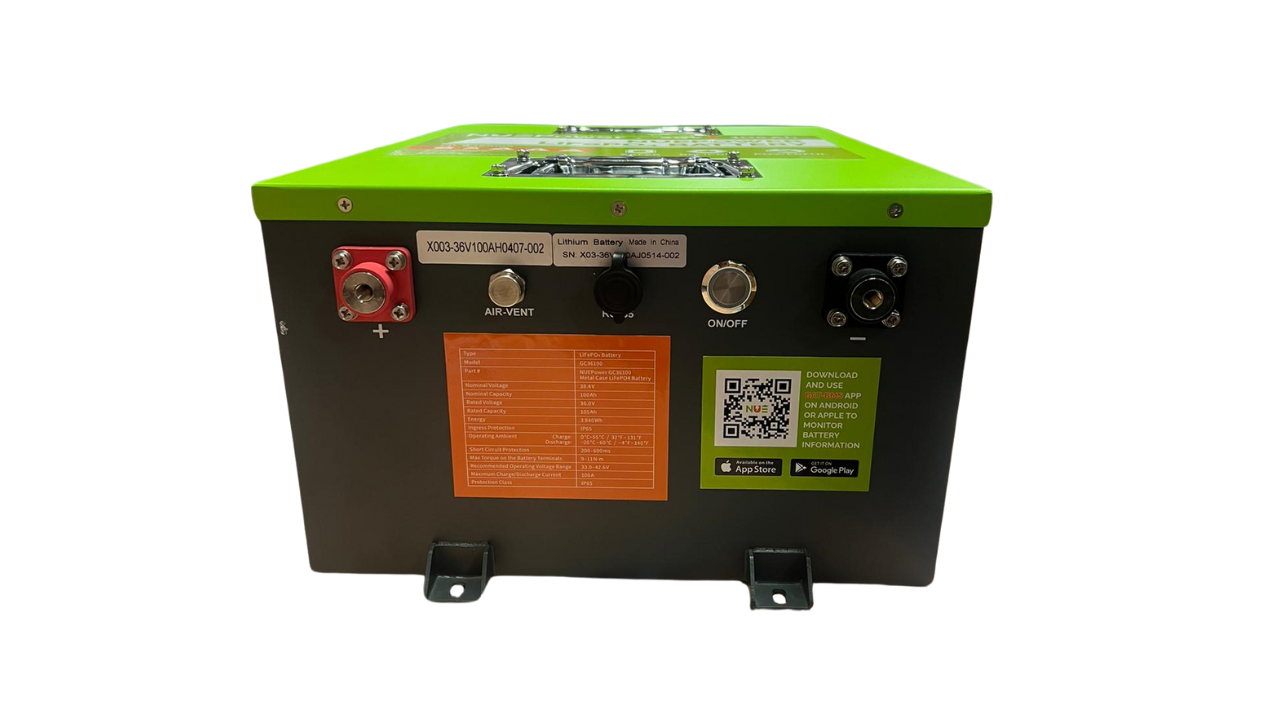

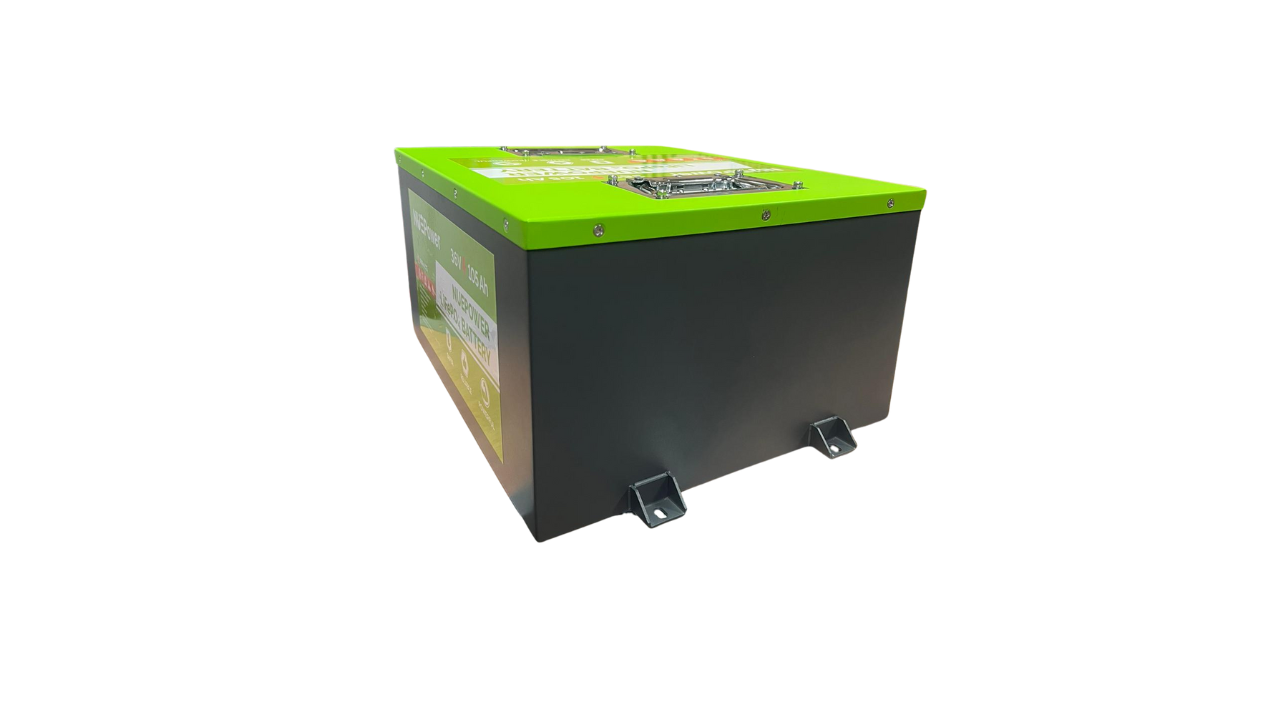

NUEPower™ 36V 105AH Metal Case Battery and Charger Kit
NUEPower™ 36V 105AH Metal Case Battery and Charger Kit
Contact Us for Wholesale Pricing
Couldn't load pickup availability
Power up with the NUEPower™ 36V 105Ah LiFePO4 Battery & Smart Charger Kit, designed for durability and high performance. This IP65-rated metal case battery delivers 3840Wh of energy, built to withstand vibrations, shocks, and tough conditions.
Paired with a fast and intelligent smart charger, this kit ensures safe, efficient, and optimized charging, preventing overcharging and extending battery life.
Stay in control with Bluetooth monitoring, GPS tracking, and an advanced Battery Management System (BMS). Plus, the included LCD screen provides real-time charge status and system insights for easier monitoring and management.

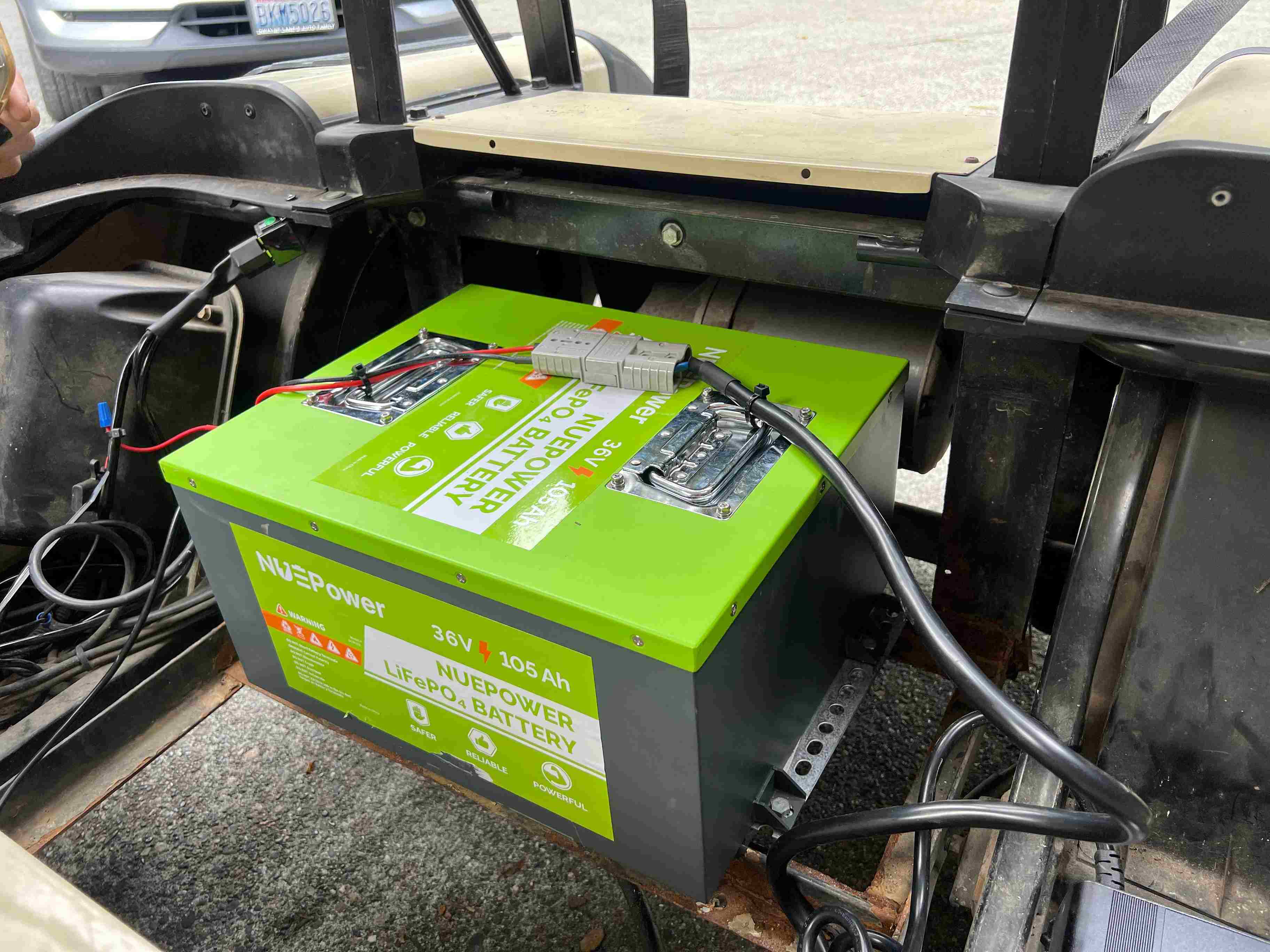

Ideal for EVs, solar storage, marine, and off-grid power, this kit keeps you powered up whenever and wherever you need it!
Please email sales@newuseenergy.com or call us for installation services.
If you are working on a project with a programmable charging source, reach out for quote for metal case battery as well.
Why having a matched charging source is so important - here is a kit for your convenience
| Specification | 36V 105Ah |
|---|---|
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Storage Capacity | 3840 Wh |
| Estimated Cycle Life | 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity |
| DC Nominal Voltage | 38.4V |
| Operating Voltage Range | 3-42.6V |
| Max Continuous Charge Current | 105A |
| Nominal and Minimum Capacity | 105Ah |
| Max Continuous Discharge Current | 105A |
| Peak Discharge Current | 500A (3-5 s) |
| Maximum in Parallel | 16 |
| Discharge Temperature Range | -4 to 140 °F (-20 to 60 °C) |
| Charging Temperature Range | 32 to 131 °F (0 to 55 °C) |
| Optional Internal Heating Element | Heating ON @ 32°F (0°C), Heating OFF @ 41°F (5°C), Consumes 85W |
| Weight | 77.1 lbs (35 kg) |
| Dimensions | 15.4”x12.2”x8” (39x31x20 cm) |
| Warranty and Certifications | 5-YEAR LIMITED MANUFACTURER’S WARRANTY, UN 38.3, Conforms to UL1973 (Cell), and CE (Cell) Certified |
| NUE Chargers Specifications | |
|---|---|
| Rated Input Voltage | 100-240Vac |
| Operating Temperature | -10 ~ +45°C |
| Storage Temperature | -40 ~ +70°C |
| Relative Humidity | 5%-95% |
| Altitude | Equal to or less than 2000m |
| Connector | SB120 to SB120 Ring Terminal Pig Tail |
| LED Charging Indicator |
Waiting Mode (Green Flash), Charging Mode (Blue), Fully Charged (Green), Charging Error Mode (Red Flash) |
| Safety Certification | FCC Class A |
| Protections |
Reverse Polarity Protection, Output Short Circuit Protection, Output Overvoltage Protection, Output Overcurrent Protection |
| Warranty | Maximum Two Year Warranty |
Applications
