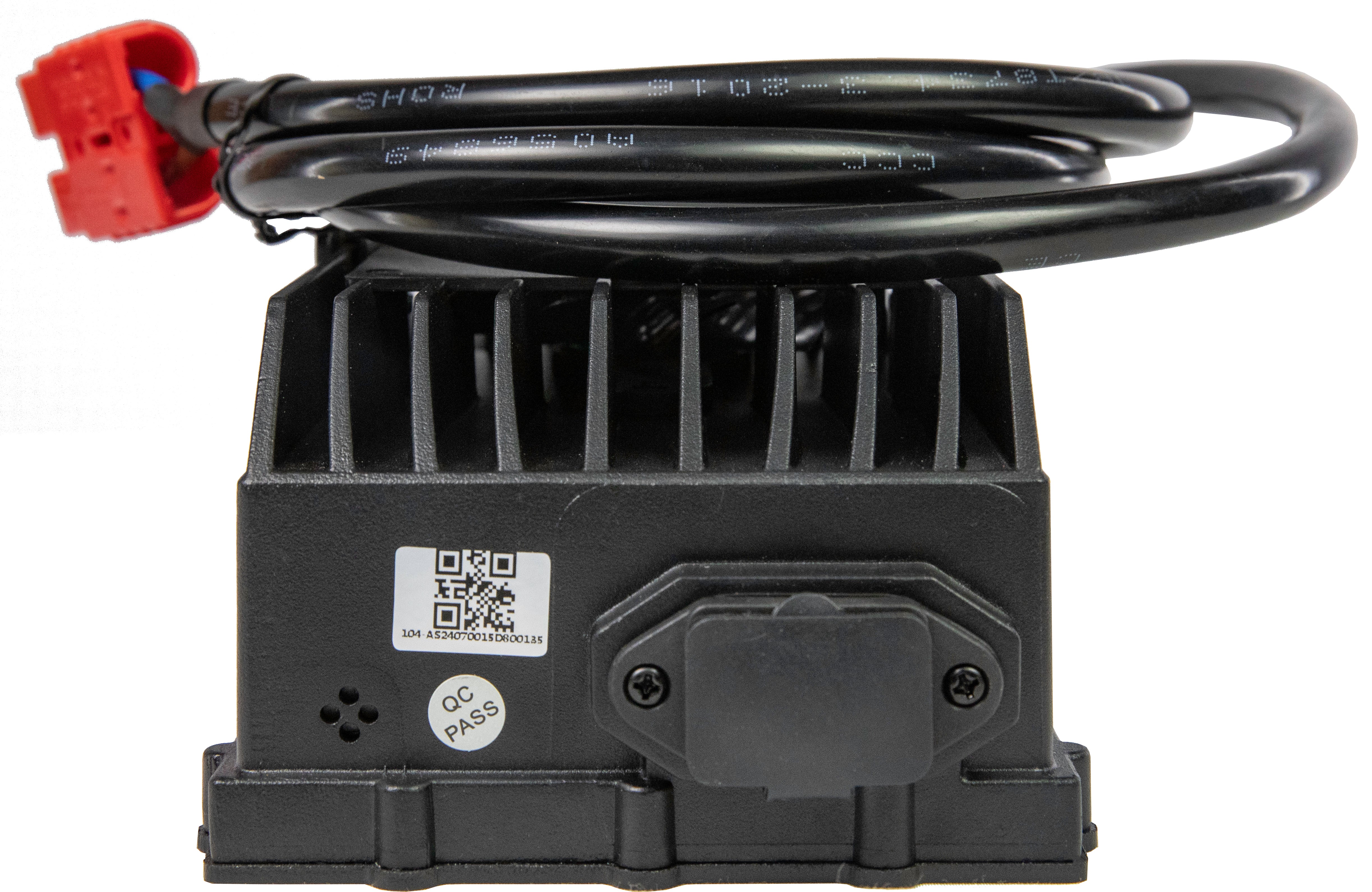

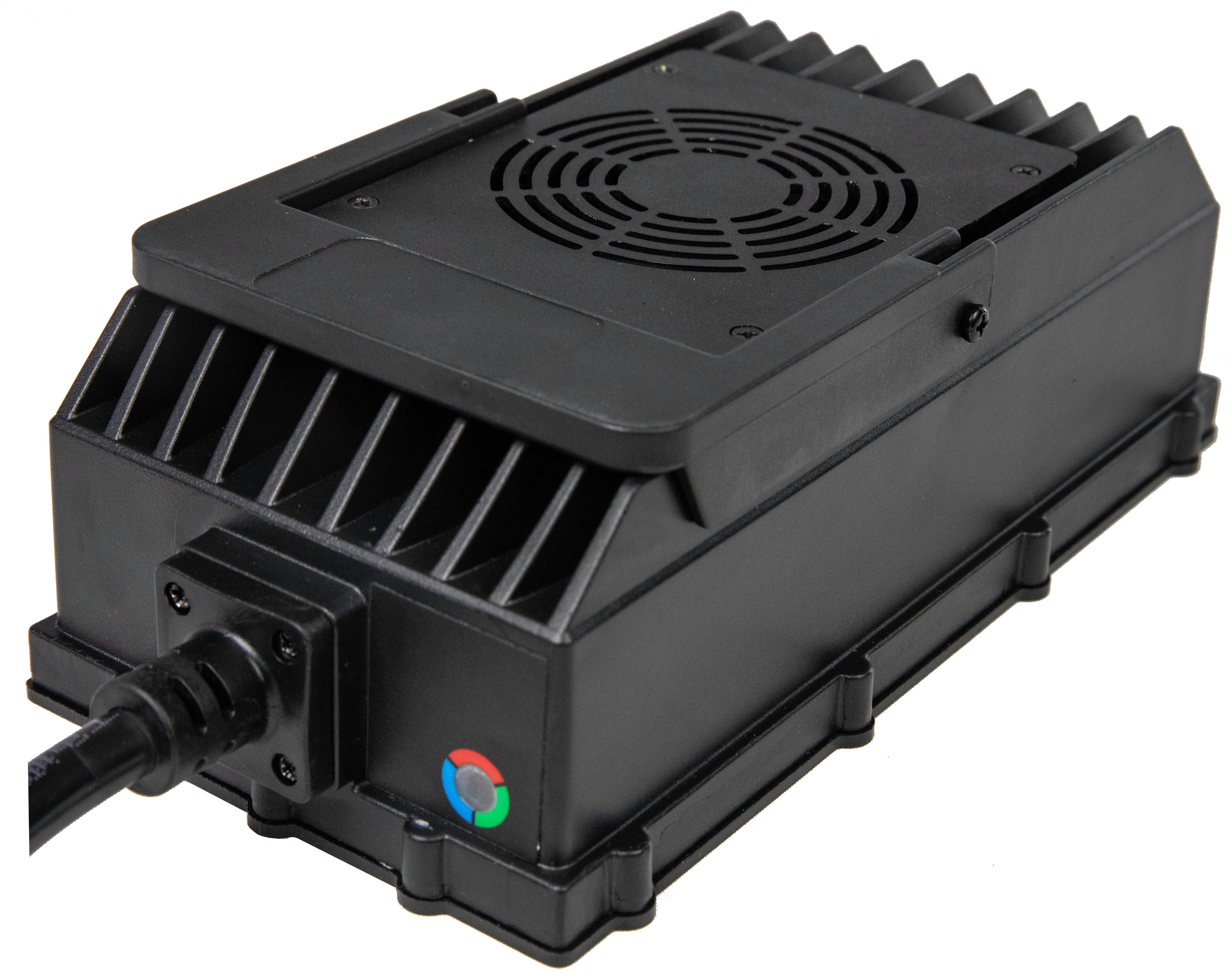

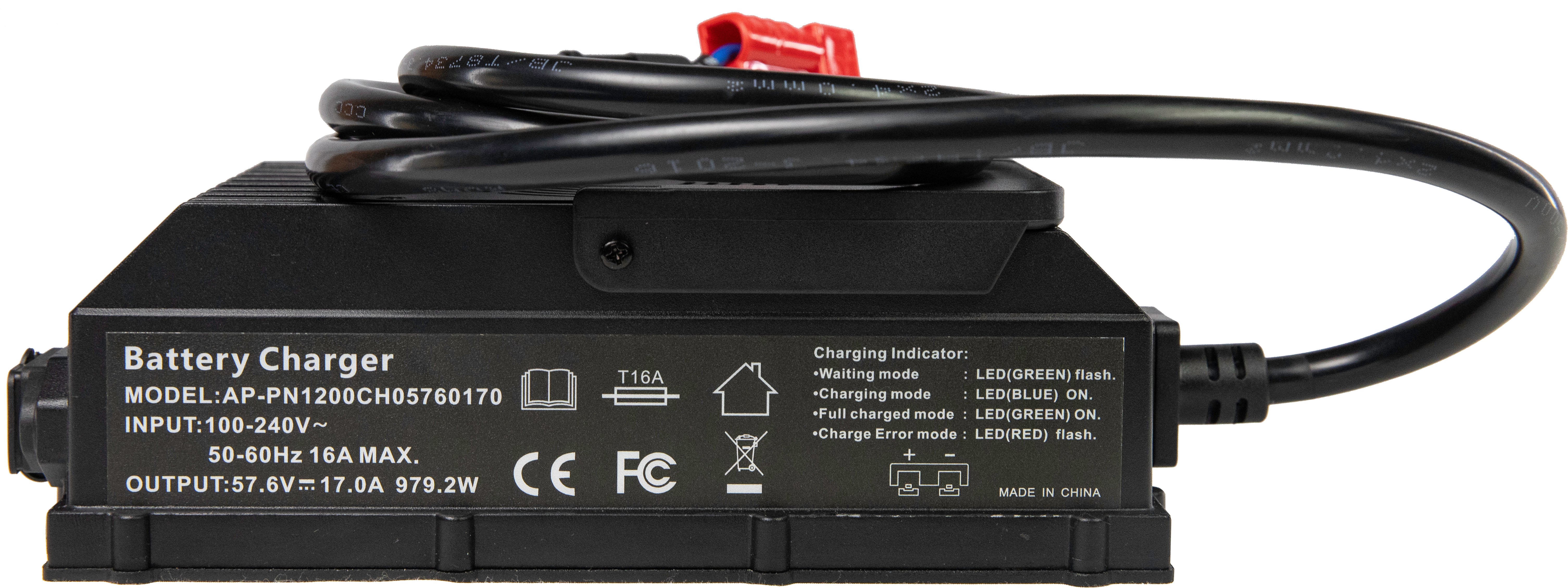

A professional-grade lithium iron phosphate (LiFePO4) battery charger designed for NUEPower lithium batteries.
48V lithium chargers in a durable and easy-to-transport casing.
Built-in protections and LED indicator lights provide safety and accurate charge information.

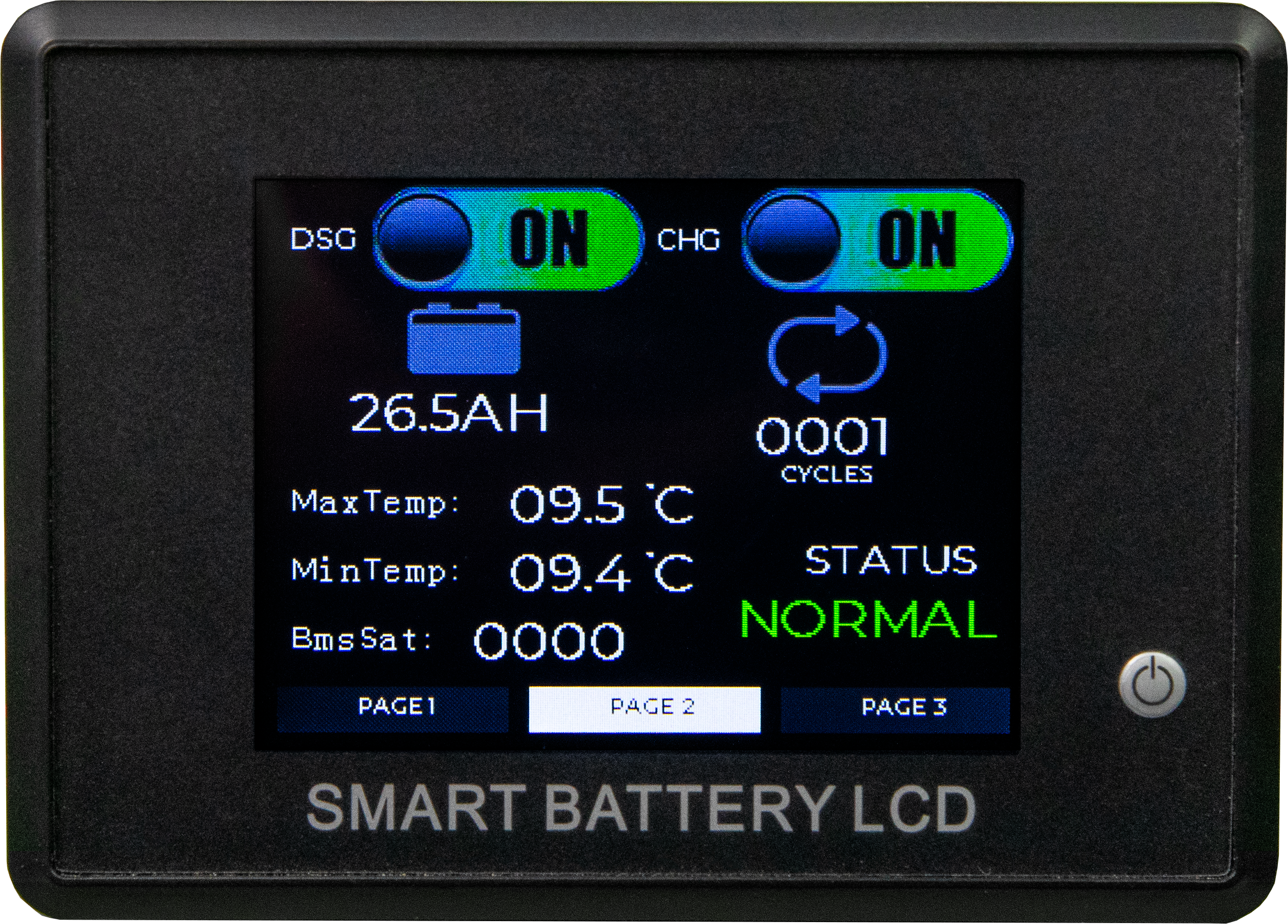

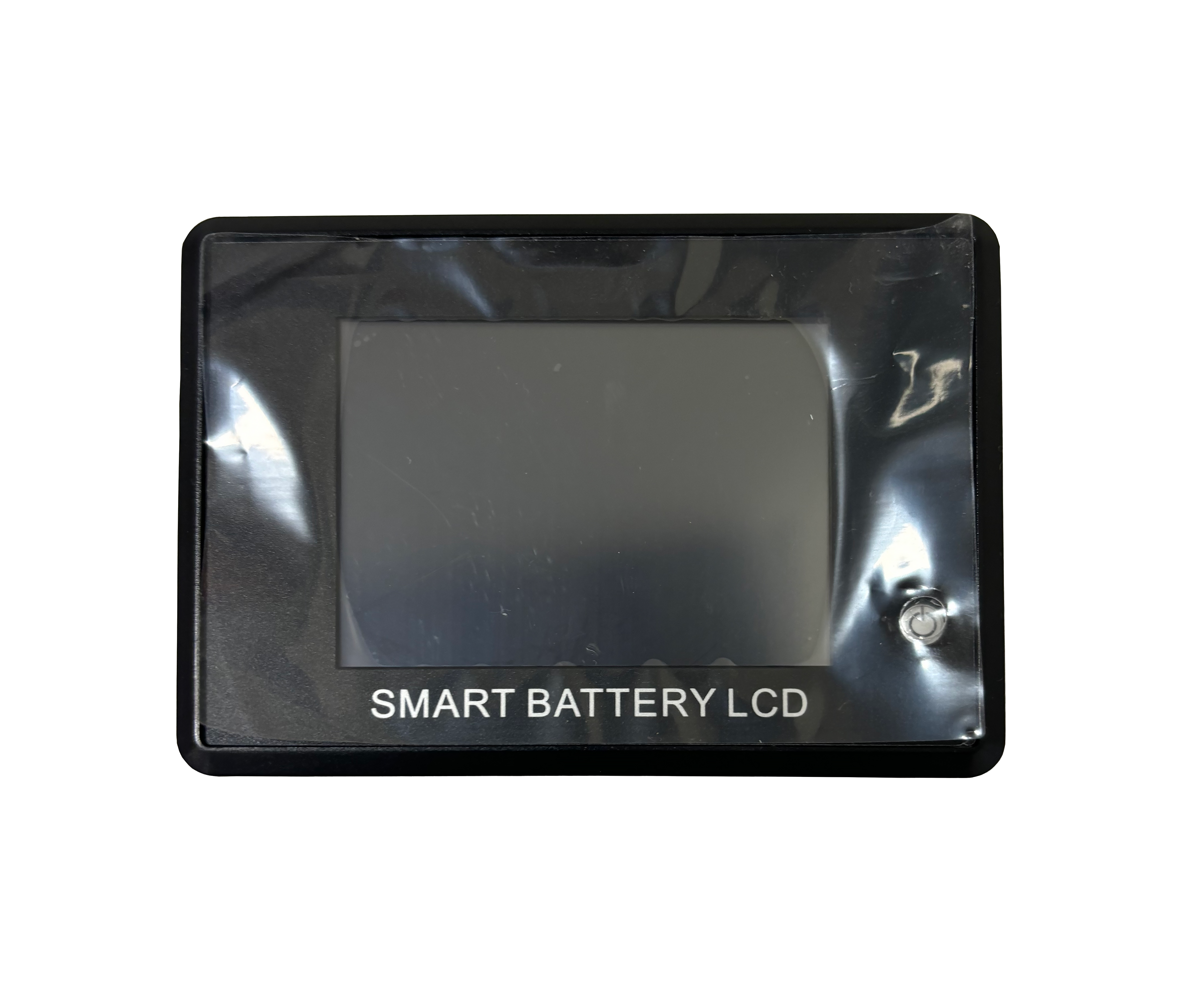

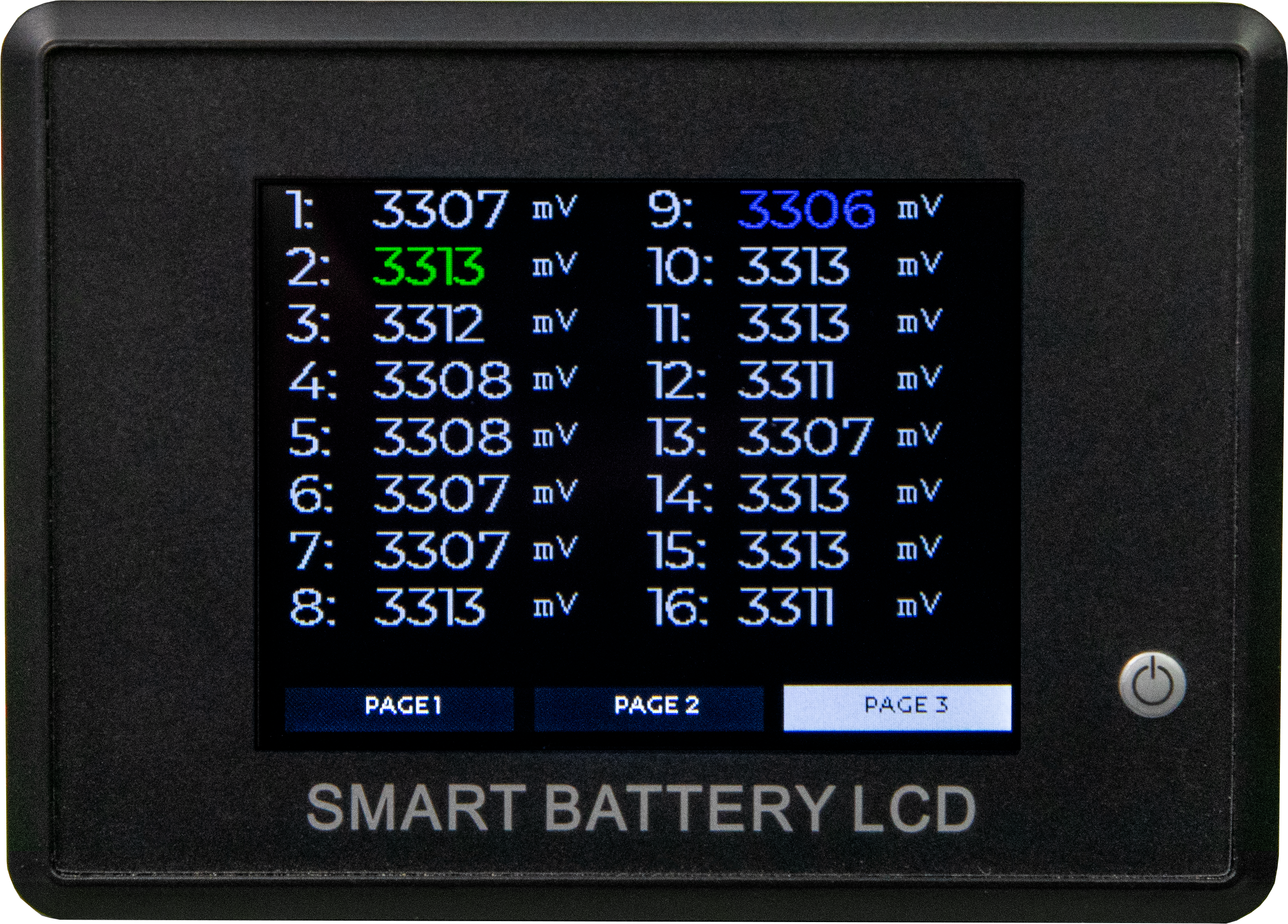

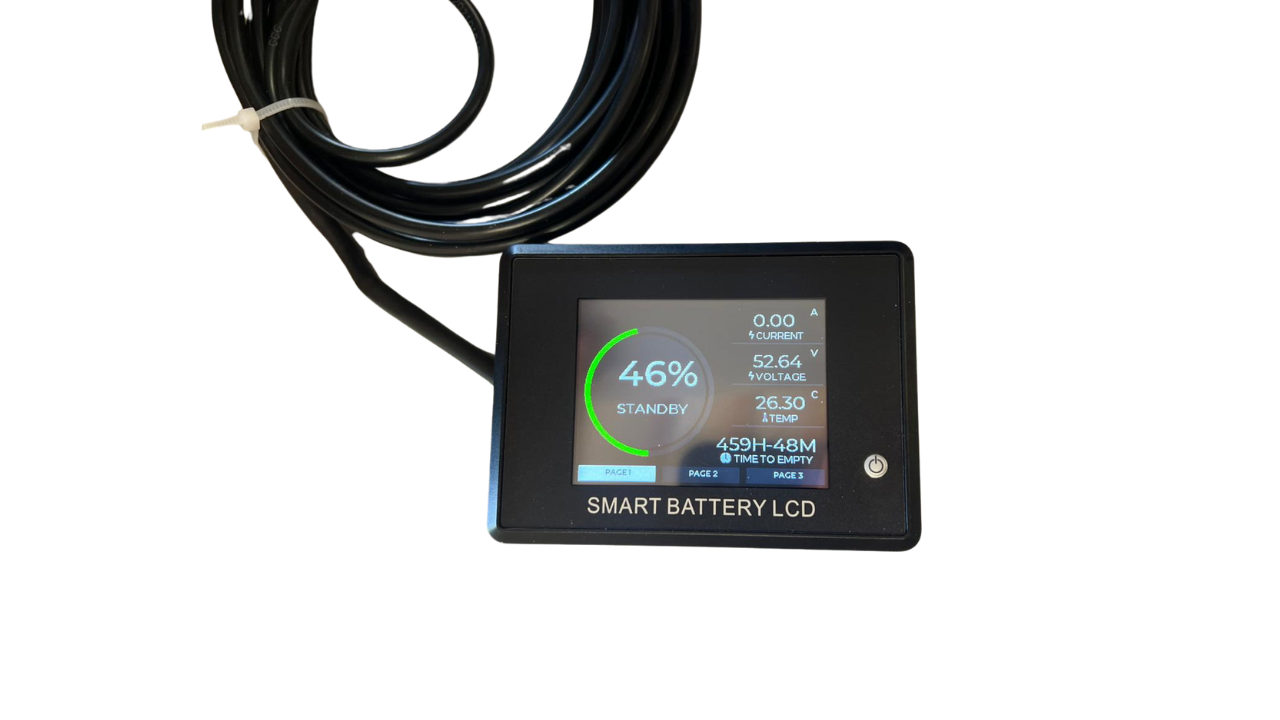

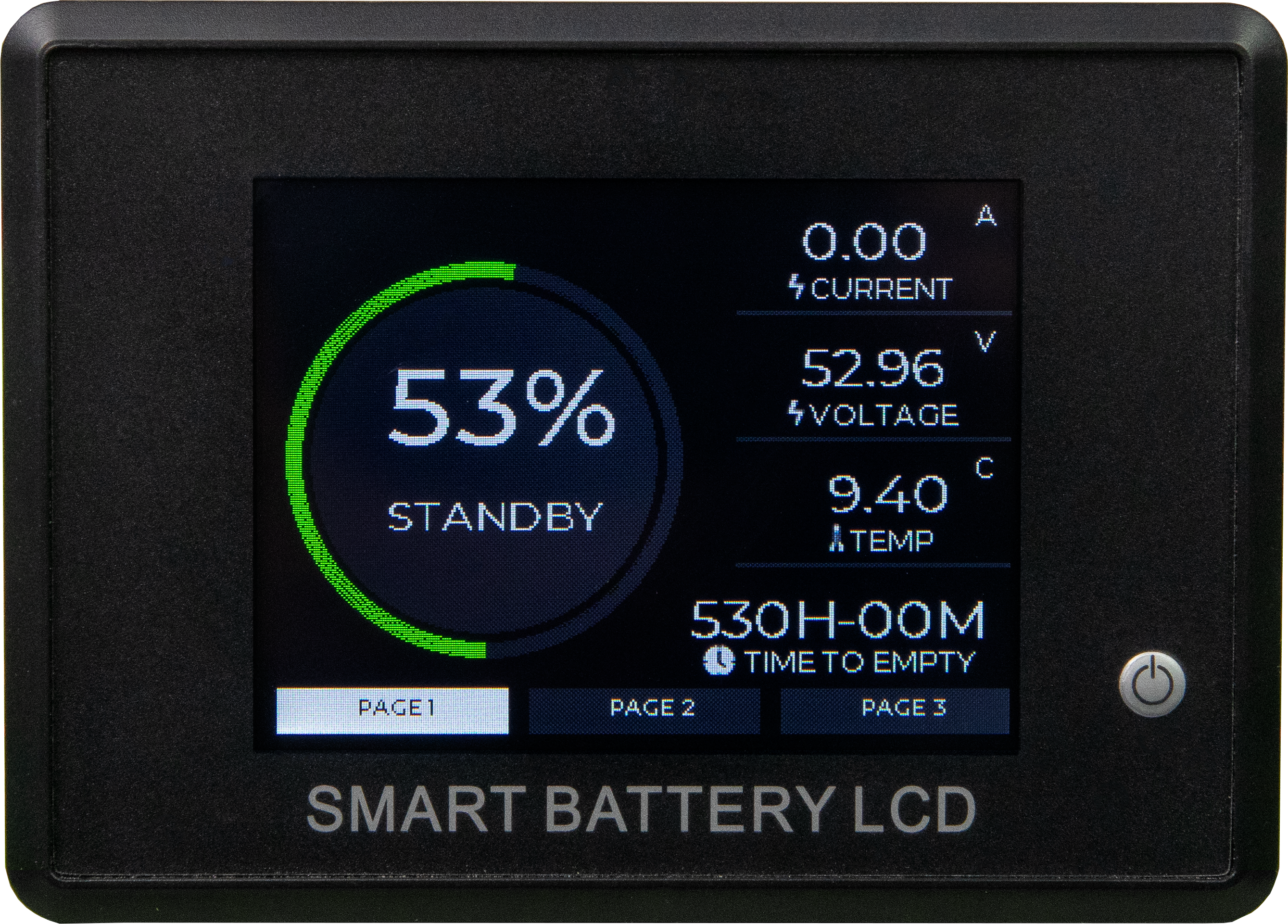

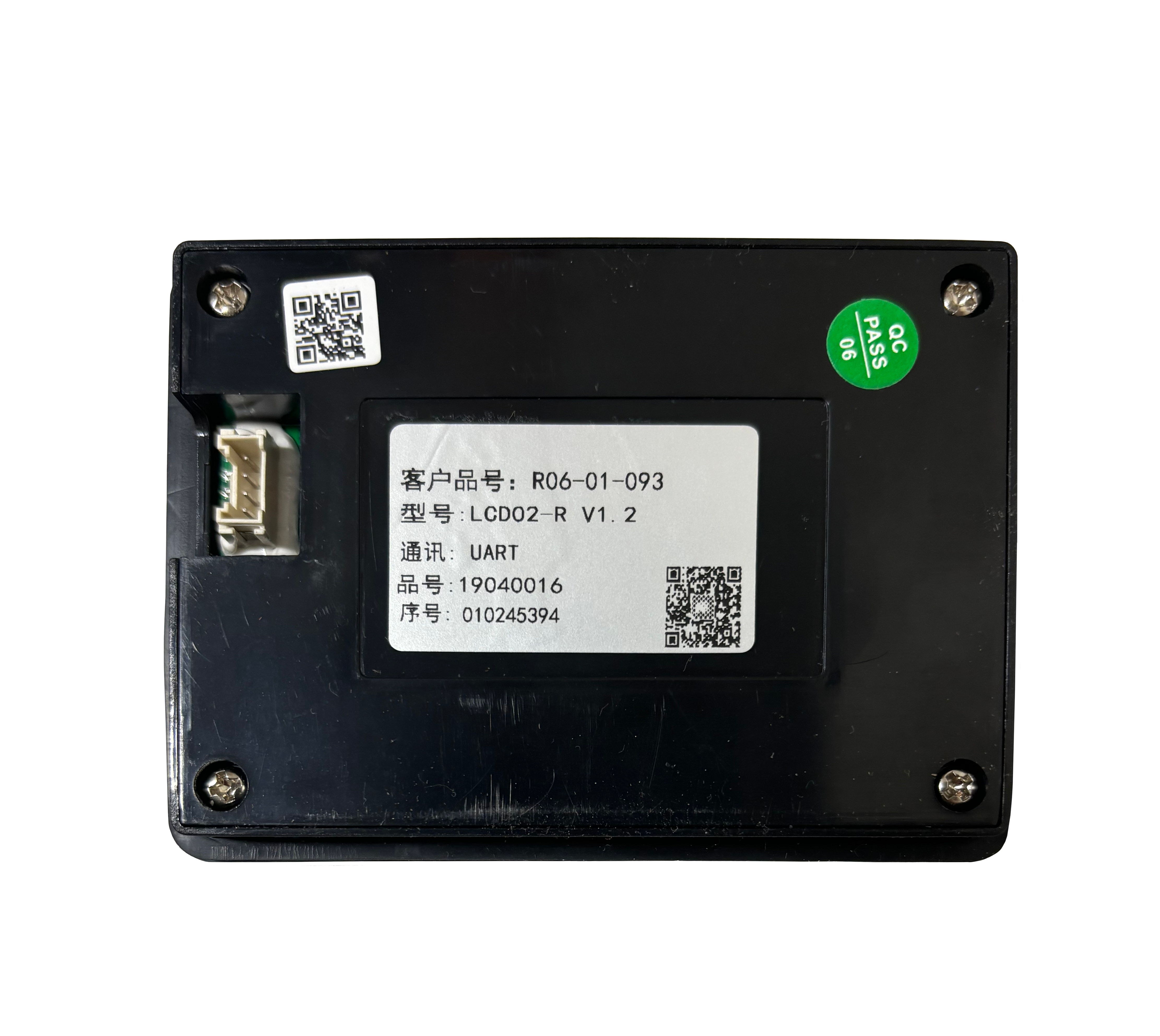

Includes LCD screen.
NUEPower™ Chargers
NUE-Power Version | 43.2V 27A | 57.6V 17A | 86.4V 13.8A |
---|---|---|---|
Output Voltage | 43.2Vdc | 57.6Vdc | 86.4Vdc |
Output Current | 27A | 17A | 14A |
Output Watts | 1166.4W | - | - |
Stable Voltage Accuracy | +- .2V | +- .3V | +- .2V |
Classification of Waterproof | - | IP65 | - |
Cooling Method | 80*80*25mm Bearing Fan Cooling |
80*80*15mm Bearing Fan Cooling |
80*80*25mm Bearing Fan Cooling |
Identical Specifications | |
---|---|
Rated Input Voltage | 100-240Vac |
Operating Temperature | -10 ~ + 45 °C |
Storage Temperature | -40 ~ +70 °C |
Relative Humidity | 5%-95% |
Altitude | Equal to or less than 2000 m |

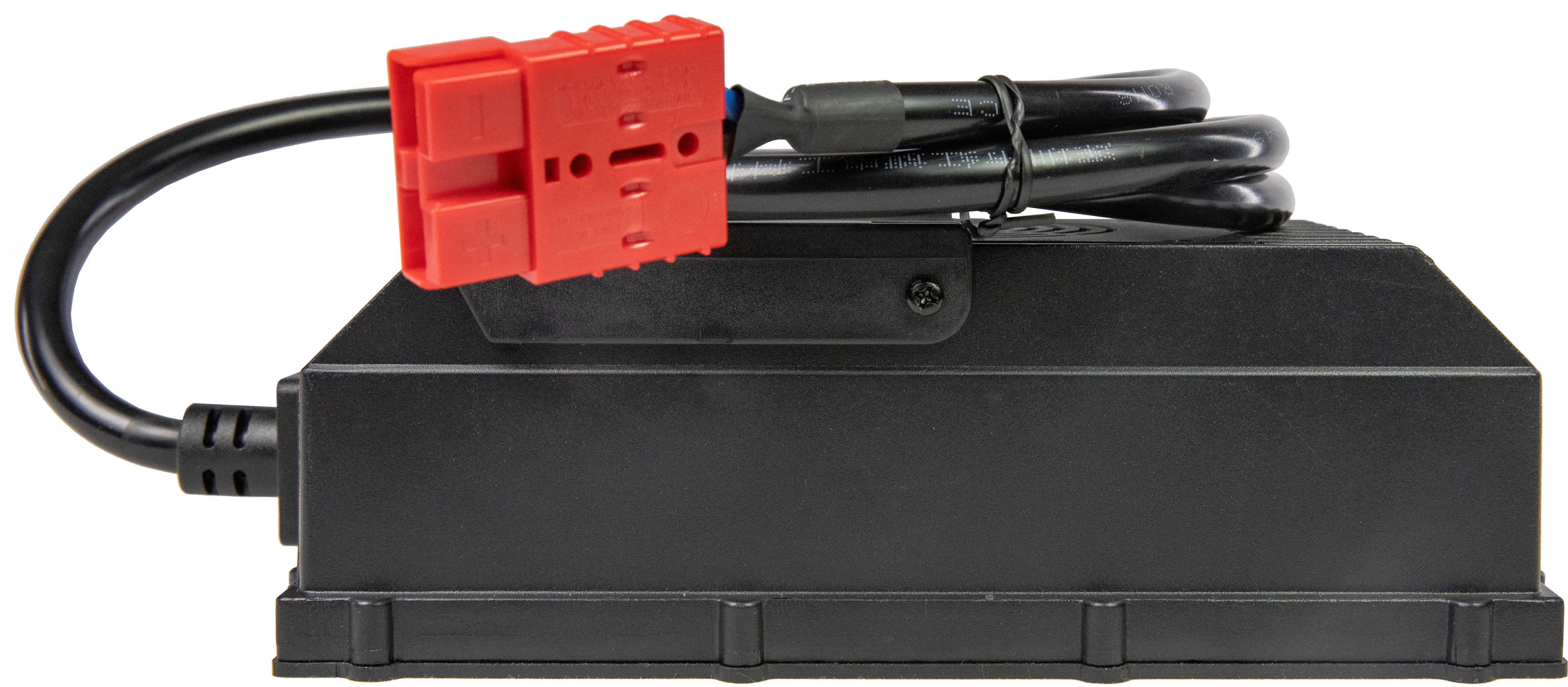

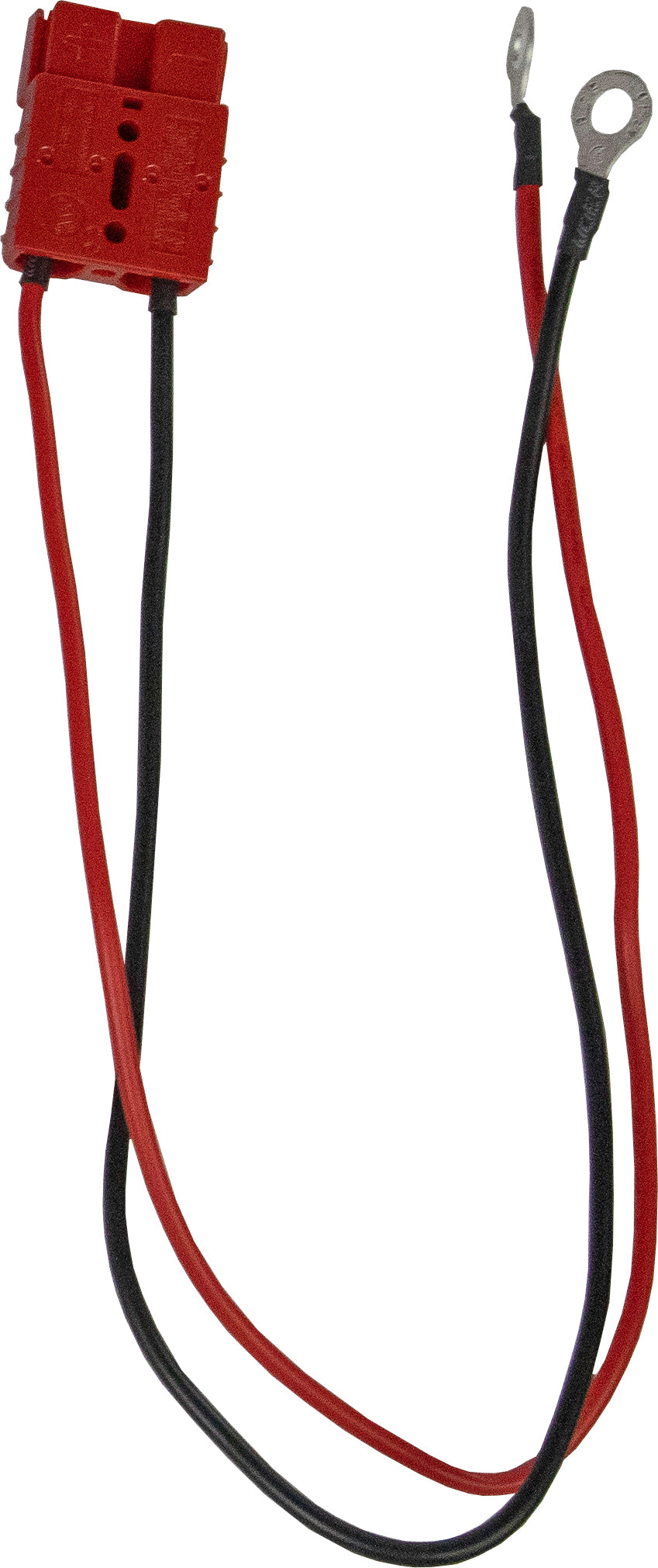

Connector | SB120 to SB120 Ring Terminal Pig Tail |

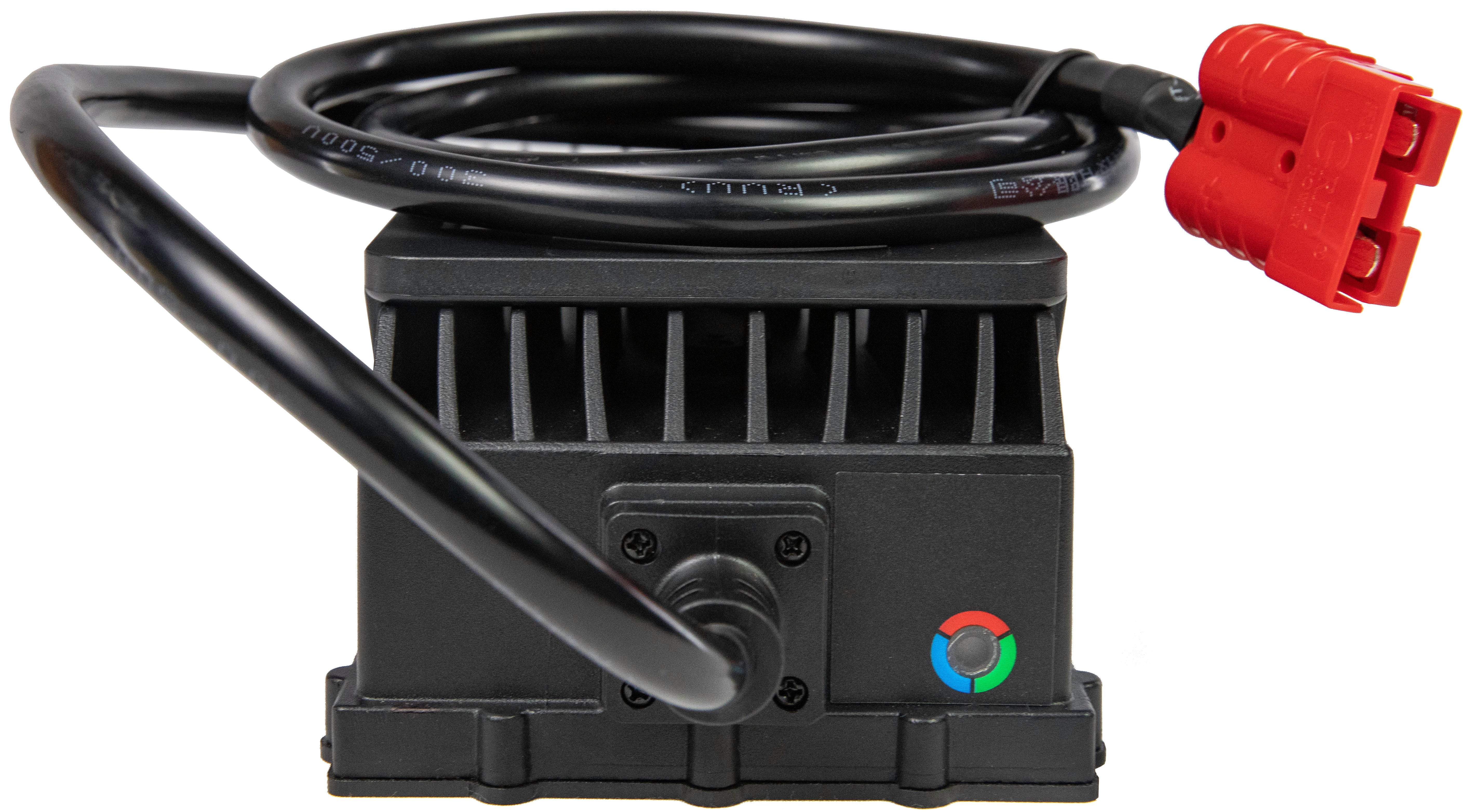

LED Charging Indicator | Waiting Mode (Green Flash), Charging Mode (Blue),Fully Charged (Green), Charging Error Mode (Red Flash) |
Safety Certification | FCC Class A |
Protections | Reverse Polarity Protection, Output Short Circuit Protection,Output Overvoltage Protection, Output Overcurrent Protection |
Warranty | Maximum Two Year Warranty |
