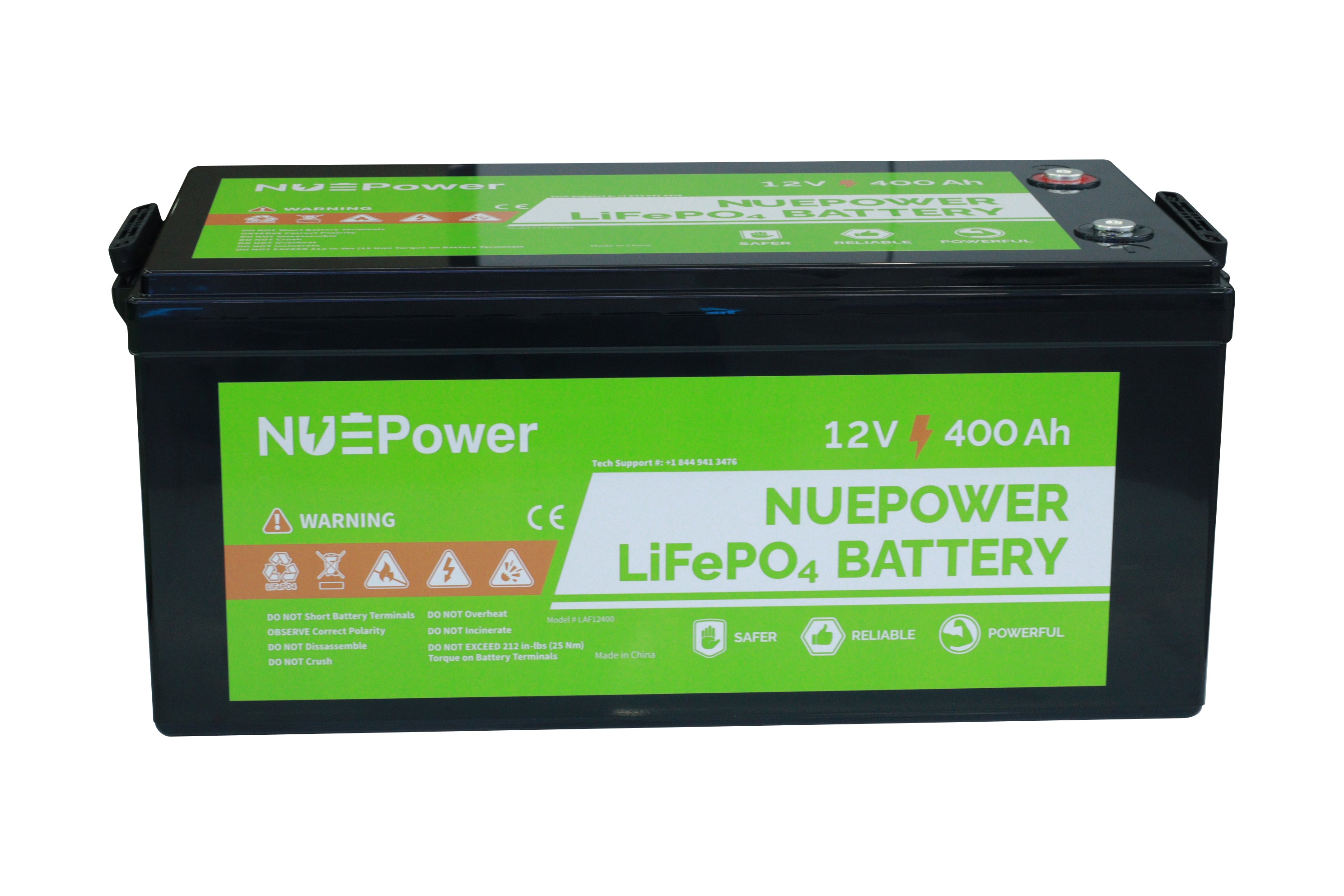

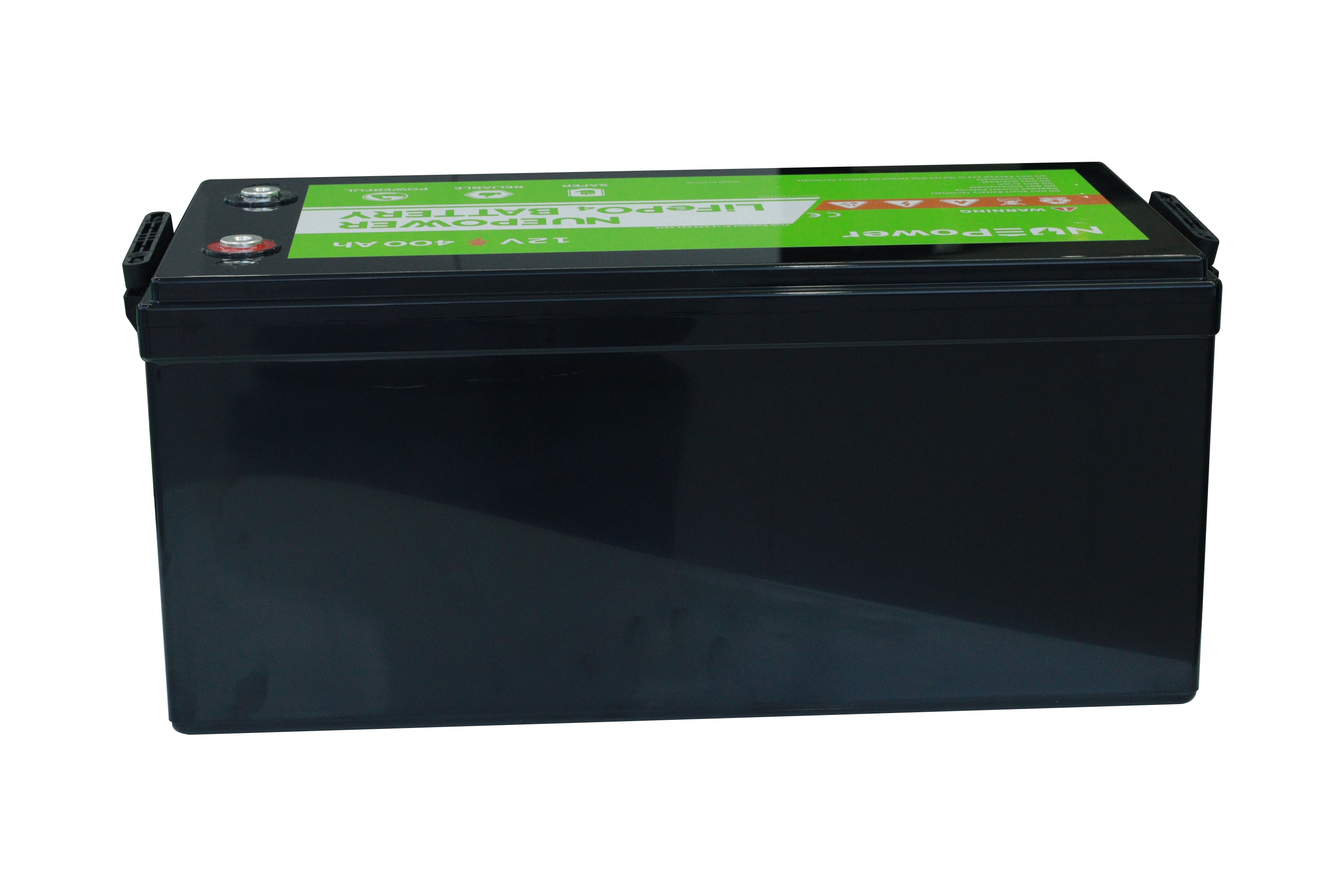

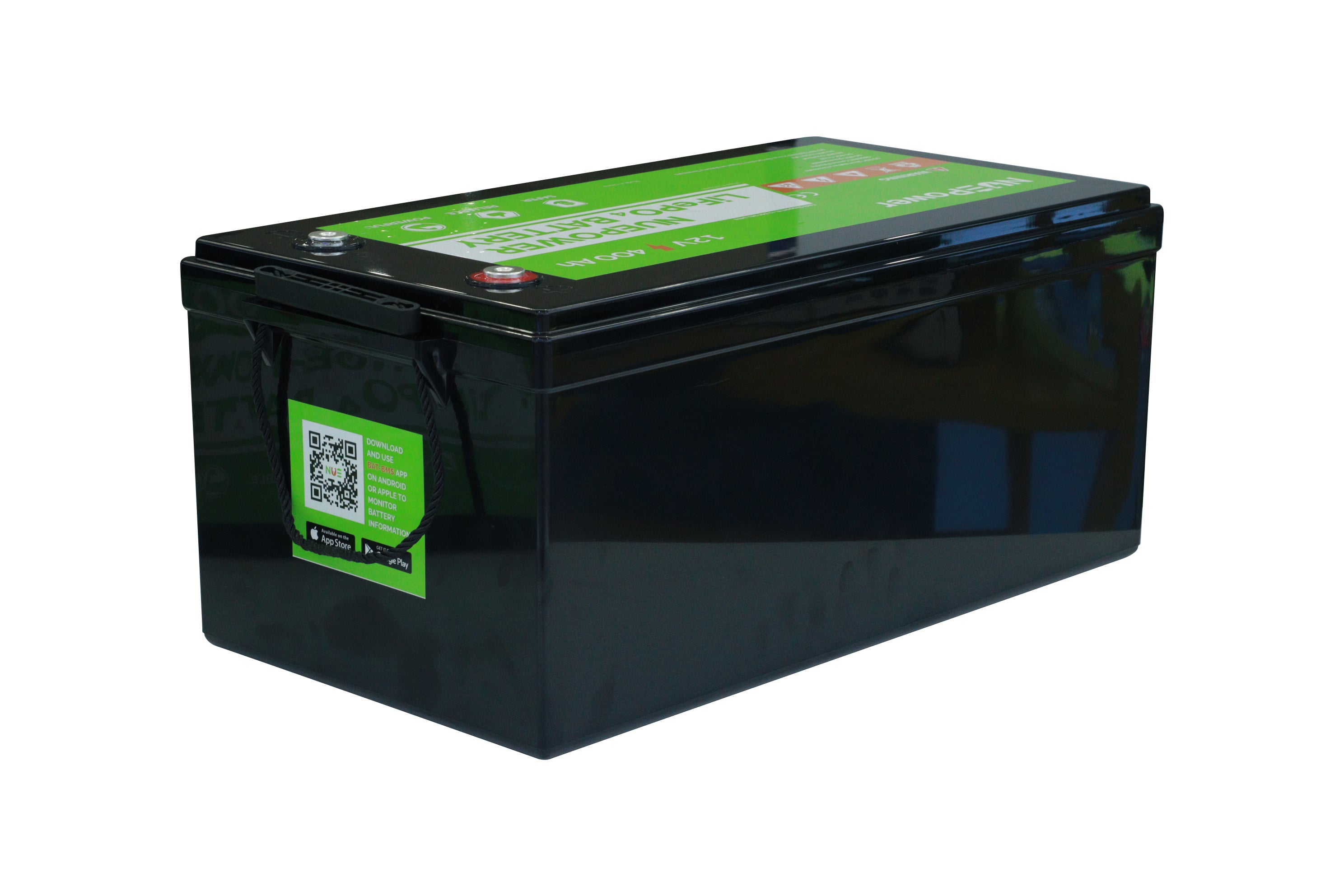

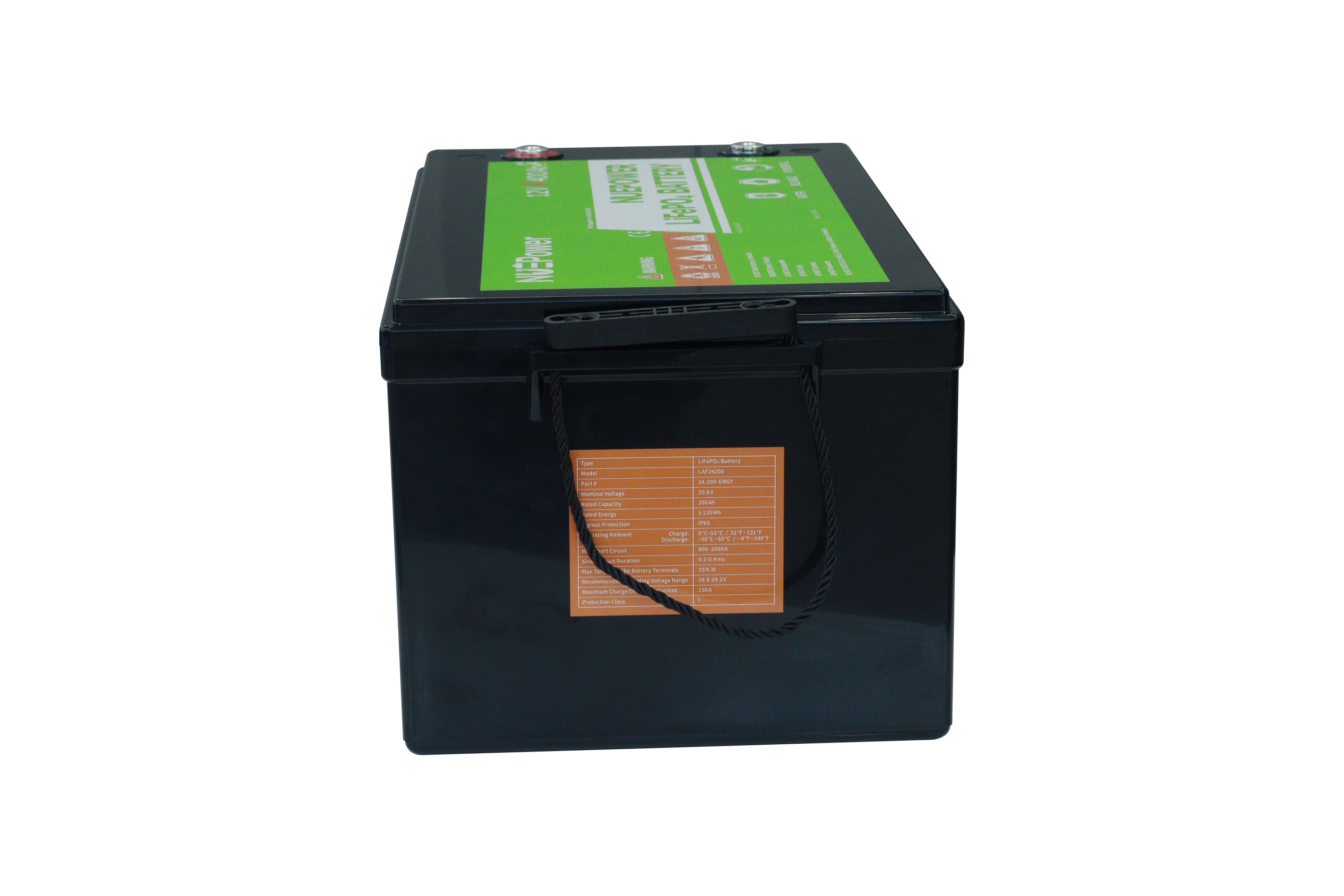

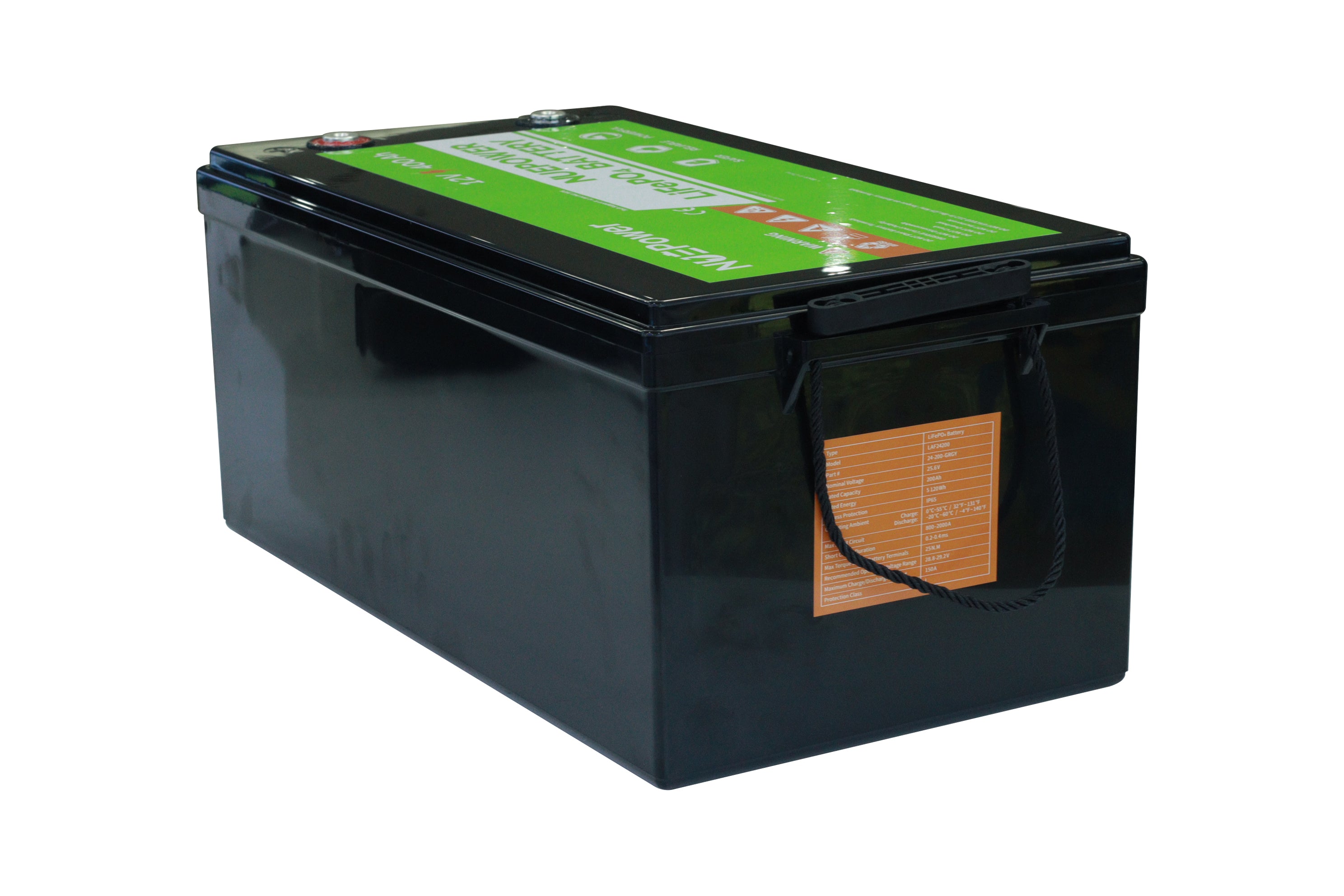

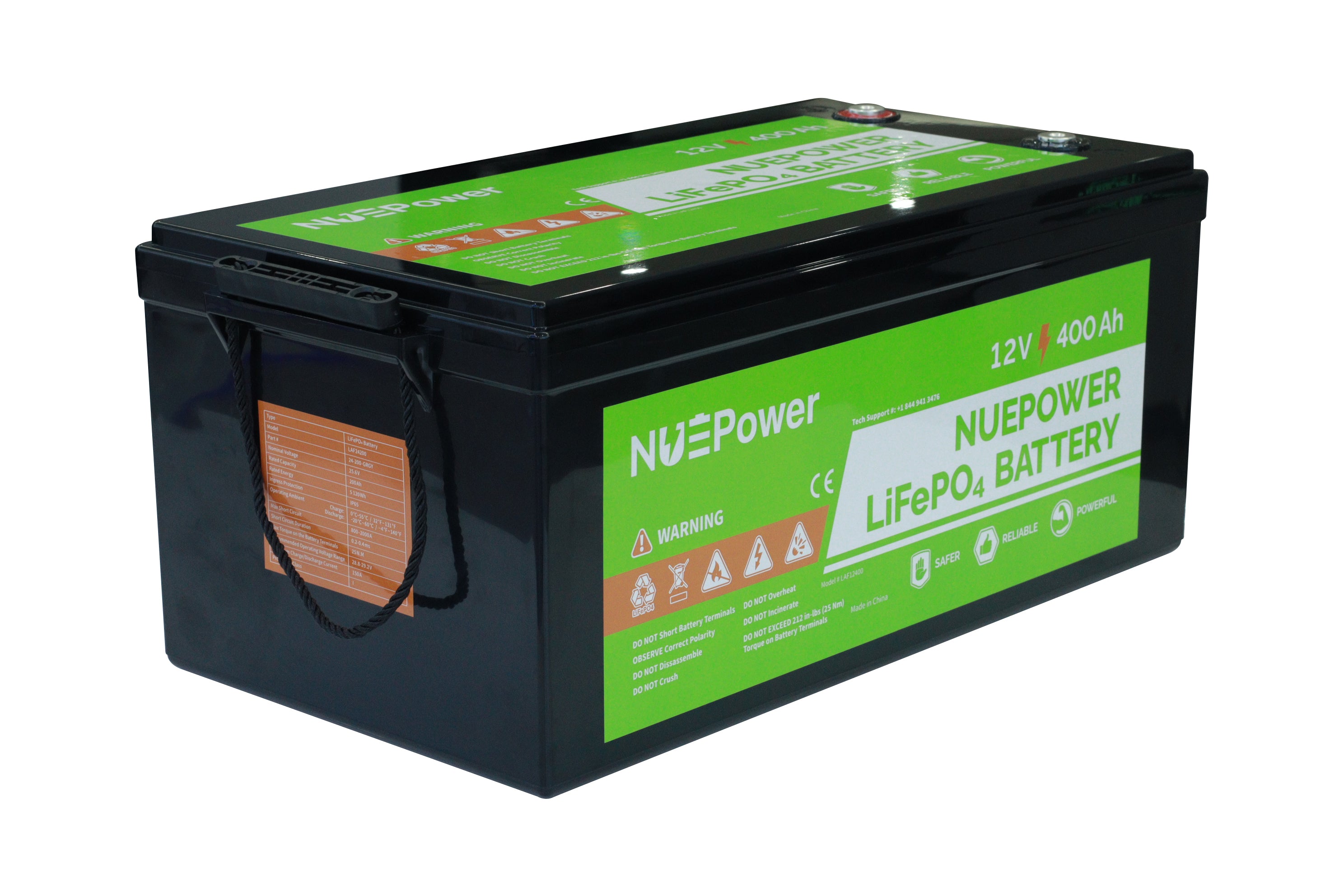

A professional-grade lithium iron phosphate (LiFeP04) battery in rugged, waterproof ABS plastic case.

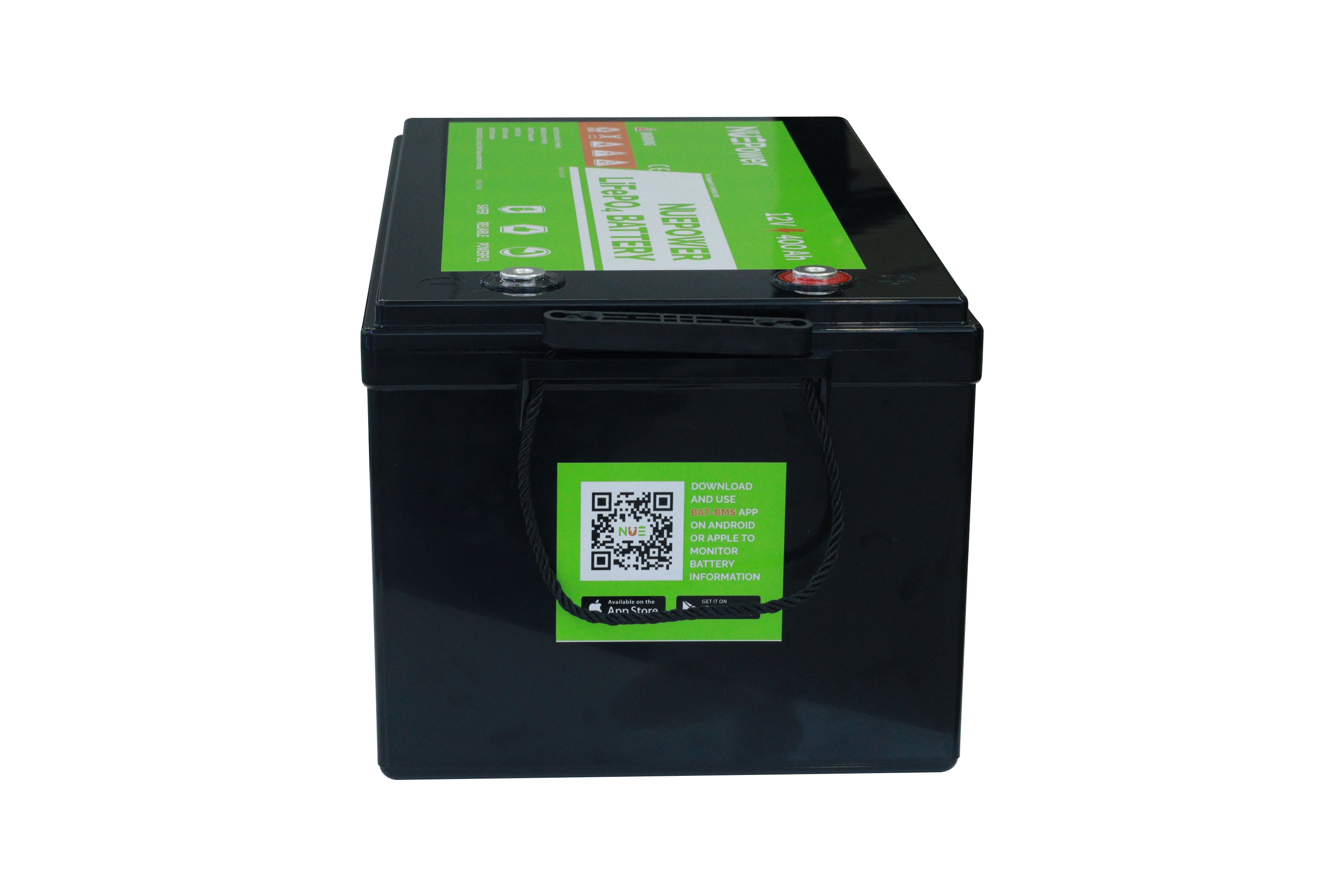

5120Wh of stored energy in a durable and easy to transport case. Bluetooth communication directly from the Battery Management System (BMS) provides accurate state of charge information and remote control capabilities.

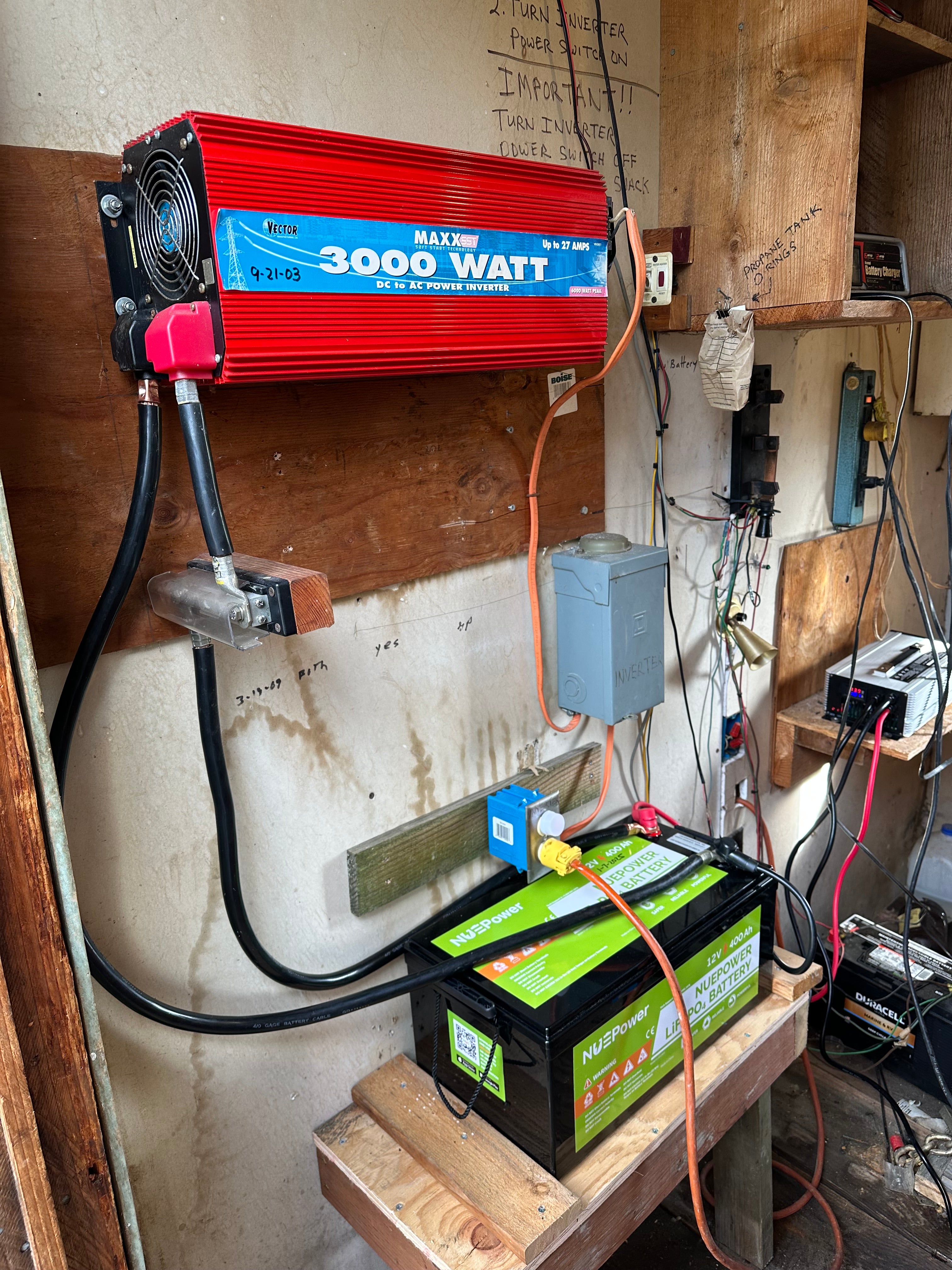

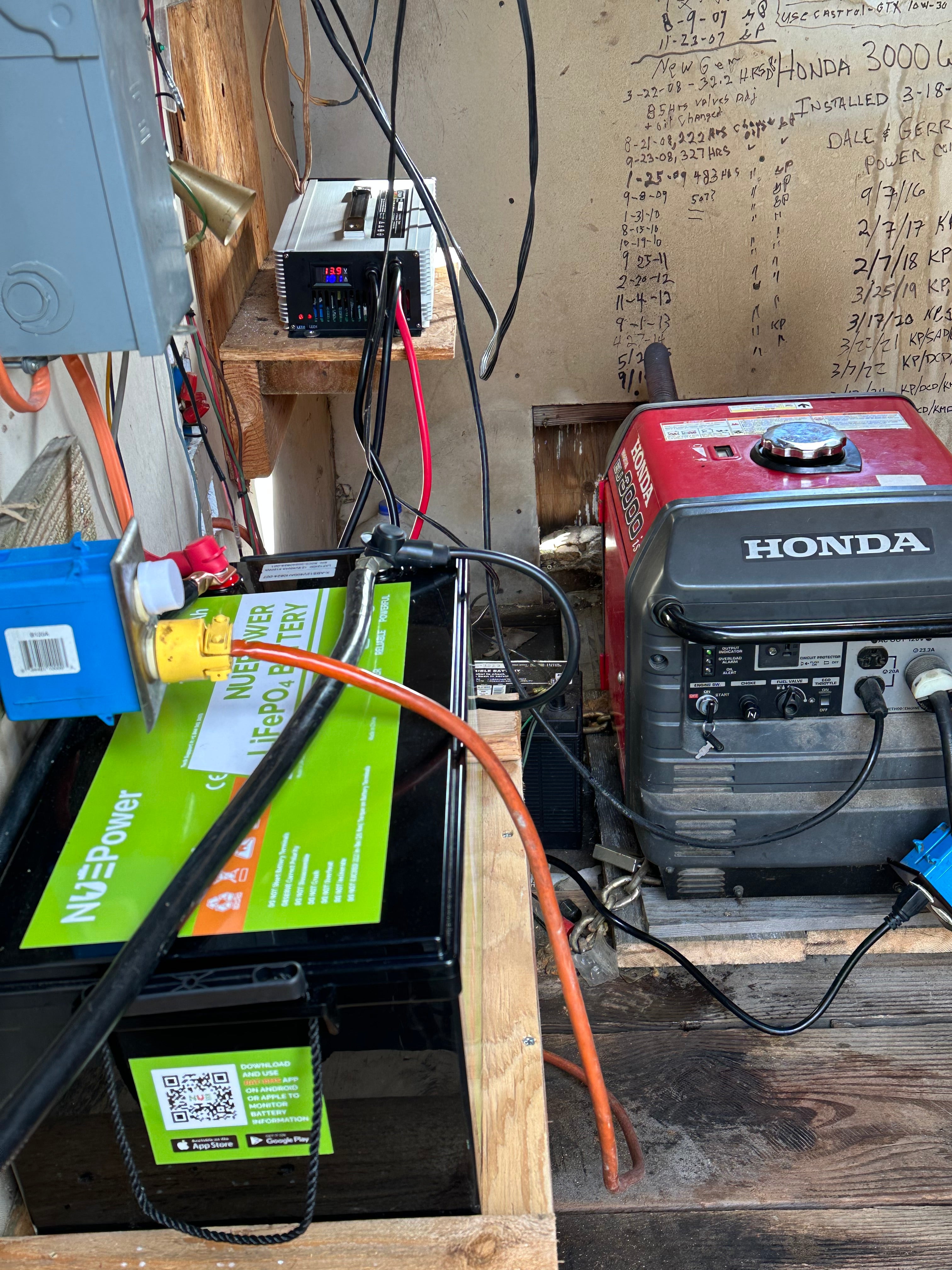

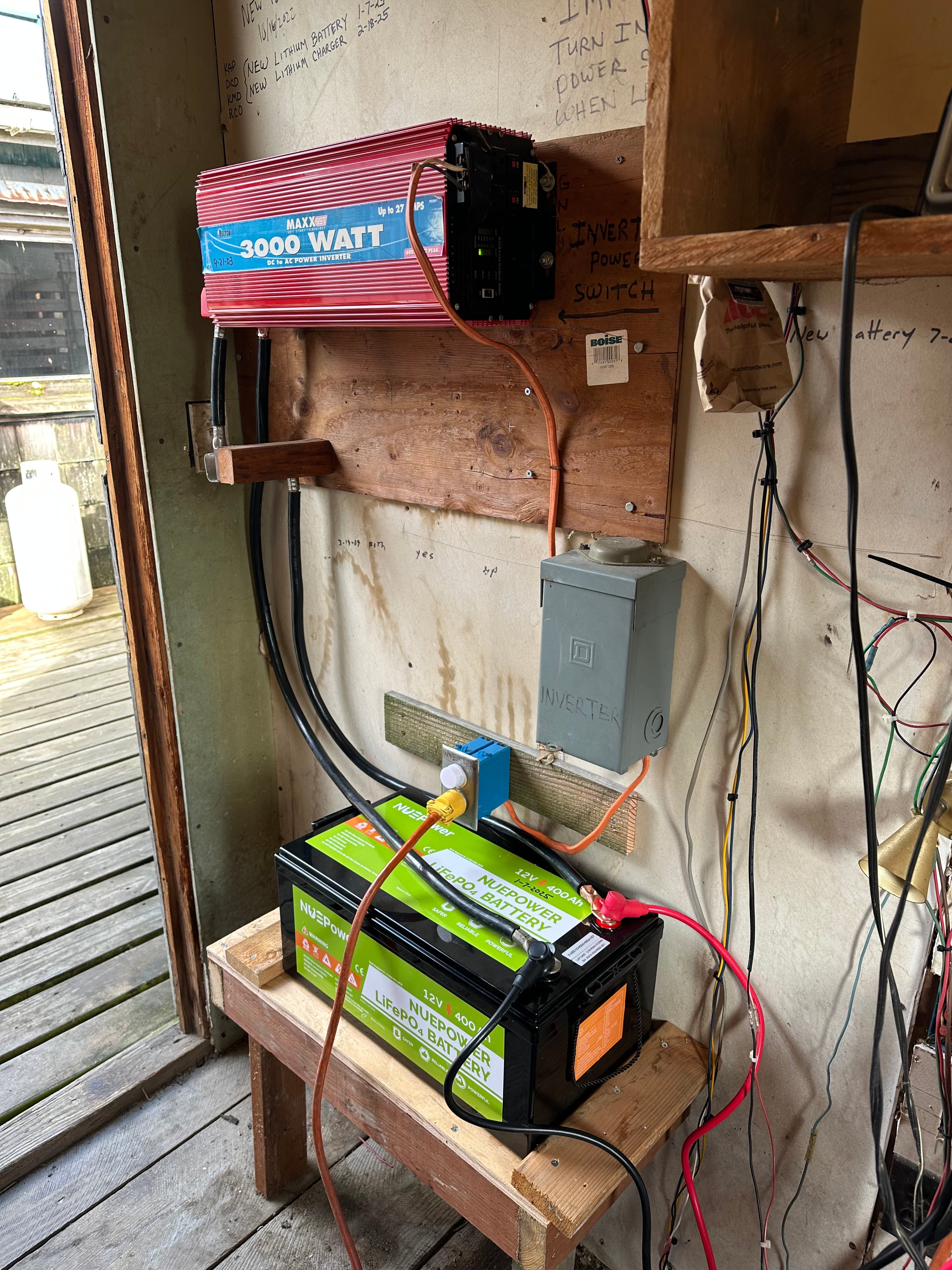

Please email sales@newuseenergy.com or call us for installation services.
NUEPower™ 12V 400Ah Battery
8D US battery Data Sheet
User Manual
Voltage Calculator Statistics
UN38.3 Test Report
MSDS Report
NUE-Power Version | 12V 400Ah |
---|---|
Battery Type | Lithium Iron Phosphate (LifFePO4) |
Storage Capacity | 5120Wh |
DC Nominal Voltage | 12.8V |
Recommended Voltage Range | 12-14.6V |
Max Continuous Charge Current | 200A |
Nominal and Minimum Capacity | 400Ah |
Max Continuous Discharge Current | 200A |
Peak Discharge Current | 200Ah |
Maximum in Parallel (Series) | 16 (4) |
Discharge Temperature Range | -4-140°F (-20-60°C) |
Charging Temperature Range | 32-131°F (0 to 55 °C) |
Optional Internal Heating Element | Heating ON@ 32°F (0°C), Heating OFF @41 °F (50°C). Optional Internal Heating Element Consumes 85W |
(Bulk) Fully Charged Voltage | 14.4V |
Cell Balancing (Float) Voltage | 13.6V |
Weight | 84lb (38kg), (boxed gross: 92lb [42kg]) |
Dimensions | 21"xll"x9" (52x27x22 cm), 8D |
Warranty and Certifications | 5-YEAR LIMITED MANUFACTURER'S WARRANTY |
