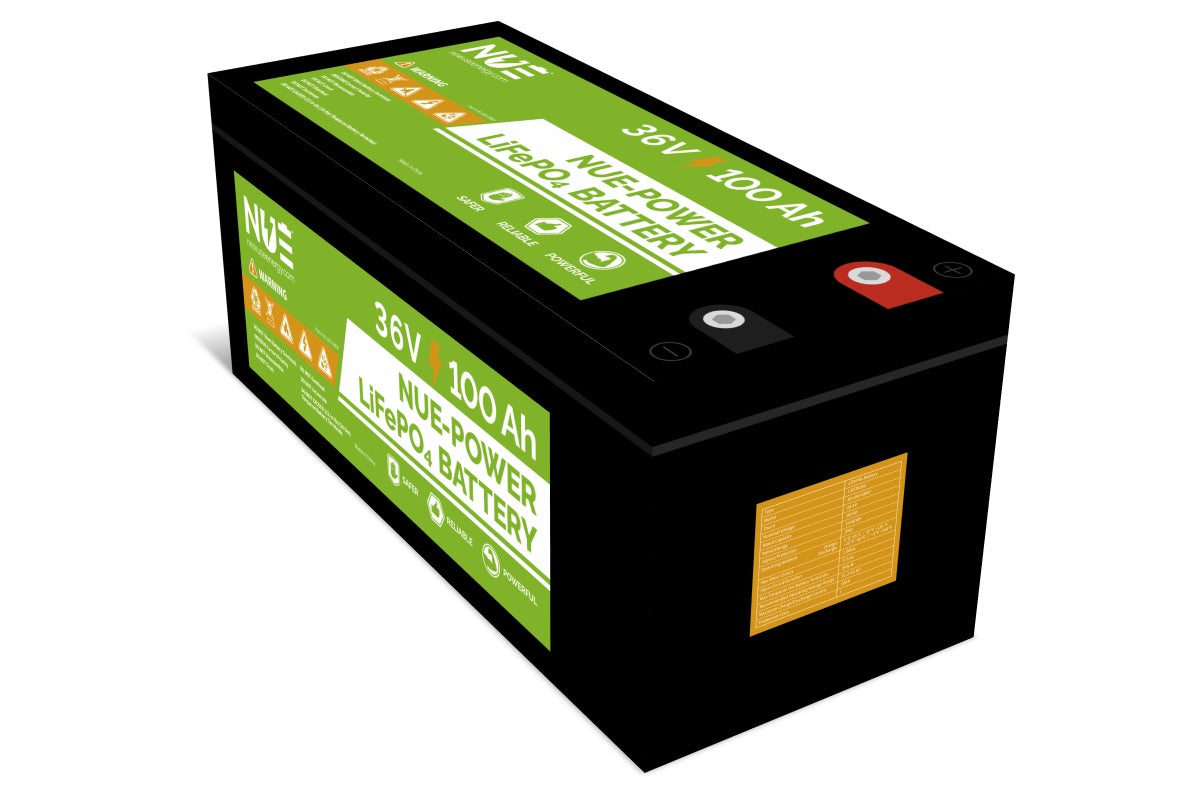

NUEPower™ 36V 100Ah
NUEPower™ 36V 100Ah
Couldn't load pickup availability
May Qualify for eligible investment tax credit (ITC). ITC is a tax credit that reduces the federal income tax liability for a percentage of the cost of a solar system that is installed during the tax year.
A professional-grade lithium iron phosphate (LiFePO4) battery in rugged, waterproof ABS plastic case.
3840Wh of stored energy with Bluetooth communication directly from the Battery Management System (BMS) provides accurate state of charge information and remote control capabilities. We choose to use LiFePO4 (Lithium Ferro Phosphate) cell technology because it has been adopted as the global standard for in-home solar energy storage. If it is safe enough to be in millions of homes around the world, it is safe for your network.
Please email sales@newuseenergy.com or call us for installation services.
| NUE-Power Version | 36V 100Ah |
|---|---|
| Battery Type | Lithium Iron Phosphate (LifFePO4) |
| Storage Capacity | 3.84 kWh |
| Estimated Cycle Life based on an 80% Depth of Discharge (subject to other variables including temperature and load) | 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity |
| DC Nominal Voltage | 38.4V |
| Recommended Voltage Range | 33-42V |
| Max Continuous Charge Current | 100A |
| Nominal and Minimum Capacity | 100Ah |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 350A(500mS) |
| Maximum in Parallel | 15 |
| Discharge Temperature Range | -4-140°F (-20-60°C) |
| Charging Temperature Range | -4-131°F (-20-55°C) |
| Weight | 66lb (30kg) |
| Dimensions | 21”x11”x9” (52x27x22 cm) |
| Warranty and Certifications | 7-YEAR LIMITED MANUFACTURER’S WARRANTY UN 38.3, UL(Cell), and CE (Cell)Certified. |
