SunKit™ 6010

SunKit™ 6010

$8,600.00
$8,600.00
A rapidly deployable, solar UPS capable of operating rooms, incubators, evacuation centers, communications centers, and other critical loads that require clean, dependable, and long-term power. Built in Lviv, Ukraine. Industrial-grade...

May Qualify for eligible investment tax credit (ITC). ITC is a tax credit that reduces the federal income tax liability for a percentage of the cost of a solar system that is installed during the tax year.

View full details

A rapidly deployable, solar UPS capable of operating rooms, incubators, evacuation centers, communications centers, and other critical loads that require clean, dependable, and long-term power. Built in Lviv, Ukraine.

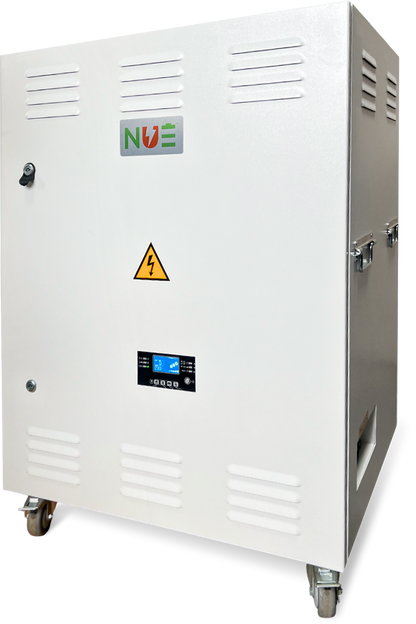

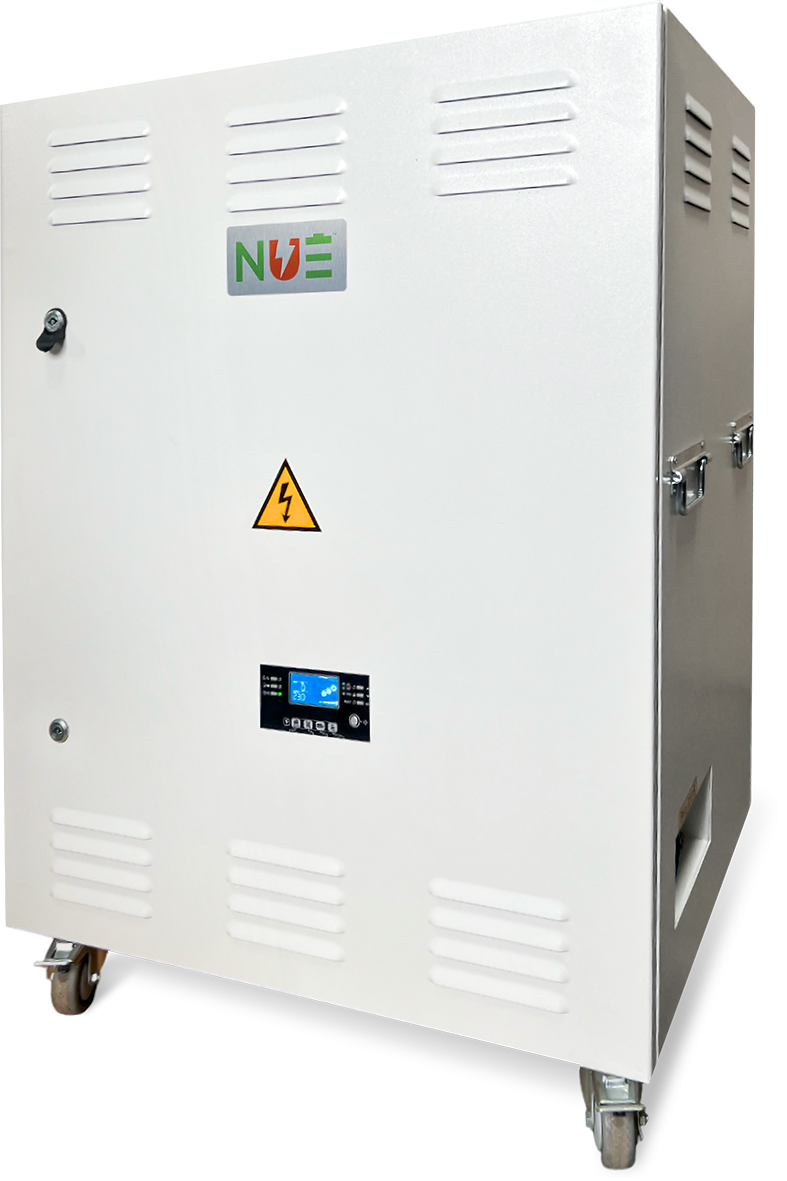

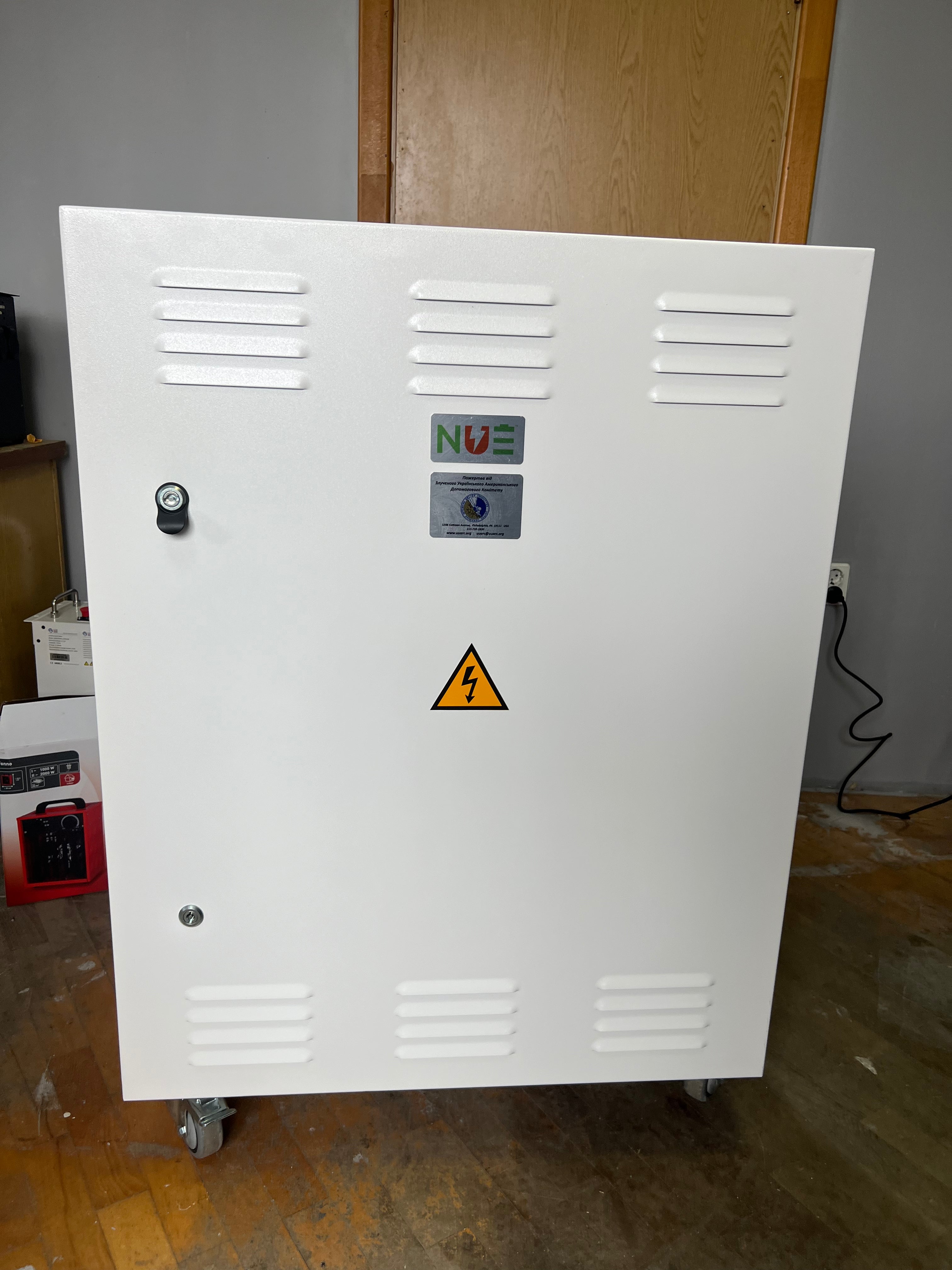

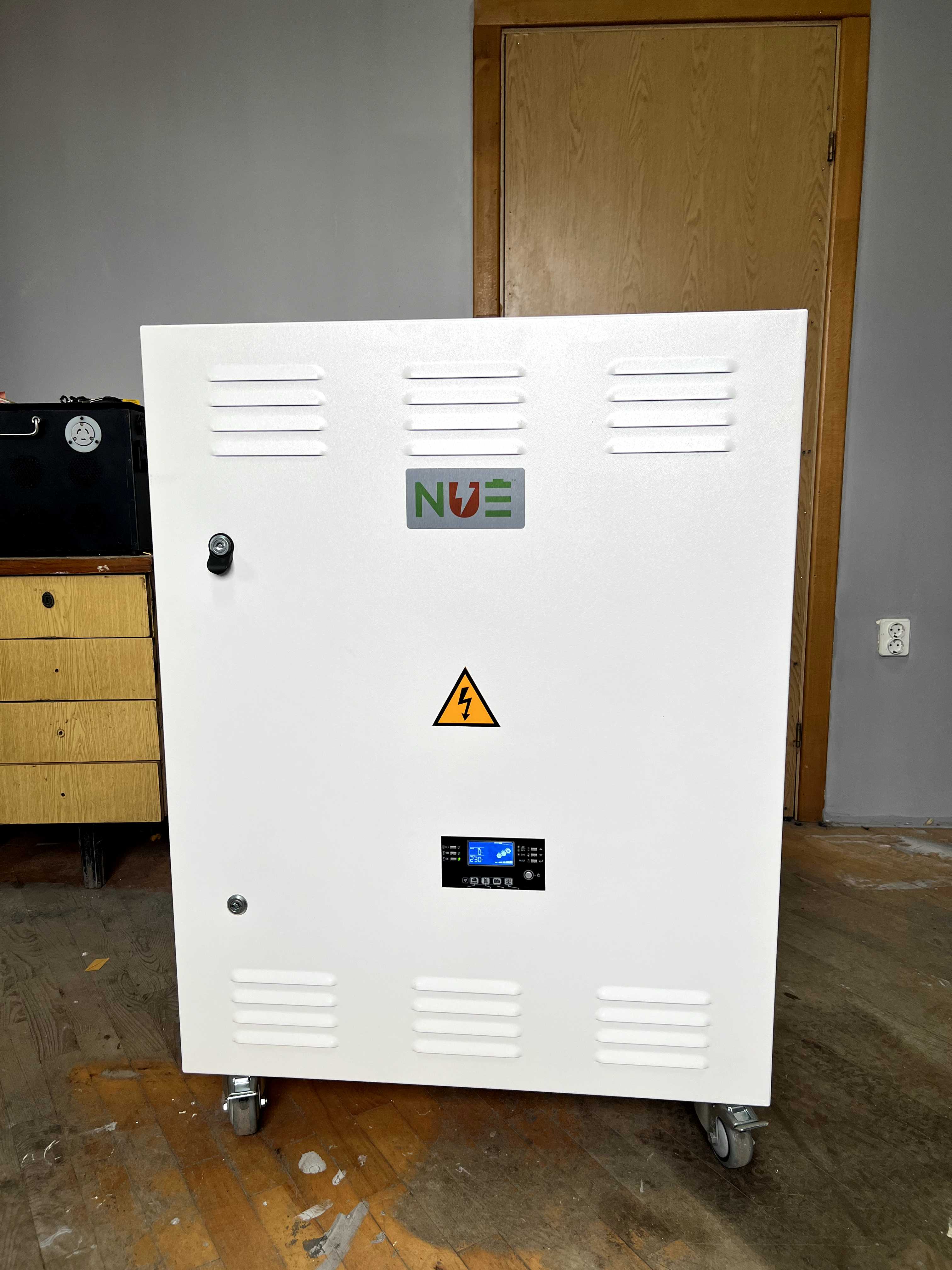

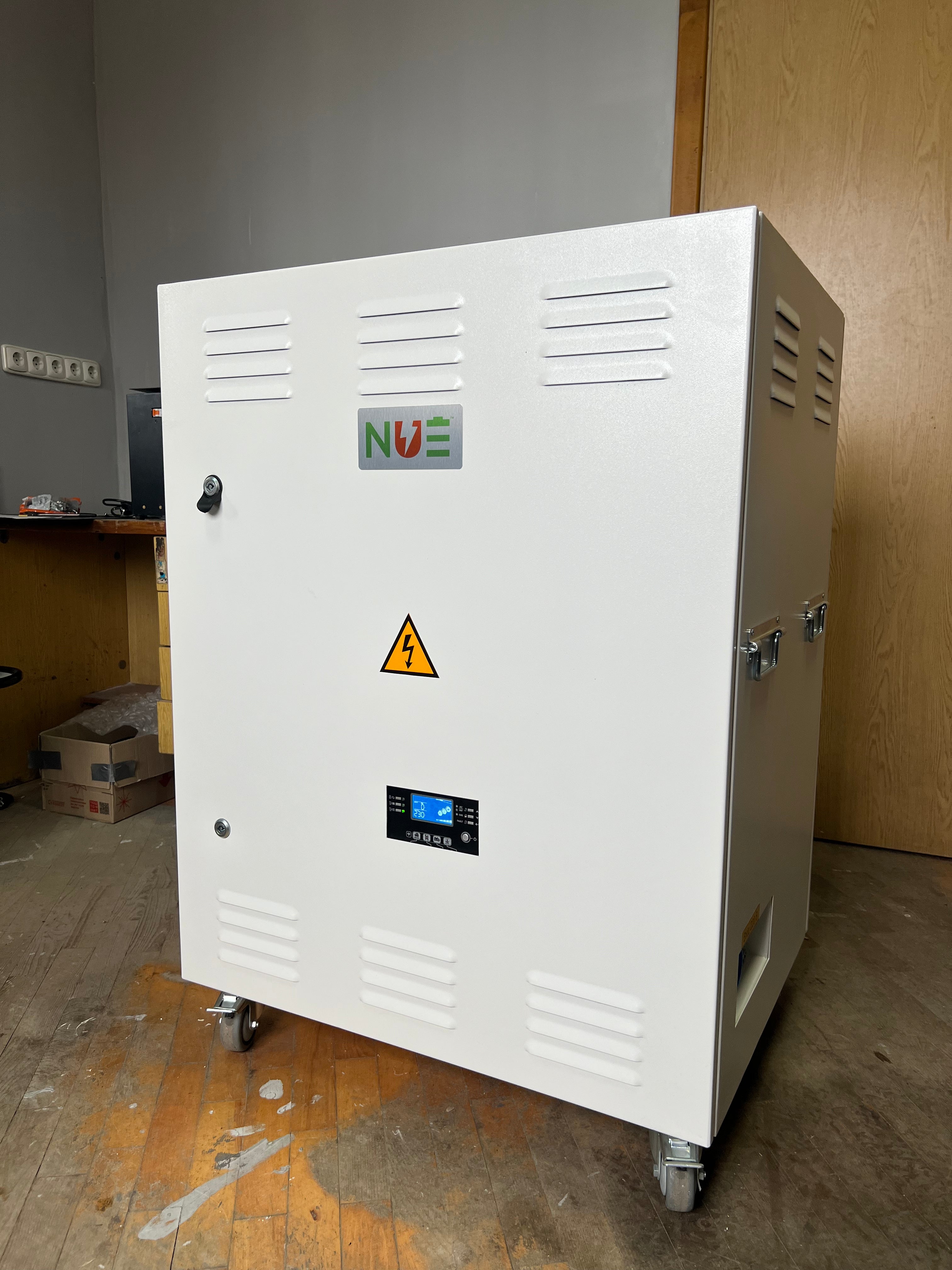

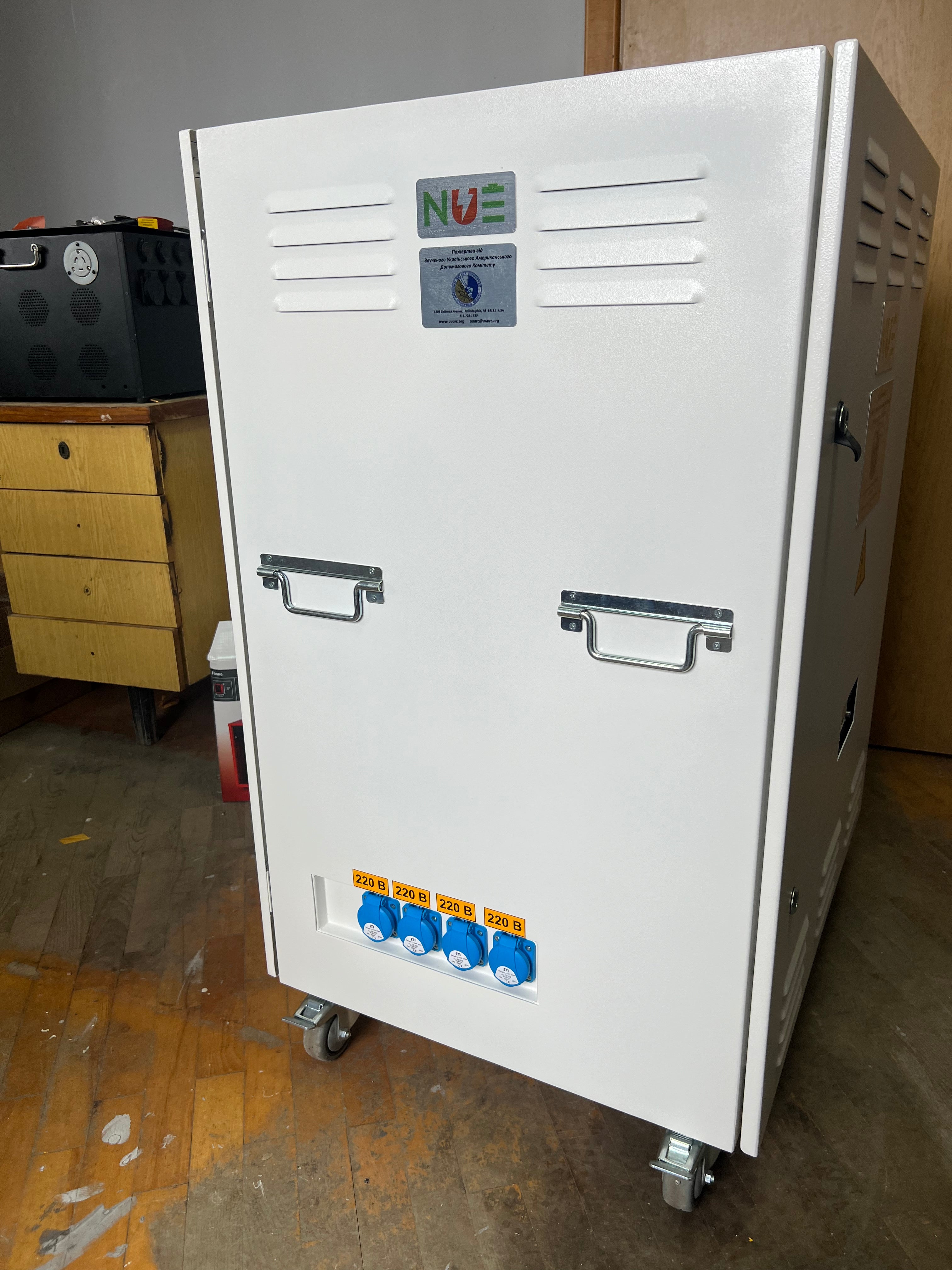

Industrial-grade steel indoor enclosure with 7.2 kW of AC power output and 10.2kWh of energy storage. Ready to accept up to 8000 Watts of solar PV, while also being able to charge quickly from portable generator or utility mains AC power sources.

Pure: Hybrid inverter with UPS function for immediate backup power from batteries when
grid failure occurs.

Safe: Silent, emission AND geothermal heat free operations allow this unit to be used underground, indoors, and in trenches. Heat seaking drones wonʼt detect this unit when in use.

Energy-Dense: 10kWh of battery allows this unit to replace larger diesel generators and power critical devices over periods of cloudy days, no grid recharging, or no fuel for diesel generators.

Easy to use: No installer required. Doctors have used this device without ever using a generator, battery, or solar system previously. No maintenance required.

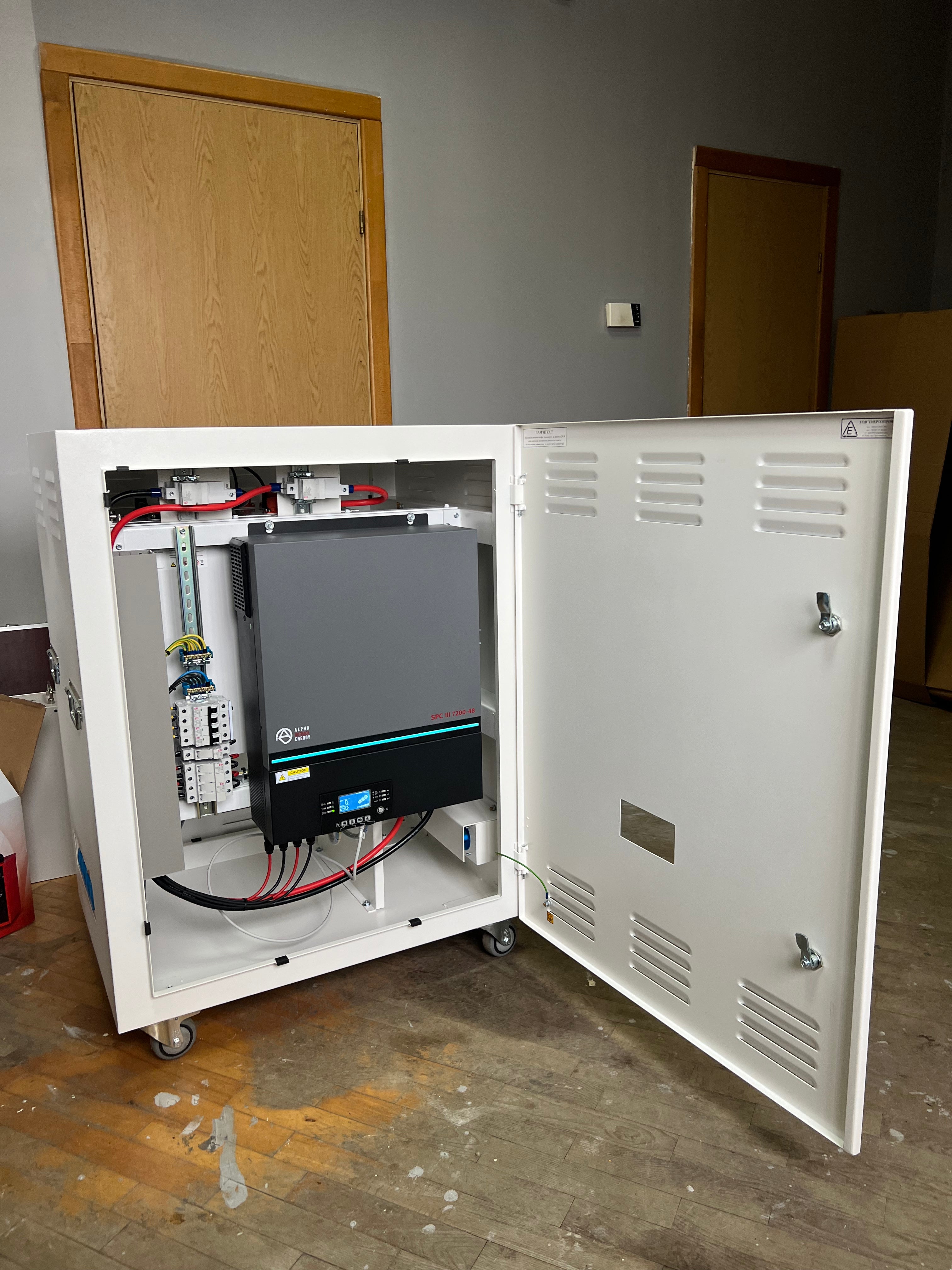

Quickly: Set up in minutes. This is a fully integrated solar power and energy storage system in a single enclosure. Just attach the solar array or AC charging source and plug in your lights and appliances.

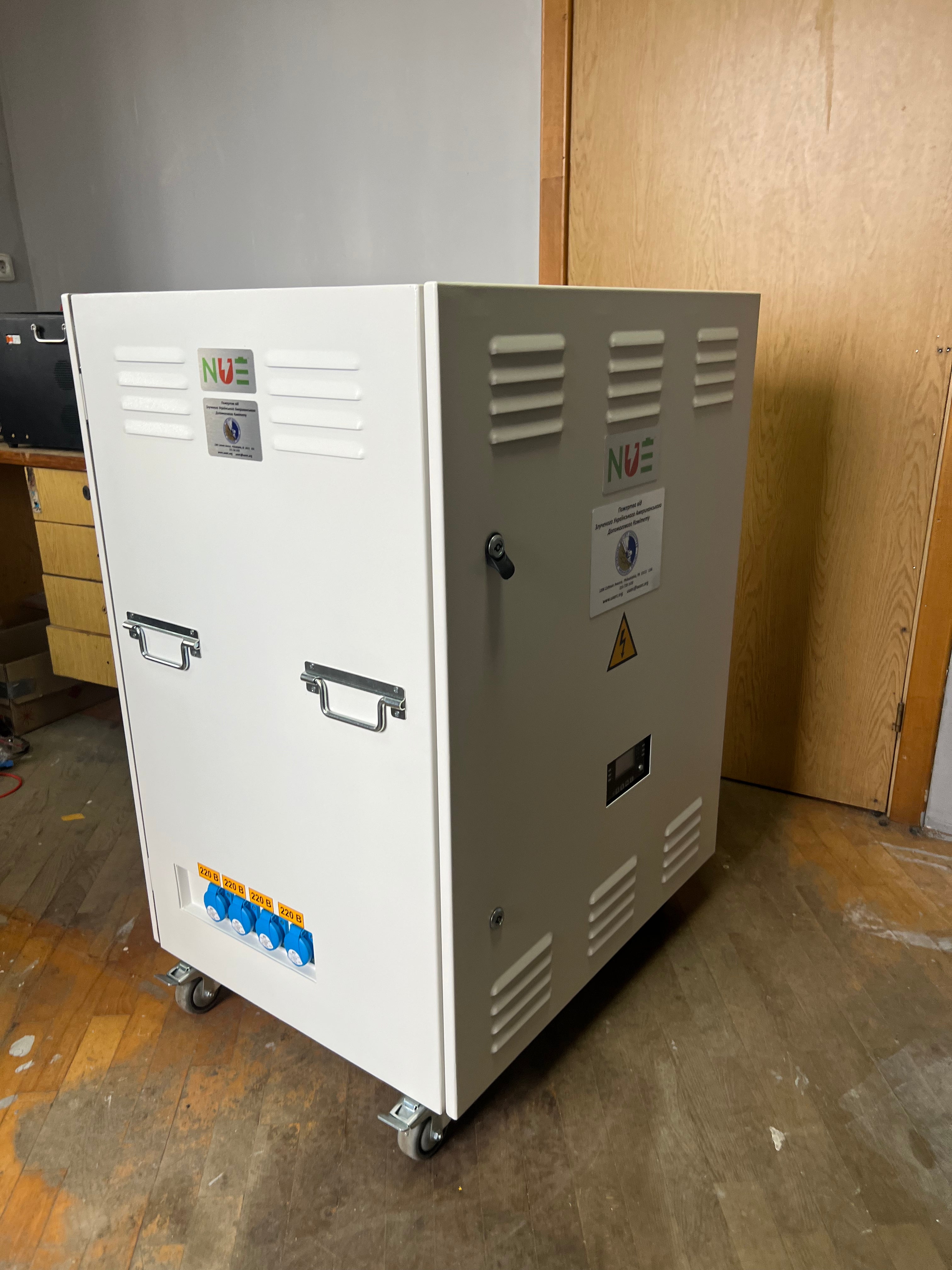

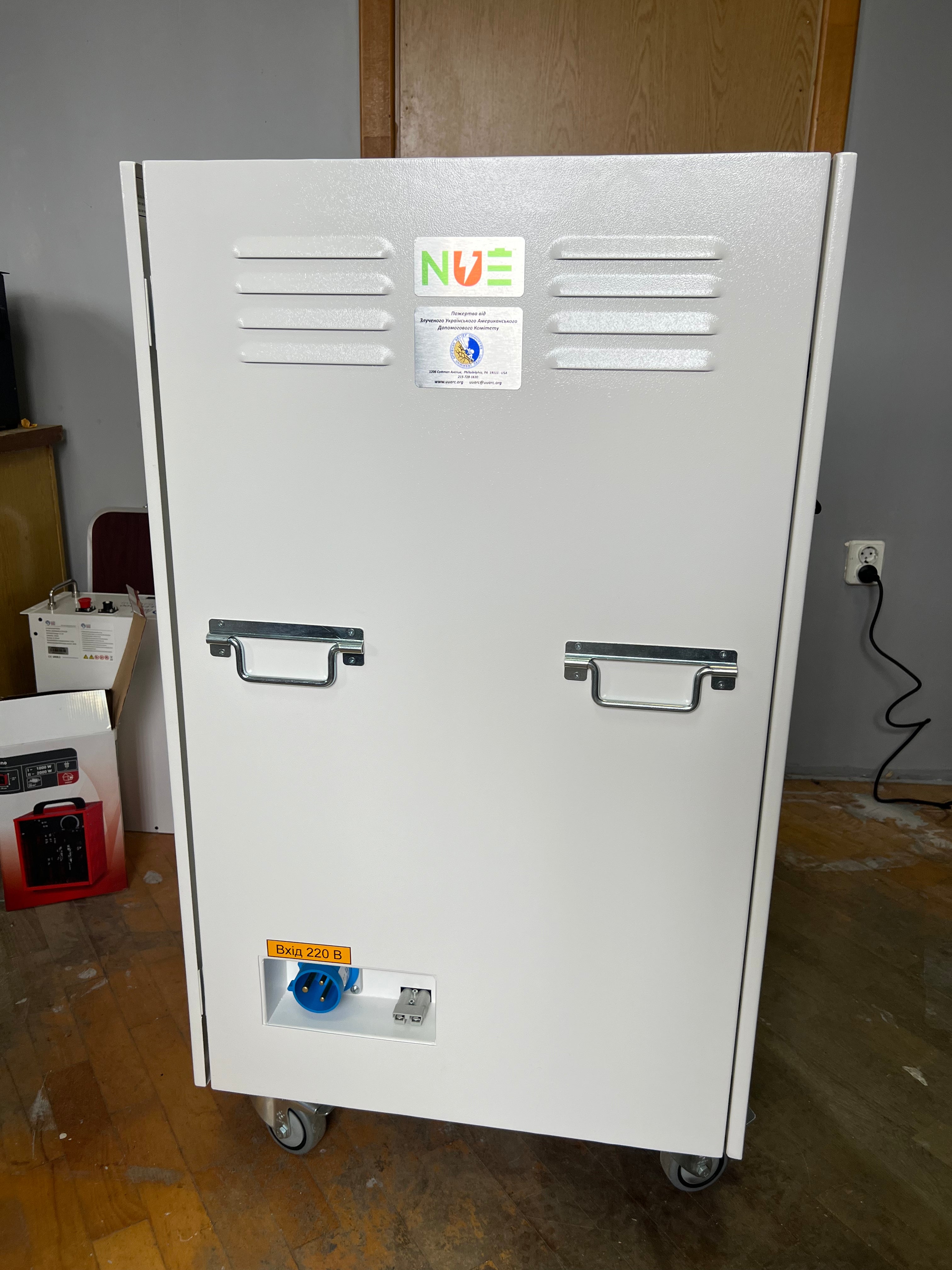

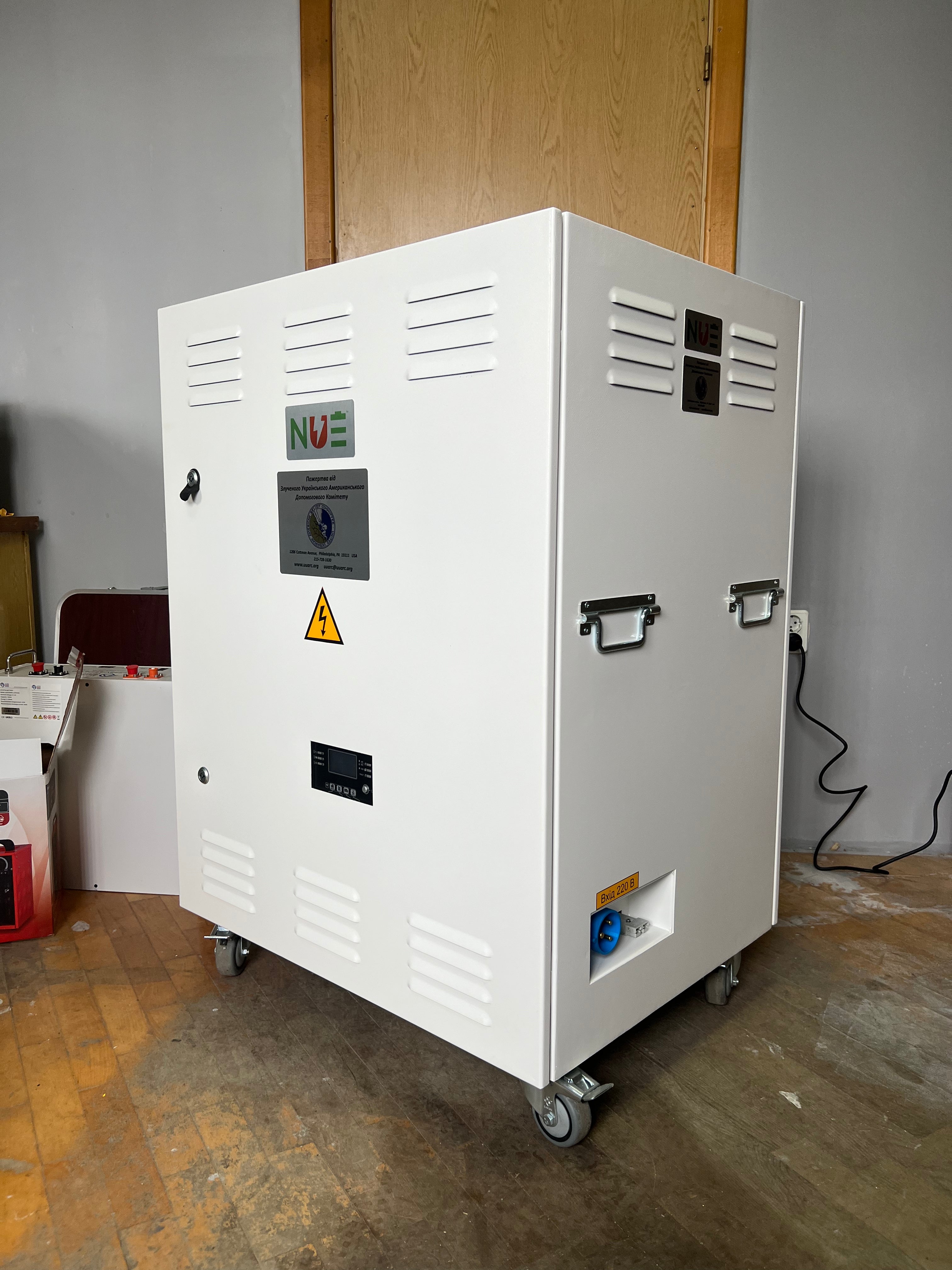

Heavy-duty wheels allow unit to be easily moved or locked in place.

Data Sheet (Ukrainian)

Data Sheet (English)

SunKit Version 6010INT
Pure Sine Wave Inverter 6000W Continuous (12kW 10 sec surge)
Battery Type Lithium Iron Phosphate (LifFePO4)
Storage Capacity 10.240Wh
Estimated Cycle Life based on an 80% Depth of Discharge(subject to other variables including temperature and load) 6,000 Total Operating Cycles, 4,000 Cycles at 100% potential capacity
DC Nominal Voltage 51.2V

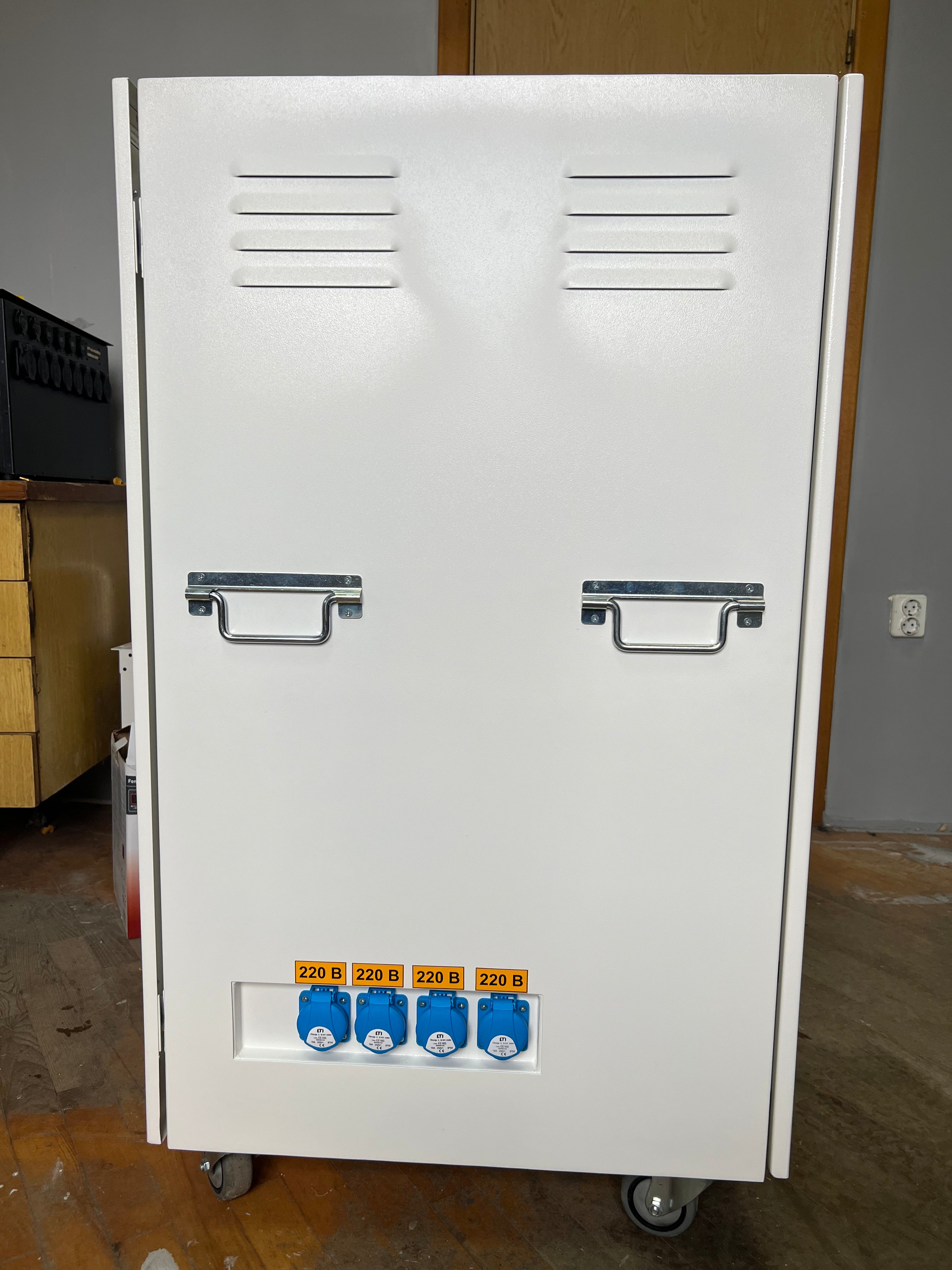

AC Output Options230V AC 50/60Hz
Solar Charge Controller12A, 6000W PV Max (MPPT Range 150-450VDC)

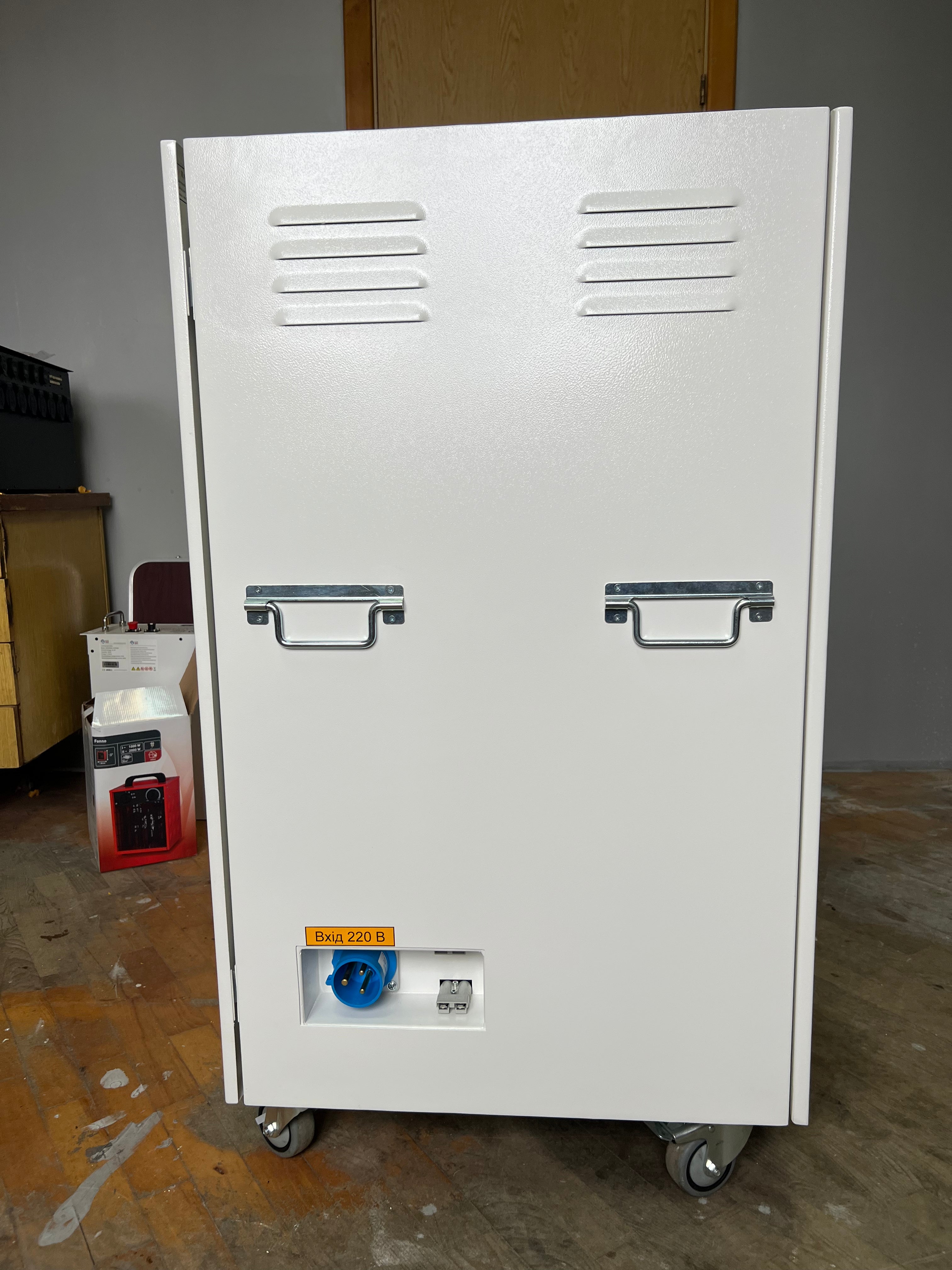

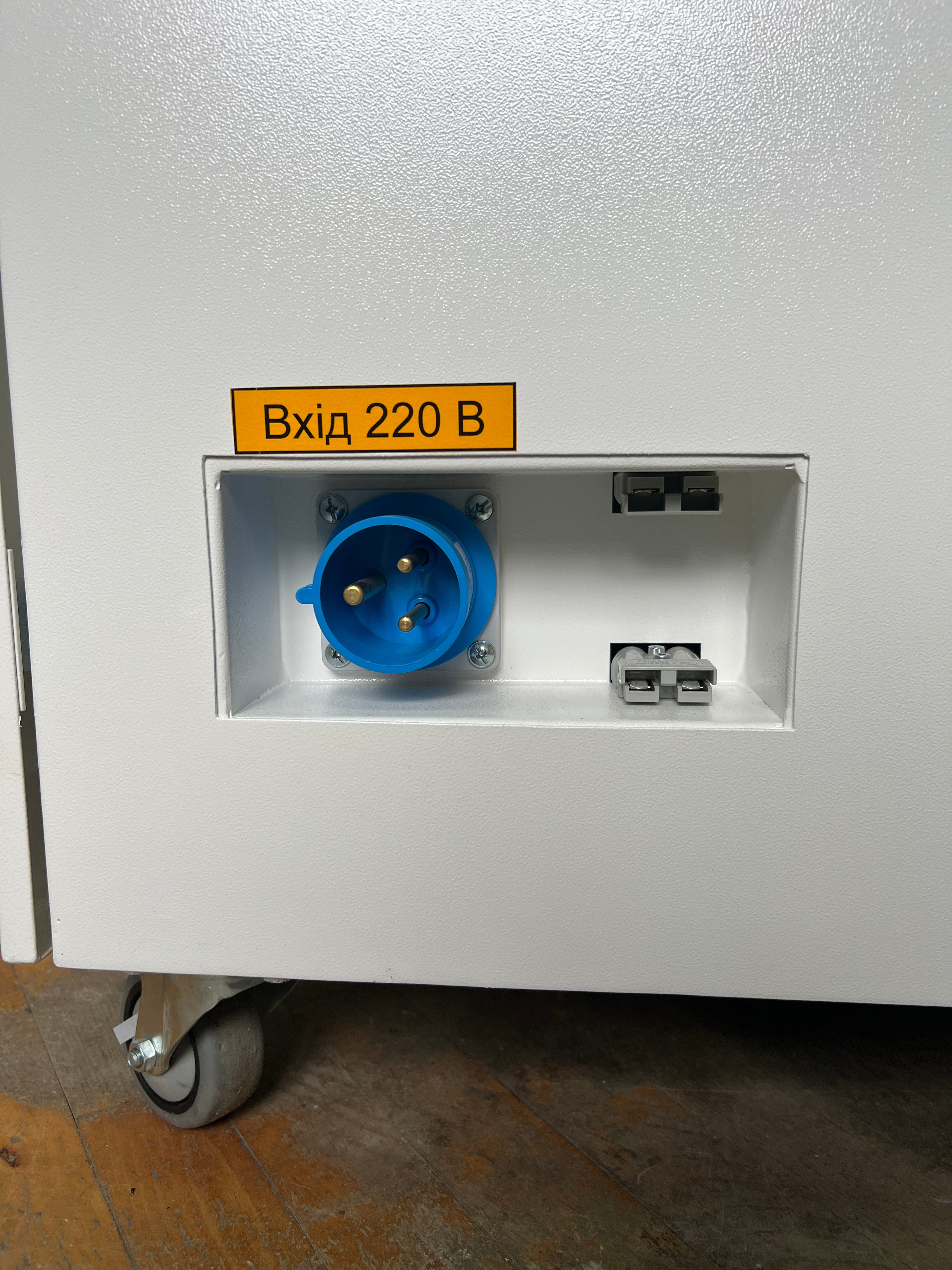

AC Input230V AC in with programmable battery charging current (set to 10A default)
Circuit Breaker ProtectionYes
System Operating Voltage Range (Default)44-66V DC
Operating Temperature Range0-55°C (32-131°F)
Weight130 kg (287 lb) W/out Battery 80kg (176 lb)
Enclosure Dimensions28”x24”x16” (70cmx60cmx40cm) [4” (10cm) wheel height]
Warranty and Certifications2-YEAR LIMITED MANUFACTURERʼS WARRANTY UN 38.3 and CE Certified (Inverter and Battery)
