SunWing™

SunWing™

MSRP: Starting at
$27,778.00
$27,778.00
Request a Quote

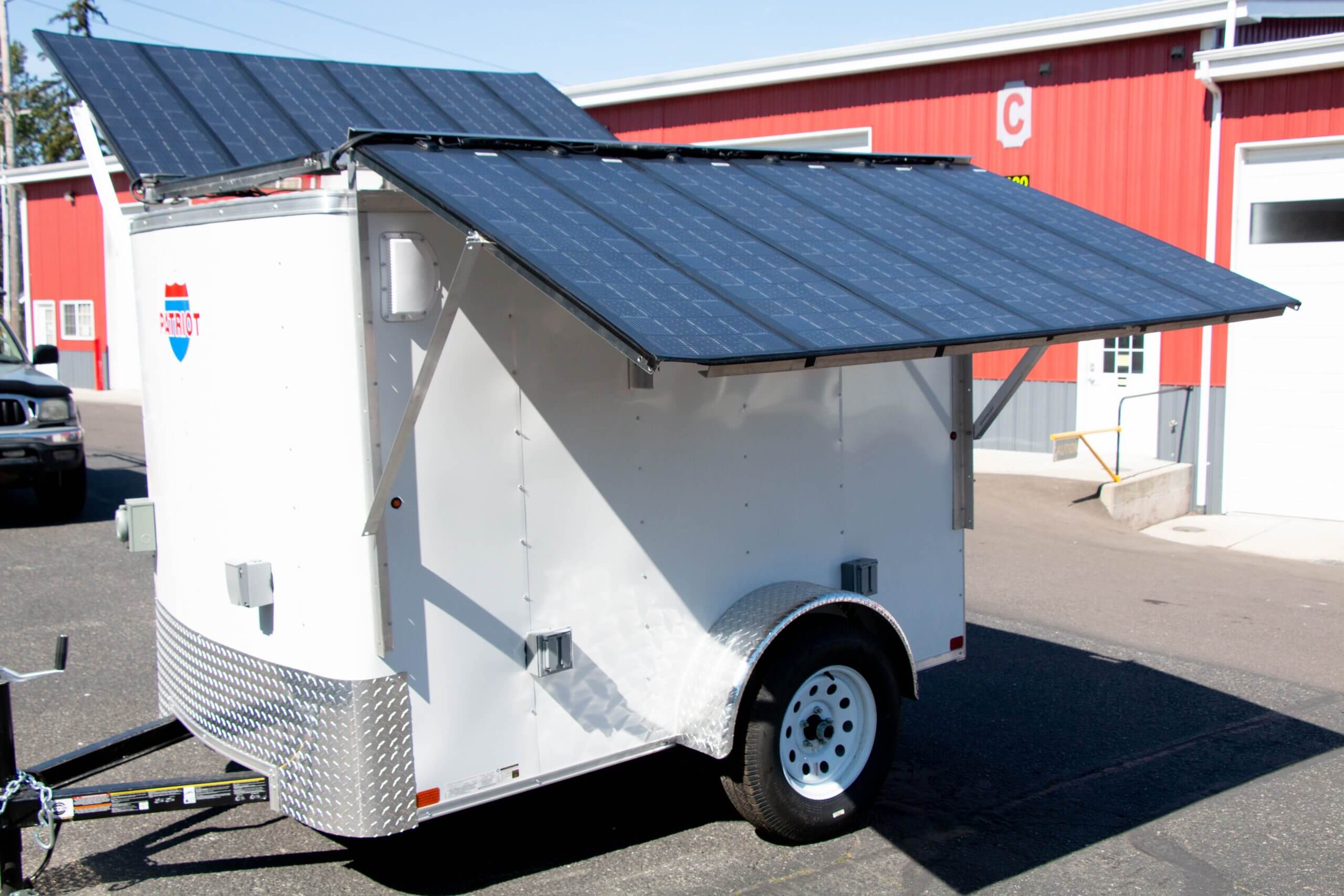

The U.S. designed and manufactured NUE SunWing™ provides the functionality of an enclosed cargo trailer with the added benefit of integrated solar “wings” that provide both power generation as well...
View full details

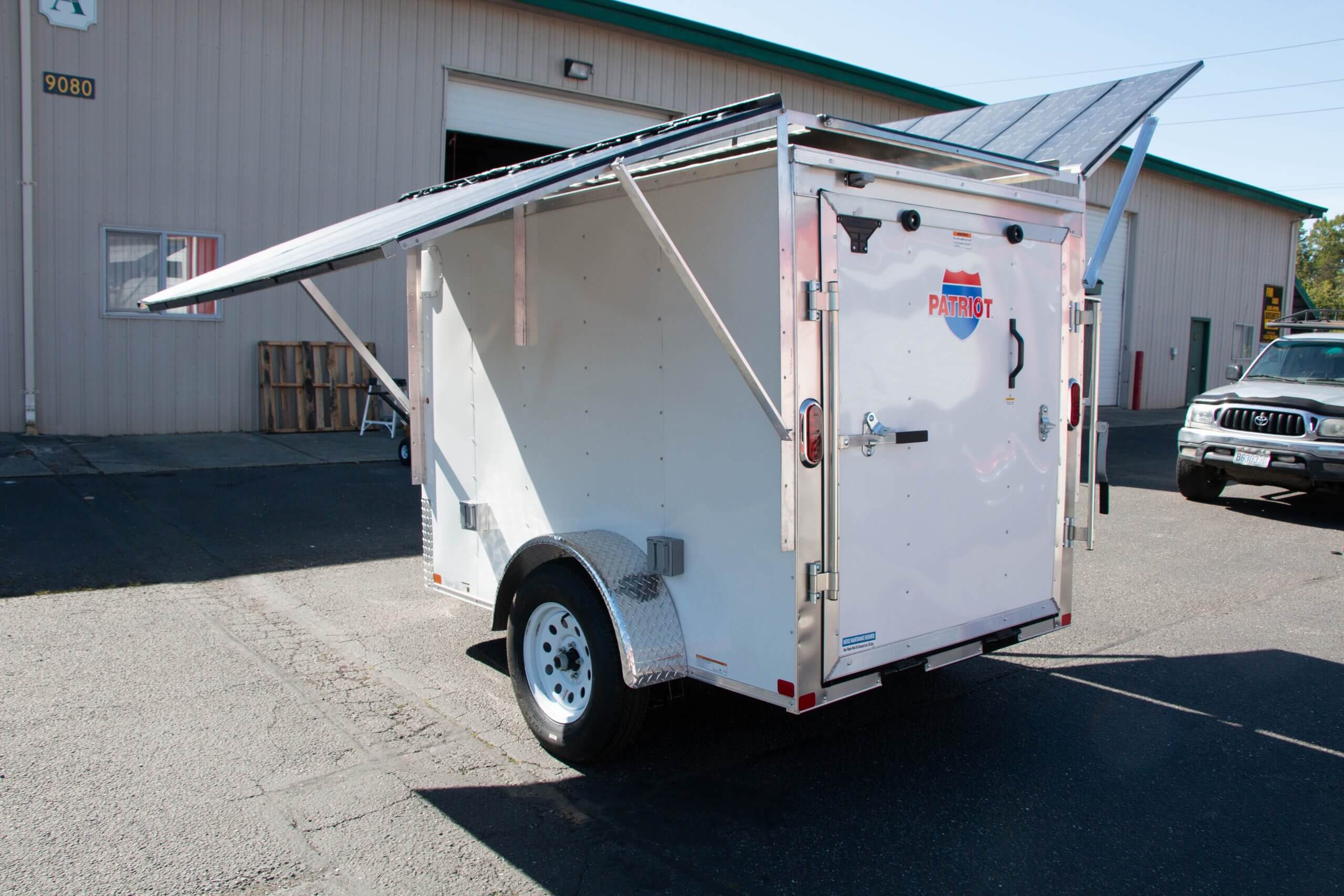

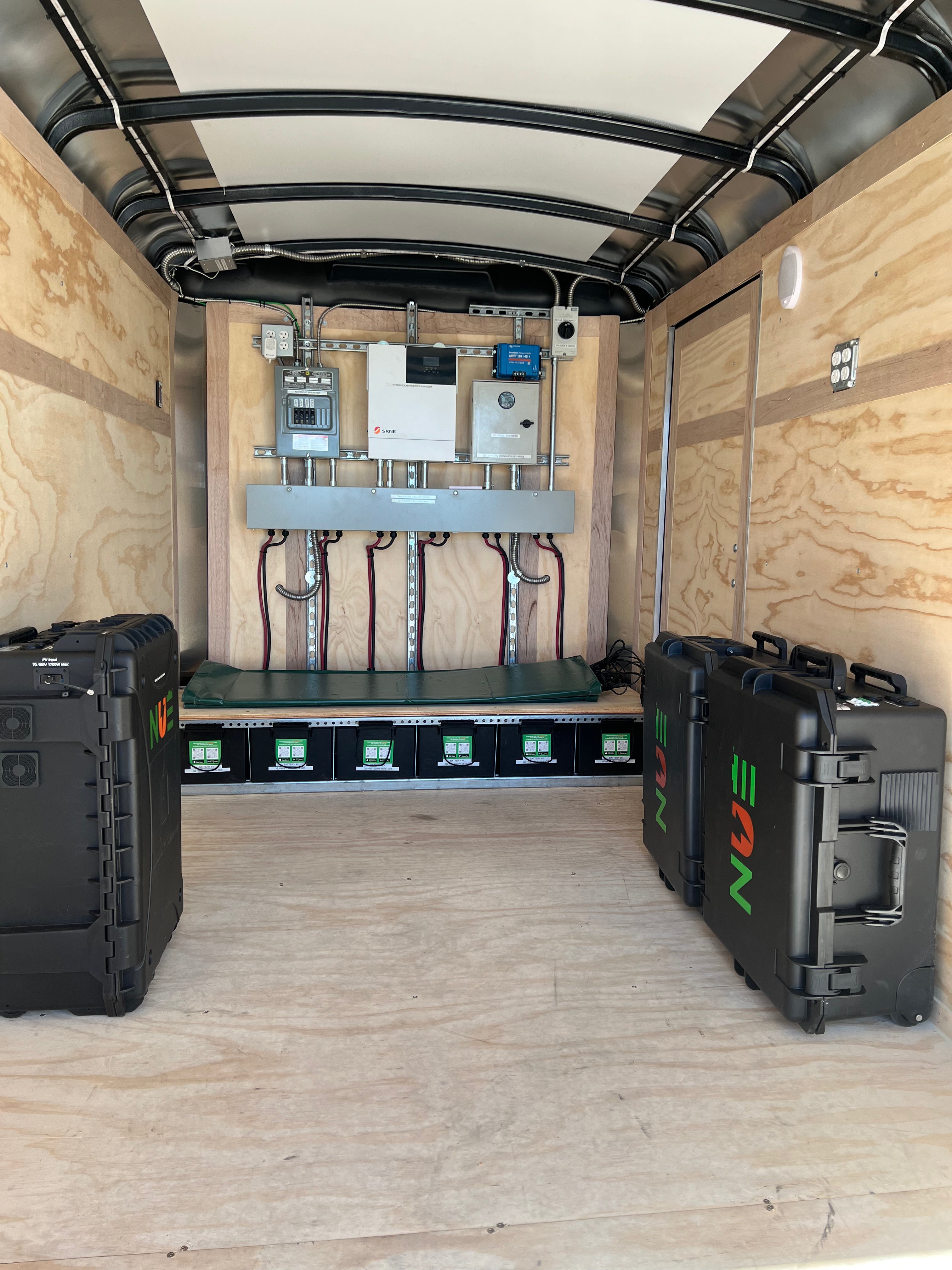

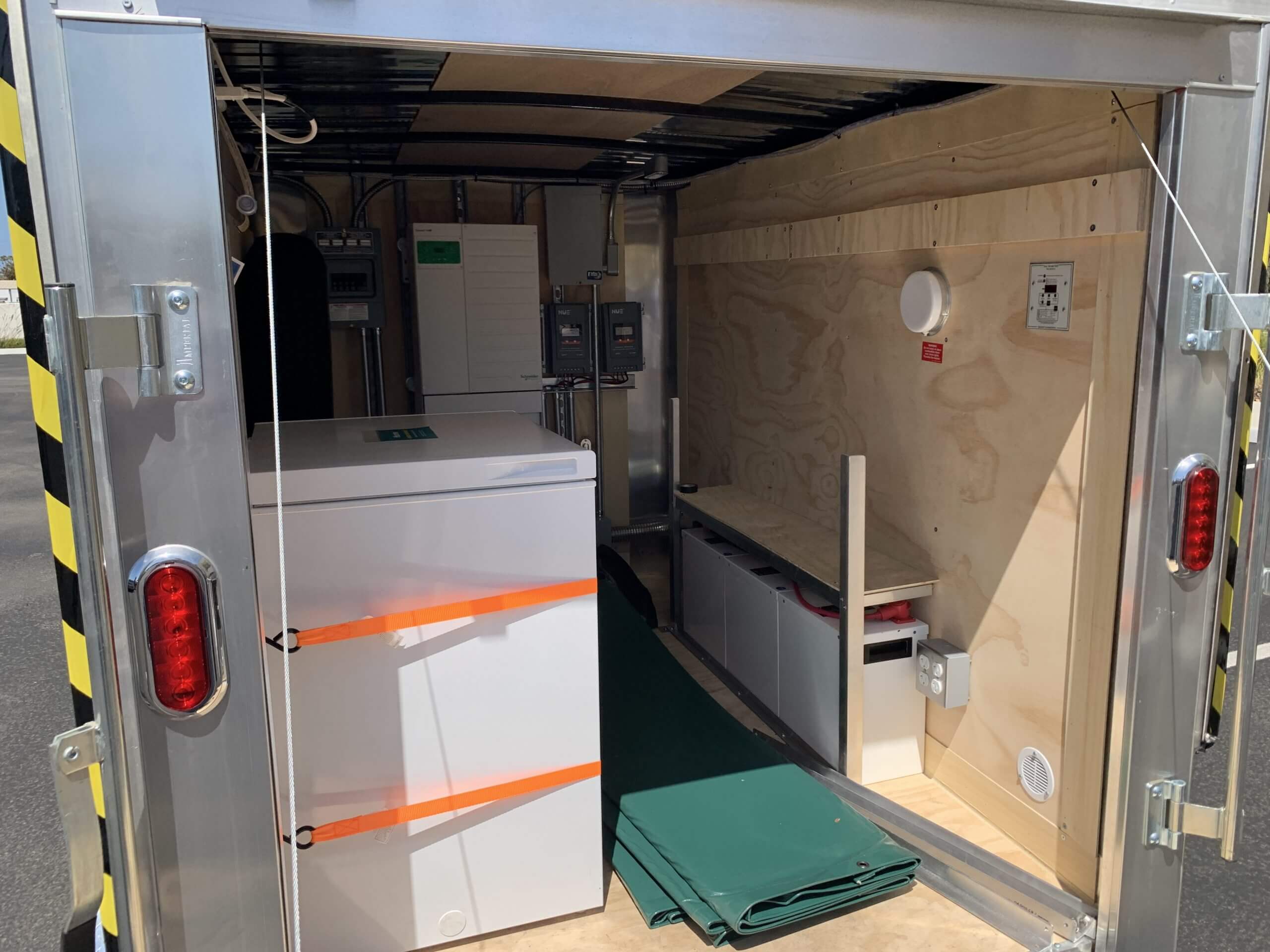

The U.S. designed and manufactured NUE SunWing™ provides the functionality of an enclosed cargo trailer with the added benefit of integrated solar “wings” that provide both power generation as well as protection from the sun (they function as awnings). The enclosed trailer allows greater inverter and battery capacity while also offering secure storage for valuable or sensitive items.

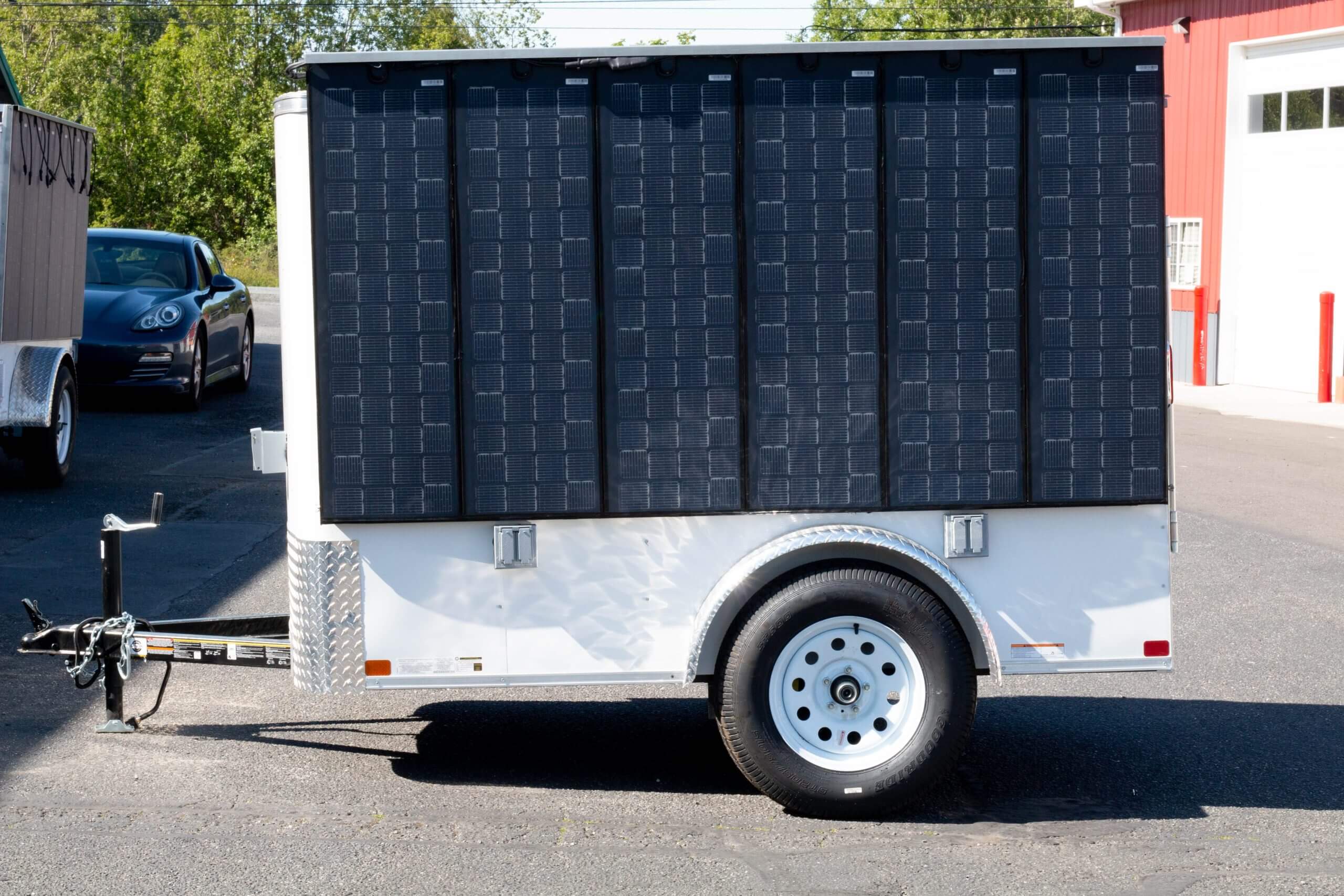

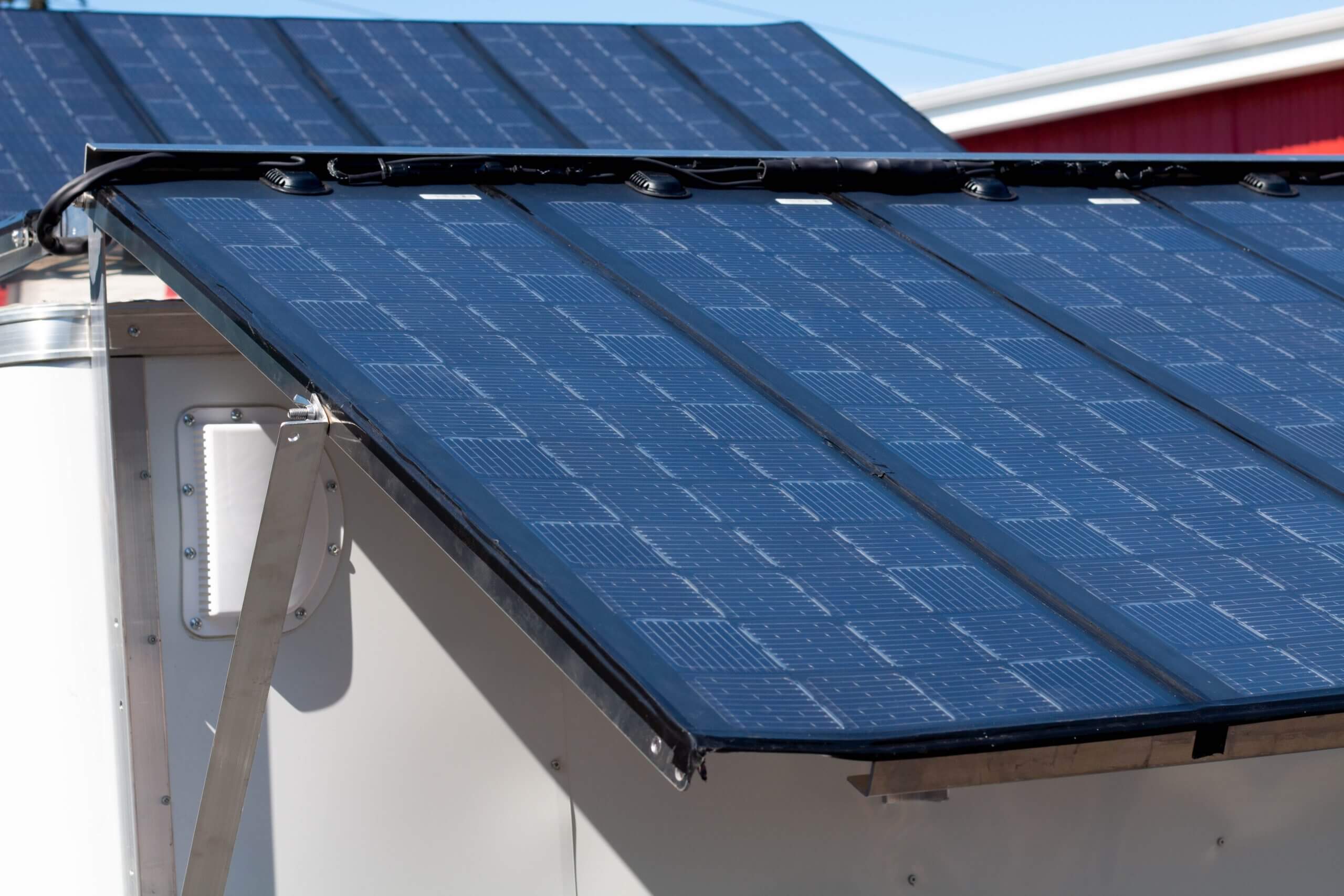

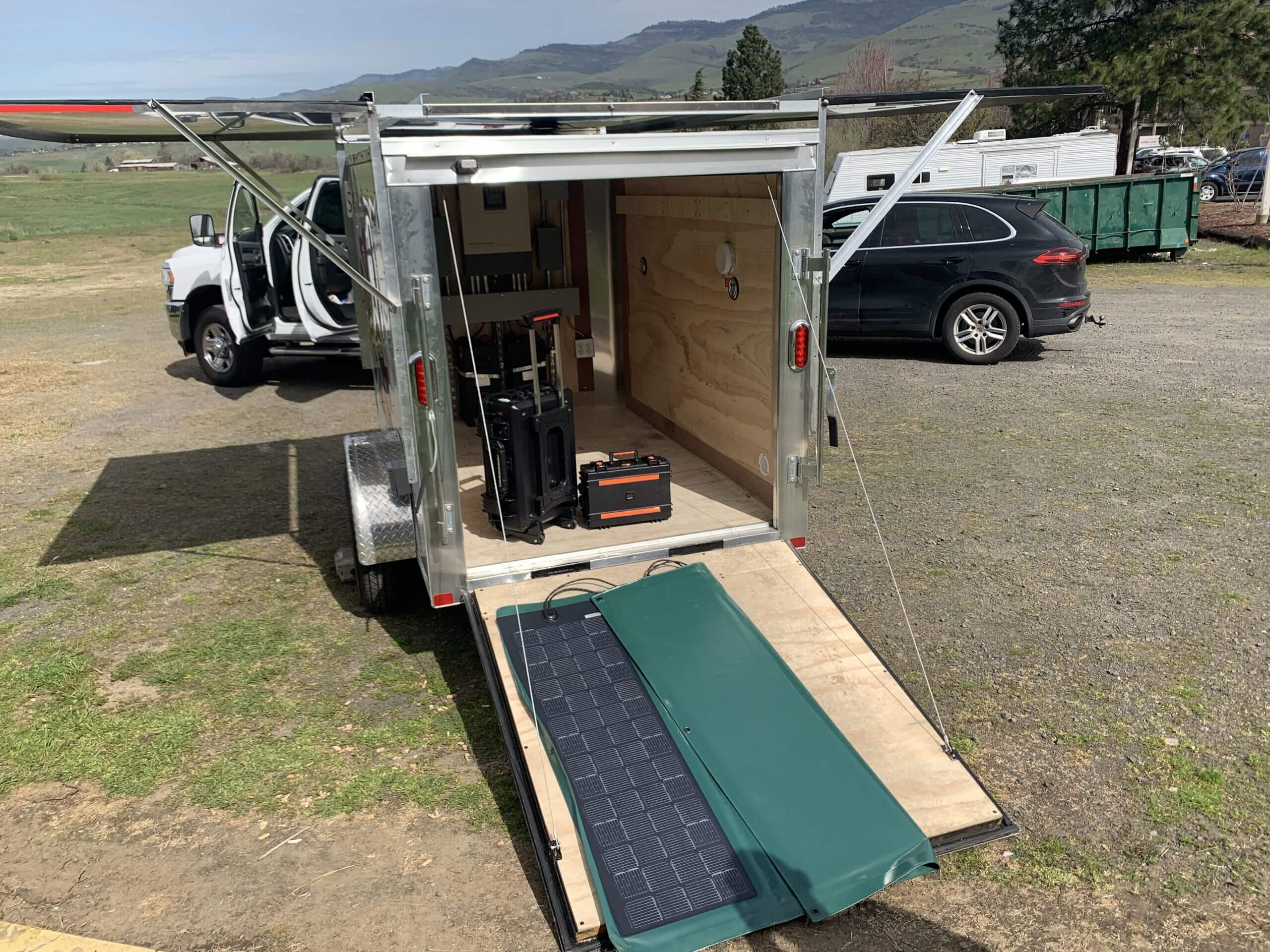

NUE’s proprietary SunWing™ design creates a lightweight, easily deployable solar array that uses the same solar panel technology as the SunTarp™.  The frameless, glass-free panels greatly enhance durability while reducing weight. For added solar generating capacity, extra SunTarps™ can be transported inside the trailer.

The SunWing™ is available in several configurations:

  • Solar capacity 1260W (expandable w/ extra Suntarps in 420W increments)
  • Inverter capacity 5000W to 15000W (120V AC or 240V AC)
  • Battery capacity: 10kWh to 40kWh (larger trailer size can accommodate greater capacity)

 SunWing™ Models:

  • SunWing™ 1260 Economy Cargo
  • SunWing™ 1260 Premium Cargo
  • SunKit™ 2560 Medium Duty
  • SunWing™ 2520 Disaster Response Deluxe
  • SunWing™ Heavy Duty

Deploys in minutes

Power outlets outside and inside

Remote monitoring available

Augment the units solar with portable solar arrays to increase recharging

Transport additional equipment.

Available Autostart Generator option

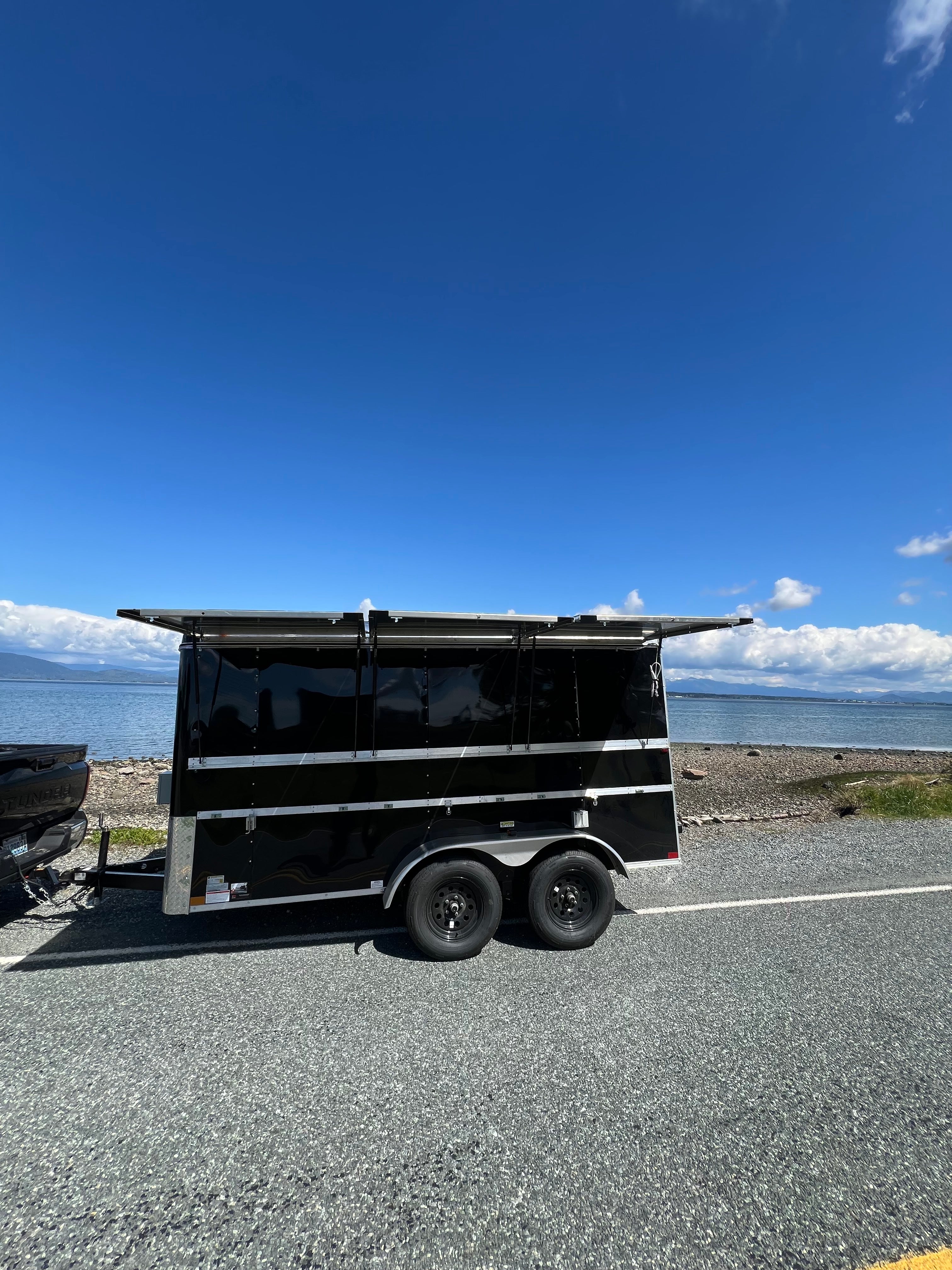

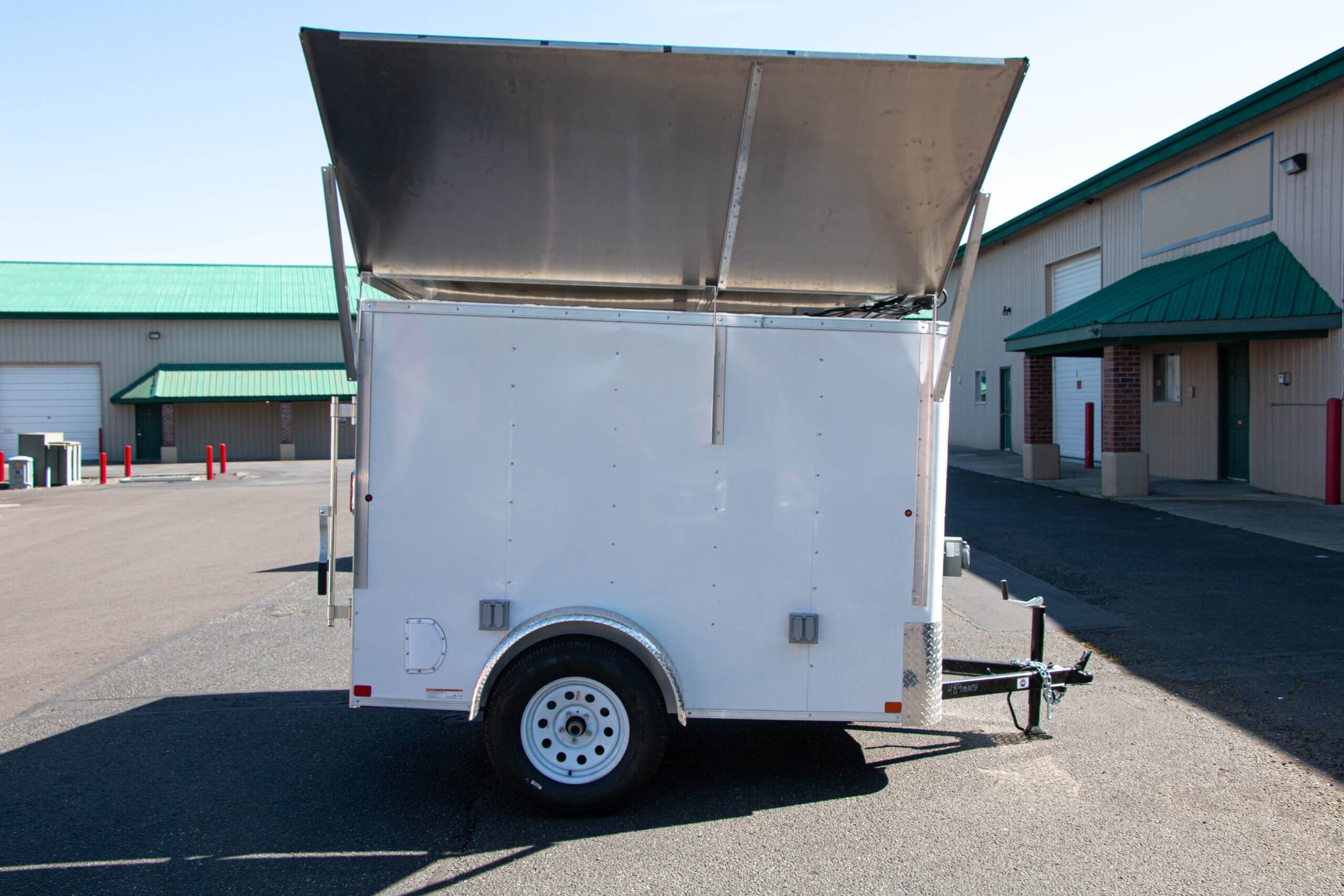

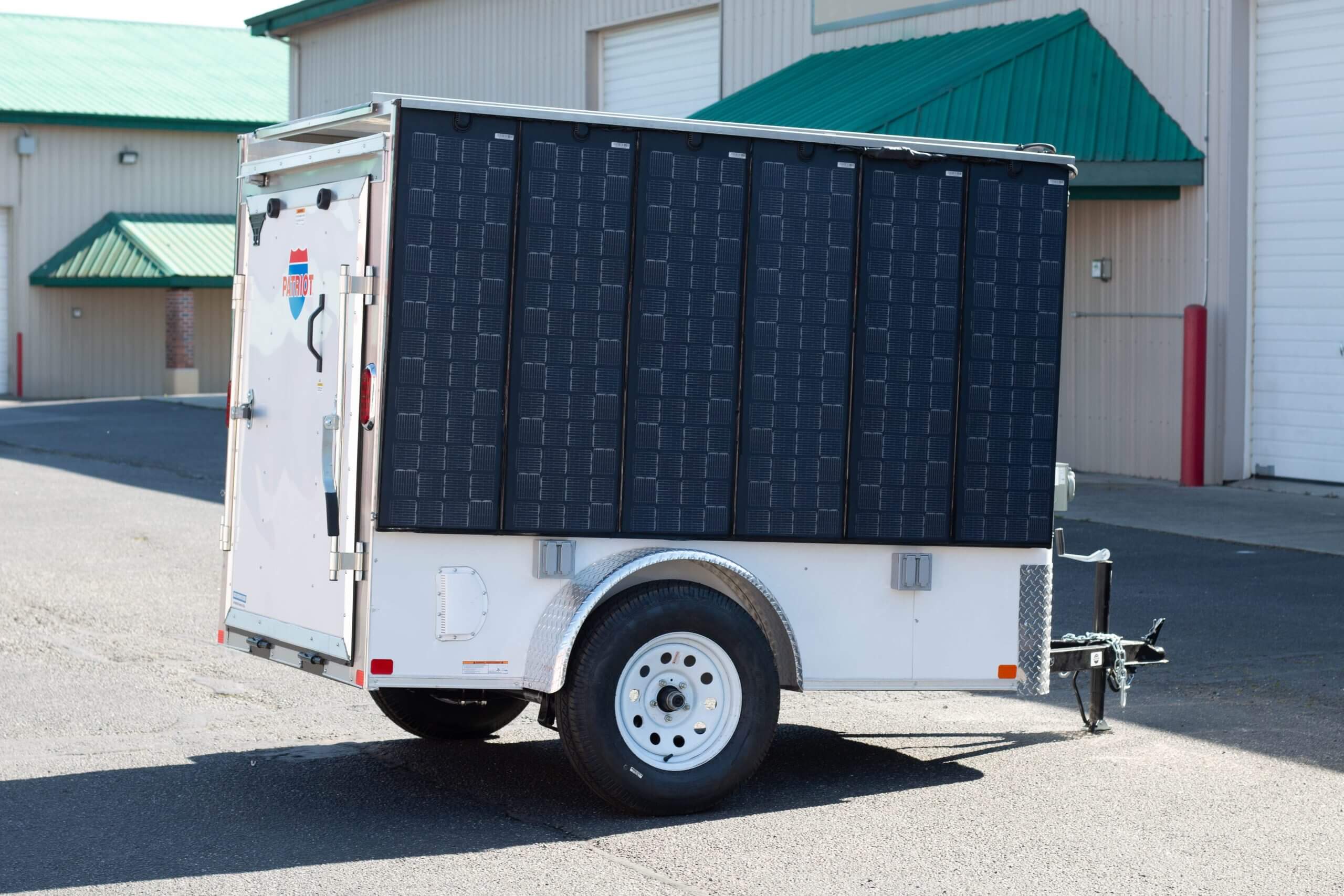

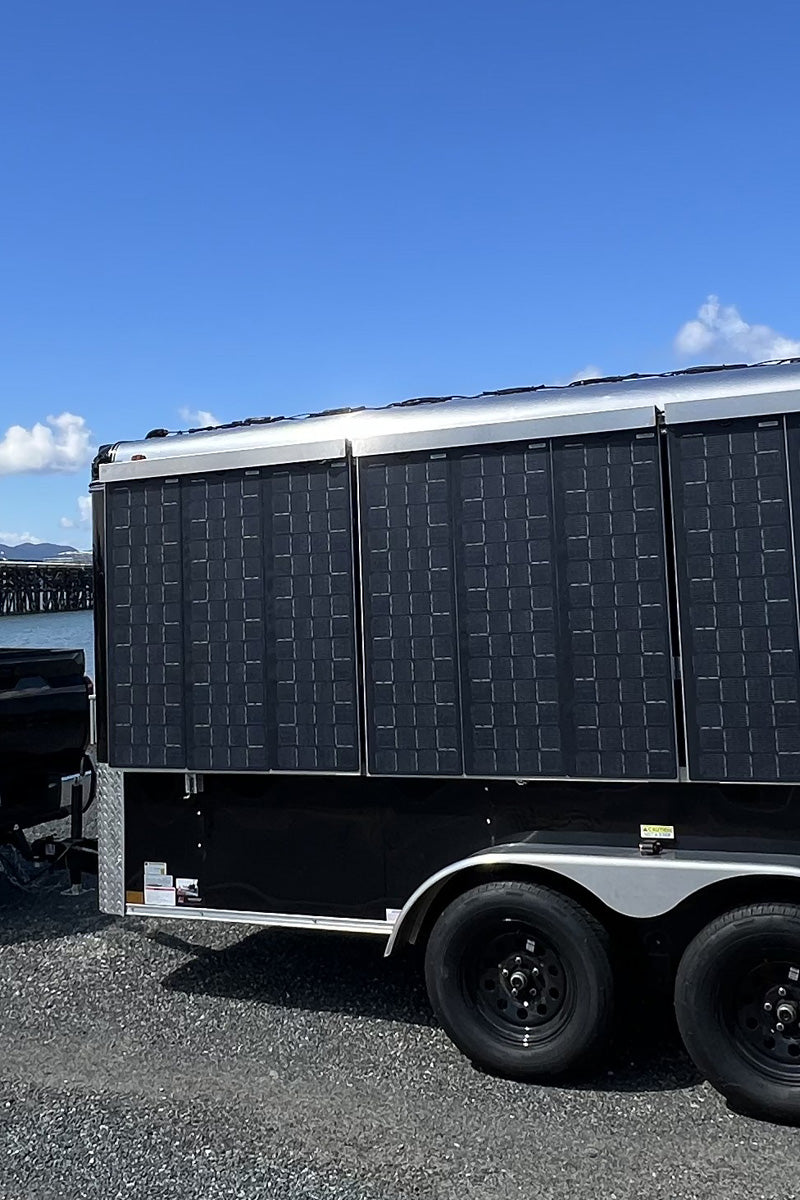

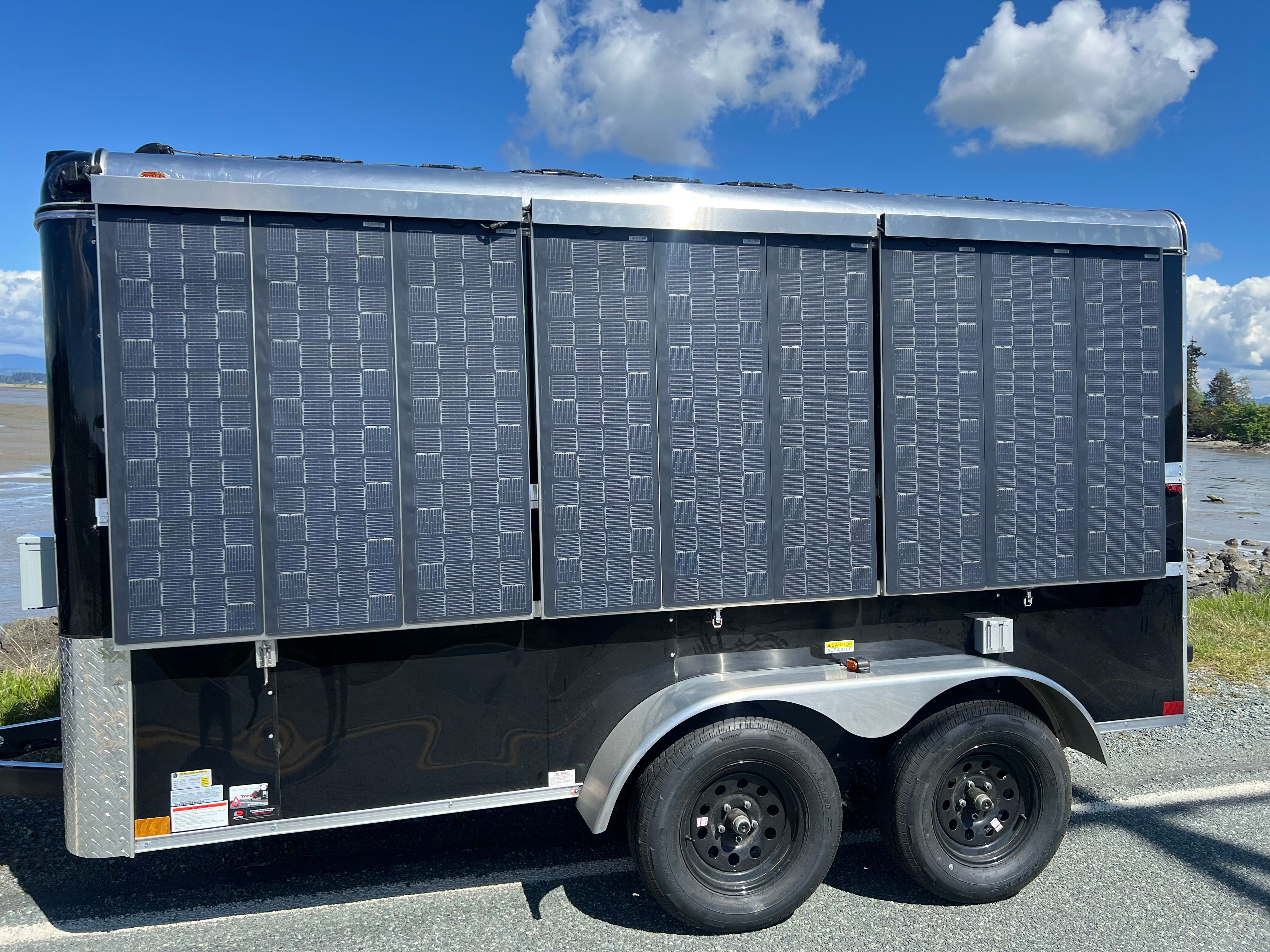

Standard trailer size is 5x8 single axle (2500 pounds).  Dual axle, 6x12 and 7x14 models available as custom order.

Product Data Sheet
SunWing Version Sunwing 5x8
Total System Watts 120V AC Pure Sine Wave Inverter
Battery Type LIFEPO4
Trailer Storage Capacity (kWh) 10
PV Input (kW) 1.26
Additional Package PV Components Optional
Solar Charge Controller 40A MPPT, 150VDC MAX
AC Charger Included
AC 120V Outlets 8
12V DC Outlets Optional
Theft Prevention Tow lock collar and rear padlocks included.
Operating Temperature Range 32°F to 131°F (0°C to 55°C) *Inquire for cold weather upgrades
Battery Cycle Life Estimates @DOD 6,000+ @80% DOD; 8,000+ @50% DOD
Maximum Trailer Weight 3000lbs (1360kg)
Overall Trailer Dimensions (HxWxD) 12’ x 6’7” x 7’0” (3.7m x 1.9m x 2.1m)
Warranty 2 year system warranty with extended warranty option, 1 year warranty on trailer, 5 year manufacturers warranty on batteries

  • Auto-start generator backup
